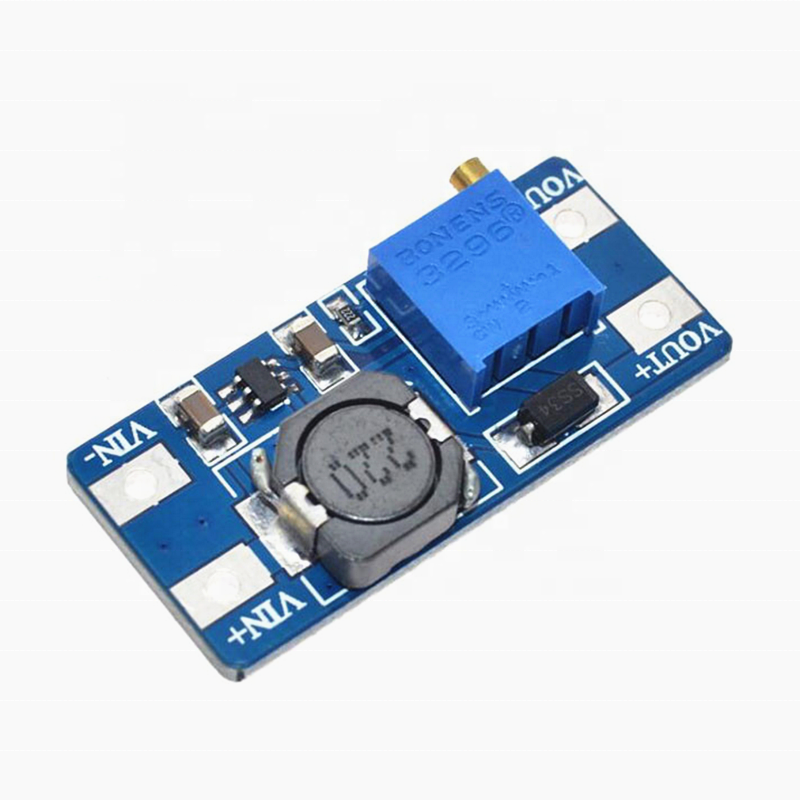

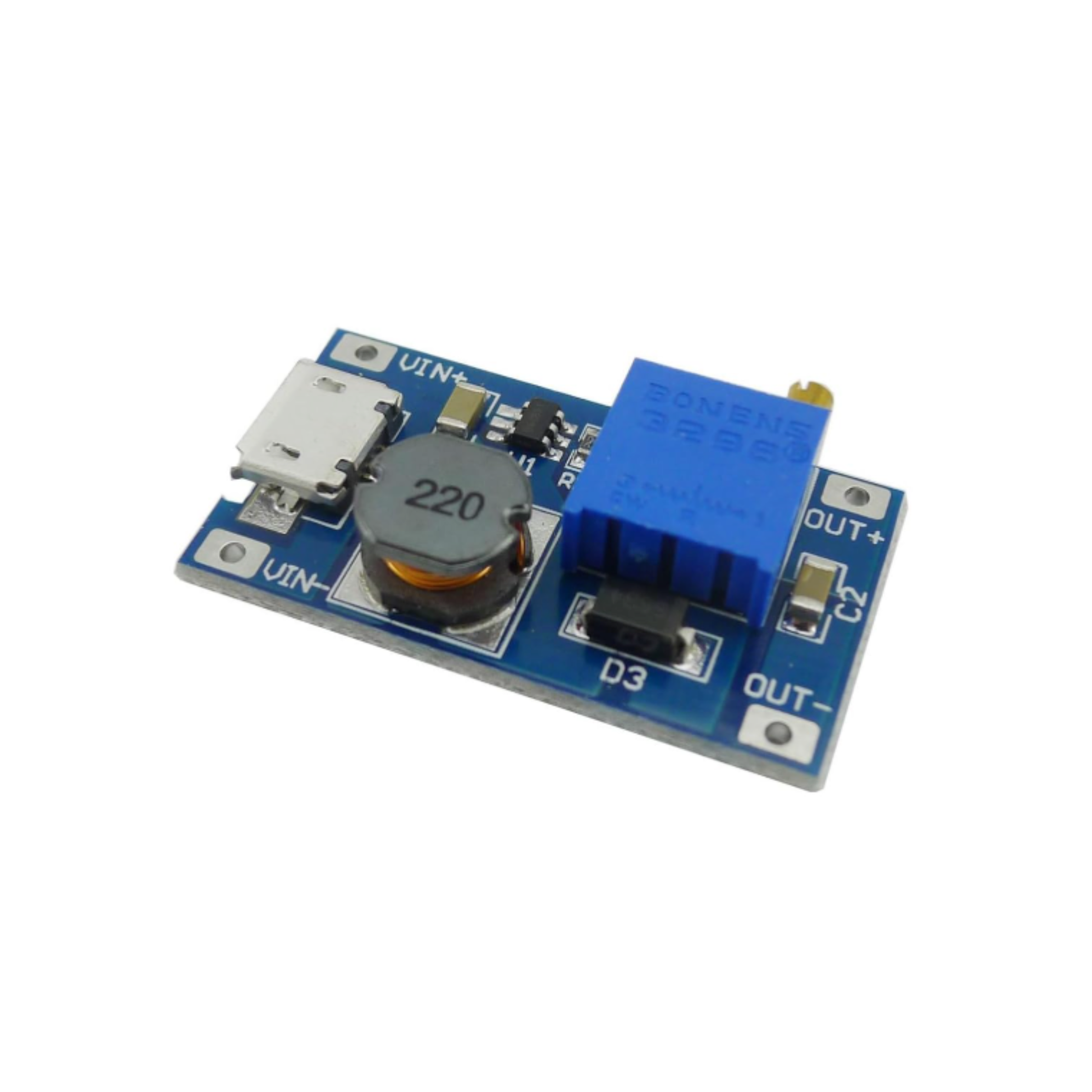

ShillehTek MT3608 DC-DC step up boost converter blue circuit board

MT3608 DC-DC Step-Up Boost Converter 2A Adjustable Power Module for Arduino

$3.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

MT3608 DC-DC boost converter lets you step up 2-28V inputs to precise 5-12V outputs with a multi-turn trimpot; compact, efficient 2A peak current for Arduinos, motors and sensors.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ShillehTek MT3608 DC-DC step up boost converter blue circuit board MT3608 DC-DC Step-Up Boost Converter 2A Adjustable Power Module for ArduinoNo reviews yet $3.99 This item
Black 18650 battery holder box with red and black wires, no cover, for single battery 18650 Battery Holder Box with Wire (No Cover)No reviews yet $5.99
1S 3.7V 3A 2MOS BMS lithium-ion 18650 battery protection circuit board with metal tabs 1S 3.7V 3A 2MOS BMS Li-ion 18650 Battery Protection BoardNo reviews yet $3.99
TP4056 1A LiPo battery charging board with USB Type-C connector and current protection circuitry TP4056 1A LiPo Battery Charging Board with Type-C and Current Protection 5pcsNo reviews yet $3.99
Total for 4 items
$17.96

Products related to this item

Top view of ShillehTek LM2596 step-down buck converter module with digital voltmeter
★★★★★ (8) LM2596 Step-Down Buck Converter Module with Digital Voltmeter $6.99
XL4015 adjustable DC-DC step-down module with digital voltmeter display and blue terminal blocks
No reviews yetXL4015 Adjustable DC-DC Step-Down Module 5A 75W with Digital Voltmeter Display $7.99
Top view of ShillehTek MB102 breadboard power supply with USB port and jumper pins
★★★★★ (4) MB102 Breadboard Power Supply Module 3.3V/5V for Arduino $6.99
TP4056 1A lithium polymer battery charging board with micro USB port and current protection
No reviews yetTP4056 1A 3.7-4.2V LiPo Battery Charging Board with Micro USB & Current Protection $2.50
TP4056 1A LiPo battery charging board with USB Type-C connector and current protection circuitry
No reviews yetTP4056 1A LiPo Battery Charging Board with Type-C and Current Protection 5pcs $3.99
CN3791 6V MPPT solar charger module with multiple connectors and red and black wiring cables
No reviews yetCN3791 6V MPPT Solar Charger Module $5.99

Overview

Product Overview

Convert a single-cell battery into a flexible power source with the MT3608 DC-DC step-up module — it steps low-voltage inputs (for example a 3.7V Li‑ion) up to common voltages such as 5V, 9V, or 12V for Arduino boards, motors, and sensors. The board operates from low inputs (around 2V) and can be adjusted for higher outputs commonly used up to about 28V, delivering reliable performance in portable projects. The switch-mode regulator is designed for efficiency (up to 93%) to preserve battery life, and a precision multi-turn trimmer lets you fine-tune the output; note the potentiometer may require roughly 15–20 counter-clockwise turns before the voltage begins to change. Compact and maker-focused, it’s a practical choice for DIY power solutions with up to 2A peak output and a high-sensitivity trimpot for accurate tuning.

Questions & answers

Frequently asked questions

Yes. This boost converter can raise a low-voltage battery source, such as a single-cell 3.7V Li-ion, to common Arduino supply voltages like 5V, 9V, or 12V when adjusted correctly for the connected board or load.

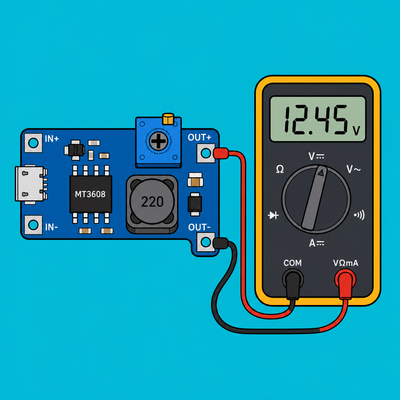

Connect the input source and load, then adjust the onboard multi-turn trimmer while measuring the output with a multimeter. The potentiometer may need roughly 15–20 counter-clockwise turns before the output voltage starts changing.
The module is a DC-DC step-up converter, so its output is set higher than the input. It operates from low inputs around 2V and is commonly adjusted to outputs up to about 28V, with up to 2A peak output depending on conditions.
It is commonly used to power 5V, 9V, or 12V project loads from a single-cell battery. Typical uses include portable Arduino builds, sensor power supplies, small motor projects, and DIY battery-powered electronics.
If the voltage does not change, keep turning the multi-turn potentiometer counter-clockwise while checking with a multimeter; it can take many turns before responding. Also confirm the input battery is connected correctly and the load does not exceed the module’s capability.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

Output Range Boosts input voltages from around 2V up to 28V output for wide compatibility.

Maximum Current Provides up to 2A peak output current to power motors, relays, and LED arrays.

Input Compatibility Works with single-cell batteries such as 3.7V Li-ion and other low-voltage sources.

High Efficiency Switch-mode design achieves efficiency up to 93% to extend battery run time.

Precision Adjustment Multi-turn trimmer potentiometer allows fine voltage tuning, with initial 15–20 turns required before change.

DIY Applications Ideal for building portable power banks, USB chargers, and powering Arduino boards and sensors.
