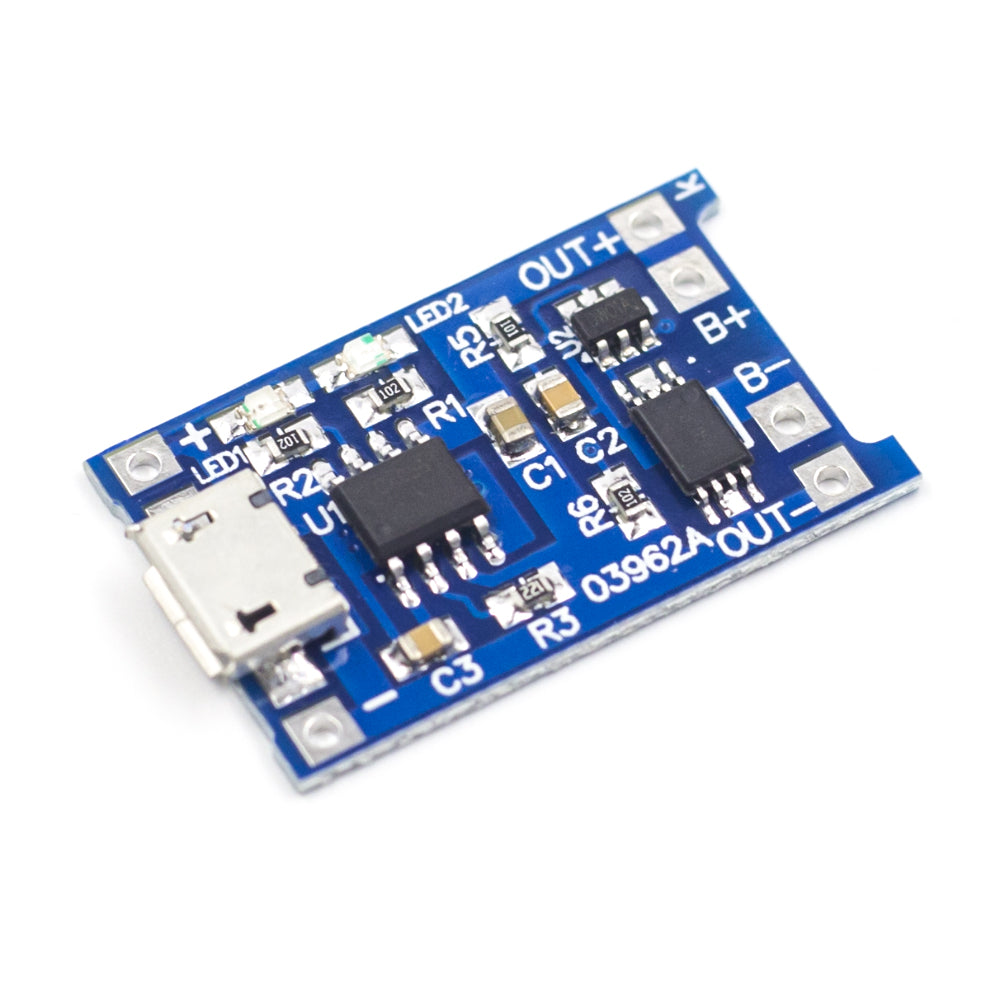

TP4056 1A lithium polymer battery charging board with micro USB port and current protection

TP4056 1A 3.7-4.2V LiPo Battery Charging Board with Micro USB & Current Protection

Name: TP4056 1A 3.7-4.2V LiPo Battery Charging Board with Micro USB & Current Protection
Brand: ShillehTek
SKU: ST-GOEJMXEXPMWE
Price: 2.5 USD
Availability: InStock

SKU ST-GOEJMXEXPMWE

$2.50 USD Shipping & tax calculated at checkout

In stock· Order by 3pm ET and it ships today

TP4056 1A single-cell LiPo/Li-ion charging board for 3.7V to 4.2V batteries via Micro USB, with current protection for Arduino, ESP32, Pico, wearables, robotics, and prototyping.

Pack Size

Free Ground Shipping U.S. orders $35+
Ships from USA Worldwide via DHL
30-day returns Free defect replacement
7-day support Fast email replies

Frequently bought together

TP4056 1A 3.7-4.2V LiPo Battery Charging Board with Micro USB & Current Protection ★★★★★ (1) $2.50 This item

ShillehTek blue transparent Micro USB Cable 0.5m close-up connector view

Micro USB Cable 0.5m (1.64ft)No reviews yet $3.99

Black 18650 battery holder box with red and black wires, no cover, for single battery

18650 Battery Holder Box with Wire (No Cover) ★★★★★ (1) $5.99

Slim green 1S 3.7V 3A 2MOS battery protection board with black components and metal tabs

1S 3.7V 3A 2MOS BMS Li-ion 18650 Battery Protection BoardNo reviews yet $3.99

Total for 4 items

$16.47

Products related to this item

TP4056 1A LiPo battery charging board with USB Type-C connector and current protection circuitry

★★★★★ (1) TP4056 1A LiPo Battery Charging Board with Type-C and Current Protection (5pcs) $6.99

CN3791 6V MPPT solar charger module with multiple connectors and red and black wiring cables

No reviews yetCN3791 6V MPPT Solar Charger Module $5.99

Pack of common diodes including 1N5399 and FR207 in labeled resealable plastic bags

No reviews yet100PCS Common Diode Kit - 1N4148, 1N4007, 1N5819 & 1N5399 $9.99

XL4015 adjustable DC-DC step-down module with digital voltmeter display and blue terminal blocks

No reviews yetXL4015 Adjustable DC-DC Step-Down Module 5A 75W with Digital Voltmeter Display $7.99

Top view of ShillehTek LM2596 step-down buck converter module with digital voltmeter

★★★★★ (8) LM2596 Step-Down Buck Converter Module with Digital Voltmeter $6.99

ShillehTek MT3608 DC-DC step up boost converter blue circuit board

No reviews yetMT3608 DC-DC Step-Up Boost Converter 2A Adjustable Power Module for Arduino $3.99

Overview

Product Overview

A TP4056 single-cell charger with protection built in: the TP4056 charges a 3.7 V Li-ion, LiPo or 18650 cell at up to 1 A (set by R3 = 1.2 kΩ, adjustable from 130 mA) using constant-current then constant-voltage to 4.2 V ± 1%, and auto-recharges when the cell sags. A DW01A with dual 8205A MOSFETs adds over-discharge (about 2.4 V) and over-current (about 3 A) protection on the output.

Feed 4.5–5.5 V through the micro-USB port or the IN+/IN− pads, wire the cell to B+/B− and your load to OUT+/OUT−. A red LED shows charging, green/blue shows full. At about 28 × 17 mm it tucks into battery holders and enclosures for ESP32, Pico and Arduino projects. Single or 5-pack.

Questions & answers

Frequently asked questions

Does this TP4056 charger work with Arduino and ESP32?

It can charge a single-cell 3.7V LiPo or Li-ion battery used in Arduino, ESP32, Raspberry Pi Pico, and similar portable builds. It is a charger module, not a voltage regulator, so your project still needs suitable power regulation.

Is this TP4056 charging board ready to use?

ShillehTek supplies this module with pre-soldered headers, reducing setup time for breadboards or jumper-wire prototyping. You still need to wire the battery and load correctly, and use a compatible single-cell lithium battery.

What battery and input does this TP4056 board need?

It accepts power through Micro USB and charges one 3.7V LiPo or Li-ion cell to 4.2V. The module supports charging up to 1A and includes current protection; it is not for multi-cell battery packs.

Can I build a USB-rechargeable sensor node with it?

Yes. It is suited for USB-rechargeable portable electronics such as sensor nodes, wearables, small robotics, and embedded prototypes. Pair it with a single-cell lithium battery and any voltage regulation required by your controller and sensors.

Why is my TP4056 module not powering my device?

Check battery polarity, charge state, wiring, and whether your device requires a regulated voltage different from the battery voltage. The TP4056 charging function does not replace a project-specific regulator or power-path design.
