DS18B20 Waterproof Digital Temperature Sensor Probe 1M for Arduino & Raspberry Pi
$5.99 USD
Shipping
& tax calculated at checkout
In stock· Order by 3pm ET and it ships today
Waterproof DS18B20 1-Wire temperature probe (1m) for Arduino and Raspberry Pi, ideal for liquids, outdoor, and monitoring projects.
- Free Ground Shipping U.S. orders $35+
- Ships from USA Domestic fulfillment
- 30-day returns Free defect replacement
- 7-day support Fast email replies
Frequently bought together
DS18B20 Waterproof Digital Temperature Sensor Probe 1M for Arduino & Raspberry PiNo reviews yet
$5.99
This item
Total for 4 items
$32.76
Products related to this item
★★★★★
(54)
BME280 Pre-Soldered Temperature, Pressure & Humidity Sensor for Arduino & Raspberry Pi
$9.98
★★★★★
(28)
DHT22 Temperature & Humidity Sensor for Arduino & Raspberry Pi
$8.00
★★★★★
(28)
DHT11 Temperature & Humidity Sensor for Arduino & Raspberry Pi
$6.00
★★★★★
(43)
BMP280 Pre-Soldered Pressure & Temperature Sensor for Arduino & Raspberry Pi
$7.00
★★★★★
(40)
BMP180 Pre-Soldered Pressure & Temperature Sensor for Arduino & Raspberry Pi
$6.25
★★★★★
(9)
MLX90614 Pre-Soldered IR Temperature Sensor Module for Arduino & Raspberry Pi
$16.49
Overview
Product Overview

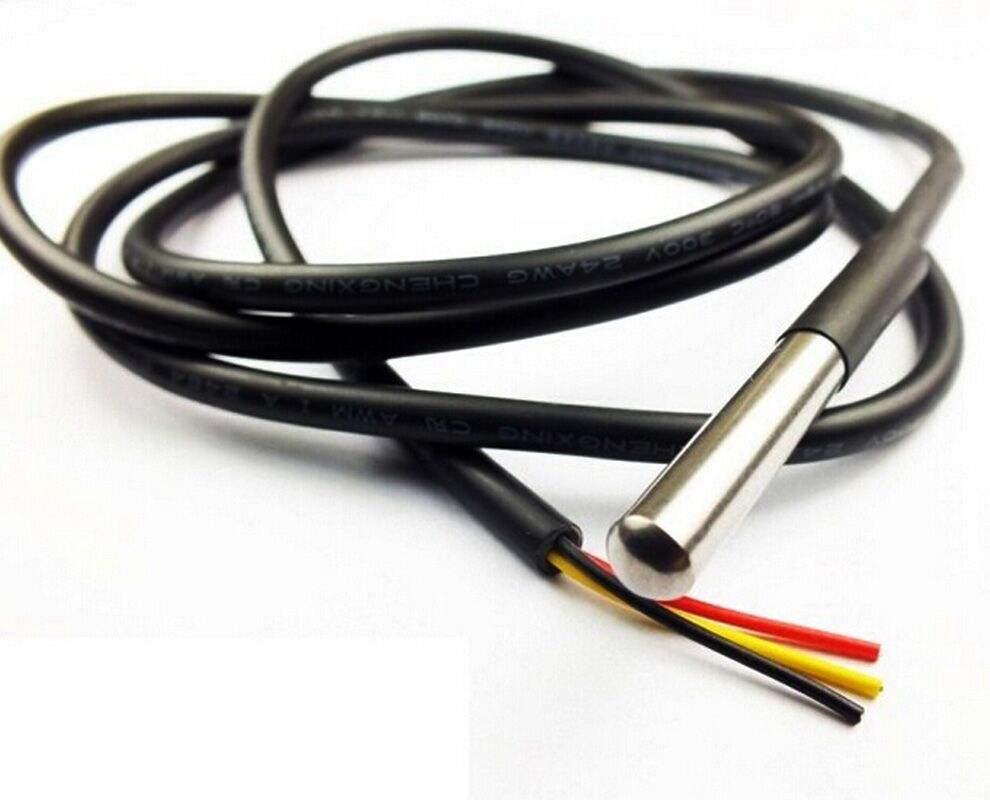

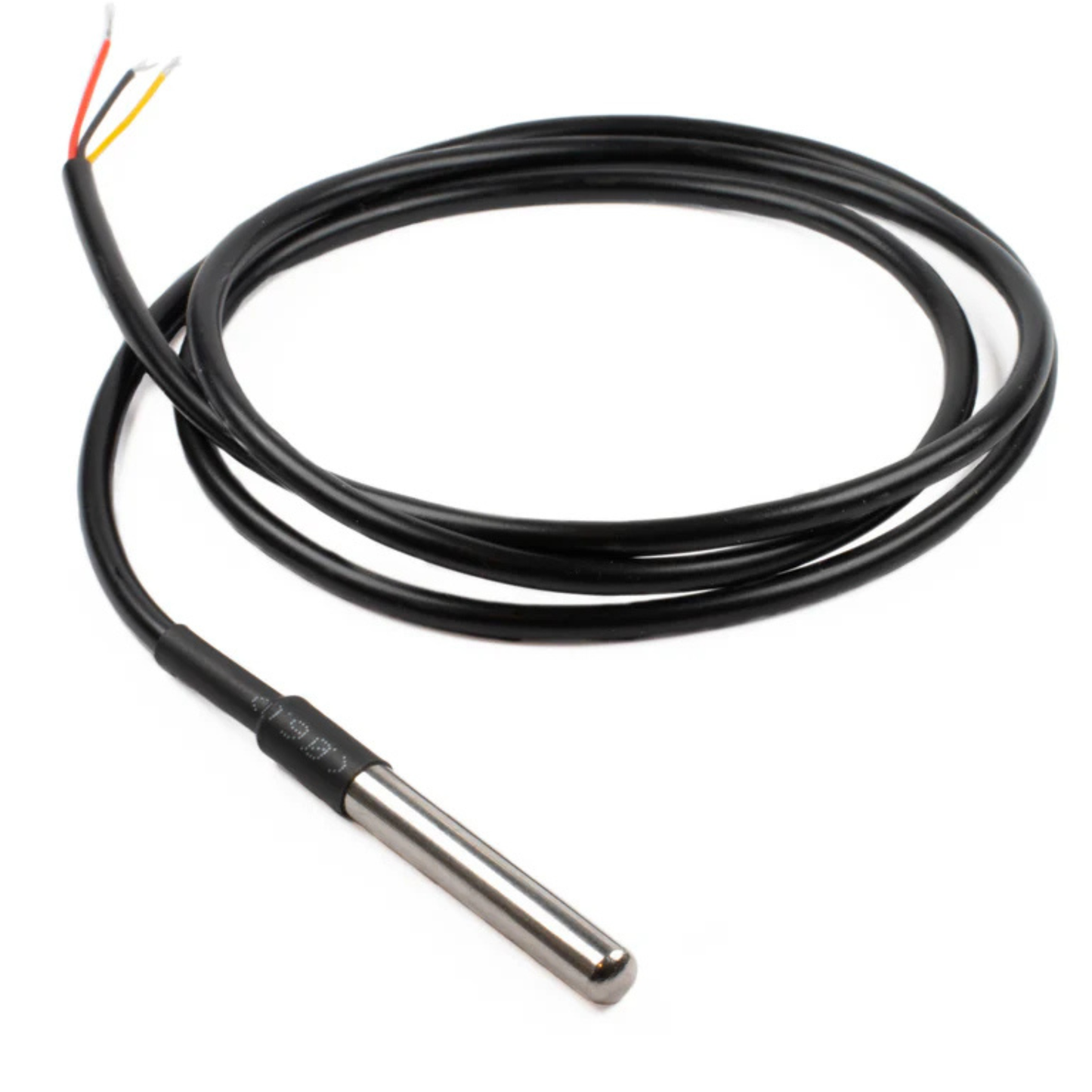

The DS18B20 Waterproof Digital Temperature Sensor Probe (1 meter) is a rugged, sealed temperature probe that gives accurate digital temperature readings using the 1-Wire interface. It is perfect for Arduino and Raspberry Pi projects because you can run multiple DS18B20 sensors on a single data pin and read stable temperatures without analog noise issues. The waterproof metal probe format makes it ideal for water tanks, aquariums, outdoor experiments, fermentation setups, HVAC monitoring, and any project where a normal bare sensor would not survive.
Questions & answers
Frequently asked questions
Yes. It uses the standard DS18B20 digital 1-Wire interface, so it works with Arduino and Raspberry Pi projects that support 1-Wire temperature sensors. Raspberry Pi setups typically require enabling the 1-Wire interface in software.
The sensor element is sealed inside a waterproof metal probe with a 1 meter cable, so it is ready for wet or outdoor placement. You still need to wire it to your controller and use suitable DS18B20/1-Wire software.
It communicates digitally over 1-Wire, allowing multiple DS18B20 sensors to share a single data pin. Typical wiring uses power, ground, and data, with a pull-up resistor on the data line for reliable communication.
Yes. The sealed waterproof probe format is intended for water tanks, aquariums, fermentation setups, outdoor experiments, and HVAC monitoring. It provides digital temperature readings, which helps avoid analog noise issues common with long sensor leads.
Common causes are reversed wiring, missing data-line pull-up resistor, no common ground, or the 1-Wire interface not enabled on a Raspberry Pi. Also verify the wire color mapping, because waterproof probe cable colors can vary by supplier.
Have other questions?
Chat with our US-based team — we usually reply fast.
What's included
Features & Specs
Reference
Documents
Full Product Manual ShillehTek DS18B20 Waterproof Digital Temp Sensor Probe 1M for Arduino Pi | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.Learn
