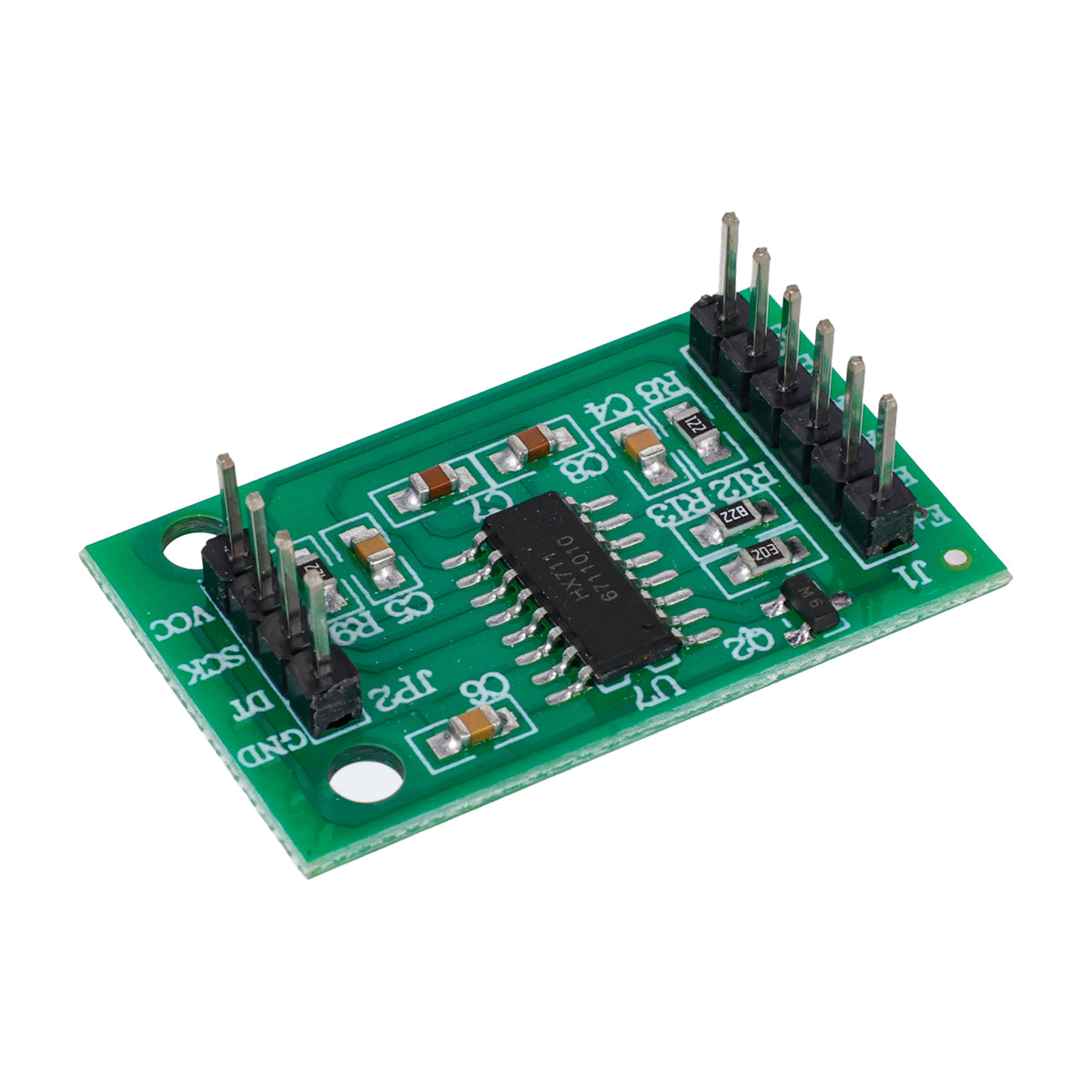

Green HX711 load cell amplifier module angled view with pins for Arduino

HX711 Pre-Soldered Large Load Cell Amplifier Module for Arduino

SKU AB167

$6.79 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

HX711 24-bit load cell amplifier module for Arduino and microcontrollers, converting strain gauge signals for scales, force measurement, weight sensing, robotics, and prototyping; pre-soldered.

Bulk eligible

Mix any Bulk eligible products — discount applies to your total quantity across the cart.
Auto-applied at checkout
Buy 5+ $6.46 each Save 5%
Buy 10+ $6.12 each Save 10%
View all bulk eligible products →
  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
Green HX711 load cell amplifier module angled view with pins for Arduino HX711 Pre-Soldered Large Load Cell Amplifier Module for Arduino ★★★★★ (1) $6.79 This item
Top and bottom views of Arduino Nano V3.0 Pre-Soldered CH340G ATmega328P board Arduino Nano V3.0 Pre-Soldered CH340G ATmega328PNo reviews yet $5.99
ShillehTek LCD1602 16x2 LCD display module with blue screen close-up LCD1602 16x2 LCD Display Module for Arduino & Raspberry Pi ★★★★★ (2) $7.99
Blue Micro SD TF Card Adapter with metal slot and pins ShillehTek module Micro SD TF Card Adapter Reader Module SPI Interface for ArduinoNo reviews yet $4.49
Total for 4 items
$25.26

Products related to this item

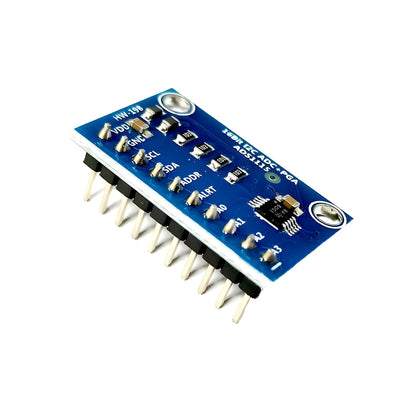

Close-up of ShillehTek Pre-Soldered ADS1115 ADC Analog to Digital Converter Module showing pins and components
★★★★★ (30) ADS1115 Pre-Soldered ADC Analog to Digital Converter Module for Arduino & Raspberry Pi $9.75
ShillehTek AD8232 ECG Module kit with colored electrode cables and adhesive pads
★★★★★ (2) AD8232 ECG Module - Heart Rate & ECG Monitoring Sensor Kit $11.99
ShillehTek EMG Muscle Signal Sensor Module with cables and ECG electrodes
★★★★★ (2) EMG Muscle Signal Sensor Module Kit for Arduino, Raspberry Pi & Robotics $13.99
INA219 I2C bi-directional current and power monitoring sensor module with green terminal block and pins
No reviews yetINA219 I2C Bi-Directional Current & Power Monitoring Sensor Module with Soldering and Foam $7.99
MAX6675 thermocouple module with K-type sensor terminals and pin headers for temperature measurement
No reviews yetMAX6675 Pre-Soldered Module with K-Type Thermocouple Sensor (Measures up to 1024 Degrees) $7.49
ShillehTek WCS1700 current sensor module with white sensor ring and blue potentiometer
No reviews yetWCS1700 70A Hall-Effect Current Sensor Module with Overcurrent Detection $10.99

Overview

Product Overview

A large-format load cell amplifier module using the HX711 24-bit ADC. Presoldered for quick integration. Ideal for scales, force measurement, and weight sensing projects with Arduino and microcontrollers.

The HX711 is a 24-bit analog-to-digital converter purpose-built for weigh scales: it amplifies the tiny signal from a standard 4-wire bridge load cell and returns a clean digital reading over a simple two-pin (DT/SCK) interface. Two differential input channels are available - channel A with selectable gain of 128 or 64 for the load cell, and channel B at gain 32.

This large-format board brings the pre-soldered header and connection pads out on a roomier PCB that is easier to mount and wire in enclosures. Well-supported libraries exist for Arduino, ESP32, and Raspberry Pi Pico, so you can build kitchen scales, force gauges, filament weight monitors, and beehive or inventory scales quickly.

Questions & answers

Frequently asked questions

Yes. This HX711 load cell amplifier is intended for Arduino and other microcontrollers, and can be used with Raspberry Pi GPIO through suitable software. You still need a compatible load cell and calibration code for accurate readings.
Yes. The module is pre-soldered so it can be wired into a project without soldering the header pins first. Connect the load cell and microcontroller wiring, then run an HX711 library or sketch to calibrate it.
The HX711 uses a 24-bit ADC to digitize the tiny signal from a strain-gauge load cell. It communicates with a microcontroller over digital data and clock lines rather than providing a simple analog voltage output.
Yes. Pair it with a suitable load cell, a stable mechanical platform, and an Arduino or similar controller to build a digital scale. It is also useful for force measurement and weight-sensing projects.
Unstable readings are usually caused by incorrect load cell wiring, missing calibration, loose connections, electrical noise, or mechanical movement in the scale frame. Verify the load cell wiring, keep connections secure, and calibrate with a known weight.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

HX711 ADC HX711 24-bit ADC amplifies load cell signals for precise digital weight and force measurement.

Arduino Compatible Works with Arduino and other microcontroller-based load cell and scale projects.

Load Cell Amplifier Designed for reading load cells in scales, weight sensing, and force measurement applications.

Large Format Board Large-format module layout is suited for larger load cell amplifier builds and easier integration.

Pre-Soldered Module Pre-soldered construction helps speed up wiring and setup in prototypes.

Common Sensor Chip Uses the HX711 chip, a widely used solution for load cell amplifier and weighing system designs.

Reference

Documents

Full Product Manual HX711 Pre-Soldered Large Load Cell Amplifier Module for Arduino | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.

Datasheet

Datasheet

Learn

Related Tutorials

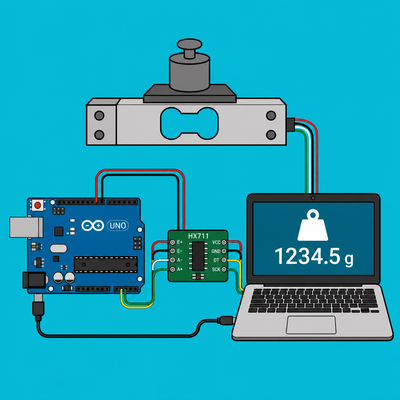

Arduino Uno HX711 Load Cell: Read Weight in Serial Monitor
Apr 03, 2026Tutorial

Arduino Uno HX711 Load Cell: Read Weight in Serial Monitor

Build an Arduino Uno weight sensor using an HX711 load cell amplifier and a load cell, then read and calibrate live m...
Tutorial Read More →

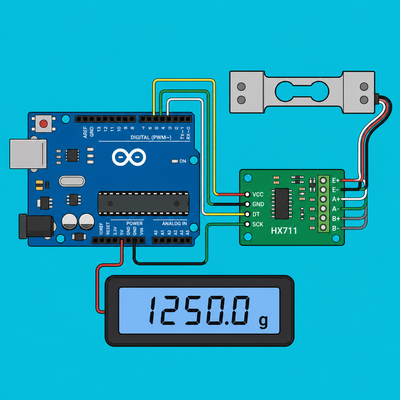

Arduino HX711 Load Cell: Build a Calibrated Digital Scale
May 14, 2026Tutorial

Arduino HX711 Load Cell: Build a Calibrated Digital Scale

Build an Arduino digital scale with the HX711 load cell amplifier, calibrate it with a known weight, and stream stabl...
Tutorial Read More →
ESP32 HX711: Beehive Weight and Climate Dashboard
May 19, 2026Tutorial

ESP32 HX711: Beehive Weight and Climate Dashboard

Build an ESP32 beehive monitor with HX711 weight sensing plus DS18B20 and DHT22 climate data, then view trends remote...
Tutorial Read More →
ESP32-CAM HX711 PIR: Motion photos with seed weight
May 27, 2026Tutorial

ESP32-CAM HX711 PIR: Motion photos with seed weight

Build an ESP32-CAM bird feeder that uses a PIR sensor to snap photos and an HX711 load cell to log seed weight to a W...
Tutorial Read More →

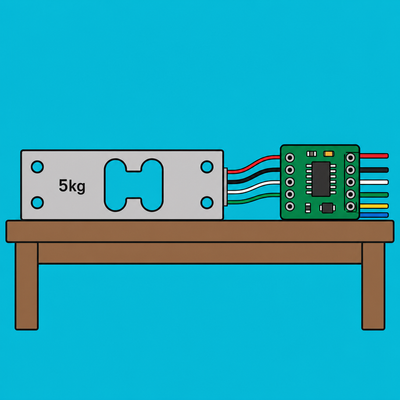

Build an Arduino Digital Scale with a 5kg Load Cell and HX711 Amplifier
Jul 30, 2026Tutorial

Build an Arduino Digital Scale with a 5kg Load Cell and HX711 Amplifier

Turn a 5kg bar load cell and an HX711 amplifier into an accurate Arduino weighing scale: mount the cell correctly, wi...
Tutorial Read More →

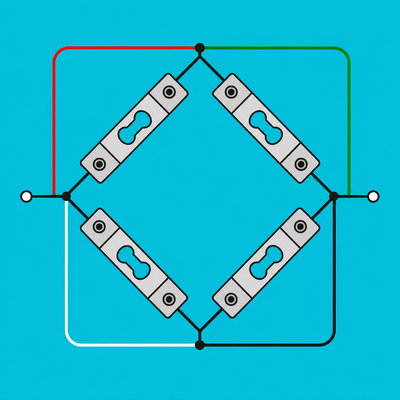

Arduino HX711 Load Cells: Build Calibrated Scale
