WCS1700 70A Hall-Effect Current Sensor Module with Overcurrent Detection

$10.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

WCS1700 70A Hall current sensor delivers heavy-duty 70A capacity, ideal for protecting electric motors, scooters and solar system power electronics from sudden overcurrent events in high-load applications.

Bulk eligible

Mix any Bulk eligible products — discount applies to your total quantity across the cart.
Auto-applied at checkout
Buy 5+ $10.45 each Save 5%
Buy 10+ $9.90 each Save 10%
View all bulk eligible products →
  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ShillehTek WCS1700 current sensor module with white sensor ring and blue potentiometer WCS1700 70A Hall-Effect Current Sensor Module with Overcurrent DetectionNo reviews yet $10.99 This item
Close-up of ShillehTek Pre-Soldered ADS1115 ADC Analog to Digital Converter Module showing pins and components ADS1115 Pre-Soldered ADC Analog to Digital Converter Module for Arduino & Raspberry Pi ★★★★★ (30) $9.75
ESP32 Dev Board 4MB CP2102 USB-C with 38 pins detailed circuit view ESP32 Dev Board 4MB CP2102 USB-C Pre-Soldered 38-PinNo reviews yet $7.99
Top view of ShillehTek LM2596 step-down buck converter module with digital voltmeter LM2596 Step-Down Buck Converter Module with Digital Voltmeter ★★★★★ (8) $6.99
Total for 4 items
$35.72

Products related to this item

INA219 I2C bi-directional current and power monitoring sensor module with green terminal block and pins
No reviews yetINA219 I2C Bi-Directional Current & Power Monitoring Sensor Module with Soldering and Foam $7.99

Overview

Product Overview

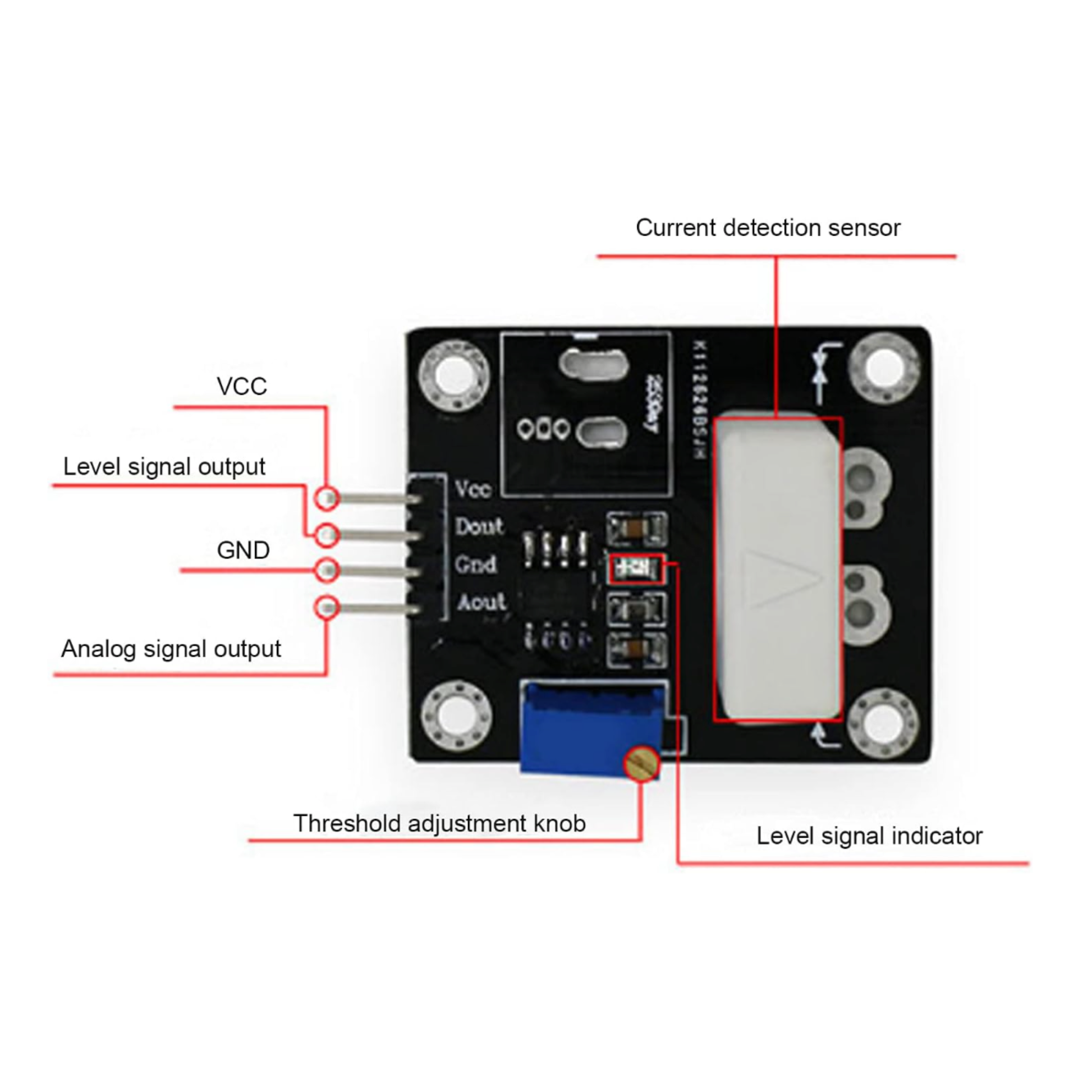

The WCS1700 is a Hall-effect current sensor module designed to monitor heavy electrical loads safely up to 70A. It measures AC or DC currents via a non-contact magnetic induction method so the sensing conductor passes through the sensor hole and your controller remains galvanically isolated from the high-power circuit. An on-board protection circuit asserts a digital fault signal when a user-set trip point is exceeded, effectively acting as a smart electronic fuse for motors and power supplies. A potentiometer lets you dial in a specific Overcurrent Threshold, while dual outputs provide an Analog Output (Aout) for real-time logging and a Digital Output (Dout) for immediate fault detection; an onboard LED indicates overcurrent status for easier debugging.
