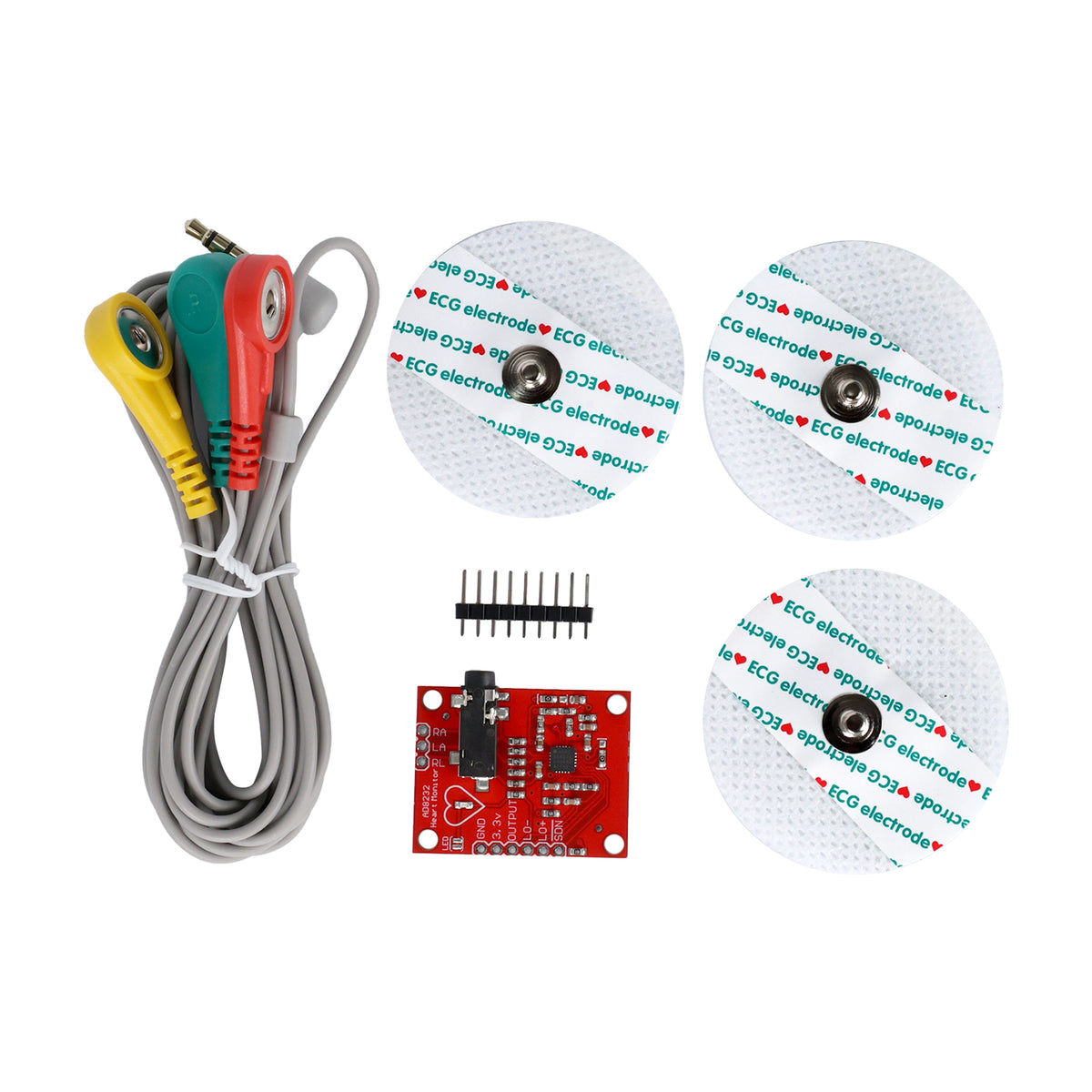

ShillehTek AD8232 ECG Module kit with colored electrode cables and adhesive pads

AD8232 ECG Module - Heart Rate & ECG Monitoring Sensor Kit

SKU NB063

$11.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

AD8232 ECG heart rate monitoring sensor module for biopotential signal acquisition, real-time ECG waveform and pulse tracking, with analog output for Arduino, ESP32, wearables, and biomedical prototyping.

Bulk eligible

Mix any Bulk eligible products — discount applies to your total quantity across the cart.
Auto-applied at checkout
Buy 5+ $11.40 each Save 5%
Buy 10+ $10.80 each Save 10%
View all bulk eligible products →
  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies

Overview

Product Overview

AD8232 ECG Module is a compact heart rate and ECG monitoring sensor kit for capturing the heart’s electrical activity and converting biopotential signals into clean analog output for real-time pulse tracking, waveform visualization, and ECG measurement. Built around the AD8232 analog front-end, it includes electrodes and lead cables for fast connection to Arduino, ESP32, and other microcontrollers with analog input for data logging and signal processing. Ideal for wearable health devices, biomedical prototyping, and education, this ECG sensor helps developers build portable cardiac monitoring experiments and human biopotential projects.

Questions & answers

Frequently asked questions

The AD8232 ECG Module is compatible with Raspberry Pi when paired with an ADC (Analog-to-Digital Converter) since Raspberry Pi doesn’t have a native analog input required to read the module's output.
The AD8232 ECG Module comes with electrodes and lead cables for quick connections to an Arduino board. Simply connect the module's output to an analog input pin on the Arduino to start capturing ECG data.
The AD8232 ECG Module outputs an analog signal representing the heart's electrical activity, which can be fed into any microcontroller with an analog input for processing or visualization.
Yes, the AD8232 ECG Module is suitable for real-time heart rate monitoring. It captures and processes biopotential signals to provide real-time ECG measurements and pulse tracking for various applications including wearable health devices.
If the AD8232 ECG Module doesn't work, ensure all connections are secure and the electrodes are applied correctly. Check for proper power supply and verify that your microcontroller setup is correctly configured for analog inputs.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

AD8232 Front End Uses the AD8232 analog front-end for ECG and heart rate biopotential signal acquisition.

ECG Monitoring Captures the heart’s electrical activity for ECG measurement, waveform visualization, and real-time pulse tracking.

Analog Output Connects to microcontrollers with analog input for live signal reading, logging, and processing.

Arduino ESP32 Support Compatible with Arduino and ESP32 platforms for wearable health devices and biomedical prototypes.

Included Sensor Kit Includes electrodes and lead cables for a practical, ready-to-use ECG sensor setup.

Wearable Applications Designed for portable heart monitoring, educational experiments, and ECG development projects.
