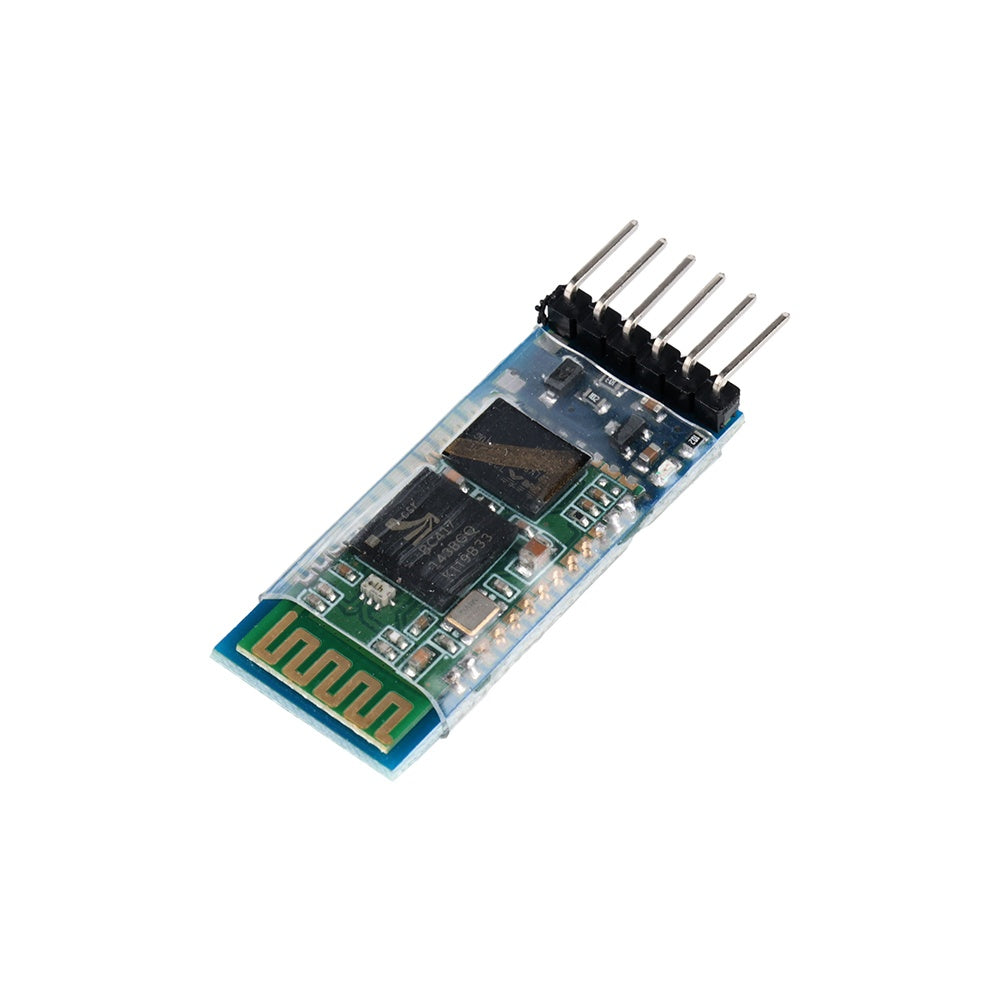

Close up of HC-05 6-Pin Bluetooth Module with exposed circuitry

HC-05 6-Pin Bluetooth Module, No Button

SKU AA095

$10.49 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

HC-05 6-pin Bluetooth UART serial transceiver adds wireless data links to Arduino, Raspberry Pi, ESP32, and STM32 for robotics, home automation, telemetry, and prototyping; no-button version.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
Close up of HC-05 6-Pin Bluetooth Module with exposed circuitry HC-05 6-Pin Bluetooth Module, No ButtonNo reviews yet $10.49 This item
Two ShillehTek FT232RL Mini USB to TTL Serial Converter boards side by side FT232RL Mini USB to TTL Serial Converter 2-Pack 3.3V/5V for Arduino & Raspberry PiNo reviews yet $6.99
Top and bottom views of Arduino Nano V3.0 Pre-Soldered CH340G ATmega328P board Arduino Nano V3.0 Pre-Soldered CH340G ATmega328PNo reviews yet $5.99
Close-up of ShillehTek pre-soldered IIC I2C logic level converter circuit board Pre-Soldered I2C Logic Level Converter 3.3V-5V Bi-Directional for Arduino, Raspberry Pi, ESP32 & Pico ★★★★★ (43) $6.25
Total for 4 items
$29.72

Products related to this item

ShillehTek HM-10 Bluetooth 4.0 BLE module with gold pins and large chip
No reviews yetHM-10 Bluetooth 4.0 BLE CC2541 Master/Slave Module for Arduino $7.99
Close-up of ShillehTek ESP8266 ESP-01 Serial WiFi Module with gold antenna pattern
No reviews yetESP8266 ESP-01 Serial WiFi Module 1MB Wireless Transceiver for IoT $5.49
Close-up view of ShillehTek NRF24L01+ 2.4GHz Wireless Transceiver Module with pins
No reviews yetNRF24L01+ 2.4GHz Wireless Transceiver Module SPI for Arduino & Raspberry Pi $5.49
ShillehTek NRF24L01+ PA LNA wireless transceiver with black adjustable antenna
No reviews yetNRF24L01+ PA LNA Wireless Transceiver Module with Antenna, 1100m Range $6.99
ShillehTek 433MHz RF wireless transmitter and receiver modules with coils
No reviews yet433MHz RF Wireless Transmitter & Receiver Link Kit for Arduino $5.99
SX1262 ESP32-S3 development board with 0.96 inch blue OLED, antenna, and pre-soldered pins
No reviews yetSX1262 ESP32-S3 0.96" Blue OLED Bluetooth & WiFi Development Board for Arduino, 868-915MHz, with Antenna, Pre-Soldered $24.99

Overview

Product Overview

The HC-05 Bluetooth module is a 6-pin serial wireless transceiver that adds cable-free UART Bluetooth communication to microcontroller and single-board computer projects, letting Arduino, Raspberry Pi, ESP32, and STM32 systems exchange data with compatible Bluetooth hosts for robotics, home automation, telemetry, remote control, and prototyping. Based on the popular HC-05 platform, it is widely used as a transparent serial link for sending sensor readings, commands, and debug data, and this no-button version suits builds where setup is handled through the module pins and AT command access rather than an onboard key switch.

Questions & answers

Frequently asked questions

Yes, it provides a UART serial Bluetooth link and is intended for Arduino, Raspberry Pi, ESP32, and STM32 projects. The host needs accessible serial pins and software support for sending and receiving data over that serial connection.
This ShillehTek version comes with pre-soldered headers, so it can be connected with jumper wires or a breadboard without header soldering. You still need to wire power, ground, TX, and RX and configure your project software.
It communicates over UART serial using TX and RX, plus power, ground, and additional module pins on the 6-pin header. Cross-connect TX to the host RX and RX to the host TX, and verify voltage and logic compatibility.
Yes. It works as a transparent serial link for sending robot commands from a compatible Bluetooth host and receiving telemetry or sensor readings back from the controller, removing the need for a USB cable during normal operation.
No-button means this version does not include an onboard key button for entering module modes. It suits builds where setup is handled through the module pins and AT command access instead of pushbutton-assisted mode changes.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

Bluetooth UART Link Adds cable-free UART Bluetooth communication for wireless serial data exchange.

HC-05 Platform Based on the popular HC-05 module for transparent serial Bluetooth links.

6-Pin Module Uses a 6-pin layout for serial connection and control through the module pins.

No Button Setup This no-button version is intended for AT command access and setup through the pins instead of an onboard key switch.

Controller Compatibility Compatible with Arduino, Raspberry Pi, ESP32, and STM32 projects that use serial communication.

Data Transfer Uses Suitable for sending sensor readings, commands, and debug data to compatible Bluetooth hosts.

Project Applications Used in robotics, home automation, telemetry, remote control, and prototyping builds.

Reference

Documents

Full Product Manual HC-05 6-Pin Bluetooth Module, No Button | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.

Datasheet - HC-05 Bluetooth Module
