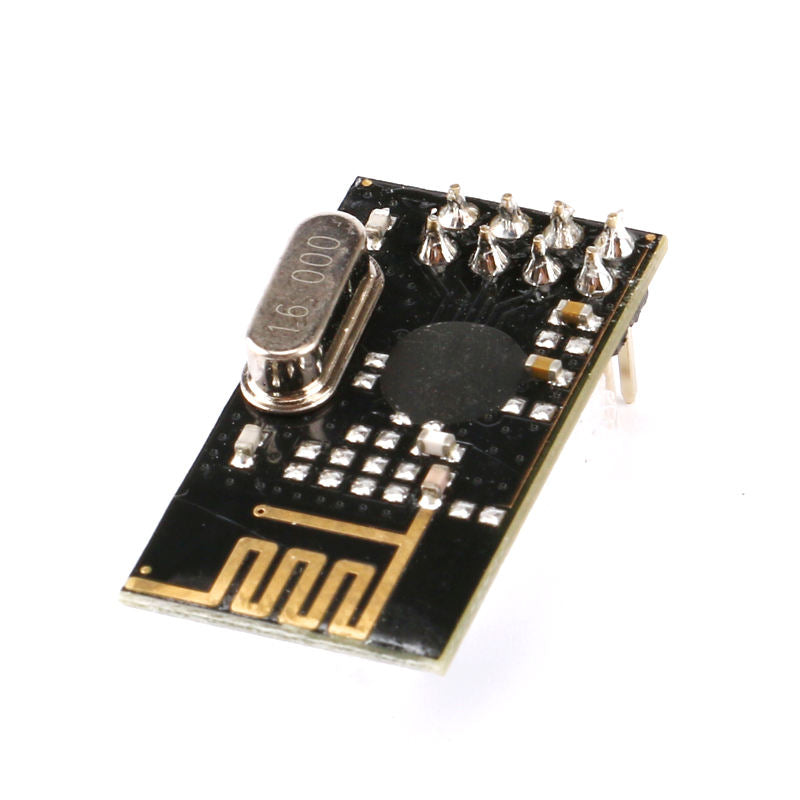

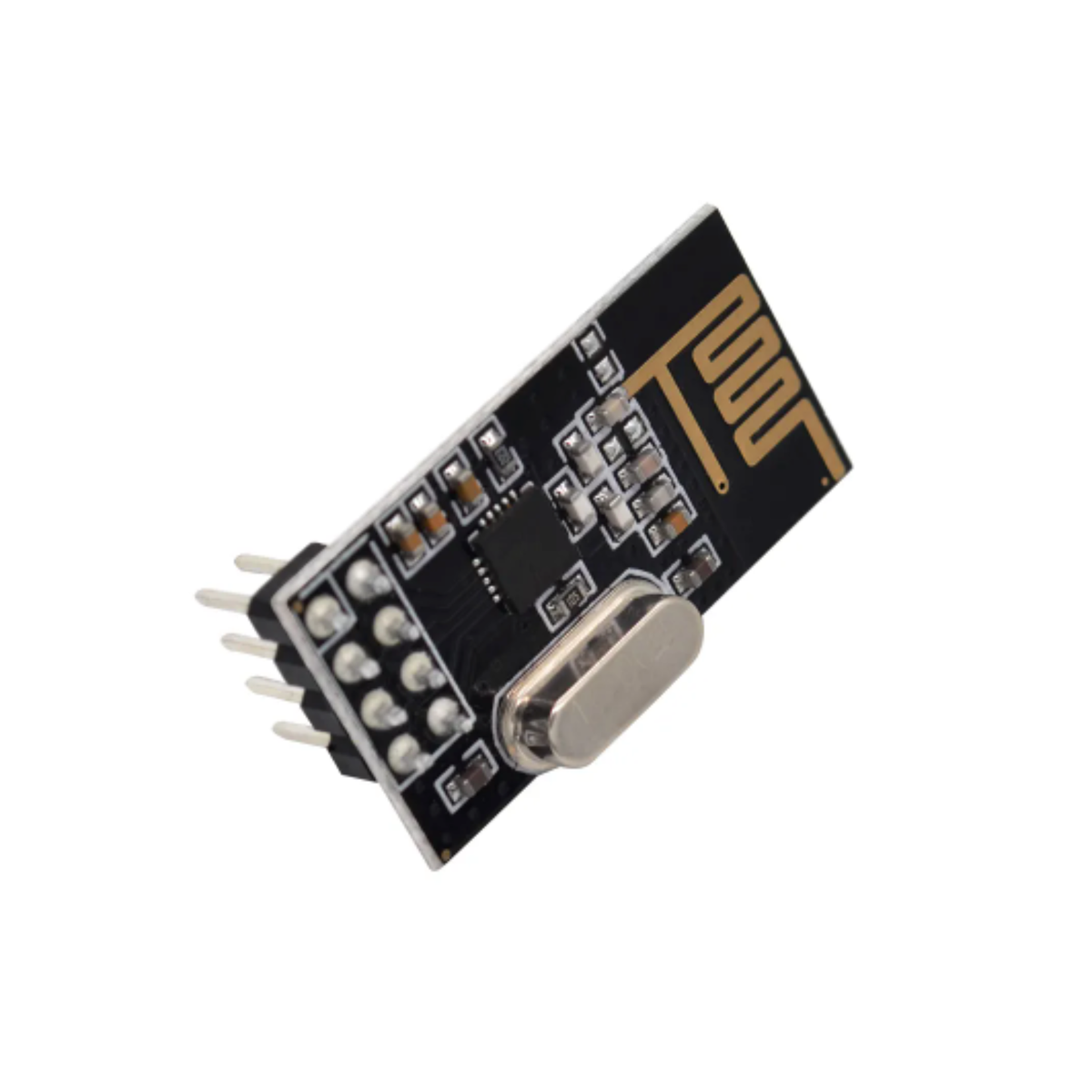

Close-up view of ShillehTek NRF24L01+ 2.4GHz Wireless Transceiver Module with pins

NRF24L01+ 2.4GHz Wireless Transceiver Module SPI for Arduino & Raspberry Pi

$5.49 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

NRF24L01+ 2.4GHz transceiver for Arduino - true two-way SPI module with up to 2Mbps data rate for fast bi-directional wireless communication.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
Close-up view of ShillehTek NRF24L01+ 2.4GHz Wireless Transceiver Module with pins NRF24L01+ 2.4GHz Wireless Transceiver Module SPI for Arduino & Raspberry PiNo reviews yet $5.49 This item
Top front view of Raspberry Pi Pico 2 with pre-soldered headers by ShillehTek Raspberry Pi Pico 2 with Pre-Soldered Headers ★★★★★ (1) $11.99
Top view of ShillehTek MB102 breadboard power supply with USB port and jumper pins MB102 Breadboard Power Supply Module 3.3V/5V for Arduino ★★★★★ (4) $6.99
ShillehTek Pre-Soldered TXS0108E Logic Level Converter showing pins and circuit board TXS0108E Pre-Soldered 8-Channel Logic Level Converter for Arduino, Raspberry Pi, ESP32 & Pico ★★★★★ (3) $4.99
Total for 4 items
$29.46

Products related to this item

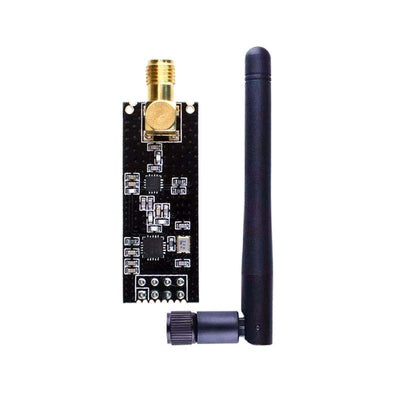

ShillehTek NRF24L01+ PA LNA wireless transceiver with black adjustable antenna
No reviews yetNRF24L01+ PA LNA Wireless Transceiver Module with Antenna, 1100m Range $6.99
ShillehTek 433MHz RF wireless transmitter and receiver modules with coils
No reviews yet433MHz RF Wireless Transmitter & Receiver Link Kit for Arduino $5.99

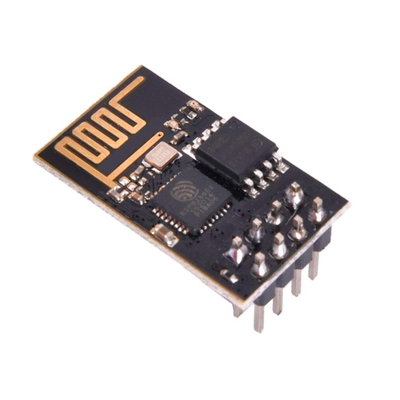

Close-up of ShillehTek ESP8266 ESP-01 Serial WiFi Module with gold antenna pattern
No reviews yetESP8266 ESP-01 Serial WiFi Module 1MB Wireless Transceiver for IoT $5.49
Close up of HC-05 6-Pin Bluetooth Module with exposed circuitry
No reviews yetHC-05 6-Pin Bluetooth Module, No Button $10.49
SX1262 ESP32-S3 development board with 0.96 inch blue OLED, antenna, and pre-soldered pins
No reviews yetSX1262 ESP32-S3 0.96" Blue OLED Bluetooth & WiFi Development Board for Arduino, 868-915MHz, with Antenna, Pre-Soldered $24.99
ESP-WROOM-32 ESP32 Dev Board with CP2102 USB-C connector and pins
No reviews yetESP-WROOM-32 (ESP-32S) ESP32 Dev Board CP2102 USB-C Pre-Soldered $8.99

Overview

Product Overview

The NRF24L01+ is a compact 2.4GHz ISM-band wireless transceiver that handles both sending and receiving for robust, bidirectional links; it supports adjustable air data rates of 250kbps, 1Mbps and up to 2Mbps for applications like telemetry, audio streaming or remote control. The module uses a standard SPI interface (MOSI, MISO, SCK) for straightforward integration with Arduino and Raspberry Pi, and can listen on multiple pipes so a single hub can collect data from several nodes. Built-in packet handling, CRC checks and auto-retry simplify reliable comms while ultra-low standby currents make it suitable for battery-powered sensor networks. Practical and maker-focused, it gives you a flexible, proven radio backbone without complex RF design.

Questions & answers

Frequently asked questions

Yes. This 2.4GHz transceiver uses a standard SPI interface, so it can connect to Arduino and Raspberry Pi boards that expose SPI pins and have compatible software libraries for the NRF24L01+ chipset.
This is a breakout module intended to be wired into a project through its board pins and configured in code. ShillehTek’s pre-soldered format helps avoid header soldering before connecting it to a breadboard, jumper wires, or a compatible carrier setup.
The module communicates over SPI using MOSI, MISO, and SCK lines, with additional control pins typically used by NRF24L01+ libraries. It operates as a 2.4GHz ISM-band radio and supports 250kbps, 1Mbps, and 2Mbps air data rates.
It is well suited for wireless telemetry, remote-control links, and battery-powered sensor networks. Because it supports bidirectional communication, auto-retry, CRC checks, and multiple receive pipes, one hub can collect data from several remote nodes.
If communication is unreliable, verify SPI wiring, library configuration, and that both radios use matching channel, data rate, and address settings. For multi-node systems, confirm the hub and each node are configured with the intended receive pipes.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

True 2-way Transceiver Sends and receives data for bi-directional communication and acknowledgements.

2.4GHz ISM Band Operates on the global 2.4GHz band for wide compatibility in IoT projects.

Adjustable Data Rates Supports 250kbps, 1Mbps, and 2Mbps air data rates to balance speed and range.

Six Pipe Reception Can listen to up to six data pipes simultaneously for multi-node networks.

SPI Interface Compatible Uses standard SPI signals (MOSI, MISO, SCK) for easy Arduino and Raspberry Pi integration.

Built-in Error Checking Includes CRC, auto-retry, and automatic packet handling to improve link reliability.

Ultra Low Power Draws microamps in standby to extend battery life for remote sensor nodes.

Reference

Documents

Full Product Manual ShillehTek NRF24L01+ 2.4GHz Wireless Transceiver Module SPI for Arduino | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.
