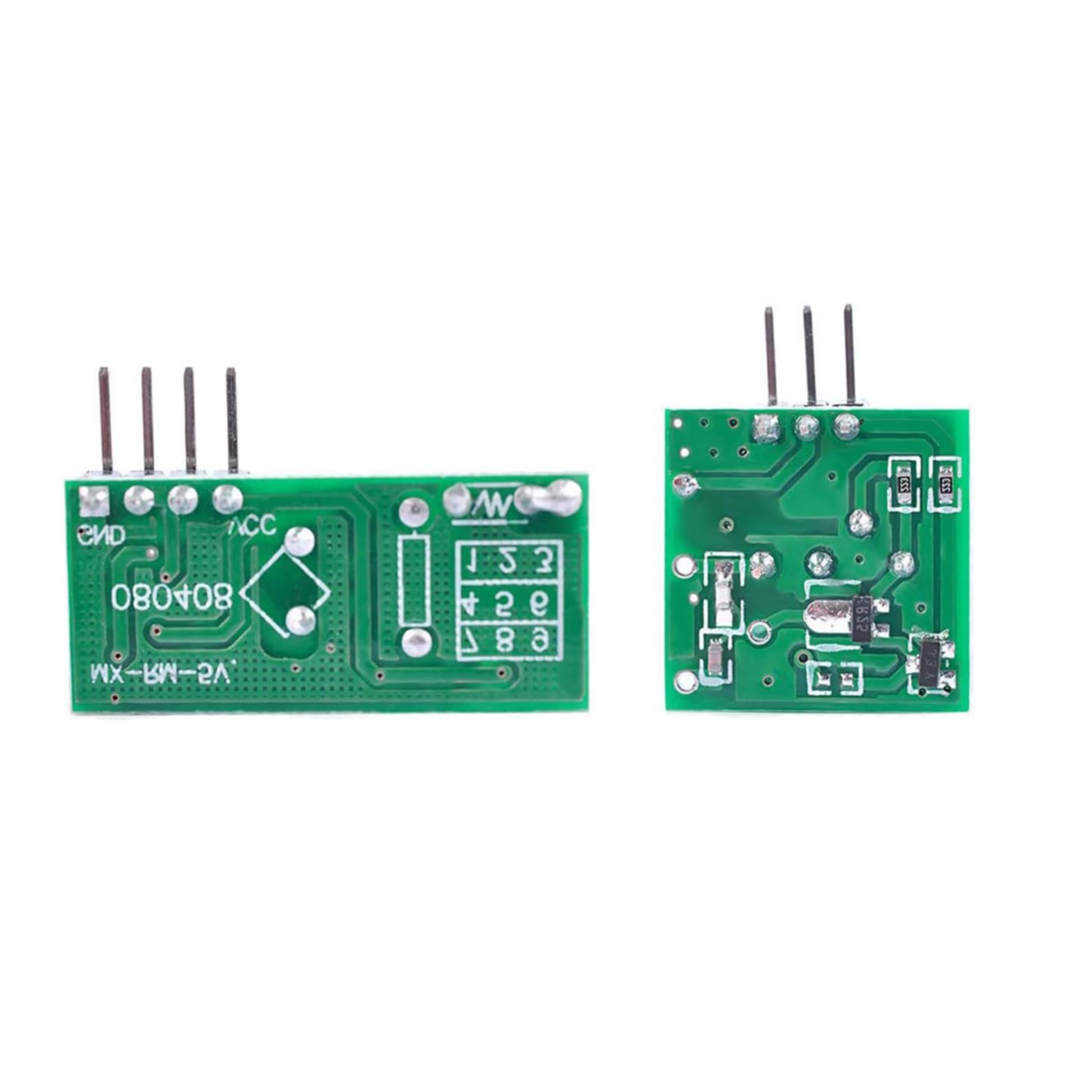

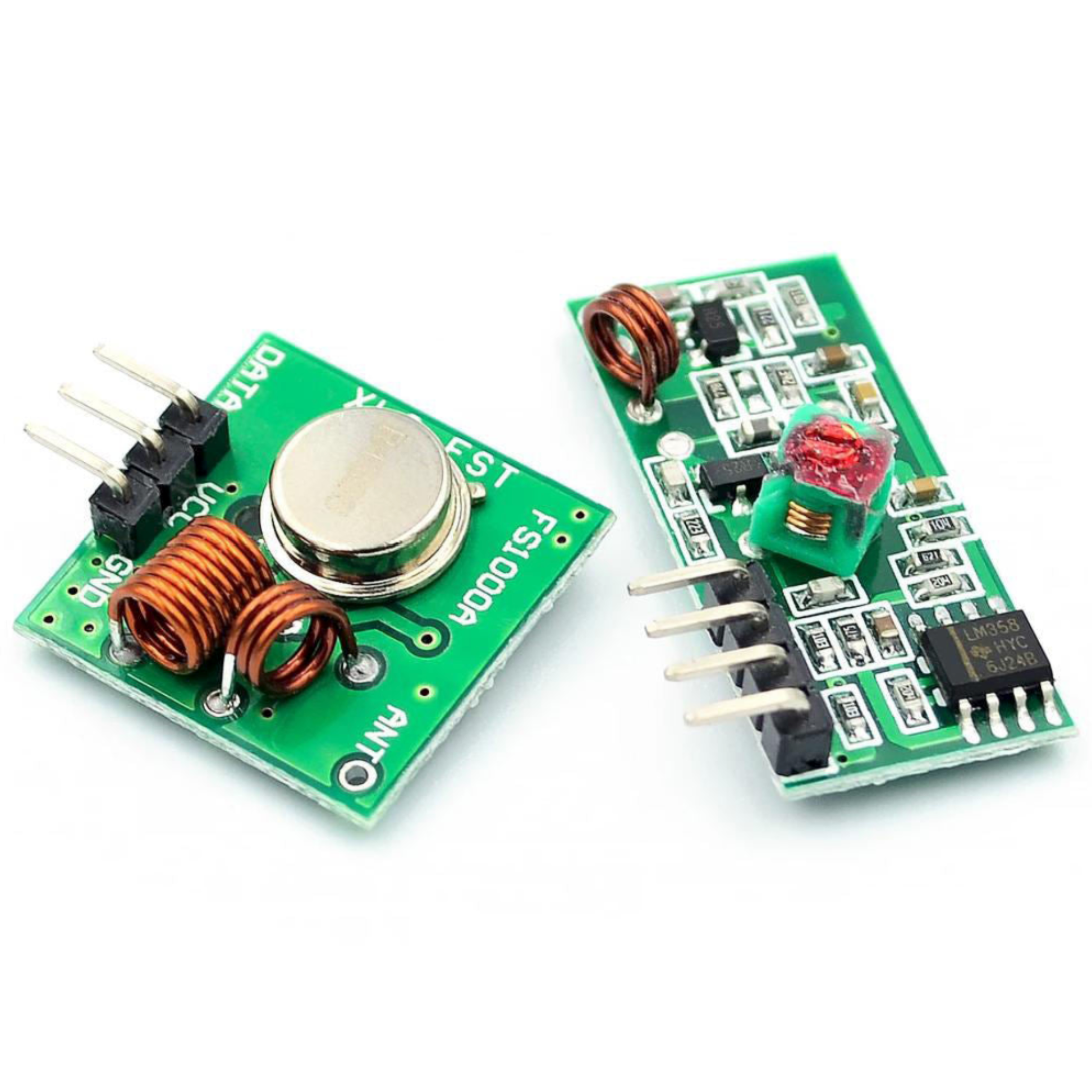

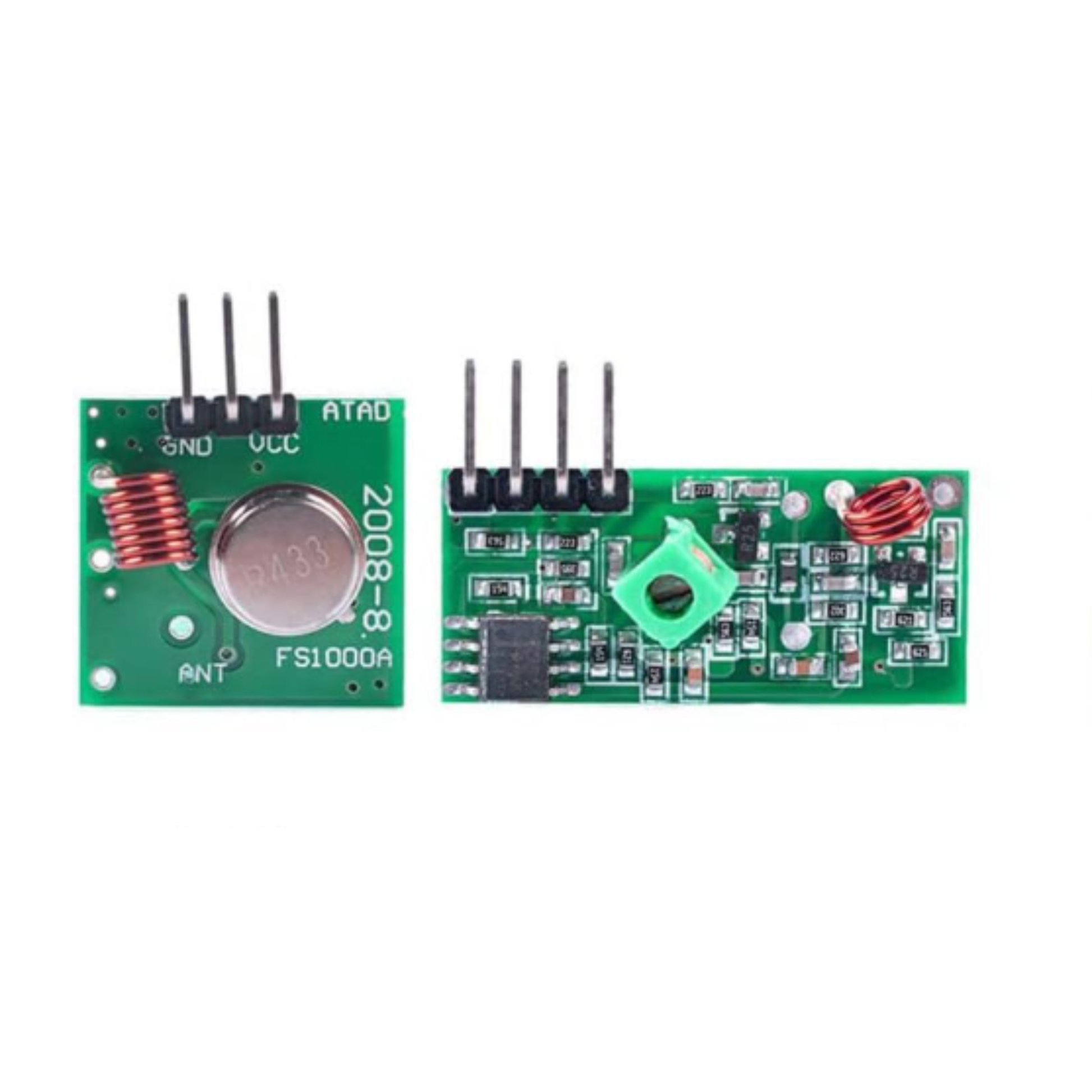

ShillehTek 433MHz RF wireless transmitter and receiver modules with coils

433MHz RF Wireless Transmitter & Receiver Link Kit for Arduino

$5.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

433MHz RF transmitter/receiver kit for Arduino, includes TX/RX pair for easy wireless links. Ideal for remote controls, weather stations or alarm systems; compatible with VirtualWire/RadioHead.

Bulk eligible

Mix any Bulk eligible products — discount applies to your total quantity across the cart.
Auto-applied at checkout
Buy 5+ $5.70 each Save 5%
Buy 10+ $5.40 each Save 10%
View all bulk eligible products →
  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ShillehTek 433MHz RF wireless transmitter and receiver modules with coils 433MHz RF Wireless Transmitter & Receiver Link Kit for ArduinoNo reviews yet $5.99 This item
Top and bottom views of Arduino Nano V3.0 Pre-Soldered CH340G ATmega328P board Arduino Nano V3.0 Pre-Soldered CH340G ATmega328PNo reviews yet $5.99
Close-up of ShillehTek Pre-Soldered BME280 sensor with purple PCB and metal pins BME280 Pre-Soldered Temperature, Pressure & Humidity Sensor for Arduino & Raspberry Pi ★★★★★ (54) $9.98
ShillehTek 1-Channel 24V Relay Module with blue relay and screw terminals 1-Channel 5V Relay Board for Arduino & Raspberry Pi ★★★★★ (5) $5.79
Total for 4 items
$27.75

Products related to this item

Close-up view of ShillehTek NRF24L01+ 2.4GHz Wireless Transceiver Module with pins
No reviews yetNRF24L01+ 2.4GHz Wireless Transceiver Module SPI for Arduino & Raspberry Pi $5.49
ShillehTek NRF24L01+ PA LNA wireless transceiver with black adjustable antenna
No reviews yetNRF24L01+ PA LNA Wireless Transceiver Module with Antenna, 1100m Range $6.99
Close up of HC-05 6-Pin Bluetooth Module with exposed circuitry
No reviews yetHC-05 6-Pin Bluetooth Module, No Button $10.49
Close-up of ShillehTek ESP8266 ESP-01 Serial WiFi Module with gold antenna pattern
No reviews yetESP8266 ESP-01 Serial WiFi Module 1MB Wireless Transceiver for IoT $5.49
SX1262 ESP32-S3 development board with 0.96 inch blue OLED, antenna, and pre-soldered pins
No reviews yetSX1262 ESP32-S3 0.96" Blue OLED Bluetooth & WiFi Development Board for Arduino, 868-915MHz, with Antenna, Pre-Soldered $24.99
433MHz 12V 1-Channel Relay Module and black wireless remote key fob
No reviews yet433MHz 12V 1-Channel Relay Module with Wireless Remote $9.99

Overview

Product Overview

Cut the wires and add wireless capability with this 433MHz RF Link Kit for Arduino, a compact, affordable solution that ships as a complete TX/RX pair (small square transmitter and long rectangular receiver) to create a reliable short-to-medium range data link for remote controls, weather stations and alarm systems. Using stable ASK modulation, compatible with VirtualWire and RadioHead libraries, it sends text and sensor data via simple digital pins, can reach up to 100m in open air and is extendable with a 17cm wire antenna while remaining suitable for low-power battery nodes.

Questions & answers

Frequently asked questions

The kit is intended for Arduino projects and is compatible with the VirtualWire and RadioHead libraries. It uses simple digital I/O pins to send basic text or sensor data between the included transmitter and receiver modules.

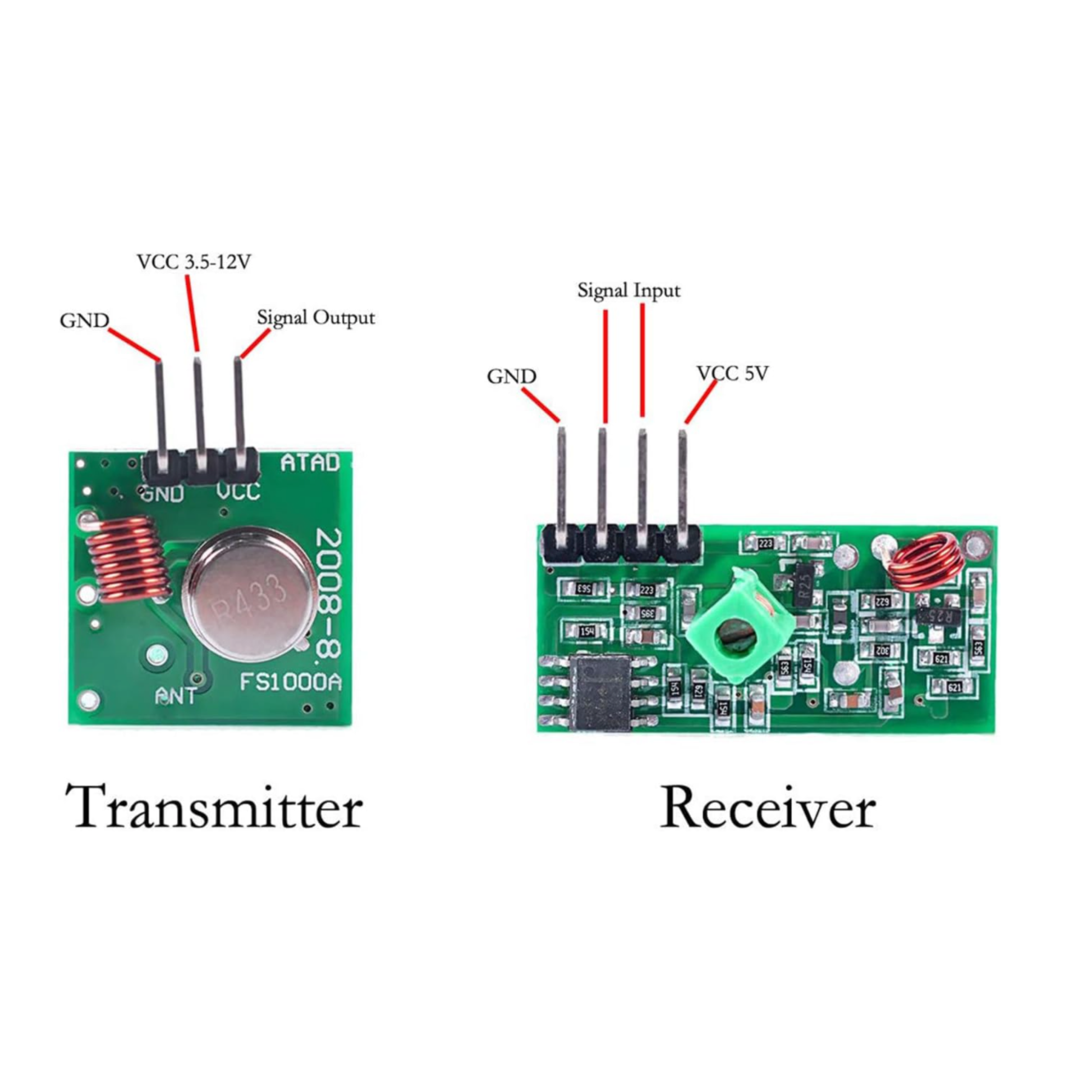

It ships as a complete TX/RX link kit with a small square transmitter and a long rectangular receiver. Connect each module to your microcontroller’s power, ground, and data pins, then use a supported RF library to encode messages.
The link operates at 433MHz using ASK modulation. Data is handled through digital pins rather than SPI, I2C, or Wi-Fi, making it suitable for simple one-way wireless messages such as text strings or sensor readings.
It is well suited to short-to-medium range Arduino wireless projects such as remote controls, weather stations, alarm systems, and battery-powered sensor nodes. It is best for small data payloads rather than high-speed or internet-connected communication.
The listed range is up to 100m in open air, so walls, metal enclosures, weak power, antenna placement, and local RF noise can reduce distance. A straight 17cm wire antenna can help improve performance.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

433MHz Wireless Link Operates on the common 433MHz band for reliable short-to-medium range communication.

TX and RX Pair Includes both compact transmitter and receiver modules for an immediate wireless link.

ASK/AM Modulation Uses simple Amplitude Shift Keying modulation for easy digital interfacing.

Arduino Library Support Compatible with VirtualWire and RadioHead libraries for fast prototyping.

Extendable Range Range can be increased up to about 100m in open air by adding a 17cm wire antenna.

Low Power Standby Transmitter draws minimal power when idle, suitable for battery-powered sensors.

Simple Arduino Interface Connects to Arduino digital pins for straightforward sending and receiving of data.
