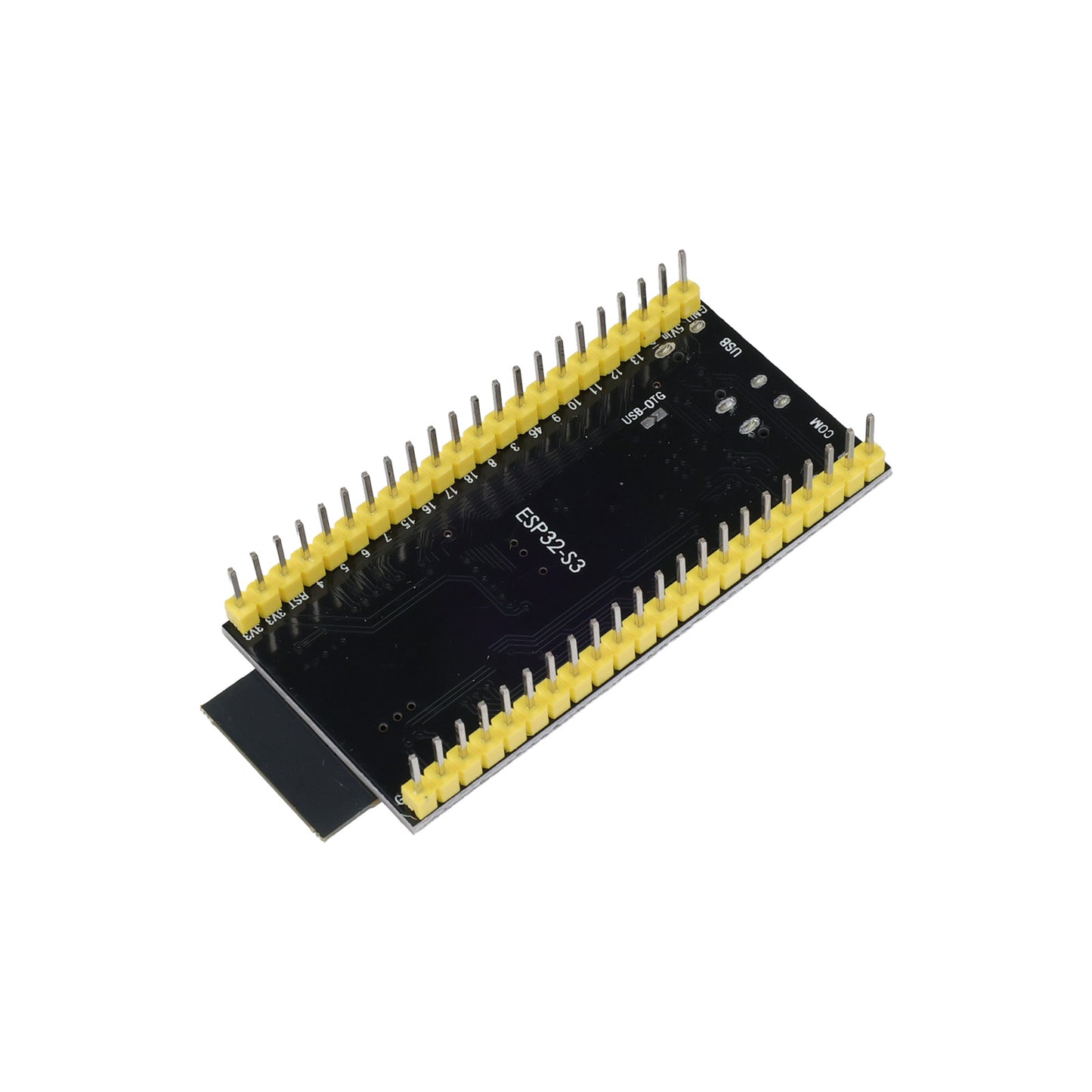

ESP32-S3 DevKitC-1 Dev Board with Pre-Soldered Headers

Name: ESP32-S3 DevKitC-1 Dev Board with Pre-Soldered Headers
Brand: ShillehTek
SKU: AK027
Price: 9.99 USD
Availability: OutOfStock

SKU AK027

$9.99 USD Shipping & tax calculated at checkout

Out of stock

ShillehTek ESP32-S3 DevKitC-1 presoldered dev board offers ESP32-S3 processing and a ready-to-use header for rapid IoT prototyping and embedded projects like sensor fusion, robotics, and classroom labs.

Bulk eligible

Auto-applied at checkout

Buy 5+	$9.49 each	Save 5%
Buy 10+	$8.99 each	Save 10%

View all bulk eligible products →

Free Ground Shipping U.S. orders $35+
Ships from USA Worldwide via DHL
30-day returns Free defect replacement
7-day support Fast email replies

Frequently bought together

ESP32-S3 DevKitC-1 Dev Board with Pre-Soldered Headers ★★★★★ (4) $9.99 This item

Close-up of ShillehTek Pre-Soldered BME280 sensor with purple PCB and metal pins

BME280 Pre-Soldered Temperature, Pressure & Humidity Sensor for Arduino & Raspberry Pi ★★★★★ (56) $10.99

angled close-up of blue I2C OLED display module SSD1306 0.96 inch for Arduino ESP32

SSD1306 0.96" Blue I2C OLED Display Module 4-Pin for Arduino, Raspberry Pi & ESP32No reviews yet $6.89

DS3231 AT24C32 precision RTC I2C module with CR2032 battery for accurate timekeeping

DS3231 AT24C32 Precision RTC I2C Module with CR2032 BatteryNo reviews yet $5.99

Total for 4 items

$33.86

Products related to this item

ESP32 Dev Board 4MB CP2102 USB-C with 38 pins detailed circuit view

★★★★★ (1) ESP32 Dev Board 4MB CP2102 USB-C Pre-Soldered 38-Pin $7.99

ESP-WROOM-32 ESP32 Dev Board with CP2102 USB-C connector and pins

★★★★★ (2) ESP-WROOM-32 (ESP-32S) ESP32 Dev Board CP2102 USB-C Pre-Soldered $8.99

angled view of ShillehTek RP2040 Zero Microcontroller Board with pre-soldered headers

★★★★★ (1) RP2040 Zero Microcontroller Board with Pre-Soldered Headers $5.99

angled close-up of ESP32-S3 Nano Dev Board with USB-C port and pins

★★★★★ (1) ESP32-S3 Nano Dev Board Pre-Soldered WiFi + BLE for Arduino $15.99

XIAO ESP32S3 pre-soldered microcontroller with USB-C cable for programming

No reviews yetXIAO ESP32S3 Pre-Soldered Microcontroller with WiFi & Bluetooth for Arduino & MicroPython $19.99

Top view of ESP32-C6-N4 pre-soldered development board showing metal shield

★★★★★ (1) ESP32-C6-N4 Pre-Soldered Development Board $8.99

Overview

Product Overview

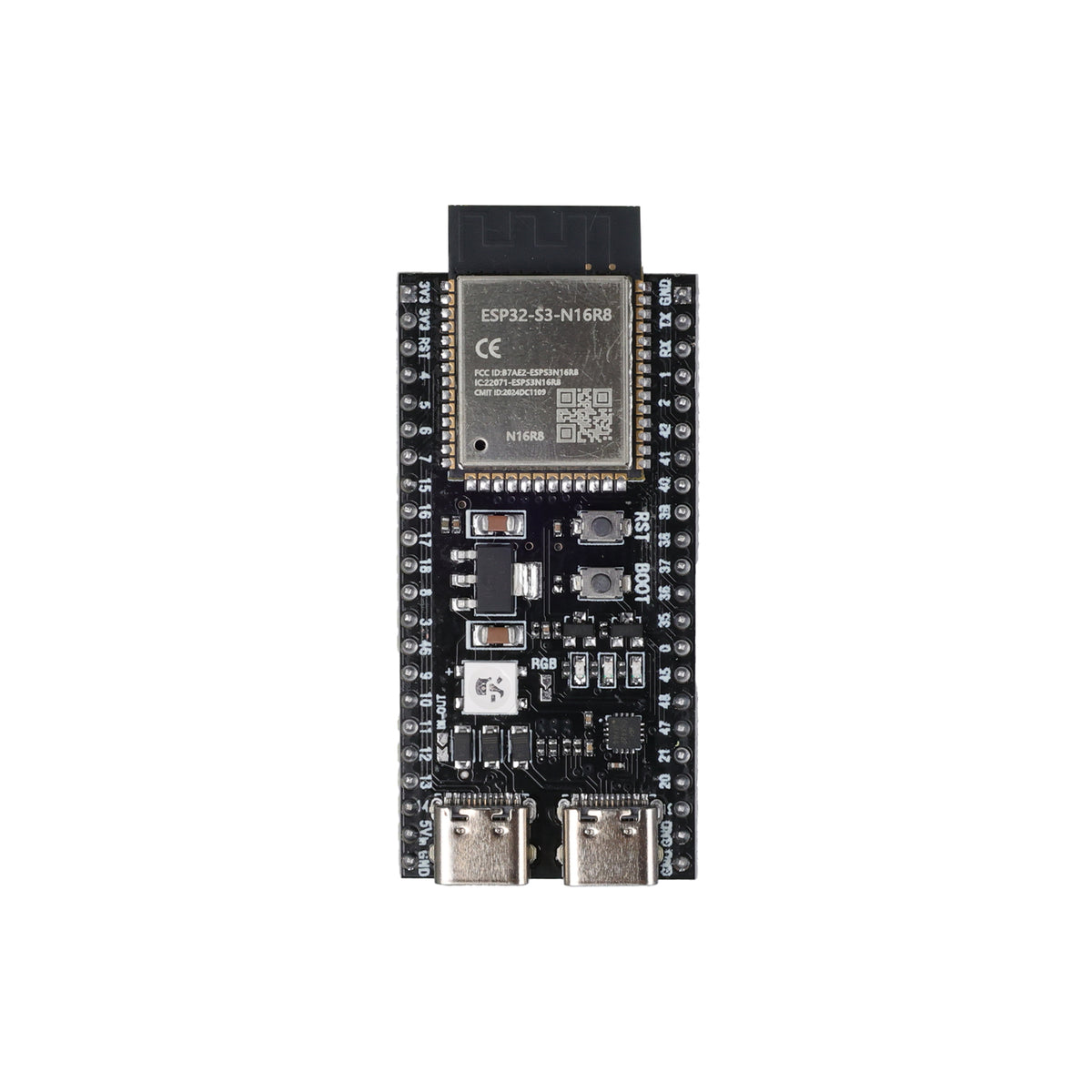

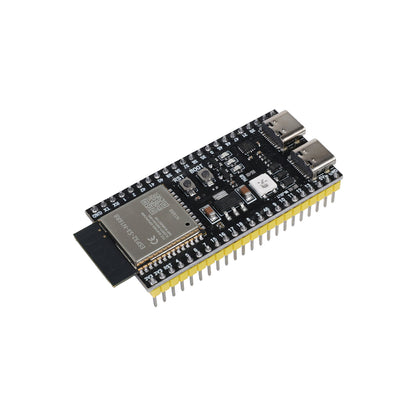

Espressif’s official ESP32-S3 DevKitC-1 reference board, built on the ESP32-S3-WROOM-1 module, with headers pre-soldered so it’s breadboard-ready out of the bag. Dual-core 240 MHz, Wi-Fi 4 and Bluetooth 5 LE, 45 GPIO with 14 capacitive touch pins, and dual USB-C ports: a CP2102 UART port for flashing plus native USB-OTG for building keyboards, MIDI controllers and other HID devices. Over the classic ESP32 you also get more GPIO, more touch pins and vector instructions for on-device machine learning.

Works with Arduino IDE (esp32 core), ESP-IDF, MicroPython, CircuitPython and PlatformIO. A strong fit for BLE sensor nodes, Wi-Fi dashboards, LVGL touchscreen UIs, voice and image experiments, and Home Assistant or Matter devices. Full pinout, wiring tables and starter code are in the ESP32-S3 DevKitC-1 manual linked below.

Questions & answers

Frequently asked questions

Does this ESP32-S3 board support WiFi and BLE?

Yes. The ESP32-S3 is intended for connected IoT builds and supports WiFi and Bluetooth Low Energy, making it suitable for wireless sensors, controllers, and compact networked prototypes.

Is the ESP32-S3 DevKitC-1 ready for breadboards?

Yes. The board includes pre-soldered headers, so it can plug directly into a breadboard or jumper-wire setup. This avoids header soldering and helps speed up wiring, testing, and firmware iteration.

What logic level and interfaces does it use?

The ESP32-S3 uses 3.3V logic on its GPIO pins and is not a 5V-logic microcontroller. It can connect to peripherals through common microcontroller interfaces such as GPIO, I2C, SPI, and UART when wired correctly.

What projects is this ESP32-S3 board good for?

It is well suited for smart home, robotics, automation, and sensor-based IoT prototypes. The ESP32-S3 provides wireless connectivity and enough processing capability for real-time control, data handling, and connected device proof-of-concepts.

What should I check if uploads or peripherals fail?

First confirm the correct ESP32-S3 board target is selected in your development environment, then check USB connection, wiring, and peripheral pin assignments. For external modules, also verify the device protocol and voltage compatibility before debugging firmware.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

ESP32-S3-WROOM-1 module Dual-core Xtensa LX7 at 240 MHz with 512 KB SRAM and vector instructions for on-device ML.

Wi-Fi 4 + Bluetooth 5 LE 2.4 GHz 802.11 b/g/n Wi-Fi and Bluetooth 5 Low Energy with BLE Mesh support.

45 GPIO, 14 touch pins Two 12-bit ADCs (20 channels), UART x3, I2C x2, SPI x4, I2S x2, TWAI/CAN.

Dual USB-C ports CP2102 USB-to-UART port for flashing and serial monitor, plus native USB-OTG for HID, CDC and mass-storage devices.

3.3 V logic, 5 V in Powered over USB-C; the 3V3 rail supplies up to 500 mA to sensors and displays. Use a level shifter for 5 V signals.

Onboard WS2812 RGB LED Addressable status LED on GPIO38, no extra parts needed.

Pre-soldered headers, ~68 x 28 mm Breadboard-ready. Works with Arduino IDE (esp32 core), ESP-IDF, MicroPython, CircuitPython and PlatformIO.

Reference

Documents

Full Product Manual ShillehTek ESP32-S3 DevKitC-1 Dev Board Presoldered | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.

Datasheet - ESP32-S3 DevKitC-1 Dev Board
