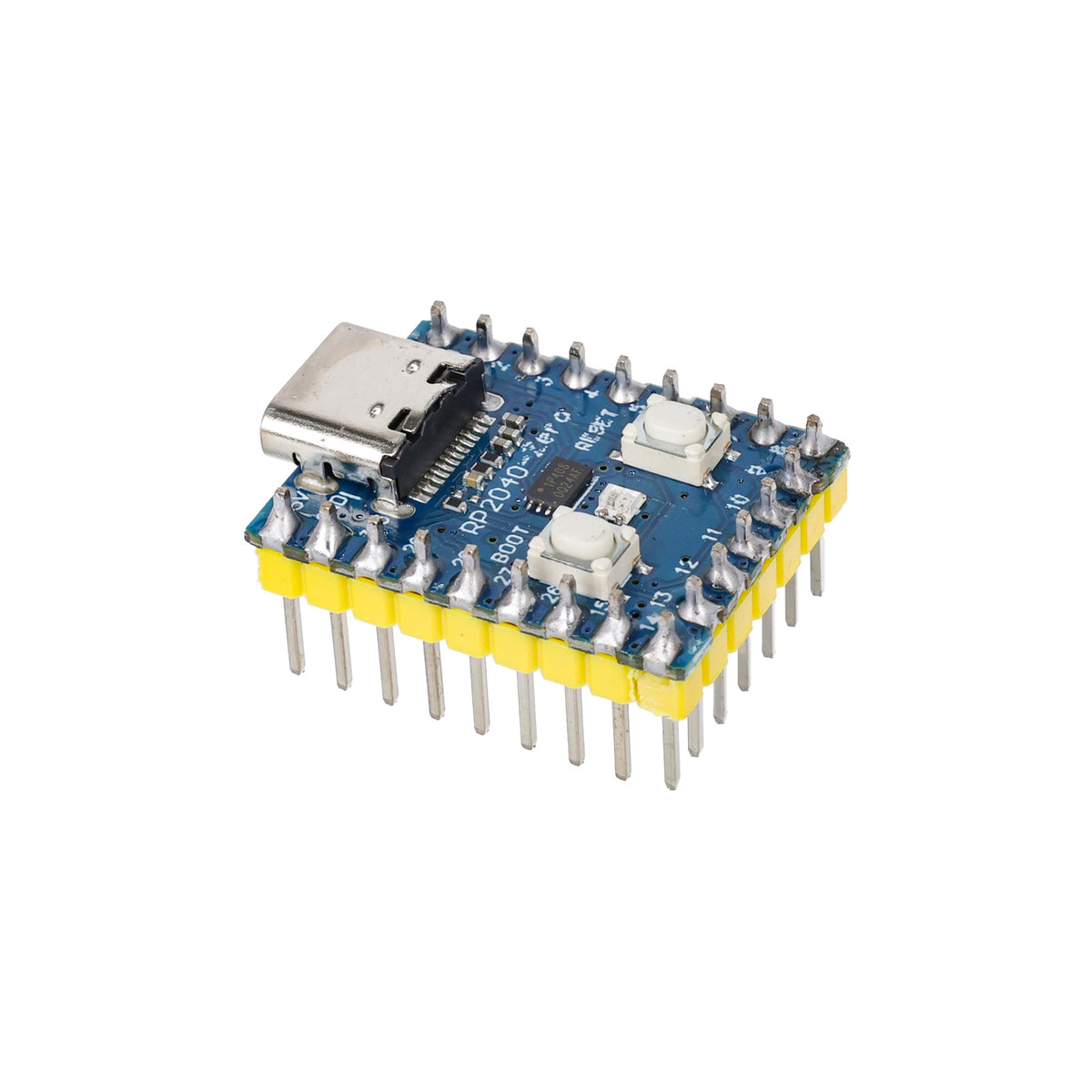

angled view of ShillehTek RP2040 Zero Microcontroller Board with pre-soldered headers

RP2040 Zero Microcontroller Board with Pre-Soldered Headers

$5.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

ShillehTek RP2040 Zero microcontroller board with presoldered headers, engineered around the RP2040 for rapid prototyping—reduce assembly time and accelerate firmware iterations for makers and developers.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Worldwide via DHL
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
angled view of ShillehTek RP2040 Zero Microcontroller Board with pre-soldered headers RP2040 Zero Microcontroller Board with Pre-Soldered Headers ★★★★★ (1) $5.99 This item
Coiled black USB-C to USB-A cable with metal connectors Black USB-C Cable 2A 0.5m Black USB-C Cable 2A 0.5m ★★★★★ (1) $4.49
ShillehTek SSD1306 0.96 inch I2C White OLED Display Module angled view SSD1306 0.96" I2C White OLED Display Module 4-Pin for Arduino, Raspberry Pi & ESP32 ★★★★★ (1) $6.89
Blue Micro SD TF Card Adapter with metal slot and pins ShillehTek module Micro SD TF Card Adapter Reader Module SPI Interface for ArduinoNo reviews yet $4.49
Total for 4 items
$21.86

Products related to this item

XIAO RP2040 microcontroller with USB-C cable included by seeed studio
No reviews yetXIAO RP2040 Pre-Soldered Microcontroller for Arduino & MicroPython $14.98
Close-up top angled view of Raspberry Pi Pico 2W with pre-soldered headers
★★★★★ (1) Raspberry Pi Pico 2W with Pre-Soldered Headers $14.99
Top front view of Raspberry Pi Pico 2 with pre-soldered headers by ShillehTek
★★★★★ (1) Raspberry Pi Pico 2 with Pre-Soldered Headers $11.99
Top and bottom views of Arduino Nano V3.0 Pre-Soldered CH340G ATmega328P board
No reviews yetArduino Nano V3.0 Pre-Soldered CH340G ATmega328P $5.99
Pro Micro ATmega32U4 development board with USB Type-C port and pin headers
★★★★★ (2) Pro Micro ATmega32U4 5V 16MHz Pre-Soldered Micro-USB Development Board $8.99
Top view of ESP32-DevKitC-VE board showing metal shield and pin labels
No reviews yetESP32-DevKitC-VE Pre-Soldered Dev Board with 8MB Flash + 8MB PSRAM $24.99

Overview

Product Overview

The ShillehTek RP2040 Zero Microcontroller Board (Presoldered) is a tiny, budget-friendly development board built for fast prototyping and compact embedded projects. Powered by the RP2040 (the Raspberry Pi–designed microcontroller), it’s a solid choice for MicroPython, CircuitPython, and C/C++ projects like sensor interfaces, robotics control, small automation builds, and portable prototypes. With preinstalled headers and a small footprint, it’s easy to wire up on a bench, fit into tight enclosures, and iterate quickly in classrooms, maker labs, and real-world builds.

The RP2040 brings dual Cortex-M0+ cores at 133 MHz, 264 KB SRAM, and 2 MB flash, plus the PIO state machines that make bit-banged protocols painless. This Zero-format board adds a USB-C connector, an onboard WS2812 RGB status LED, and castellated edges so it can be surface-mounted directly onto a carrier PCB when a prototype graduates. One of the smallest ways to ship RP2040 power inside wearables, macro pads, and sensor nodes.

Questions & answers

Frequently asked questions

Yes. This RP2040-based development board is intended for Raspberry Pi Pico-style microcontroller projects using MicroPython, CircuitPython, or C/C++. It works well with typical sensors, modules, and embedded components wired to its available GPIO pins.
The headers are already installed, so the board can be plugged into jumper wires, breadboards, or compatible prototyping setups without soldering first. This is useful for fast testing, classrooms, and compact builds where setup time matters.
The board is built around the RP2040 microcontroller, which provides general-purpose digital I/O and common embedded interfaces used for sensors and modules. Check your connected device’s wiring and logic-level requirements before powering a project.
It is a good fit for compact embedded projects such as sensor interfaces, robotics control, small automation builds, and portable prototypes. The small footprint helps when the final project needs to fit inside a tight enclosure.
If a project is not responding, first verify the firmware environment, USB connection, wiring orientation, and pin assignments in the code. Also confirm that any attached sensor or module is compatible with the board’s I/O requirements.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

RP2040 Dual-Core MCU Great for responsive control projects, peripherals, and real-time style tasks.

MicroPython and C/C++ Ready Works well for MicroPython, CircuitPython, Arduino-style cores, and SDK workflows.

Compact “Zero” Footprint Ideal for tight enclosures, handheld builds, and space-limited prototypes.

Quick Wiring Setup Headers are installed for fast breadboard or header-socket use.

Peripheral Friendly I/O Easy hookup for I2C, SPI, UART, ADC, and PWM devices like OLEDs, IMUs, relays, and servos.

Great for Robotics and Control Useful for motors, LEDs, sensors, and automation logic.

Maker and Classroom Friendly Clean layout for learning, demos, kits, and repeatable builds.
