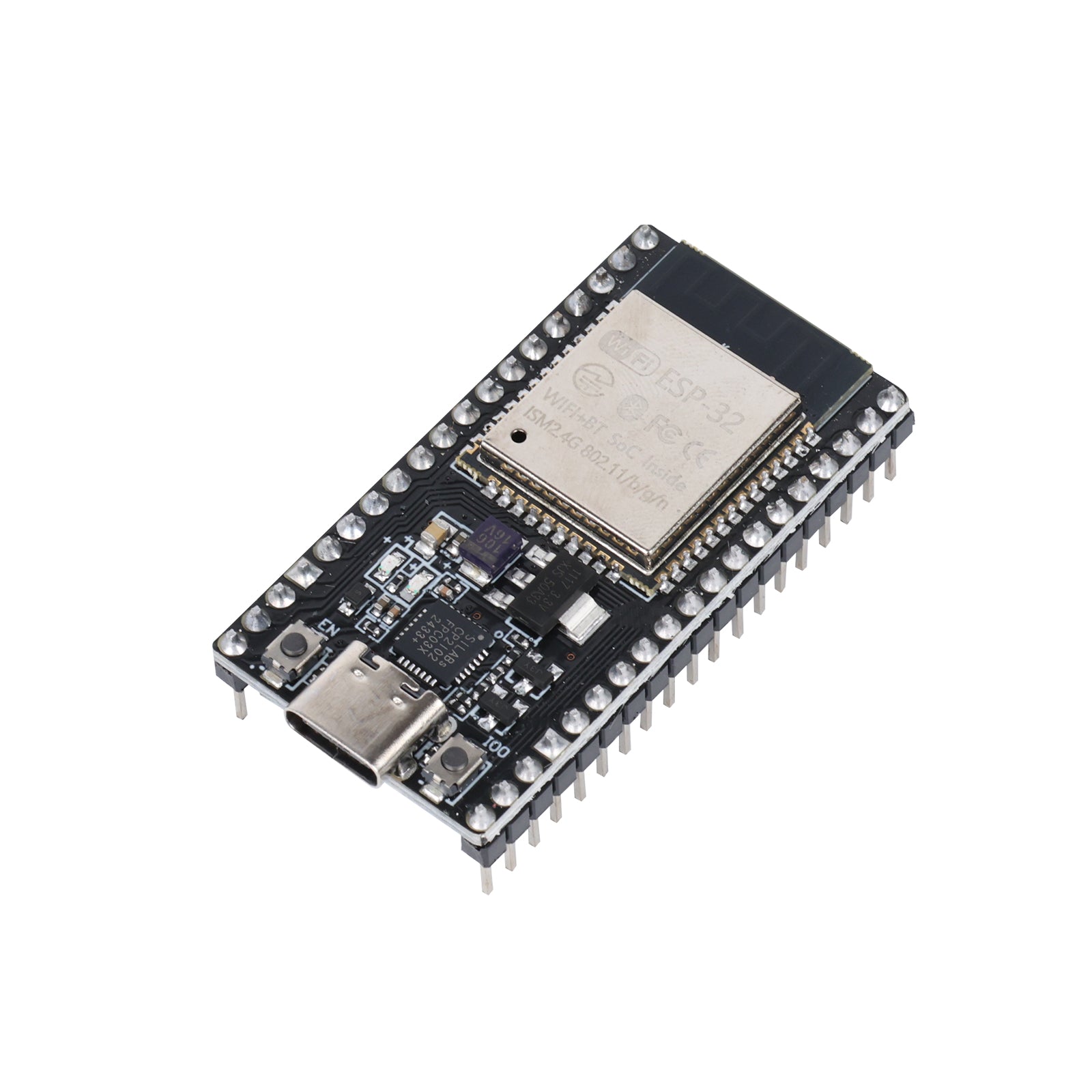

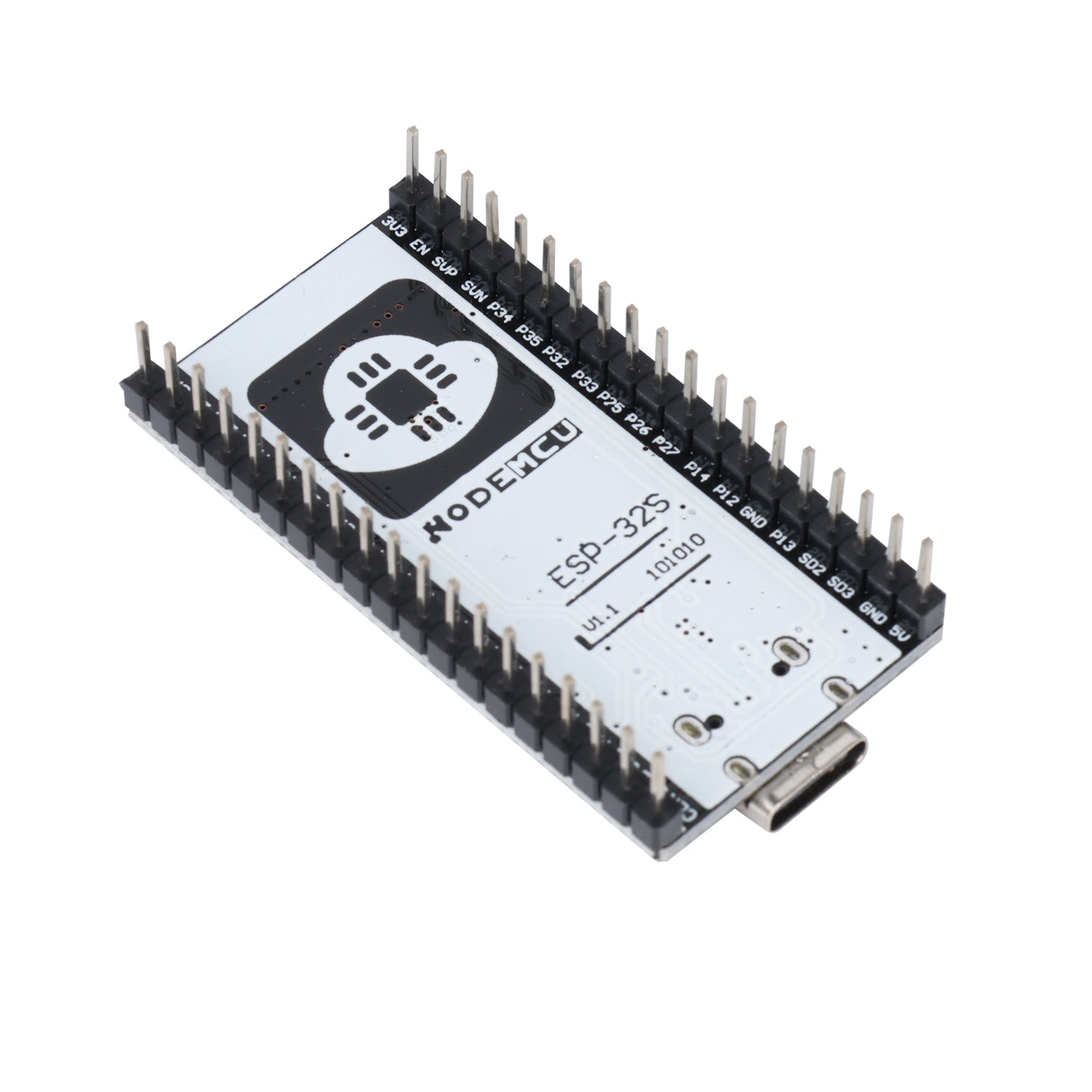

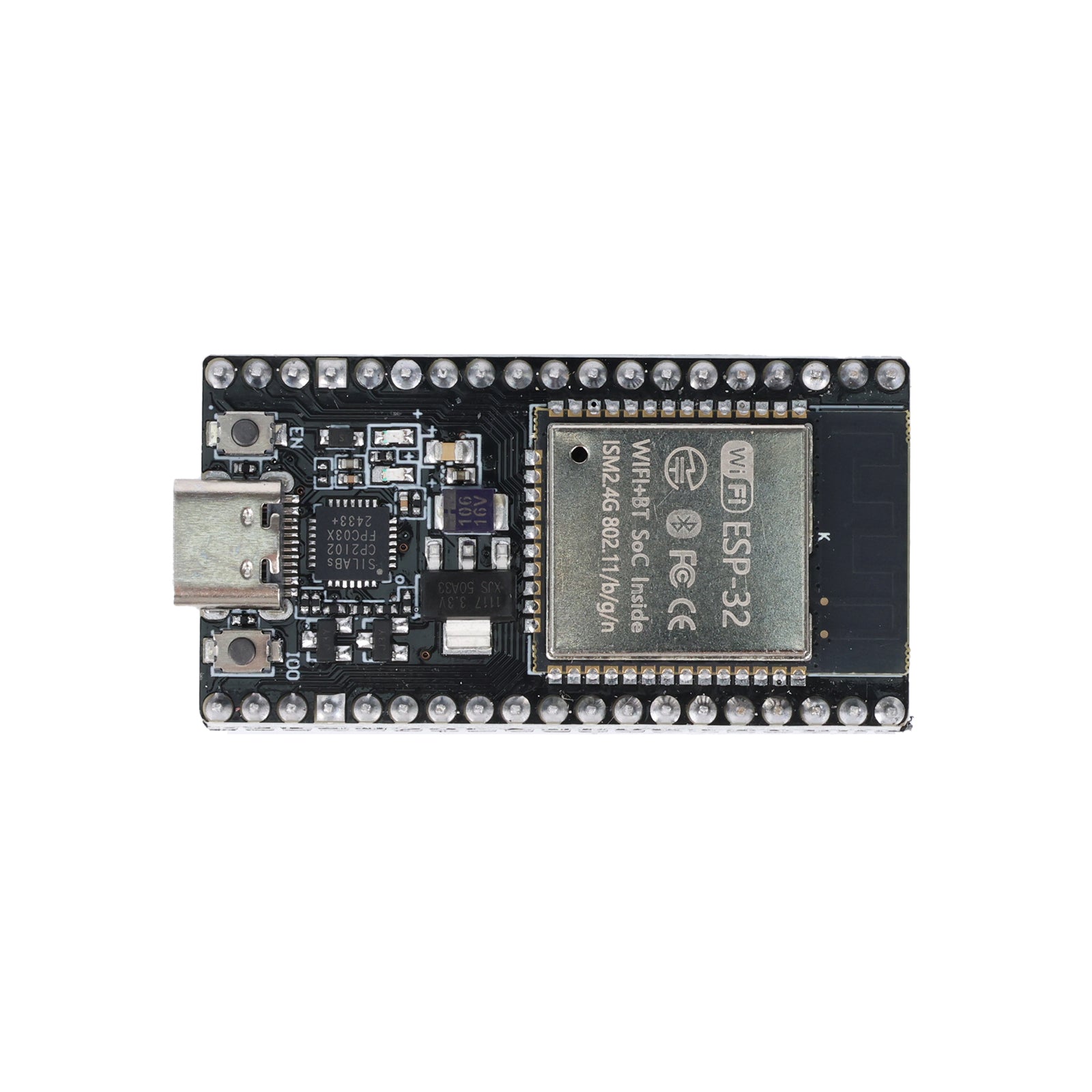

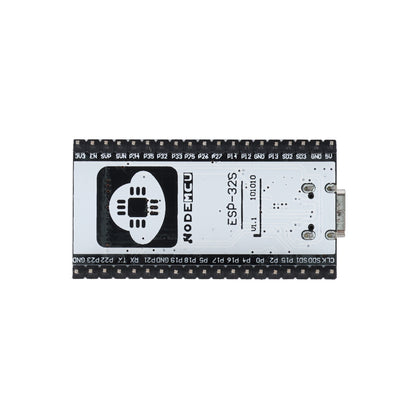

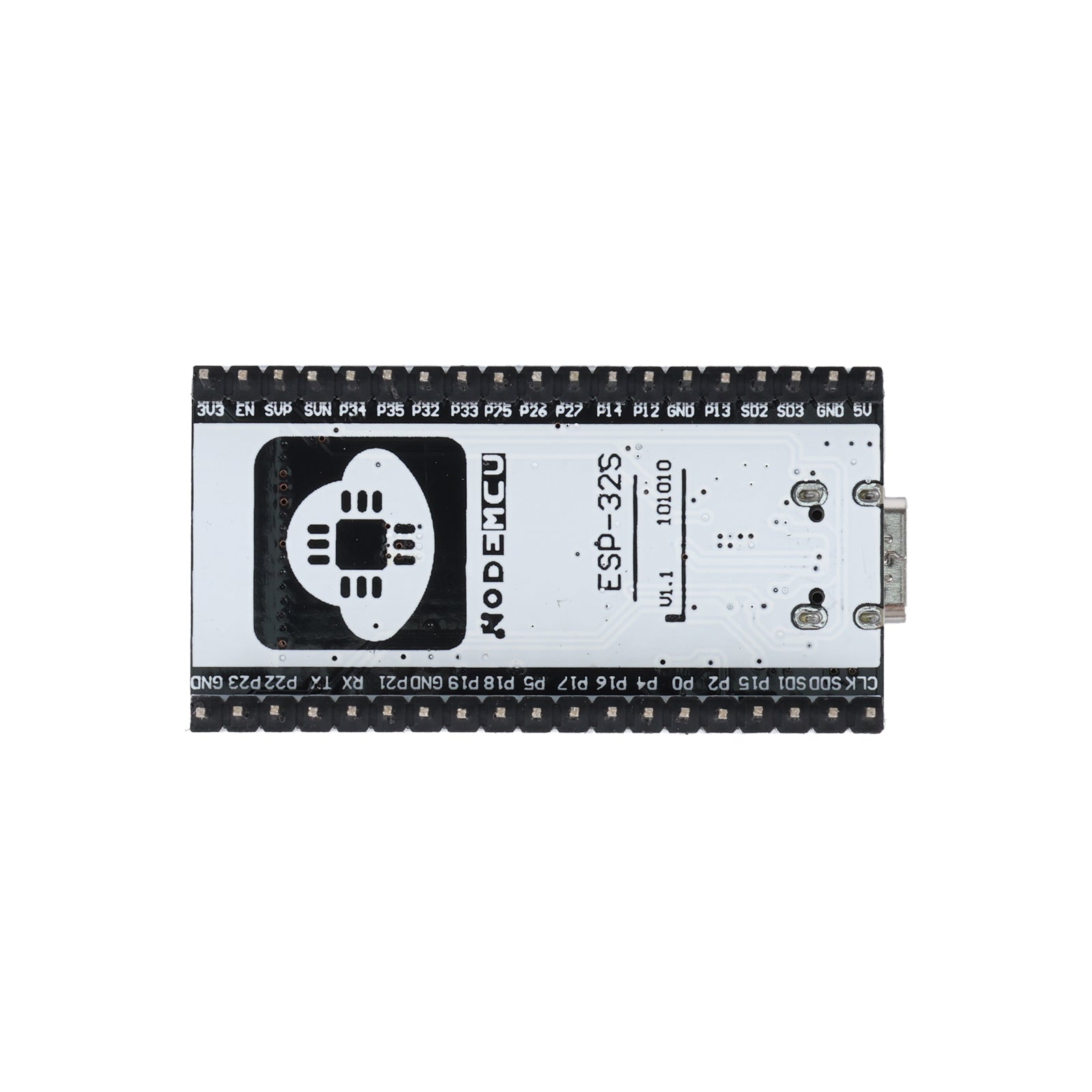

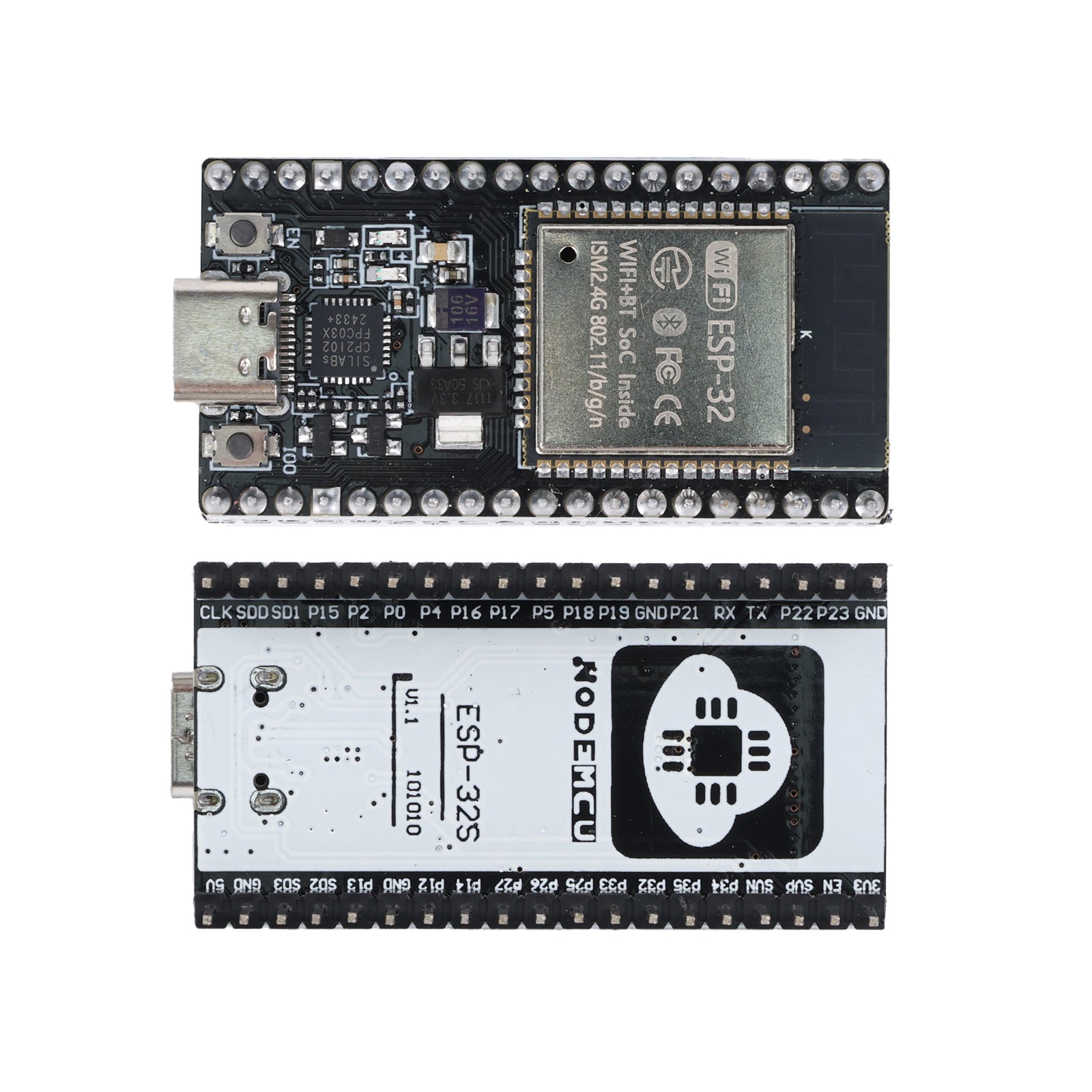

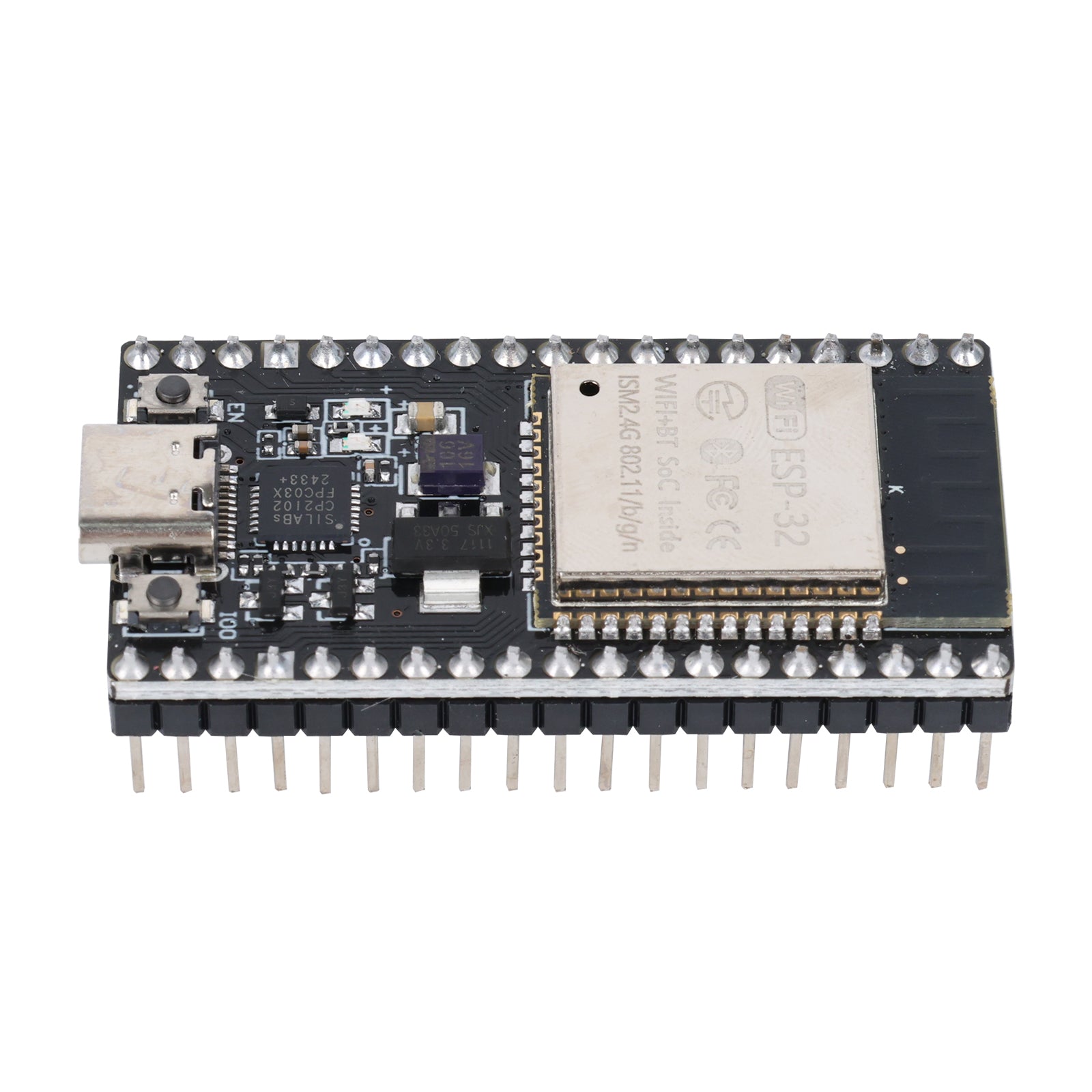

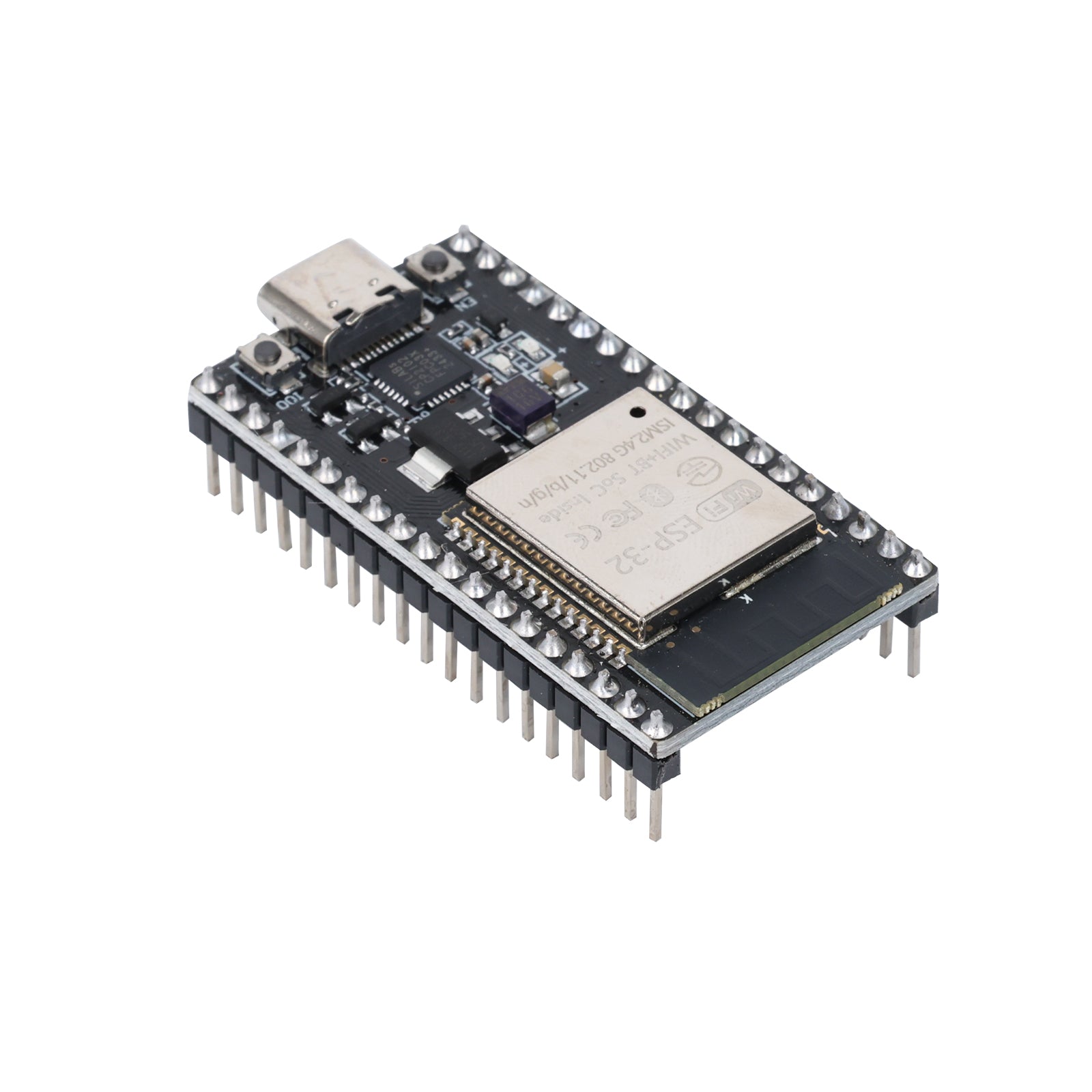

ESP32 Dev Board 4MB CP2102 USB-C with 38 pins detailed circuit view

ESP32 Dev Board 4MB CP2102 USB-C Pre-Soldered 38-Pin

SKU ST-PQQVS65HKONL

$7.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

ShillehTek ESP32 dev board with 4MB flash and presoldered CP2102 Type-C connector for easy USB serial programming; compact, hobbyist-friendly platform for Wi‑Fi and Bluetooth IoT prototyping.

Bulk eligible

Mix any Bulk eligible products — discount applies to your total quantity across the cart.
Auto-applied at checkout
Buy 5+ $7.59 each Save 5%
Buy 10+ $7.19 each Save 10%
View all bulk eligible products →
  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Worldwide via DHL
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ESP32 Dev Board 4MB CP2102 USB-C with 38 pins detailed circuit view ESP32 Dev Board 4MB CP2102 USB-C Pre-Soldered 38-Pin ★★★★★ (1) $7.99 This item
Close-up of ShillehTek Pre-Soldered BME280 sensor with purple PCB and metal pins BME280 Pre-Soldered Temperature, Pressure & Humidity Sensor for Arduino & Raspberry Pi ★★★★★ (57) $10.99
angled close-up of blue I2C OLED display module SSD1306 0.96 inch for Arduino ESP32 Pre-Soldered SSD1306 0.96" Blue I2C OLED Display Module 4-Pin for Arduino, Raspberry Pi & ESP32No reviews yet $6.89
Blue Micro SD TF Card Adapter with metal slot and pins ShillehTek module Micro SD TF Card Adapter Reader Module SPI Interface for ArduinoNo reviews yet $4.49
Total for 4 items
$30.36

Products related to this item

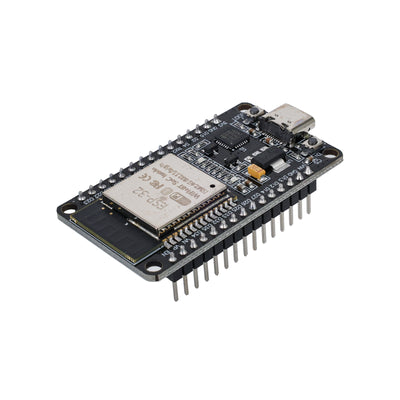

ESP-WROOM-32 ESP32 Dev Board with CP2102 USB-C connector and pins
★★★★★ (2) ESP-WROOM-32 (ESP-32S) ESP32 Dev Board CP2102 USB-C Pre-Soldered $8.99

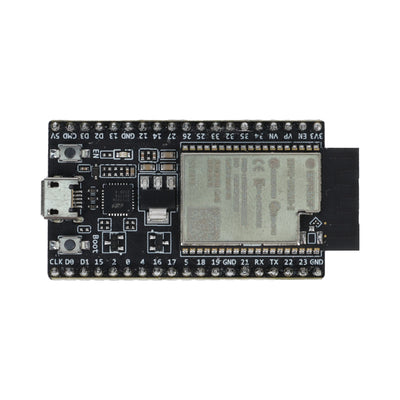

Top view of ESP32-DevKitC-VE board showing metal shield and pin labels
★★★★★ (1) ESP32-DevKitC-VE Pre-Soldered Dev Board with 8MB Flash + 8MB PSRAM $24.99

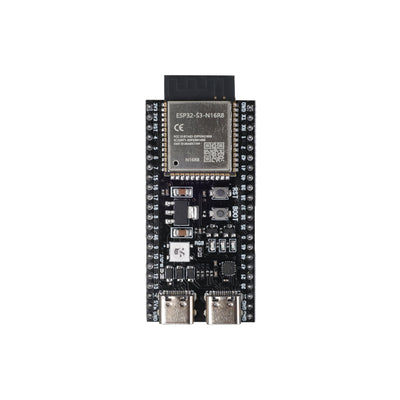

Top view of ESP32-S3 DevKitC-1 Dev Board with pre-soldered headers and USB ports
★★★★★ (4) ESP32-S3 DevKitC-1 Dev Board with Pre-Soldered Headers $9.99

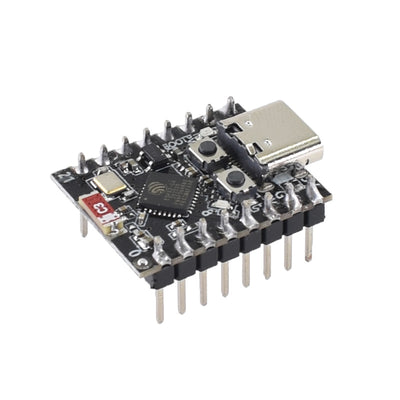

Close-up top angled view of ESP32-C3 4MB Pre-Soldered WiFi Dev Board for Arduino
★★★★★ (1) ESP32-C3 4MB Pre-Soldered WiFi Dev Board for Arduino $5.99

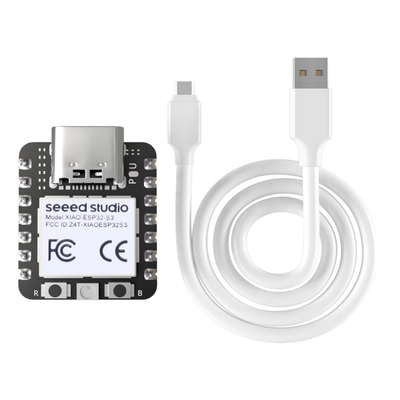

XIAO ESP32S3 pre-soldered microcontroller with USB-C cable for programming
No reviews yetXIAO ESP32S3 Pre-Soldered Microcontroller with WiFi & Bluetooth for Arduino & MicroPython $19.99

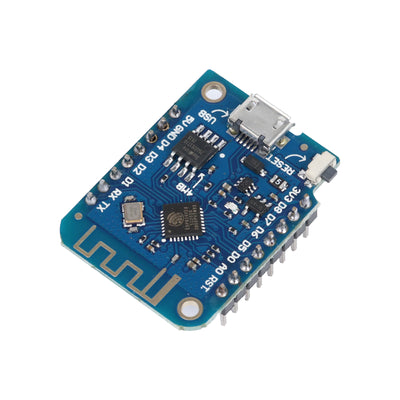

ESP8266 D1 Mini V3 4MB blue circuit board top view for Arduino
No reviews yetESP8266 D1 Mini V3 4MB Pre-Soldered Dev Board for Arduino $5.99

Overview

Product Overview

The classic ESP32 dev board, done properly: an ESP-WROOM-32 module (ESP32-D0WD-V3, dual-core up to 240 MHz, 520 KB SRAM, 4 MB flash) with Wi-Fi 802.11 b/g/n plus Bluetooth Classic and BLE, a CP2102 USB-to-UART bridge on a USB-C port, and 38 pre-soldered pins. You get about 25 usable GPIO, 18 ADC channels, 2 DACs, 10 touch pins and I2C, SPI, UART, I2S, CAN and SDIO buses. Logic is 3.3 V and not 5 V tolerant.

Program it from the Arduino IDE (esp32 core), ESP-IDF, MicroPython or PlatformIO, or flash ESPHome or Tasmota for Home Assistant. Power it over USB-C or 5 V on VIN. It is the board behind most of our ESP32 tutorials — sensor nodes, MQTT devices, relays, displays and robots. Single or 2-pack.

Questions & answers

Frequently asked questions

Yes. It is an ESP32 development board with a CP2102 USB-to-UART interface, so it can be programmed from Arduino IDE when the ESP32 board support is installed, and it is also suitable for ESP-IDF workflows.
Yes. The headers are preinstalled, so the board is ready for breadboards, jumper wires, and quick peripheral connections without soldering. This helps with fast prototyping, classroom labs, and testing sensor or module hookups.
It uses a USB-C connector with a CP2102 USB-to-UART chip for programming, serial monitoring, and power. The ESP32 GPIO are 3.3 V logic, so use appropriate level shifting when connecting 5 V devices.
It is well suited for WiFi and Bluetooth connected prototypes such as smart home controllers, MQTT devices, sensor nodes, robotics experiments, and automation projects. The 4MB flash supports typical firmware and iterative development builds.
Use a data-capable USB-C cable, not a charge-only cable. If the serial port still does not appear, install the CP2102 driver, select the correct port in your development tool, and verify the board is powered.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

ESP-WROOM-32 (ESP-32S) module ESP32-D0WD-V3 dual-core Xtensa LX6 up to 240 MHz, 520 KB SRAM, 4 MB flash.

Wi-Fi + Bluetooth 802.11 b/g/n on 2.4 GHz, plus Bluetooth Classic and BLE.

38 pins, ~25 GPIO 18 ADC channels (12-bit), 2 DAC (8-bit), 10 capacitive touch; I2C, SPI, UART, I2S, CAN, SDIO.

CP2102 USB-to-UART, USB-C Dependable flashing and serial monitor; power over USB-C or 5 V on VIN.

3.3 V logic Not 5 V tolerant — use a level shifter for 5 V sensors.

Pre-soldered headers Drops onto a breadboard or protoboard out of the bag.

Works with Arduino IDE (esp32 core), ESP-IDF, MicroPython, PlatformIO, ESPHome and Tasmota. Single or 2-pack.
