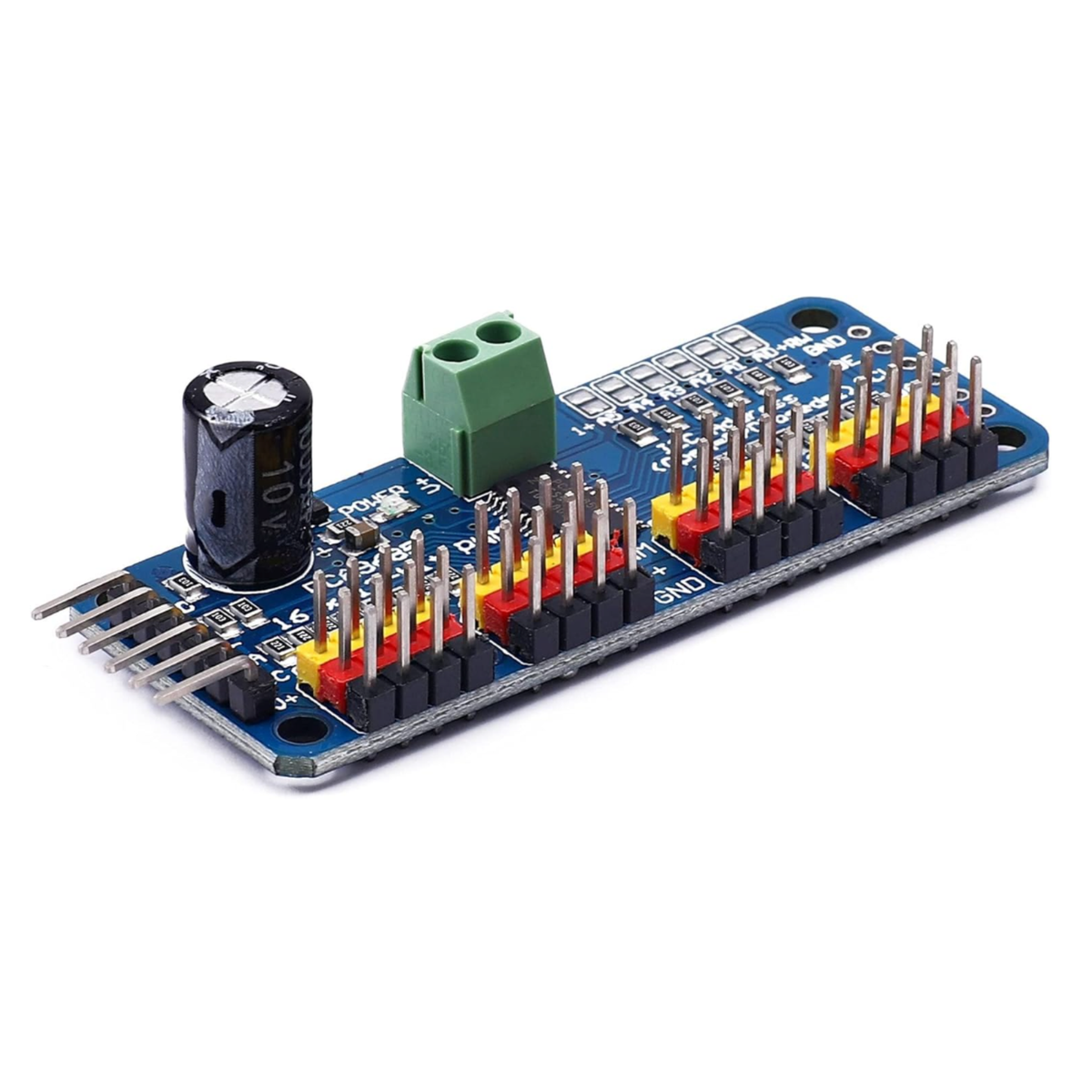

ShillehTek PCA9685 16 Channel 12-Bit PWM Servo Motor Driver with capacitor and terminal block

PCA9685 Pre-Soldered 16-Channel 12-Bit PWM Servo Motor Driver I2C for Arduino & Raspberry Pi

$6.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

PCA9685 16-channel PWM driver for Arduino expands PWM outputs to drive 16 servos or LEDs while offering 12-bit (4096-step) precision for smooth motion and dimming in advanced projects.

  • Free UPS Ground U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ShillehTek PCA9685 16 Channel 12-Bit PWM Servo Motor Driver with capacitor and terminal block PCA9685 Pre-Soldered 16-Channel 12-Bit PWM Servo Motor Driver I2C for Arduino & Raspberry PiNo reviews yet $6.99 This item
Top front view of Raspberry Pi Pico 2 with pre-soldered headers by ShillehTek Raspberry Pi Pico 2 with Pre-Soldered Headers ★★★★★ (1) $11.99
ShillehTek MG90S metal gear micro servo motor with accessories and screws MG90S Metal Gear 9g Micro Servo Motor 180° for RC PlaneNo reviews yet $6.99
ShillehTek SG92R Micro Servo Motor with orange cable and black mounting parts SG92R 9g Micro Servo Motor with Carbon Fiber Gears 2.5kg for RC Plane & ArduinoNo reviews yet $6.49
Total for 4 items
$32.46

Products related to this item

Close-up of ShillehTek L298N Motor Driver Board with heat sink and blue connectors
★★★★★ (26) L298N Motor Driver Board for Arduino & Raspberry Pi DC and Stepper Motors $6.90

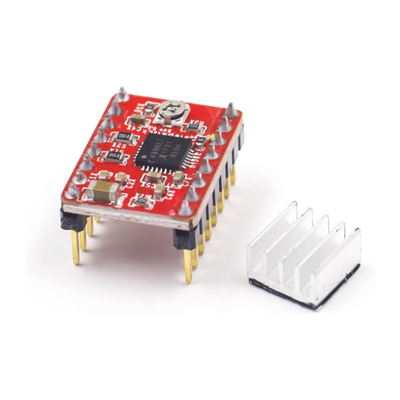

ShillehTek pre-soldered A4988 stepper motor driver with detached heatsink
No reviews yetA4988 Pre-Soldered Stepper Motor Driver with Heatsink for 3D Printers & Arduino $5.99

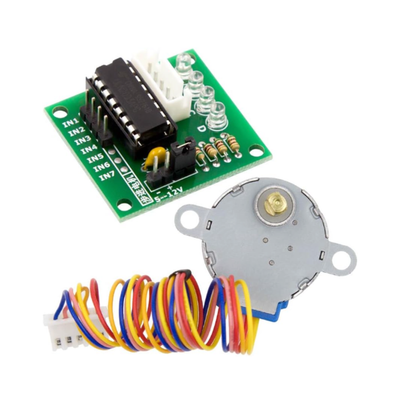

ULN2003 driver board and 5V 4-phase stepper motor with multicolor wires
★★★★★ (28) ULN2003 5V 4-Phase Stepper Motor with Driver Board for Arduino, Raspberry Pi & ESP32 $5.99

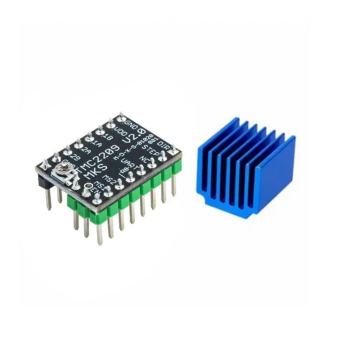

MKS TMC2209 stepper motor driver module with separate blue aluminum heatsink for cooling
No reviews yetMKS TMC2209 Motor Driver with Heatsink $8.99
Top view of ESP32-DevKitC-VE board showing metal shield and pin labels
No reviews yetESP32-DevKitC-VE Pre-Soldered Dev Board with 8MB Flash + 8MB PSRAM $24.99
Close-up top angled view of Raspberry Pi Pico 2W with pre-soldered headers
No reviews yetRaspberry Pi Pico 2W with Pre-Soldered Headers $14.99

Overview

Product Overview

Stop running out of PWM pins: this PCA9685 board gives you precise, practical control for multi-servo and LED projects, freeing your microcontroller to handle higher-level tasks. The board provides 16-channel, 12-bit PWM outputs (4096 steps per channel) and talks over the standard SDA/SCL bus so you only use two data pins. It includes a screw terminal and protection capacitor to accept external motor power (up to 6V) separate from logic power, and can be daisy-chained—addressable up to 62 modules for a theoretical 992 PWM outputs—making it ideal for large robots, arms, or lighting arrays. Works with 3.3V and 5V logic, so it pairs cleanly with Arduino, Raspberry Pi, and other microcontrollers using the I2C interface. The header pins ship pre-soldered, so it works out of the box with no soldering required.

Questions & answers

Frequently asked questions

Yes. The PCA9685 uses the standard I2C SDA/SCL interface and supports both 3.3V and 5V logic, so it pairs with Raspberry Pi, Arduino, ESP32, and similar microcontrollers that provide I2C.
Yes. This ShillehTek board is sold as a ready-to-use module with headers already soldered, avoiding the common setup step of soldering pins before wiring it into a breadboard, jumper leads, or a project harness.
It provides 16 independent PWM output channels with 12-bit resolution, giving 4096 steps per channel. Control data runs over I2C, while external servo or motor power can be connected separately through the screw terminal, up to 6V.
It is commonly used when one controller needs to drive many servos or PWM-controlled LEDs without using many GPIO pins. Typical projects include robot arms, walking robots, pan-tilt assemblies, animatronics, and lighting arrays.
For typical hobby servos, use a separate external power supply on the screw terminal instead of powering servos from the microcontroller board. Keep logic power connected for I2C control, and ensure all grounds are connected together.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

16 PWM Channels Expands control to 16 independent PWM outputs for servos or LEDs.

12‑Bit Resolution Provides 4096-step precision for smooth servo movement and dimming.

I2C 2‑Pin Interface Uses standard SDA/SCL lines to save microcontroller digital I/O pins.

External Power Terminal Includes a screw terminal and capacitor for safely powering up to 6V motors.

Chainable Expansion Addressable design lets you daisy-chain up to 62 modules for massive scalability.

3.3V/5V Compatible Works with 3.3V logic (e.g., Raspberry Pi) while driving standard 5V servos.

Offloads PWM Tasks Takes PWM processing off the main board so the microcontroller can run other tasks.
