Project Overview

Arduino Nano + PCA9685 servo driver robotic arm: Build a 6-axis robotic arm controlled by a joystick, with six MG90S micro servos driven over I2C and an OLED that shows the current angles.

Six MG90S micro servos give the arm 6 degrees of freedom: base rotation, shoulder, elbow, wrist twist, wrist tilt, and gripper. A 2-axis joystick maps to the most-used joints; the OLED shows current angles. The foundation of every robotics project - from animatronics to entry-level industrial pick-and-place.

Time: ~4 hours
Skill level: Advanced
What you will build: A 6-DOF robotic arm with joystick control + saved positions.

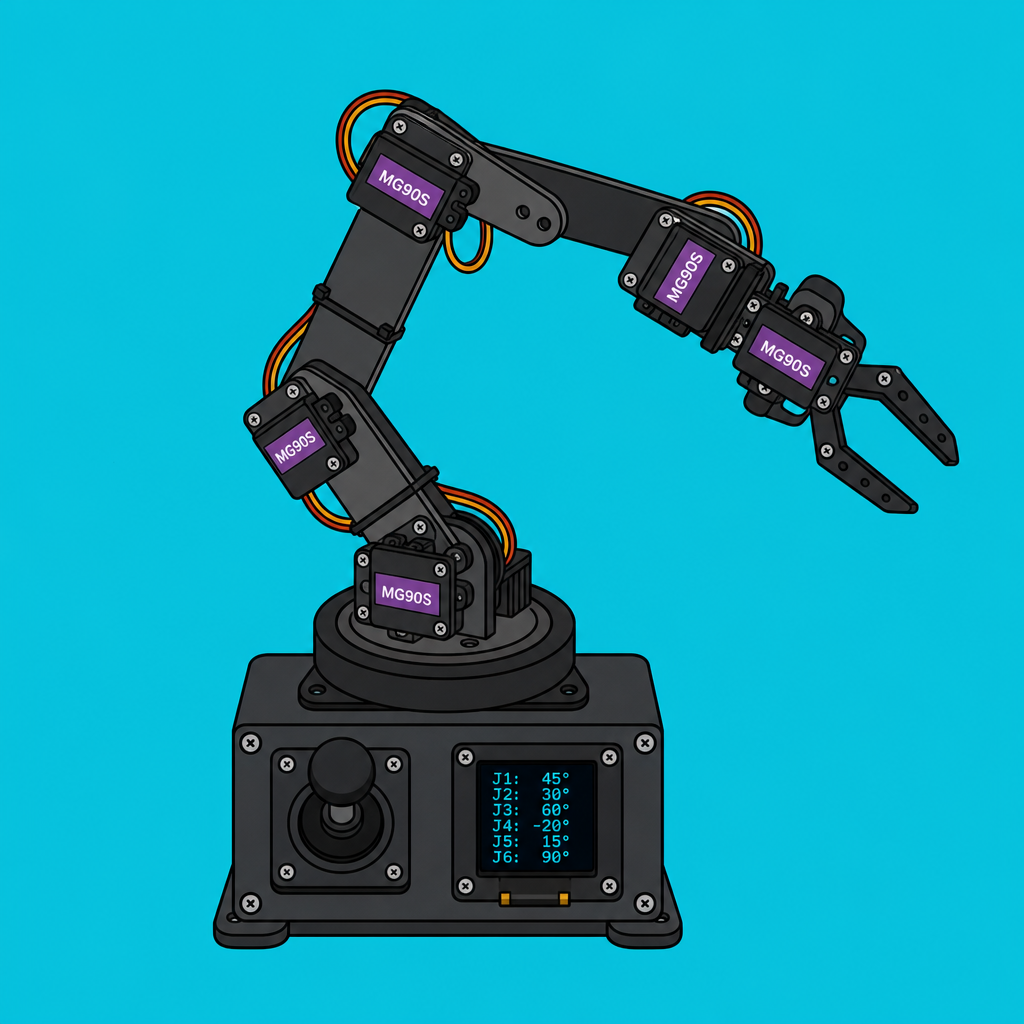

6-DOF robotic arm build using an Arduino Nano, PCA9685 servo driver, and multiple MG90S servos — PCA9685 + 6x MG90S + joystick = 6-DOF robotic arm.

Parts List

From ShillehTek

PCA9685 16-Ch PWM Servo Driver - drives multiple servos from a single I2C interface
MG90S Metal-Gear Servo (x6) - provides the 6 joints of motion
KY-023 Joystick Module - analog input for manual joint control
0.96" SSD1306 OLED - displays current joint angles
Arduino Nano V3.0 - microcontroller for reading inputs and commanding servos
Dupont Jumper Wires - wiring between modules

External

3D-printed or laser-cut arm frame (open-source designs everywhere)
5V/2-3A external supply for the servos

Note: Do not power 6 servos from the Arduino's 5V. They can pull ~700mA each at peak. Use a separate 5V supply with a common ground.

Step-by-Step Guide

Step 1 - Wire the PCA9685

Goal: Connect the Arduino Nano, PCA9685, joystick, OLED, and external 5V servo power safely.

What to do: Connect the PCA9685 to the Arduino over I2C (SDA/SCL). Connect six MG90S servos to PCA9685 channels 0 to 5. Power the servos from a separate 5V supply connected to the PCA9685 V+ input, and make sure the external supply ground and Arduino ground are tied together (common ground).

PCA9685 servo driver board with six MG90S servos connected on channels 0 to 5 — PCA9685 has 16 channels - connect 6 MG90S servos to channels 0 to 5.

Wiring diagram showing Arduino Nano connected to PCA9685 via I2C, joystick to A0 and A1, and external 5V powering PCA9685 V+ — Arduino + PCA9685 on I2C, joystick on A0/A1, external 5V to PCA9685's V+.

Expected result: All modules are connected, and the PCA9685 has a dedicated 5V supply for servo power with a shared ground.

Step 2 - Install Library + Test

Goal: Verify the PCA9685 is communicating and can center the servos.

What to do: Install the Adafruit PWM Servo Driver library in the Arduino IDE. Upload the following sketch to initialize the driver and set channels 0 to 5 to their midpoint pulse.

Code:

#include <Wire.h>
#include <Adafruit_PWMServoDriver.h>
Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver();
const int SERVO_MIN = 150, SERVO_MAX = 600;
void setup() {
  pwm.begin(); pwm.setPWMFreq(50);
  for (int s = 0; s < 6; s++) pwm.setPWM(s, 0, (SERVO_MIN + SERVO_MAX) / 2);
}
void loop() {}

Expected result: All connected servos move to a centered position and hold steady.

Step 3 - Joystick Control Sketch

Goal: Control the base and shoulder joints using the joystick analog axes.

What to do: Wire the joystick outputs to A0 and A1 (as shown in the wiring diagram). Upload this loop code that reads analog values, applies a deadband, updates target angles, and writes PWM values to the PCA9685 on channels 0 and 1.

Code:

int curBase = 90, curShoulder = 90;
void loop() {
  int xRaw = analogRead(A0) - 512;
  int yRaw = analogRead(A1) - 512;
  if (abs(xRaw) > 50) curBase = constrain(curBase + xRaw/200, 0, 180);
  if (abs(yRaw) > 50) curShoulder = constrain(curShoulder + yRaw/200, 0, 180);
  pwm.setPWM(0, 0, map(curBase, 0, 180, SERVO_MIN, SERVO_MAX));
  pwm.setPWM(1, 0, map(curShoulder, 0, 180, SERVO_MIN, SERVO_MAX));
  delay(20);
}

Expected result: Moving the joystick smoothly rotates the base and moves the shoulder, without jitter when the joystick is near center.

Step 4 - Use It

Goal: Operate the arm with joystick control and confirm the display and joint mapping.

What to do: Use joystick X for base rotation and joystick Y for shoulder movement. Use the additional buttons to cycle through elbow, wrist, and gripper control. Watch the OLED to confirm the current joint angle values.

Robotic arm being controlled with a KY-023 joystick module, mapping X to base rotation and Y to shoulder movement — Joystick X -> base rotation, Y -> shoulder. Two more buttons cycle through elbow / wrist / gripper.

Arduino Nano robotic arm operating with multiple servos moving smoothly while an SSD1306 OLED shows the current joint angle — Smooth servo motion; OLED shows current angle on each joint.

Expected result: The arm responds smoothly to joystick input, and the OLED updates with the joint angles.

Step 5 - Where to Take It Next

Goal: Identify practical next upgrades once basic motion control is working.

What to do: Consider these extensions after your core wiring and control loop are stable:

Add a Bluetooth/Wi-Fi link - phone-app control (HM-10 or ESP32)
Record/playback joint positions for repeatable demos (animatronics)
Add inverse-kinematics math - control by target (x, y, z) instead of joint angles
Pair with a webcam + computer vision - pick objects by color or shape

Expected result: You have a clear roadmap for expanding the project beyond manual joystick control.

Conclusion

This build uses an Arduino Nano, a PCA9685 servo driver, and six MG90S servos to create a 6-DOF robotic arm you can drive with a joystick while viewing joint angles on an SSD1306 OLED.
