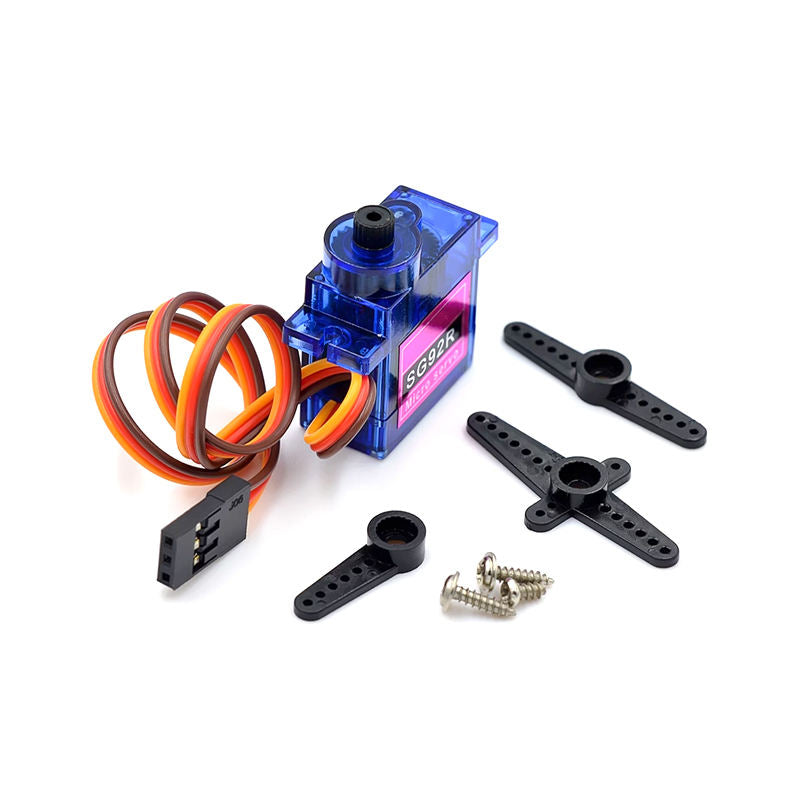

ShillehTek SG92R Micro Servo Motor with orange cable and black mounting parts

SG92R 9g Micro Servo Motor with Carbon Fiber Gears 2.5kg for RC Plane & Arduino

$6.49 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

SG92R 9g micro servo with carbon fiber gears and 2.5kg/cm torque, ideal for lightweight RC planes and precise Arduino robotics, offering 0-180° digital positioning in a compact form

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ShillehTek SG92R Micro Servo Motor with orange cable and black mounting parts SG92R 9g Micro Servo Motor with Carbon Fiber Gears 2.5kg for RC Plane & ArduinoNo reviews yet $6.49 This item
ShillehTek PCA9685 16 Channel 12-Bit PWM Servo Motor Driver with capacitor and terminal block PCA9685 Pre-Soldered 16-Channel 12-Bit PWM Servo Motor Driver I2C for Arduino & Raspberry PiNo reviews yet $6.99
Top and bottom views of Arduino Nano V3.0 Pre-Soldered CH340G ATmega328P board Arduino Nano V3.0 Pre-Soldered CH340G ATmega328PNo reviews yet $5.99
Black 18650 battery holder box with red and black wires, no cover, for single battery 18650 Battery Holder Box with Wire (No Cover)No reviews yet $5.99
Total for 4 items
$25.46

Products related to this item

ShillehTek MG90S metal gear micro servo motor with accessories and screws
No reviews yetMG90S Metal Gear 9g Micro Servo Motor 180° for RC Plane $6.99
ShillehTek MG995 Metal Gear Servo Motor with connecting cable and attachment accessories
No reviews yetMG995 Metal Gear Servo Motor 12kg High Torque 180 Degree $7.50
ULN2003 driver board and 5V 4-phase stepper motor with multicolor wires
★★★★★ (28) ULN2003 5V 4-Phase Stepper Motor with Driver Board for Arduino, Raspberry Pi & ESP32 $5.99

Overview

Product Overview

The SG92R micro servo brings durable, precise motion to lightweight builds without extra bulk. In the familiar 9g form factor it fits SG90 mounts and small RC models, offering a full 0–180° range and responsive digital control for snappier positioning and tighter deadband than older analog units. Reinforced with carbon fiber gears, the servo resists stripping and handles higher loads than standard nylon gear alternatives. It delivers a practical 2.5 kg·cm stall torque—2.5kg/cm—suitable for control surfaces on small airplanes, hobby robotics, and Arduino automation. If you need a compact, maker-friendly actuator that balances low weight, improved gear strength, and faster digital response, the SG92R is a straightforward upgrade over basic 9g servos.

Questions & answers

Frequently asked questions

Yes. The SG92R can be controlled from Arduino and Raspberry Pi projects using a servo-control signal, with suitable servo power and a shared ground between the controller and servo power source.
The SG92R uses the familiar 9g micro-servo size and is described as fitting SG90 mounts, making it a straightforward drop-in option for many small RC and maker builds using that form factor.
The SG92R is a digital hobby servo controlled by a standard servo-style signal rather than direct DC motor drive. It provides 0–180° positioning and connects through the usual power, ground, and control signal arrangement.
It is suited for lightweight motion tasks such as small RC airplane control surfaces, hobby robot joints, and Arduino automation. The 2.5 kg·cm stall torque and carbon fiber gears help with durability in compact builds.
Check that the servo has adequate power, the controller and servo share ground, and the control signal is on the correct pin. Also confirm the load is not exceeding the servo’s 2.5 kg·cm stall torque.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

High Torque Delivers 2.5kg/cm stall torque for stronger control surface hold.

Carbon Fiber Gears Reinforced carbon-composite gears resist stripping and handle higher loads.

Digital Precision Digital control provides faster response and tighter deadband for snappier motion.

180° Rotation Offers a smooth 0–180° range ideal for precise positioning and pan-tilt mounts.

Lightweight 9g Profile Standard 9-gram form factor fits SG90 mounts and most RC airframes.

RC Plane Ready Built for reliable operation in lightweight aircraft control surfaces and linkages.

Durable Construction Upgraded components deliver improved longevity over standard plastic-gear servos.

Reference

Documents

Full Product Manual ShillehTek SG92R Micro Servo Motor 9g Carbon Fiber Gears 2.5kg for RC Plane | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.
