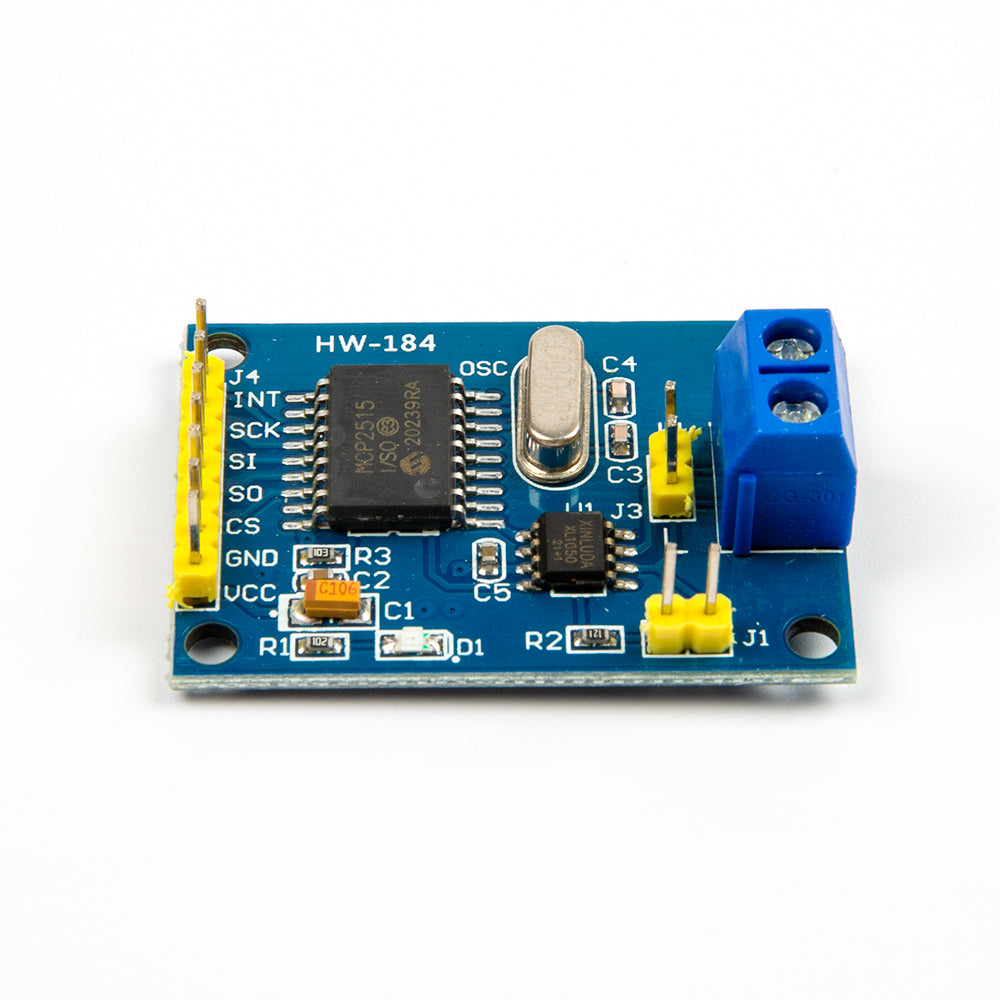

MCP2515 CAN Bus Module with TJA1050 SPI interface showing chip, pins, and blue terminal block

MCP2515 Pre-Soldered CAN Bus Module with TJA1050 SPI Interface

SKU AA204

$4.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

MCP2515 CAN bus module with TJA1050 adds SPI-based Controller Area Network communication to Arduino, Raspberry Pi, and ESP32 for automotive, robotics, industrial control, and prototyping.

  • Free UPS Ground U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
MCP2515 CAN Bus Module with TJA1050 SPI interface showing chip, pins, and blue terminal block MCP2515 Pre-Soldered CAN Bus Module with TJA1050 SPI InterfaceNo reviews yet $4.99 This item
Top and bottom views of Arduino Nano V3.0 Pre-Soldered CH340G ATmega328P board Arduino Nano V3.0 Pre-Soldered CH340G ATmega328PNo reviews yet $5.99
Top view of ShillehTek LM2596 step-down buck converter module with digital voltmeter LM2596 Step-Down Buck Converter Module with Digital Voltmeter ★★★★★ (8) $6.99
ShillehTek 24MHz 8 Channel USB Logic Analyzer with colorful ribbon cables and USB connectors 24MHz 8-Channel USB Logic Analyzer Digital Debugger for ArduinoNo reviews yet $8.99
Total for 4 items
$26.96

Products related to this item

Close up of HC-05 6-Pin Bluetooth Module with exposed circuitry
No reviews yetHC-05 6-Pin Bluetooth Module, No Button $10.49

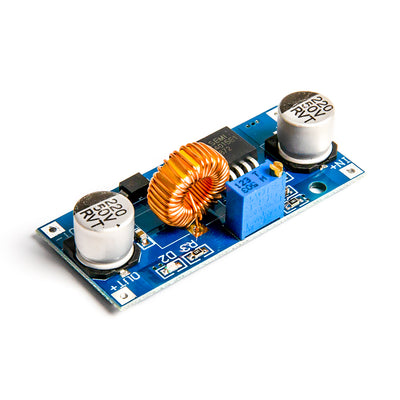

XL4015 adjustable DC-DC step-down module showing coil, capacitors, and blue potentiometer on blue PCB
No reviews yetXL4015 Adjustable DC-DC Step-Down Module, 4-38V 5A, 96% High Efficiency $6.99

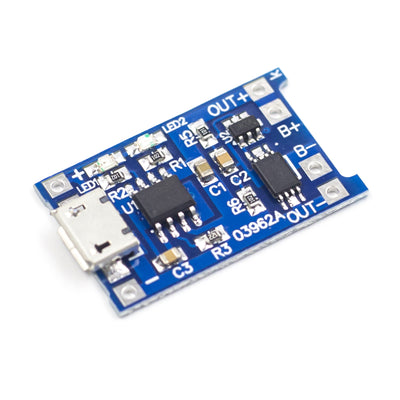

TP4056 1A lithium polymer battery charging board with micro USB port and current protection
No reviews yetTP4056 1A 3.7-4.2V LiPo Battery Charging Board with Micro USB & Current Protection $2.50
Black FT232RL USB to TTL Serial Cable Adapter with 6-pin connectors
No reviews yetFT232RL USB to TTL Serial Cable Adapter with CTS/RTS 6-Pin $5.25

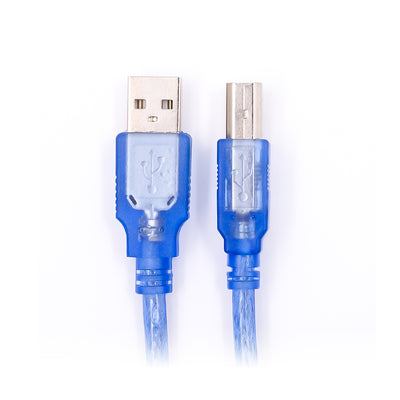

Blue USB 2.0 A to B male printer cable with transparent connectors and visible wiring
No reviews yetUSB 2.0 A-B Male Printer Cable 0.5m (1.64ft) $2.99
AD8232 ECG module with electrode cable and adhesive pads sensor kit
★★★★★ (2) AD8232 ECG Module - Heart Rate & ECG Monitoring Sensor Kit $11.99

Overview

Product Overview

MCP2515 CAN Bus Module is a SPI CAN interface that adds Controller Area Network communication to microcontroller projects using the MCP2515 CAN controller and TJA1050 transceiver. It lets Arduino, Raspberry Pi, ESP32, and other SPI-capable boards send, receive, and monitor CAN bus data for automotive diagnostics, industrial control, robotics, and embedded prototyping. Use it to connect sensors, ECUs, motor controllers, or distributed devices over CAN when your host board does not have native CAN support. It is also useful for CAN bus sniffing, custom dashboards, battery management systems, and networked nodes that need reliable message exchange through a standard SPI connection. The header pins ship pre-soldered, so it works out of the box with no soldering required.

Questions & answers

Frequently asked questions

It works with Arduino, Raspberry Pi, ESP32, and other SPI-capable host boards when supported by compatible software or drivers. The module adds CAN communication through the MCP2515 controller and TJA1050 transceiver.
ShillehTek supplies this module with pre-soldered headers, so header soldering is not required before breadboard or jumper-wire use. You still need to wire SPI, CANH/CANL, power, and ground, then configure host software.
It uses SPI between the host board and MCP2515 CAN controller, plus a TJA1050 transceiver for the physical CAN bus. Typical connections include SCK, MOSI, MISO, chip select, interrupt, power, ground, CANH, and CANL.
Yes. It can send, receive, and monitor CAN frames, making it useful for automotive diagnostics, CAN sniffing, custom dashboards, and ECU-related prototyping. The host software must match the bus bitrate and interpret the message data.
Check CANH/CANL orientation, shared ground, matching CAN bitrate, correct SPI chip-select and interrupt settings, and proper bus termination. Also confirm the CAN network is active; the module will not show frames on a silent bus.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

MCP2515 and TJA1050 Uses the MCP2515 CAN controller with the TJA1050 CAN transceiver.

SPI CAN Interface Adds Controller Area Network communication through a standard SPI interface.

Board Compatibility Works with Arduino, Raspberry Pi, ESP32, and other SPI-capable microcontroller boards.

No Native CAN Adds CAN bus support to host boards that do not have built-in CAN hardware.

CAN Message Handling Supports sending, receiving, and monitoring CAN bus data.

Common Use Cases Suitable for automotive diagnostics, industrial control, robotics, and embedded prototyping.

Device Connectivity Connects sensors, ECUs, motor controllers, battery management systems, and distributed CAN nodes.

Reference

Documents

Full Product Manual MCP2515 CAN Bus Module with TJA1050 SPI Interface | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.
