Project Overview
Arduino Nano V3.0 vehicle data logger: Use an MPU6050 IMU for G-force (acceleration and braking) plus a GT-U7 NEO-6M GPS for position and speed, then write everything to a microSD card as a CSV you can analyze later.
The logger records a new row on each GPS update (about 1 Hz). After a drive, you can plot speed and G-forces over your route for track-day telemetry or general driving analysis.
- Time: ~2 hours
- Skill level: Intermediate
- What you will build: A self-contained data logger that records GPS + IMU data to microSD for offline analysis.
Parts List
From ShillehTek
- MPU6050 IMU - measures acceleration and gyro data for G-force logging.
- GT-U7 NEO-6M GPS - provides latitude/longitude and speed fixes.
- Micro SD Card Adapter - writes the CSV log to a microSD card over SPI.
- Arduino Nano V3.0 - reads sensors and stores the data.
- Dupont Jumper Wires - makes the breadboard and module connections.
External
- microSD card (≤32 GB FAT32)
- 12V to 5V buck (or USB-C car charger) for power
- Project enclosure
Note: The microSD card should be formatted as FAT32. The GPS module is connected using SoftwareSerial, the MPU6050 uses I2C, and the SD adapter uses SPI.
Step-by-Step Guide
Step 1 - Wire It Up

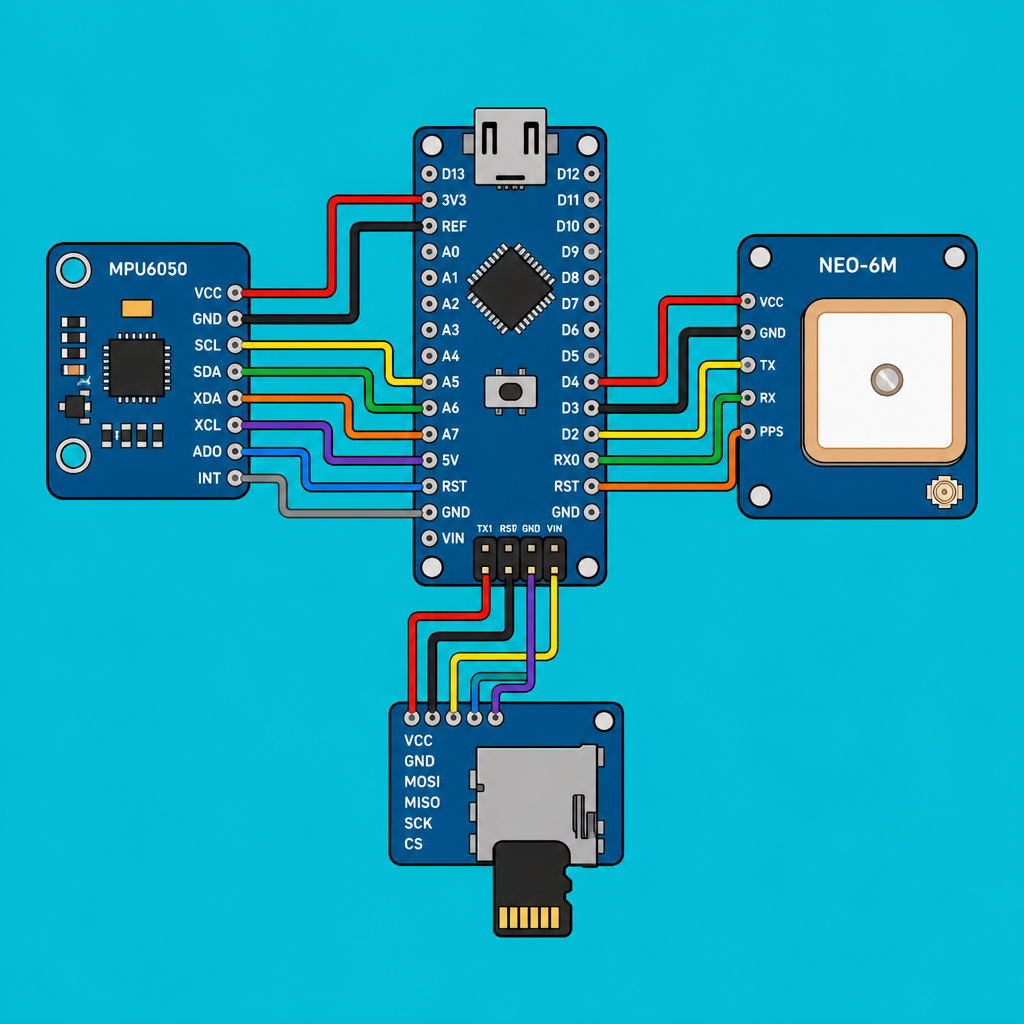

Goal: Connect the Arduino Nano to the MPU6050 (I2C), the NEO-6M GPS (SoftwareSerial), and the microSD adapter (SPI).
What to do: Build the circuit on a breadboard and double-check power and signal wiring before plugging into your vehicle power source.
Expected result: All modules are powered and connected, ready for uploading the sketch.
Step 2 - Upload the Sketch
Goal: Read GPS and IMU data, then log it to a CSV file on the microSD card.
What to do: Install the required libraries, compile, and upload the sketch to the Arduino Nano. The logger opens trip.csv and appends a header row on startup.
Code:
#include <Wire.h>
#include <Adafruit_MPU6050.h>
#include <TinyGPS++.h>
#include <SoftwareSerial.h>
#include <SD.h>
Adafruit_MPU6050 mpu;
TinyGPSPlus gps;
SoftwareSerial gpsSer(4, 3);
File log;
void setup() {
Serial.begin(9600); gpsSer.begin(9600);
mpu.begin(); SD.begin(10);
log = SD.open("trip.csv", FILE_WRITE);
log.println("time,lat,lng,speed_kmh,ax,ay,az,gz");
}
void loop() {
while (gpsSer.available()) gps.encode(gpsSer.read());
if (gps.location.isUpdated()) {
sensors_event_t a, g, t; mpu.getEvent(&a, &g, &t);
log.printf("%lu,%.6f,%.6f,%.1f,%.2f,%.2f,%.2f,%.2f\n",
millis(), gps.location.lat(), gps.location.lng(), gps.speed.kmph(),
a.acceleration.x, a.acceleration.y, a.acceleration.z, g.gyro.z);
log.flush();
}
}
Expected result: When the GPS gets fixes, the Arduino writes rows to trip.csv on the microSD card.
Step 3 - Build the Enclosure
Goal: Secure the electronics so they can run reliably in a vehicle.
What to do: Mount the breadboard/modules inside an enclosure and route the power cable so the logger can be powered from a car USB port or a regulated 5V supply.
Expected result: A compact, protected logger that can be placed in the vehicle for driving tests.
Step 4 - Drive and Log
Goal: Record a trip so you have real GPS and IMU data to analyze.
What to do: Plug the logger into power in the car and drive. The sketch logs a CSV row each time the GPS reports an updated location (about 1 Hz).
Expected result: After your drive, the microSD card contains trip.csv with time, location, speed, and acceleration/gyro readings.
Step 5 - Analyze the CSV
Goal: Turn the logged data into something you can visualize and learn from.
What to do: Remove the microSD card and open the CSV in Python, Excel, or import it into mapping tools (for example, Google Earth workflows) to plot the route and overlay speed or G-force data.
Expected result: A plotted route and telemetry that helps you review braking, cornering, and speed patterns.
Step 6 - Where to Take It Next
Goal: Identify optional upgrades you can add after the basic logger works.
What to do: Consider expanding the build with extra sensors or connectivity.
- Add a BME280 for cabin temperature/humidity logs
- Stream live data to a phone over HM-10 BLE for in-car display
- OBD-II integration via MCP2515 to log RPM, throttle, and coolant temp
- ESP32 + Wi-Fi sync to auto-upload trip logs when you get home
Expected result: A clear roadmap for upgrades without changing the core data-logging workflow.
Conclusion
With an Arduino Nano V3.0, an MPU6050, a NEO-6M GPS, and a microSD adapter, you can build a vehicle data logger that records GPS position, speed, and G-forces into a CSV for offline analysis. Commercial track-day loggers do the same job, but this approach keeps costs low and gives you full ownership of your data.
