Project Overview

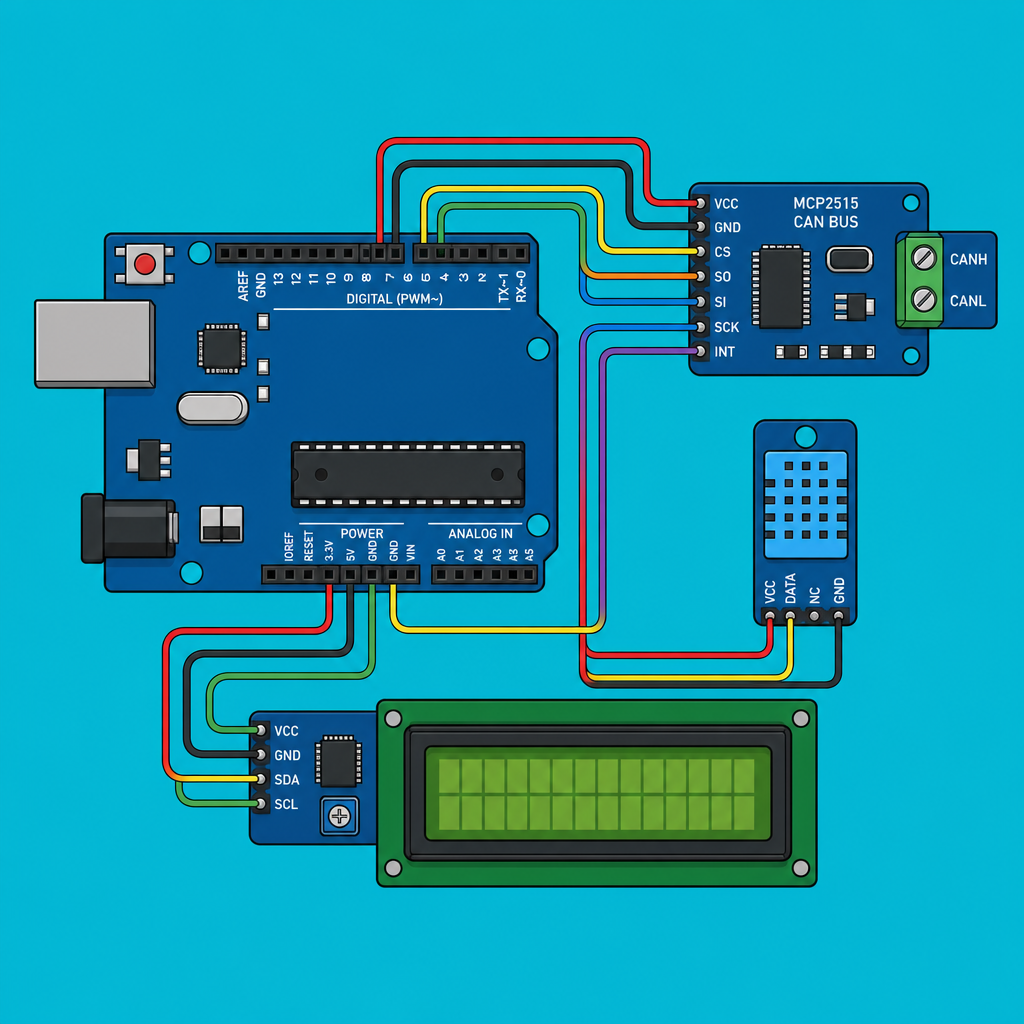

Arduino + MCP2515 CAN Bus Module: In this build, you connect two Arduino boards to a pair of MCP2515 CAN modules and transmit DHT11 temperature and humidity data from an Arduino Nano to an Arduino Uno that displays the readings on a 16×2 I2C LCD.

This is a practical introduction to CAN bus basics using the same two-wire CAN_H/CAN_L signaling found in automotive and industrial networks.

• Time: 60 to 90 minutes
• Skill level: Intermediate
• What you will build: A two-node CAN bus link between two Arduinos that streams DHT11 sensor data to an I2C LCD.

Parts List

From ShillehTek

• MCP2515 CAN Bus Module with TJA1050 Transceiver (SPI) × 2 - one module per CAN node.
• Arduino Nano V3 (pre-soldered, CH340G, ATmega328P) - transmitter board that reads the DHT11.
• DHT11 Temperature & Humidity Sensor - the sensor data source.
• LCD1602 16×2 Character Display Module - display for the receiver.
• PCF8574 I2C Serial Adapter for 1602/2004 LCDs - converts the LCD to I2C (SDA/SCL).
• 120pcs 20cm Dupont Jumper Wires - SPI wiring, sensor wiring, and CAN wiring.
• 400-Point Solderless Breadboards × 2 - one breadboard per node.

External

• Arduino Uno board (or any 5 V Arduino-compatible) for the receiver.
• USB cable for programming each board.
• Twisted pair wire (recommended) for CAN_H and CAN_L.

Note: Many MCP2515 boards ship with an 8 MHz crystal, which is why the sketches below use MCP_8MHZ. If your board has a 16 MHz crystal, change the constant to MCP_16MHZ or you may see no traffic on the bus.

Step-by-Step Guide

Step 1 - Understand the two-node CAN setup

Goal: Define what each Arduino does so wiring and code match the intended roles.

What to do: Use two CAN nodes:

• Transmitter: Arduino Nano reads a DHT11 and sends humidity and temperature on CAN ID 0x036.
• Receiver: Arduino Uno listens for CAN ID 0x036 and prints the values on a 16×2 I2C LCD.

Expected result: You have a clear plan: one board sends sensor data frames, the other displays them.

Step 2 - Wire the MCP2515 module to each Arduino (SPI + INT)

Goal: Connect each MCP2515 CAN module to its host Arduino using SPI and an interrupt pin.

What to do: Wire both nodes the same way:

Expected result: Both MCP2515 modules are powered and wired to their Arduinos over SPI, ready for CAN initialization.

Step 3 - Wire the transmitter node (Arduino Nano + DHT11)

Goal: Read temperature and humidity on the Nano so the values can be sent over CAN.

What to do: On the Nano, wire the DHT11 data line to D8. Connect DHT11 VCC to 3.3 V and GND to GND. Keep the MCP2515 wiring from Step 2.

Expected result: The Nano can read the DHT11 on D8 and has an MCP2515 module connected over SPI.

Step 4 - Wire the receiver node (Arduino Uno + I2C LCD)

Goal: Display received CAN values on a 16×2 I2C LCD using the Uno.

What to do: Wire the LCD I2C pins to the Uno:

• SDA: A4
• SCL: A5
• Power: 5 V and GND from the Uno

Keep the MCP2515 wiring from Step 2.

Expected result: The Uno is ready to initialize the LCD over I2C and read frames via the MCP2515.

Step 5 - Connect CAN_H and CAN_L between the two MCP2515 modules

Goal: Create the physical two-wire CAN bus between the two nodes.

What to do: Connect CAN_H on one module to CAN_H on the other. Connect CAN_L to CAN_L. Use a twisted pair if possible.

Because this build uses only two nodes, make sure the 120 Ω termination jumpers are populated on both modules.

Expected result: The two nodes share the same CAN_H/CAN_L pair and are properly terminated for a two-node bus.

Step 6 - Upload the transmitter sketch (Arduino Nano)

Goal: Read the DHT11 every second and send humidity and temperature on CAN ID 0x036.

What to do: In the Arduino IDE, install the autowp/arduino-mcp2515 library and a DHT library (Adafruit’s works fine). Then upload this sketch to the Nano.

Code:

#include <SPI.h>        // SPI for the MCP2515
#include <mcp2515.h>    // CAN library: https://github.com/autowp/arduino-mcp2515
#include <DHT.h>        // Temperature / humidity sensor

#define DHTPIN 8
#define DHTTYPE DHT11

struct can_frame canMsg;
MCP2515 mcp2515(10);     // CS on D10
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  while (!Serial);
  Serial.begin(9600);
  SPI.begin();
  dht.begin();

  mcp2515.reset();
  mcp2515.setBitrate(CAN_500KBPS, MCP_8MHZ);  // 500 kbps with the 8 MHz crystal
  mcp2515.setNormalMode();
}

void loop() {
  int h = dht.readHumidity();
  int t = dht.readTemperature();

  canMsg.can_id  = 0x036;
  canMsg.can_dlc = 8;
  canMsg.data[0] = h;
  canMsg.data[1] = t;
  canMsg.data[2] = 0x00;
  canMsg.data[3] = 0x00;
  canMsg.data[4] = 0x00;
  canMsg.data[5] = 0x00;
  canMsg.data[6] = 0x00;
  canMsg.data[7] = 0x00;

  mcp2515.sendMessage(&canMsg);
  delay(1000);
}

Expected result: The Nano transmits one CAN frame per second. You should see the transmitter activity (TX LED behavior depends on the specific board/module).

Step 7 - Upload the receiver sketch (Arduino Uno)

Goal: Receive CAN frames, extract humidity and temperature bytes, and print them to the LCD.

What to do: Install the same mcp2515 library plus a LiquidCrystal_I2C library on the Uno and upload this sketch.

Code:

#include <SPI.h>
#include <mcp2515.h>
#include <LiquidCrystal_I2C.h>

LiquidCrystal_I2C lcd(0x27, 16, 2);  // try 0x3F if 0x27 is silent
struct can_frame canMsg;
MCP2515 mcp2515(10);                 // CS on D10

void setup() {
  Serial.begin(9600);
  SPI.begin();

  lcd.init();
  lcd.clear();
  lcd.backlight();
  lcd.setCursor(0, 0);
  lcd.print("CANBUS TUTORIAL");
  delay(3000);
  lcd.clear();

  mcp2515.reset();
  mcp2515.setBitrate(CAN_500KBPS, MCP_8MHZ);
  mcp2515.setNormalMode();
}

void loop() {
  if (mcp2515.readMessage(&canMsg) == MCP2515::ERROR_OK) {
    int humidity    = canMsg.data[0];
    int temperature = canMsg.data[1];

    lcd.setCursor(0, 0);
    lcd.print("Humi: ");
    lcd.print(humidity);

    lcd.setCursor(0, 1);
    lcd.print("Temp: ");
    lcd.print(temperature);

    delay(1000);
    lcd.clear();
  }
}

Expected result: The LCD shows the splash screen for three seconds, then updates with the latest humidity and temperature values as CAN frames arrive.

Step 8 - Know the key library calls (so you can modify the project)

Goal: Understand the critical MCP2515 calls used in both sketches.

What to do: These calls are the core of the setup:

• struct can_frame canMsg; defines one CAN frame (ID, DLC, up to 8 data bytes).
• MCP2515 mcp2515(10); sets chip select (CS) to Arduino D10.
• mcp2515.reset(); resets the controller into configuration mode.
• mcp2515.setBitrate(CAN_500KBPS, MCP_8MHZ); sets bus speed and crystal constant (use MCP_16MHZ if your board uses a 16 MHz crystal).
• mcp2515.setNormalMode(); enables normal transmit/receive behavior on the CAN bus.
• mcp2515.sendMessage(&canMsg); transmits a prepared frame.
• mcp2515.readMessage(&canMsg) == MCP2515::ERROR_OK polls for a received frame.

The demo uses CAN ID 0x036 with a DLC of 8. Only data[0] and data[1] carry payload (humidity and temperature); the rest are zero-padded.

Expected result: You can change IDs, pack different bytes, or add additional nodes while keeping the same MCP2515 initialization pattern.

Conclusion

You built a two-node CAN bus link using Arduino boards and MCP2515 CAN modules, sending DHT11 humidity and temperature readings from a Nano transmitter to a Uno receiver that displays them on an I2C LCD.

From here, expanding the network is mainly about adding nodes, managing 120 Ω termination at the bus ends, and assigning CAN IDs that match your message priorities.
