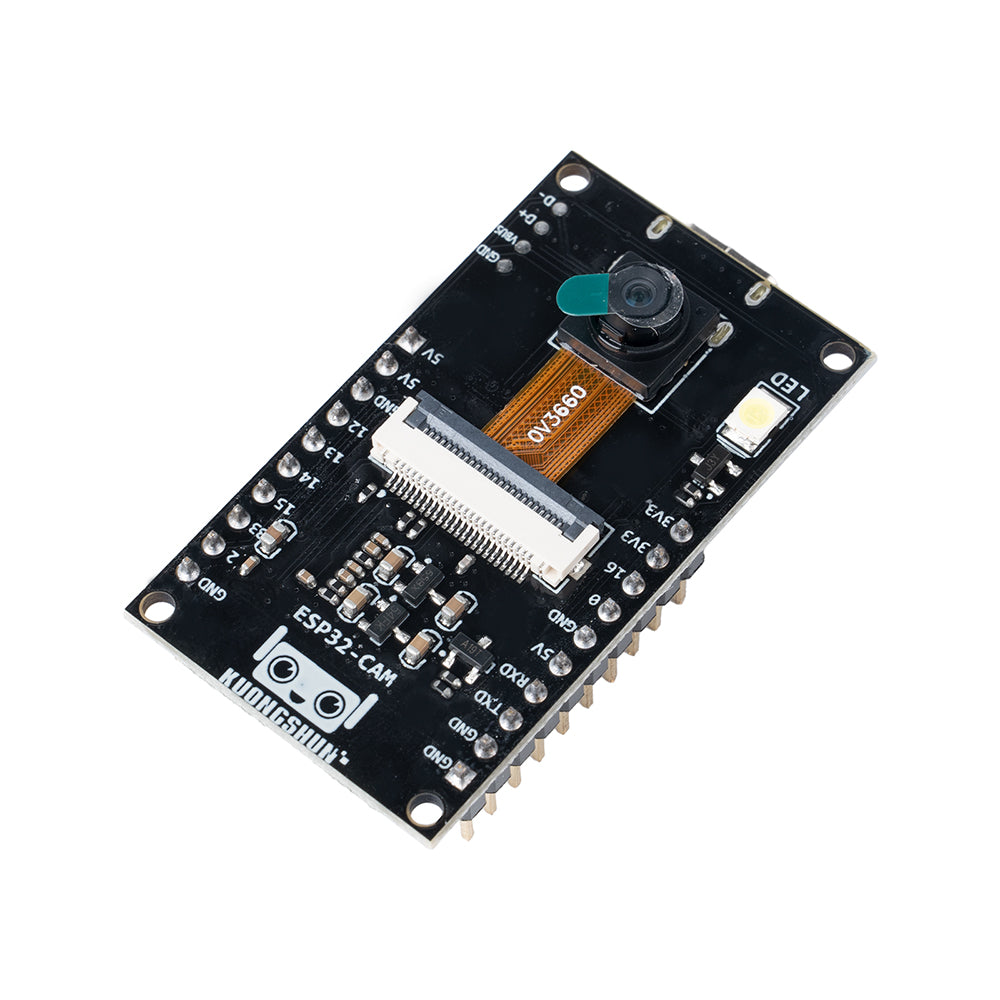

Close view of ESP32-CAM development board with OV3660 camera module

ESP32-CAM Development Board with OV3660 Camera, WiFi + Bluetooth, Pre-Soldered with Foam

Name: ESP32-CAM Development Board with OV3660 Camera, WiFi + Bluetooth, Pre-Soldered with Foam
Brand: ShillehTek
SKU: ST-C2LJVPVUNM5P
Price: 19.99 USD
Availability: InStock

SKU ST-C2LJVPVUNM5P

$19.99 USD Shipping & tax calculated at checkout

Only 1 left· Order by 3pm ET and it ships today

ESP32-CAM V2.0 with OV3660 3 MP camera, USB-C, CH340C, and pre-soldered headers for 2.4 GHz Wi-Fi camera projects. No onboard microSD socket.

Free Ground Shipping U.S. orders $35+
Ships from USA Worldwide via DHL
30-day returns Free defect replacement
7-day support Fast email replies

Frequently bought together

ESP32-CAM Development Board with OV3660 Camera, WiFi + Bluetooth, Pre-Soldered with Foam ★★★★★ (1) $19.99 This item

ShillehTek SG92R Micro Servo Motor with orange cable and black mounting parts

SG92R 9g Micro Servo Motor with Carbon Fiber Gears 2.5kg for RC Plane & ArduinoNo reviews yet $6.49

ShillehTek PCA9685 16 Channel 12-Bit PWM Servo Motor Driver with capacitor and terminal block

PCA9685 Pre-Soldered 16-Channel 12-Bit PWM Servo Motor Driver I2C for Arduino & Raspberry Pi ★★★★★ (1) $6.99

ShillehTek HC-SR501 PIR motion sensor top view with hexagonal lens

HC-SR501 PIR Motion Sensor for Arduino & Raspberry Pi ★★★★★ (23) $7.00

Total for 4 items

$40.47

Products related to this item

ESP-WROOM-32 ESP32 Dev Board with CP2102 USB-C connector and pins

★★★★★ (2) ESP-WROOM-32 (ESP-32S) ESP32 Dev Board CP2102 USB-C Pre-Soldered $8.99

ESP32 Dev Board 4MB CP2102 USB-C with 38 pins detailed circuit view

★★★★★ (1) ESP32 Dev Board 4MB CP2102 USB-C Pre-Soldered 38-Pin $7.99

angled close-up of ESP32-S3 Nano Dev Board with USB-C port and pins

★★★★★ (1) ESP32-S3 Nano Dev Board Pre-Soldered WiFi + BLE for Arduino $15.99

Top view of ESP32-S3 DevKitC-1 Dev Board with pre-soldered headers and USB ports

★★★★★ (4) ESP32-S3 DevKitC-1 Dev Board with Pre-Soldered Headers $9.99

Top view of ESP32-C6-N4 pre-soldered development board showing metal shield

★★★★★ (1) ESP32-C6-N4 Pre-Soldered Development Board $8.99

ESP32 UNO D1 R32 development board with WiFi Bluetooth, CH340G USB, and 4MB flash memory

★★★★★ (1) ESP32 UNO D1 R32 Development Board with WiFi & Bluetooth, 4MB Flash, CH340G, Type-B USB $9.25

Overview

Product Overview

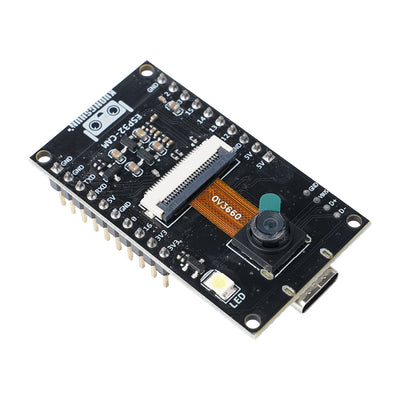

The Kuongshun ESP32-CAM V2.0 combines an ESP32 with an OV3660 3-megapixel camera for image capture and local-network video streaming over 2.4 GHz Wi-Fi. The board has USB-C, a CH340C USB-to-serial interface, BOOT and RESET buttons, an illumination LED, and pre-soldered headers. Bluetooth Classic and BLE are additional ESP32 capabilities; the camera web-server example uses Wi-Fi.

Connect a USB-C data cable to a computer for programming and power. This version does not require a separate FTDI or CP2102 adapter. The pictured V2.0 board has no onboard microSD socket. The sensor supports up to 2048 × 1536 pixels; usable resolution and frame rate depend on firmware, memory, power, and network conditions.

Start with the ESP32-CAM V2.0 setup manual for USB drivers, Arduino configuration, browser streaming, and troubleshooting. Firmware must be uploaded and Wi-Fi configured before using the example.

Questions & answers

Frequently asked questions

How do I program this ESP32-CAM?

Connect its USB-C socket to a computer using a data cable. The pictured Kuongshun V2.0 board has a CH340C USB-to-serial interface and BOOT/RESET buttons, so a separate FTDI or CP2102 adapter is not needed. Follow the product manual for Arduino board and camera-model settings.

Which USB driver does it use?

The pictured board uses CH340C. If a serial port does not appear, check the data cable and install the official WCH CH340/CH341 driver for your operating system if required.

Does this board have a microSD slot?

The pictured Kuongshun ESP32-CAM V2.0 has no onboard microSD socket. Adding card storage requires an external module and a separately verified wiring design; tutorials for small ESP32-CAM boards with built-in card slots describe different hardware.

Is the camera 2 MP or 3 MP?

The included OV3660 is a 3-megapixel sensor with a maximum sensor resolution of 2048 × 1536. Streaming resolution and frame rate depend on firmware, memory, power, and Wi-Fi conditions.

Does the browser stream use Wi-Fi or Bluetooth?

The Arduino CameraWebServer example uses 2.4 GHz Wi-Fi. Bluetooth Classic and BLE are separate ESP32 capabilities, not the transport used by that example.

What should I check if camera setup fails?

Check the CH340 serial port, Arduino board profile, camera-model selection, ribbon connection, stable USB power, and 2.4 GHz Wi-Fi credentials. Camera initialization failures can have several causes; use the troubleshooting section in the product manual and keep the exact Serial Monitor error.

Is it supplied ready to stream?

The headers are pre-soldered and the camera is fitted, with protective foam supplied for handling. You still need a suitable USB data cable, software setup, and network configuration. Use the manual to upload and configure the camera example.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

OV3660 camera 3 MP sensor, up to 2048 × 1536 pixels. Actual image size and streaming speed depend on software and system conditions.

USB-C programming Onboard CH340C USB-to-serial interface with BOOT and RESET buttons. Use a USB data cable; a separate serial adapter is not required.

Wireless connectivity 2.4 GHz Wi-Fi for the camera web-server example. ESP32 also supports Bluetooth Classic and BLE.

Power and logic 5 V through USB-C for setup; GPIO signals use 3.3 V logic.

Storage No onboard microSD socket on the pictured Kuongshun V2.0 board. External storage needs additional hardware and verified wiring.

Pre-soldered assembly Headers are fitted and protective foam is supplied. Firmware and Wi-Fi configuration are required for the camera example.
