Project Overview

Arduino Nano + KY-037 sound sensor clap switch: A KY-037 sound sensor detects sharp claps, and the Arduino Nano measures the time between claps to toggle a 5V relay, turning a lamp on or off with a double clap.

Clap once for nothing, then clap twice within about one second to flip the relay state. The same setup can control a fan, coffee machine, or other mains-powered device through the relay.

Time: ~30 minutes
Skill level: Beginner
What you will build: A double-clap-controlled relay that switches a lamp on and off.

Arduino Nano wired to KY-037 sound sensor and 5V relay module for a clap-controlled lamp switch — KY-037 + relay + Arduino = the classic Clapper.

Parts List

From ShillehTek

KY-037 Sound Sensor Module - detects claps via a digital output (DOUT).
1-Channel 5V Relay Module - switches the lamp load on/off from an Arduino pin.
Arduino Nano V3.0 Pre-Soldered - reads the sound sensor and toggles the relay.
120 PCS Dupont Jumper Wires - for quick prototyping connections.

External

Mains lamp + plug (routed through the relay)

Safety: Relays here switch mains AC. If you are not comfortable with mains wiring, use a smart plug controlled via Wi-Fi instead for a similar effect with less risk.

Step-by-Step Guide

Step 1 - Inspect the KY-037

Goal: Understand what the KY-037 provides so you can set a reliable clap threshold.

What to do: Identify the microphone, the trim-pot (threshold adjust), and the output pins. This build uses the digital output (DOUT), which goes HIGH when the sound level crosses the threshold.

KY-037 sound sensor module close-up showing the electret microphone, trim-pot, and output pins — Electret mic + op-amp + comparator + trim-pot threshold. Both analog and digital outputs.

Expected result: You know which pin is DOUT and where the sensitivity/threshold trim-pot is.

Step 2 - Wire it

Goal: Connect the KY-037 and relay module to the Arduino Nano with a shared ground.

What to do: Make the following connections:

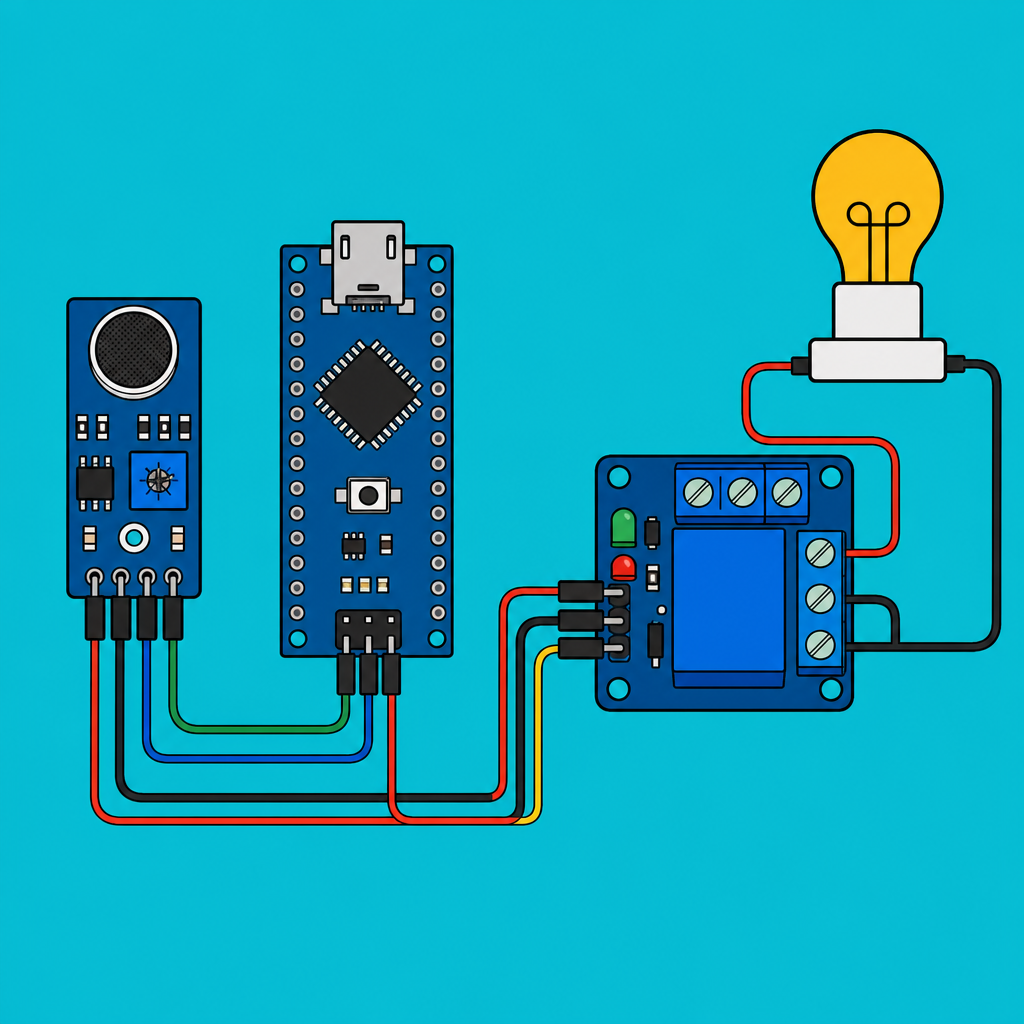

Wiring diagram showing Arduino Nano connected to KY-037 DOUT on D2 and relay IN on D3 with common 5V and GND — KY-037 DOUT → D2; relay IN → D3; common GND.

KY-037 VCC → 5V, GND → GND, DOUT → D2
Relay VCC → 5V, GND → GND, IN → D3
Lamp routed through relay COM and NO

Full clap switch circuit showing Arduino Nano, KY-037 sound sensor, and 5V relay module controlling a lamp through COM and NO — Full circuit - adjust the KY-037 trim-pot until a normal clap reads HIGH on DOUT.

Expected result: The Arduino Nano, KY-037, and relay module are powered from 5V and share ground, with DOUT on D2 and relay IN on D3.

Step 3 - Upload the sketch (double-clap detection)

Goal: Detect two claps close together and toggle the relay output.

What to do: Upload the code below. It debounces the sensor and counts claps within a one-second window to toggle the relay state.

Code:

const int MIC = 2;
const int RELAY = 3;
bool relayOn = false;
unsigned long lastClap = 0;
int clapCount = 0;

void setup() {
  pinMode(MIC, INPUT);
  pinMode(RELAY, OUTPUT);
  Serial.begin(9600);
}

void loop() {
  if (digitalRead(MIC) == HIGH) {
    unsigned long now = millis();
    if (now - lastClap < 80) return;   // debounce
    if (now - lastClap < 1000) {
      clapCount++;
    } else {
      clapCount = 1;
    }
    lastClap = now;
    if (clapCount == 2) {
      relayOn = !relayOn;
      digitalWrite(RELAY, relayOn ? HIGH : LOW);
      Serial.println(relayOn ? "ON" : "OFF");
      clapCount = 0;
    }
  }
}

Expected result: Opening Serial Monitor at 9600 baud prints ON and OFF each time you successfully double-clap.

Step 4 - Test and adjust the threshold

Goal: Make the clap detection reliable without false triggers.

What to do: Power the circuit and try two claps. If voices or room noise trigger the sensor, turn the KY-037 trim-pot to make it less sensitive, then retest.

Arduino Nano clap switch running on a breadboard with KY-037 sensor and relay module while toggling a lamp — Clap, clap → lamp toggles. Adjust the KY-037 trim-pot if false triggers happen from voices.

Lamp turned on by an Arduino Nano KY-037 double-clap relay switch — Two claps and the lamp comes on.

Expected result: A double clap toggles the lamp reliably, and normal background sound does not.

Step 5 - Where to take it next

Goal: Explore safe, incremental extensions of the same concept.

What to do: Try one of these ideas:

Two-mode switch: single clap → fan, double clap → light
Multi-channel relay → control 4 separate appliances by clap count
Pair with HC-SR501 PIR so claps only count when you are in the room
Swap KY-037 for an INMP441 I2S mic + ESP32 + ML to detect specific gestures / words

Expected result: You have a clear next modification that still builds on clap detection and relay control.

Conclusion

You built an Arduino Nano KY-037 clap switch that detects a double clap and toggles a 5V relay to control a lamp. Along the way, you used threshold detection, basic debouncing, and simple timing logic with millis().
