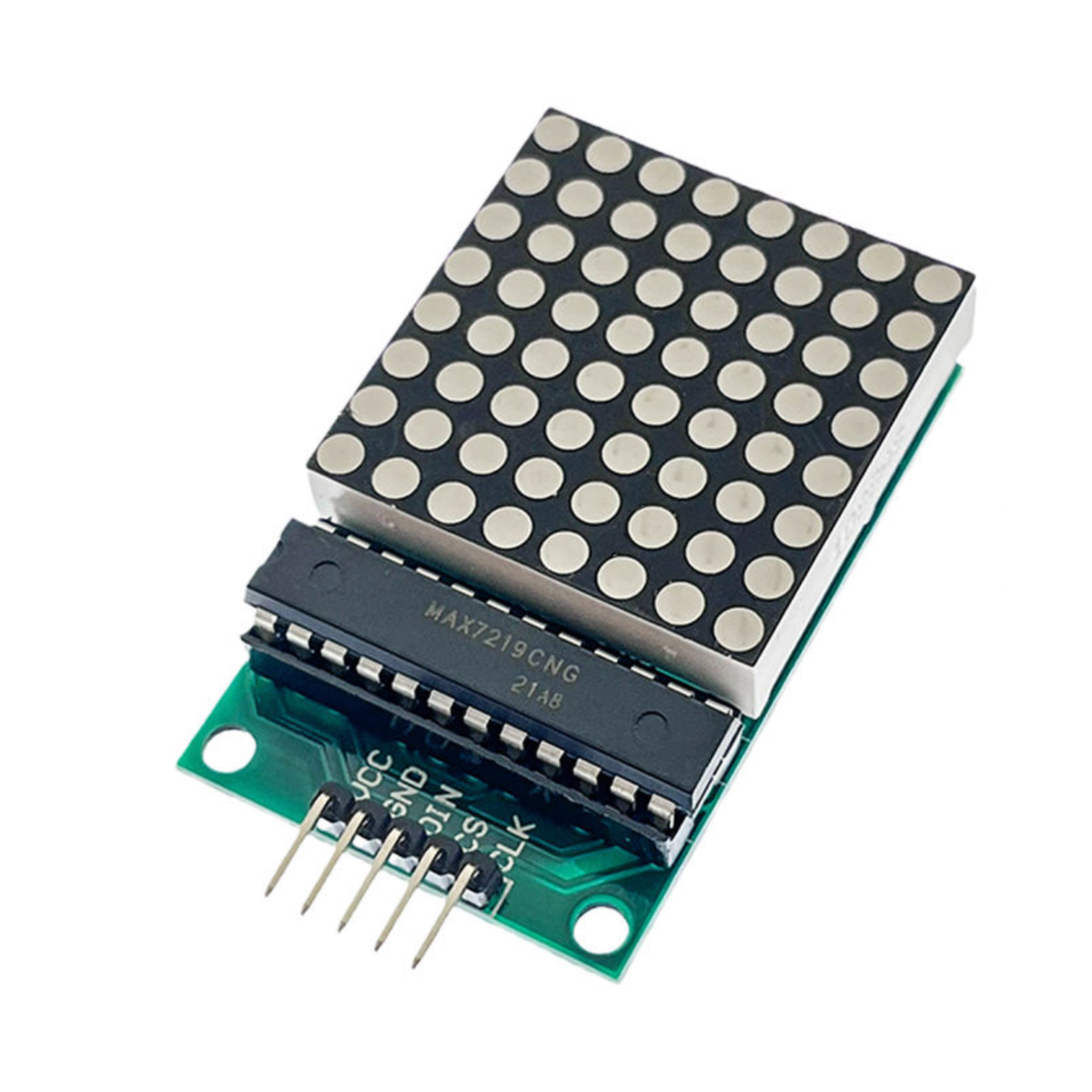

ShillehTek MAX7219 8x8 dot matrix LED display module angled view

MAX7219 8x8 Dot Matrix LED Display Module for Arduino, Raspberry Pi & ESP8266

$5.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

MAX7219 8x8 dot matrix LED module for Arduino offers a bright 8x8 display ideal for scrolling text and compact message signs, making visual feedback easy in hobby and embedded projects

  • Free UPS Ground U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ShillehTek MAX7219 8x8 dot matrix LED display module angled view MAX7219 8x8 Dot Matrix LED Display Module for Arduino, Raspberry Pi & ESP8266 ★★★★★ (1) $5.99 This item
Top and bottom views of Arduino Nano V3.0 Pre-Soldered CH340G ATmega328P board Arduino Nano V3.0 Pre-Soldered CH340G ATmega328PNo reviews yet $5.99
Blue USB 2.0 A to B male printer cable with transparent connectors and visible wiring USB 2.0 A-B Male Printer Cable 0.5m (1.64ft)No reviews yet $2.99
ShillehTek 120pcs jumper wires set with male to female connectors multicolor 120pcs 10cm Jumper Wire Set M-F, M-M, F-F for Arduino & Raspberry Pi ★★★★★ (4) $5.75
Total for 4 items
$20.72

Products related to this item

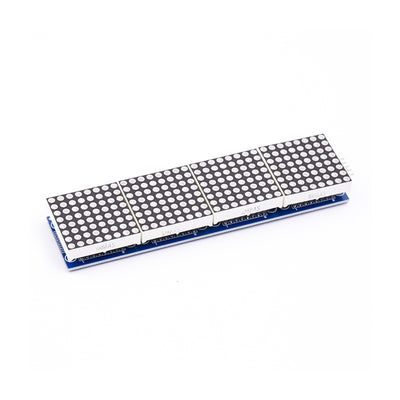

MAX7219 4-in-1 Dot Matrix Display Module with red LEDs on blue board
No reviews yetMAX7219 4-in-1 Dot Matrix Display Module (Red) $7.99
ShillehTek STM32F411CEU6 Black Pill ARM Board angled view showing pins and components
★★★★★ (29) STM32F411CEU6 Pre-Soldered Black Pill ARM Development Board for Arduino $14.99
ShillehTek 2.8 inch SPI TFT LCD touch screen module with stylus pen
No reviews yetILI9341 2.8" SPI TFT LCD Touch Screen Module 240x320 for Arduino, ESP32 & STM32 $10.99
angled close-up of blue I2C OLED display module SSD1306 0.96 inch for Arduino ESP32
No reviews yetSSD1306 0.96" Blue I2C OLED Display Module 4-Pin for Arduino, Raspberry Pi & ESP32 $6.89
1.3 inch blue OLED display module with 4-pin connector ShillehTek
No reviews yet1.3" I2C Blue OLED Display Module 4-Pin SH1106 $8.99

Overview

Product Overview

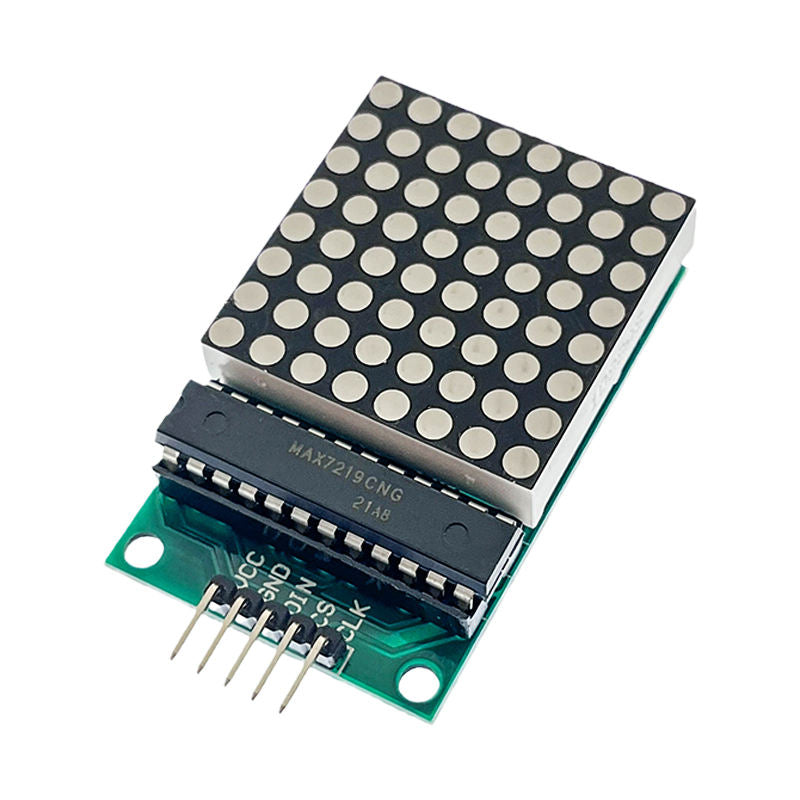

Add scrolling text and dynamic visuals to your project with the MAX7219 Dot Matrix LED Display Module, a compact 8x8 driver board that controls 64 individual LEDs using just three I/O pins. The module centers on the reliable MAX7219 driver, which manages multiplexing and consistent brightness over a serial SPI-compatible interface (DIN, CLK, CS), leaving your microcontroller free for other tasks. The bright red 8x8 dot matrix is well suited for alphanumeric characters, symbols and simple animations for clocks, message signs or counters, and multiple units can be daisy-chained to create longer displays. Compatible with Arduino, Raspberry Pi, ESP8266 and PIC platforms and supported by common libraries, the package also includes a 5-pin female-to-female jumper for quick hookup.

Questions & answers

Frequently asked questions

Yes. This module is compatible with Raspberry Pi, Arduino, ESP8266, and PIC platforms when connected through its SPI-compatible control lines and supported software libraries. It is intended for microcontroller projects that need a compact red 8x8 LED display.
No soldering is normally needed for this ShillehTek breakout board because it is supplied pre-soldered. The package includes a 5-pin female-to-female jumper so you can connect it to a compatible controller and start with a library example.
The module uses three control signals: DIN, CLK, and CS, plus power and ground on its header. The MAX7219 handles LED multiplexing internally, so a controller can drive all 64 LEDs using only three I/O pins.
Yes. The red 8x8 matrix can display alphanumeric characters, symbols, counters, clock digits, and simple animations. Multiple modules can be daisy-chained when a project needs a longer scrolling message display.
Check that power and ground are connected correctly, then verify DIN, CLK, and CS match the pins configured in your code. Also confirm your library is set for a MAX7219 dot matrix module, not a different display driver.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

MAX7219 Driver Integrated MAX7219 chip efficiently controls all 64 LEDs for consistent brightness and simplified programming.

8x8 LED Matrix Compact 8x8 red LED grid provides clear alphanumeric characters and custom animations for visible displays.

3-Wire SPI Interface Uses a DIN/CLK/CS SPI-compatible interface to drive the entire module with only three digital pins.

Daisy-Chaining Support Modules can be cascaded to create longer displays or message boards without extra microcontroller pins.

Low MCU Pin Usage Requires minimal I/O, freeing microcontroller pins for sensors and other peripherals.

Wide Compatibility Works with popular development boards like Arduino, Raspberry Pi, ESP8266, and PIC microcontrollers.

Reference

Documents

Full Product Manual ShillehTek MAX7219 Dot Matrix LED Display Module 8x8 Driver for Arduino | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.
