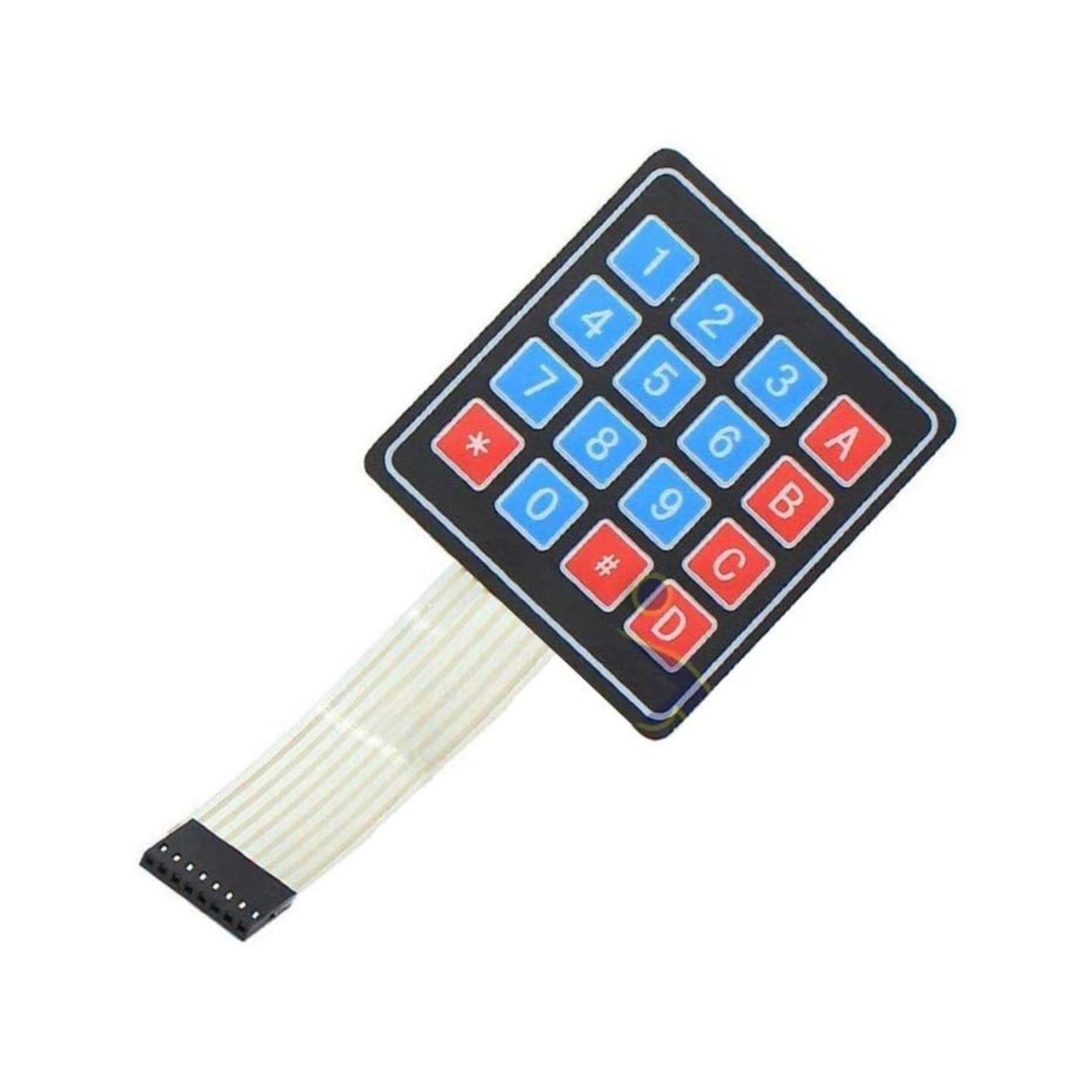

ShillehTek 4x4 membrane matrix keypad with 16 colorful keys and ribbon cable

4x4 Membrane Matrix Keypad 16-Key Switch Module for Arduino & Raspberry Pi

$4.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

Ultra-thin 4x4 membrane keypad with 16 soft-touch keys and adhesive backing — ideal for password systems and menu navigation on Arduino, Raspberry Pi, and other microcontroller projects.

Bulk eligible

Mix any Bulk eligible products — discount applies to your total quantity across the cart.
Auto-applied at checkout
Buy 5+ $4.75 each Save 5%
Buy 10+ $4.50 each Save 10%
View all bulk eligible products →
  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ShillehTek 4x4 membrane matrix keypad with 16 colorful keys and ribbon cable 4x4 Membrane Matrix Keypad 16-Key Switch Module for Arduino & Raspberry PiNo reviews yet $4.99 This item
Top and bottom views of Arduino Nano V3.0 Pre-Soldered CH340G ATmega328P board Arduino Nano V3.0 Pre-Soldered CH340G ATmega328PNo reviews yet $5.99
ShillehTek 1-Channel 24V Relay Module with blue relay and screw terminals 1-Channel 5V Relay Board for Arduino & Raspberry Pi ★★★★★ (5) $5.79
ShillehTek LCD1602 16x2 LCD display module with blue screen close-up LCD1602 16x2 LCD Display Module for Arduino & Raspberry Pi ★★★★★ (2) $7.99
Total for 4 items
$24.76

Products related to this item

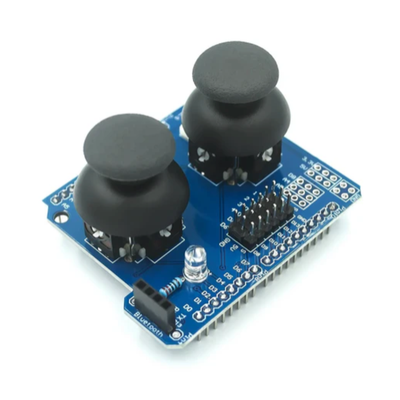

ShillehTek Joystick Shield V1.A with dual black joystick gamepad for Arduino R3
No reviews yetJoystick Shield V1.A 2-Axis Analog Gamepad Controller for Arduino UNO R3 $6.99
black joystick module with pins on circuit board ShillehTek KY-023 Dual Axis Joystick Module
No reviews yetKY-023 Dual Axis PS2 Analog Joystick Module for Arduino & ESP32 $4.99
Front view of LCD1602 16x2 Keypad Shield showing buttons and blue display
★★★★★ (1) LCD1602 16x2 Keypad Shield for Arduino & Raspberry Pi $6.99

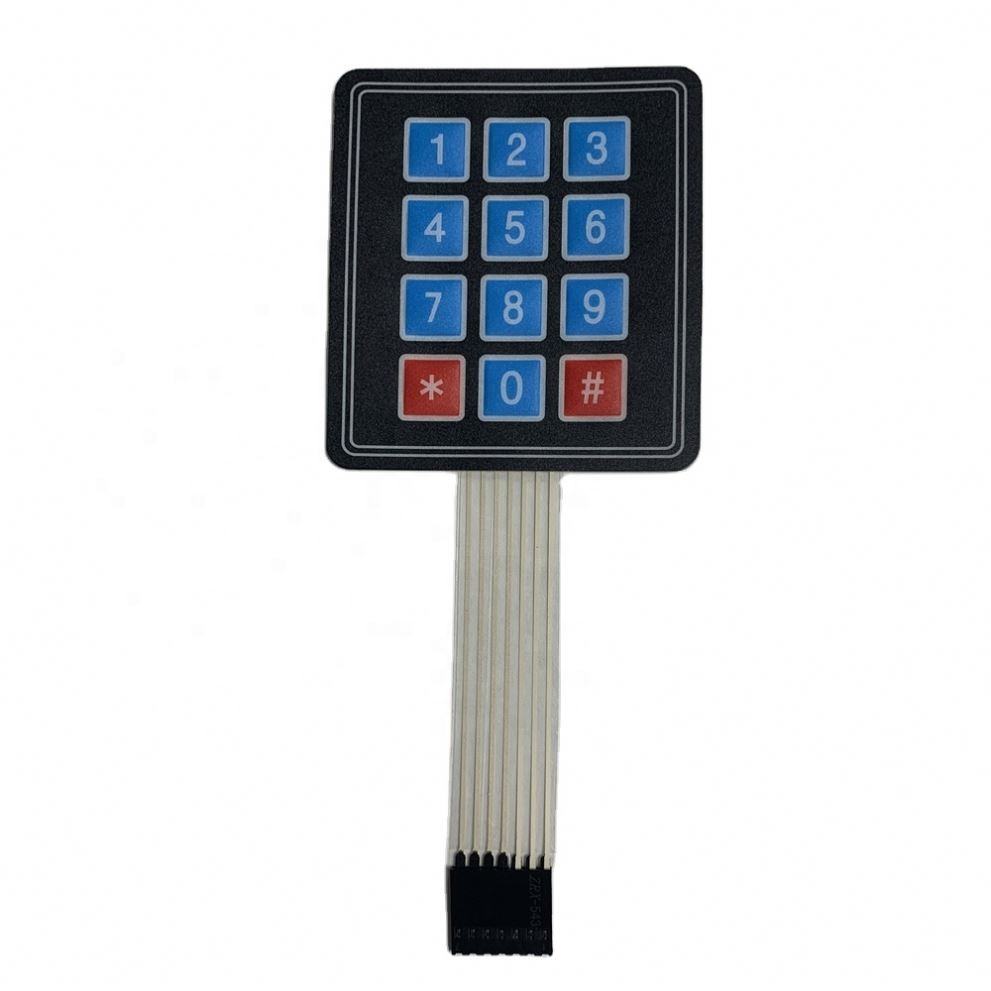

4x3 membrane switch matrix keypad with numeric and symbol keys and ribbon cable connector
No reviews yet4x3 Membrane Switch Matrix Keypad $4.99
TTP223B capacitive touch switch sensor module with three pins and circular touch pad
No reviews yetTTP223B Pre-Soldered Capacitive Touch Switch Sensor Module $4.50
KY-040 rotary encoder module with pins and labeled connections for Arduino projects
No reviews yetKY-040 Pre-Soldered Rotary Encoder Module for Arduino with Demo Code $6.99

Overview

Product Overview

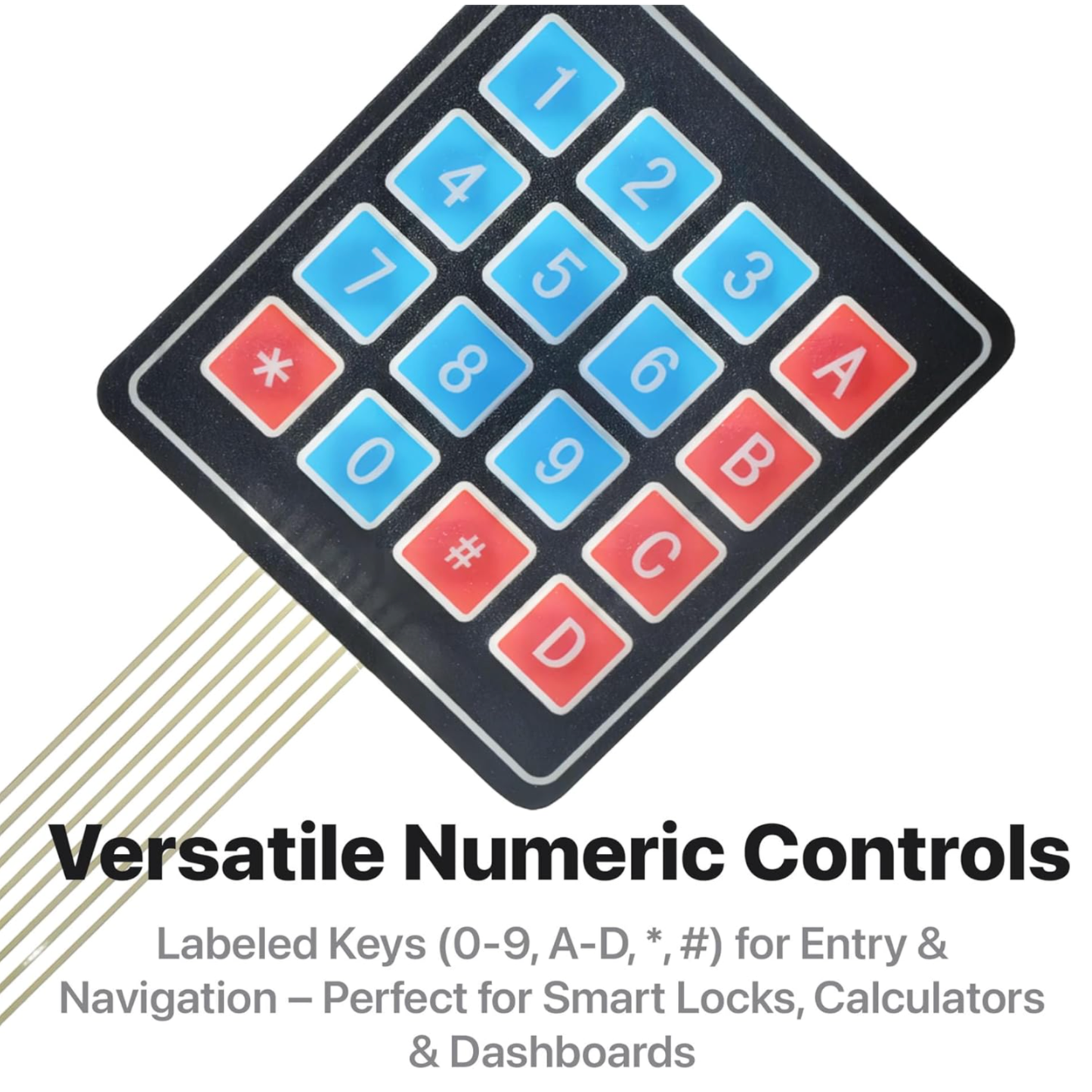

Compact and practical, this 4x4 membrane matrix keypad brings a slim, professional input surface to your projects. The module features 16 soft-touch buttons in a standard matrix layout providing a full alphanumeric range (0-9, A-D, *, #), making it ideal for password panels, menu navigation, calculator builds and robotics controls. With an adhesive backing and ultra-thin membrane design you can mount it on any flat surface or enclosure, and a standard 8-pin female header (2.54 mm pitch) offers a plug-and-play interface for breadboards and jumper wires without soldering. The sealed surface resists dust and light moisture and the switches are built to withstand thousands of presses, delivering reliable input for Arduino, Raspberry Pi and other microcontroller applications.

Questions & answers

Frequently asked questions

Yes. This keypad is suitable for Arduino, Raspberry Pi, and other microcontroller projects that can scan a 4x4 matrix keypad using digital input pins or a compatible keypad library.
No soldering is required for typical prototyping. The keypad includes a standard 8-pin female header with 2.54 mm pitch, so it can connect to breadboards or jumper wires directly.
It uses a passive 4x4 matrix switch interface with 8 connections: rows and columns. Your controller detects key presses by scanning the matrix, so it does not use I2C, SPI, or UART by itself.
It is commonly used for password entry panels, menu navigation, calculators, robotics controls, and other projects needing a compact 16-button input surface with digits, A-D, star, and pound keys.

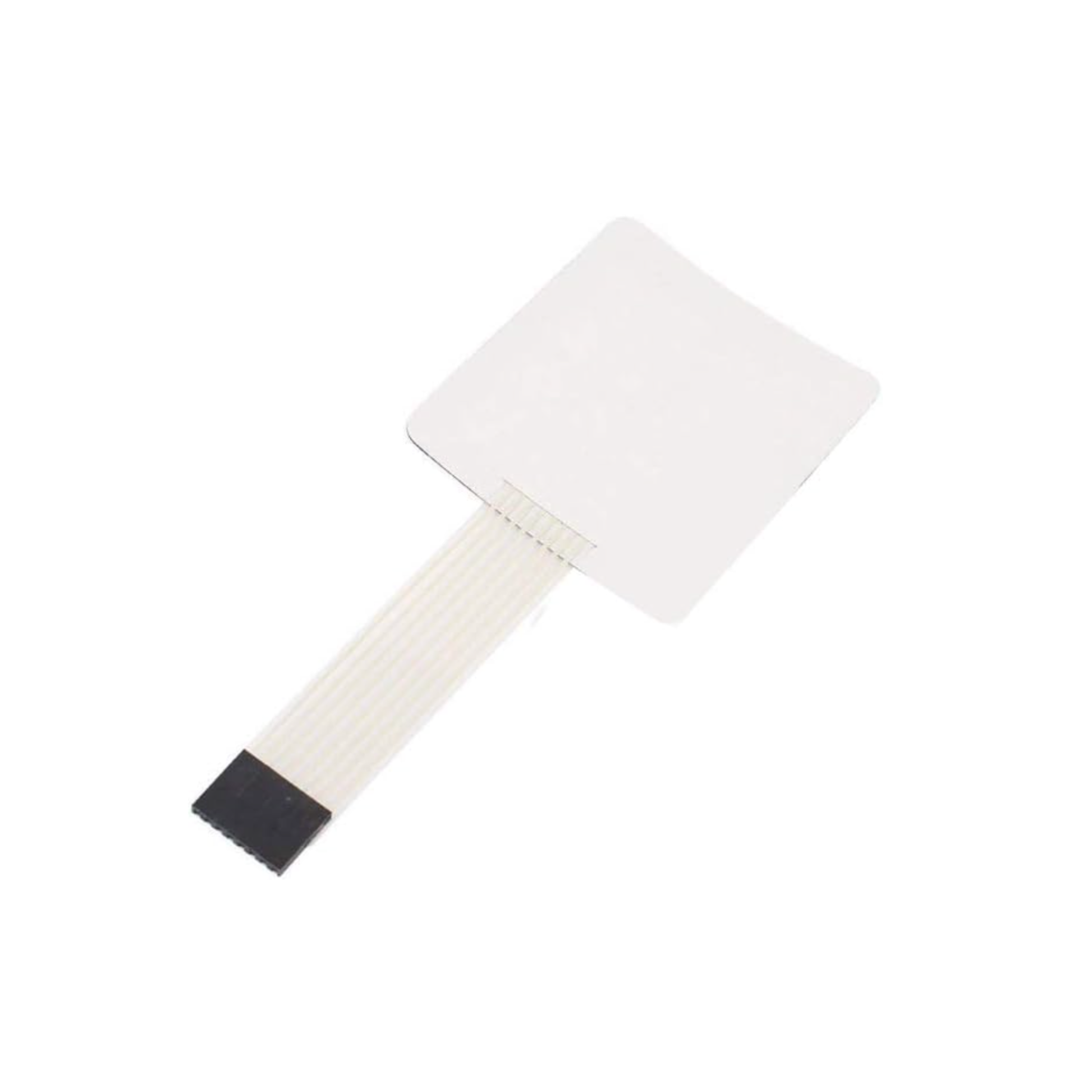

The ultra-thin membrane has adhesive backing for mounting on a flat surface or enclosure. Its sealed surface helps resist dust and light moisture, but it is not specified as waterproof for outdoor exposure.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

4x4 Matrix Layout Provides 16 soft-touch keys in a standard matrix for full alphanumeric input.

Ultra-Thin Profile Slim membrane design with adhesive backing for easy mounting on flat panels.

8-Pin Plug-and-Play Standard 2.54mm female header connects directly to breadboards and jumper wires.

Microcontroller Compatible Works with Arduino, Raspberry Pi, and other microcontrollers for rapid prototyping.

Durable Sealed Surface Sealed membrane resists dust and light moisture for reliable long-term use.

Ideal for Security Inputs Supports numeric and A-D keypad entries for password systems and access control.

Reference

Documents

Full Product Manual ShillehTek 4x4 Membrane Matrix Keypad 16 Key Switch Module for Arduino DIY | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.
