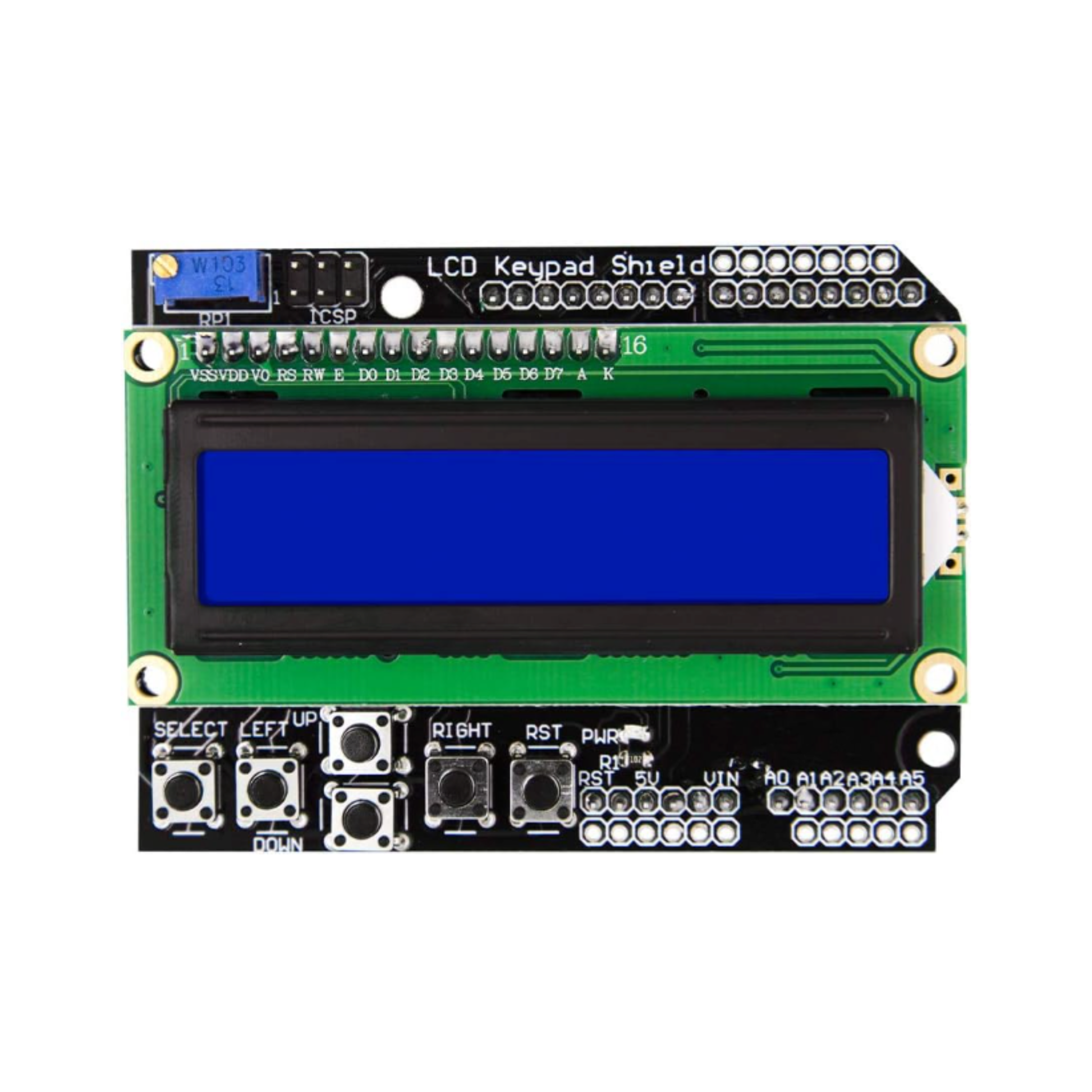

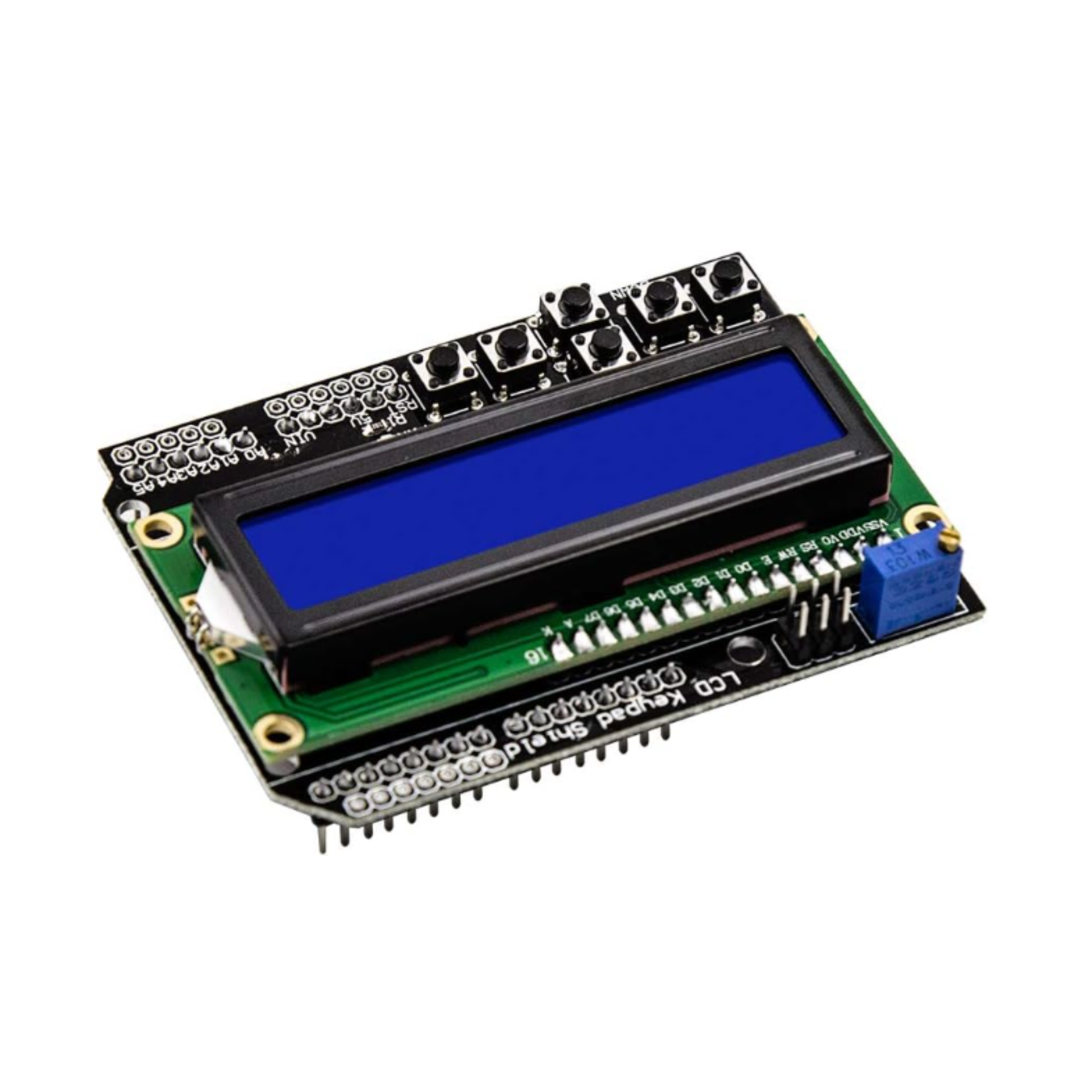

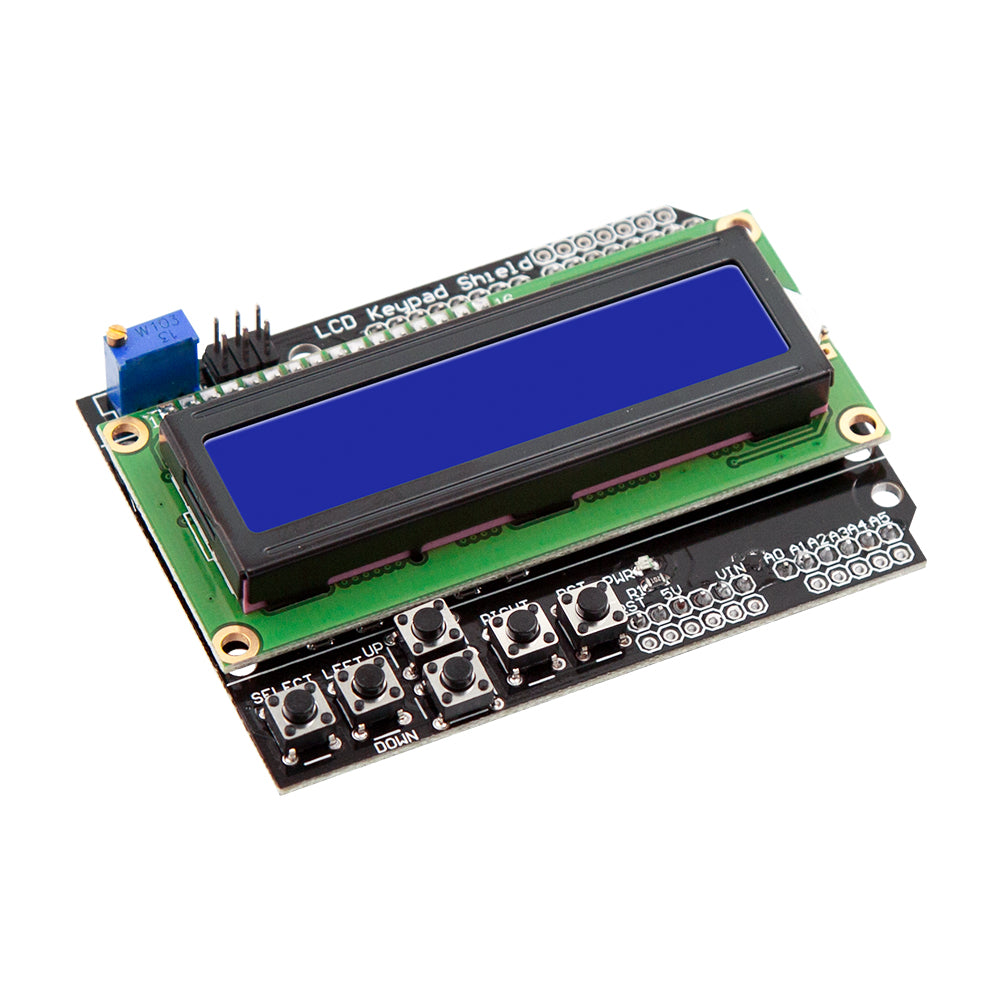

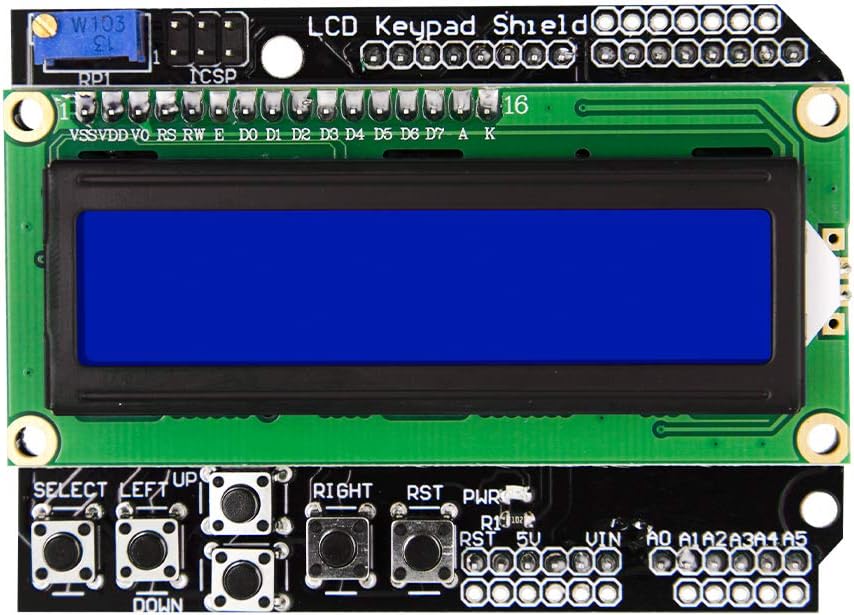

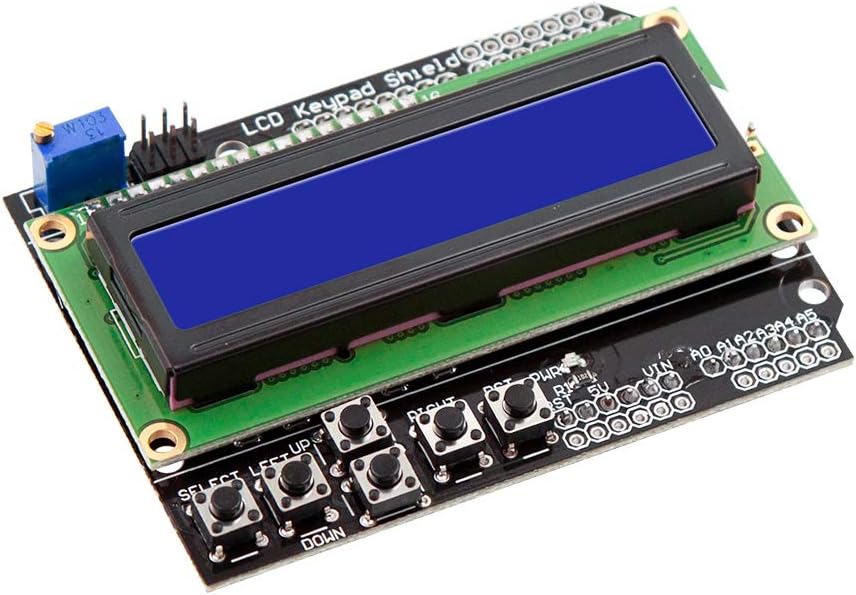

Front view of LCD1602 16x2 Keypad Shield showing buttons and blue display

LCD1602 16x2 Keypad Shield for Arduino & Raspberry Pi

SKU 72-CXUX-RDLJ

$6.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

ShillehTek LCD1602 16x2 Keypad Shield features a bright blue backlight and integrated 5-button keypad, simplifying on-device menu navigation and user input for microcontroller projects.

  • Free UPS Ground U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
Front view of LCD1602 16x2 Keypad Shield showing buttons and blue display LCD1602 16x2 Keypad Shield for Arduino & Raspberry Pi ★★★★★ (1) $6.99 This item
ESP32 UNO D1 R32 development board with WiFi Bluetooth, CH340G USB, and 4MB flash memory ESP32 UNO D1 R32 Development Board with WiFi & Bluetooth, 4MB Flash, CH340G, Type-B USBNo reviews yet $9.25
ShillehTek PCF8574 I2C serial interface adapter module with chip and blue potentiometer PCF8574 I2C Serial Interface Adapter Module for 1602 & 2004 LCD DisplaysNo reviews yet $5.99
DS3231 AT24C32 precision RTC I2C module with CR2032 battery for accurate timekeeping DS3231 AT24C32 Precision RTC I2C Module with CR2032 BatteryNo reviews yet $5.99
Total for 4 items
$28.22

Products related to this item

ShillehTek LCD1602 16x2 LCD display module with blue screen close-up
★★★★★ (2) LCD1602 16x2 LCD Display Module for Arduino & Raspberry Pi $7.99
ShillehTek 1.8 inch TFT LCD display angled view with pins and red PCB
No reviews yet1.8" TFT LCD Display 128x160 Pre-Soldered Both Sides for Arduino & ESP32 $14.99
ShillehTek 2.8 inch SPI TFT LCD touch screen module with stylus pen
No reviews yetILI9341 2.8" SPI TFT LCD Touch Screen Module 240x320 for Arduino, ESP32 & STM32 $10.99
ShillehTek SSD1306 0.96 inch I2C White OLED Display Module angled view
No reviews yetSSD1306 0.96" I2C White OLED Display Module 4-Pin for Arduino, Raspberry Pi & ESP32 $6.89
1.3 inch blue OLED display module with 4-pin connector ShillehTek
No reviews yet1.3" I2C Blue OLED Display Module 4-Pin SH1106 $8.99

Overview

Product Overview

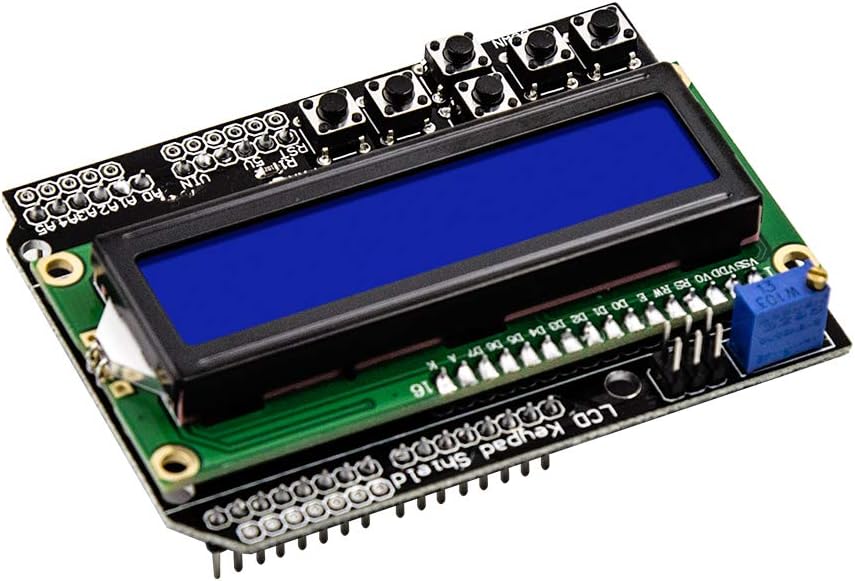

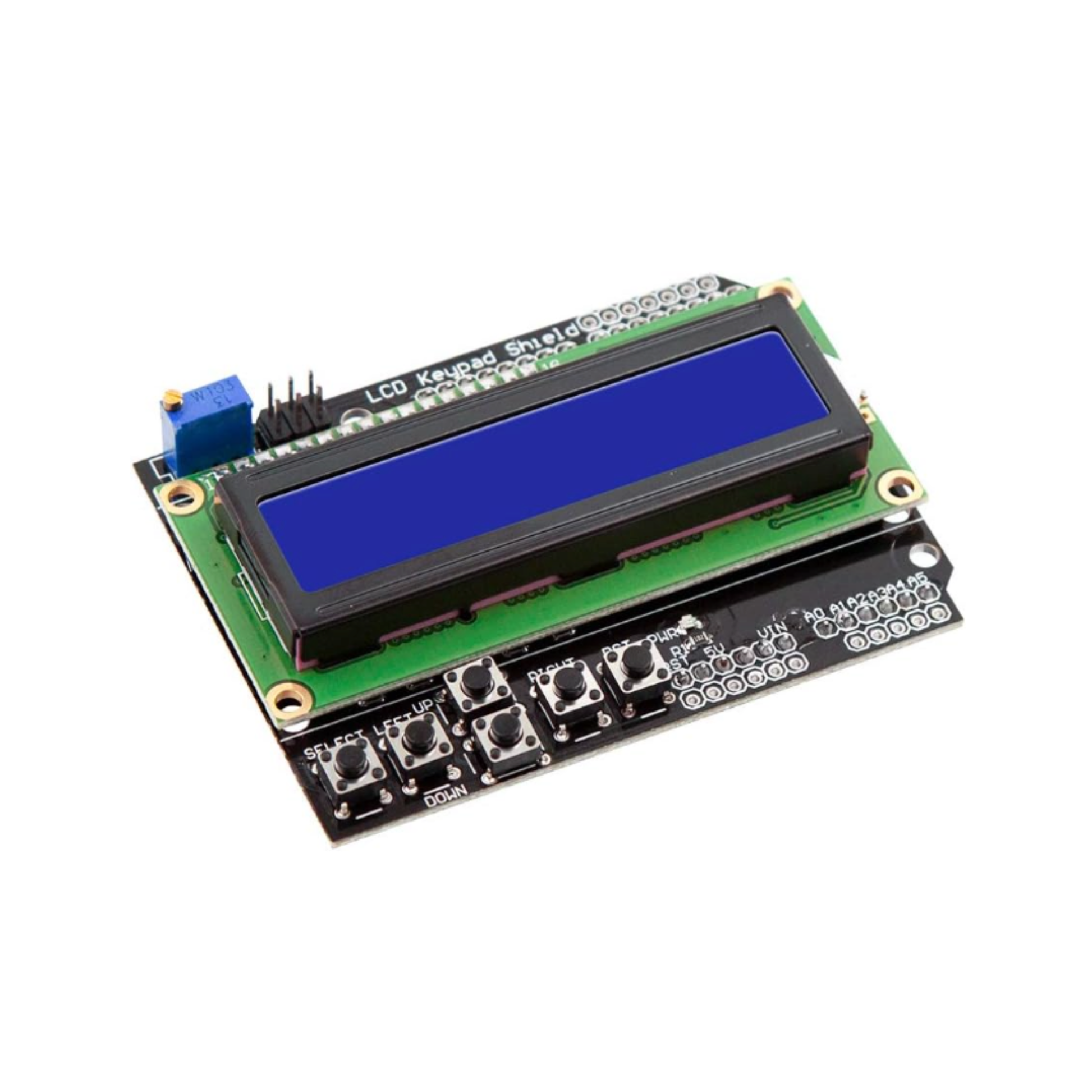

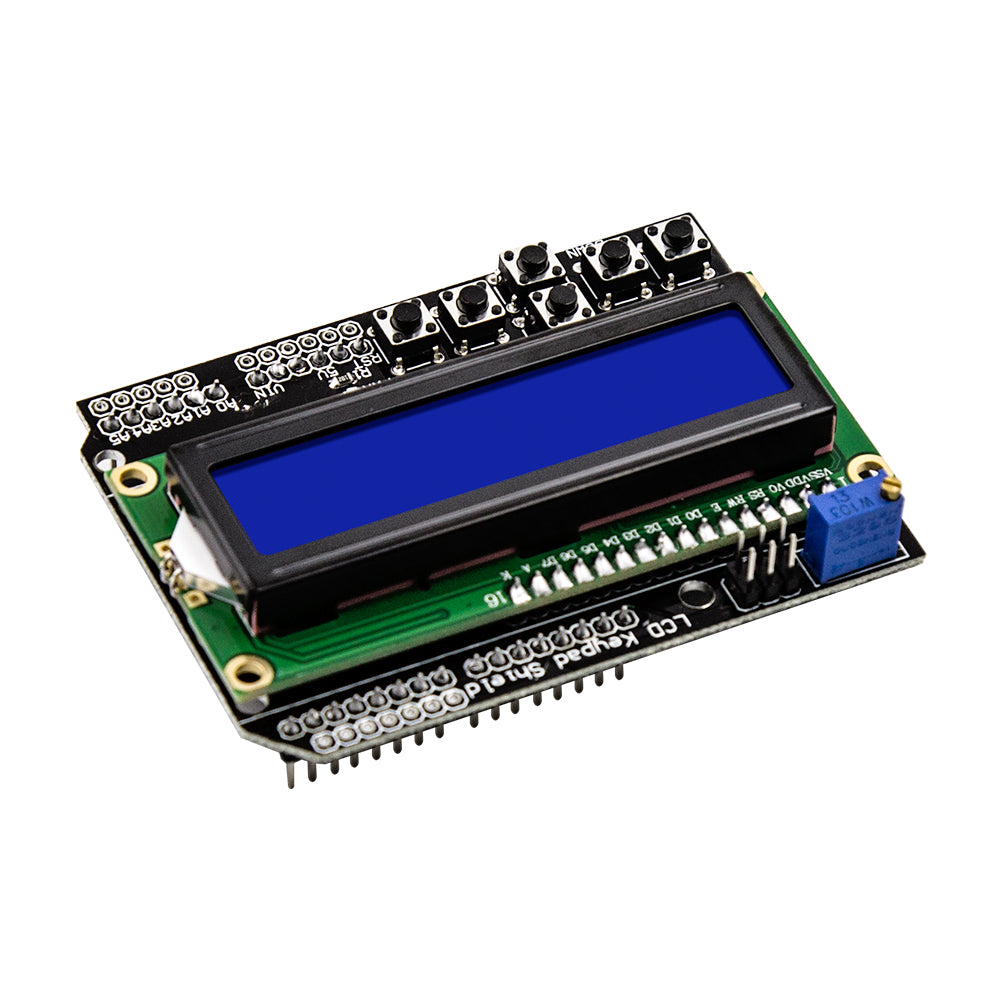

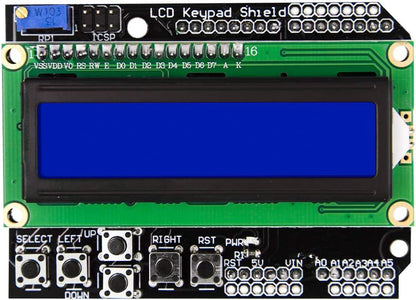

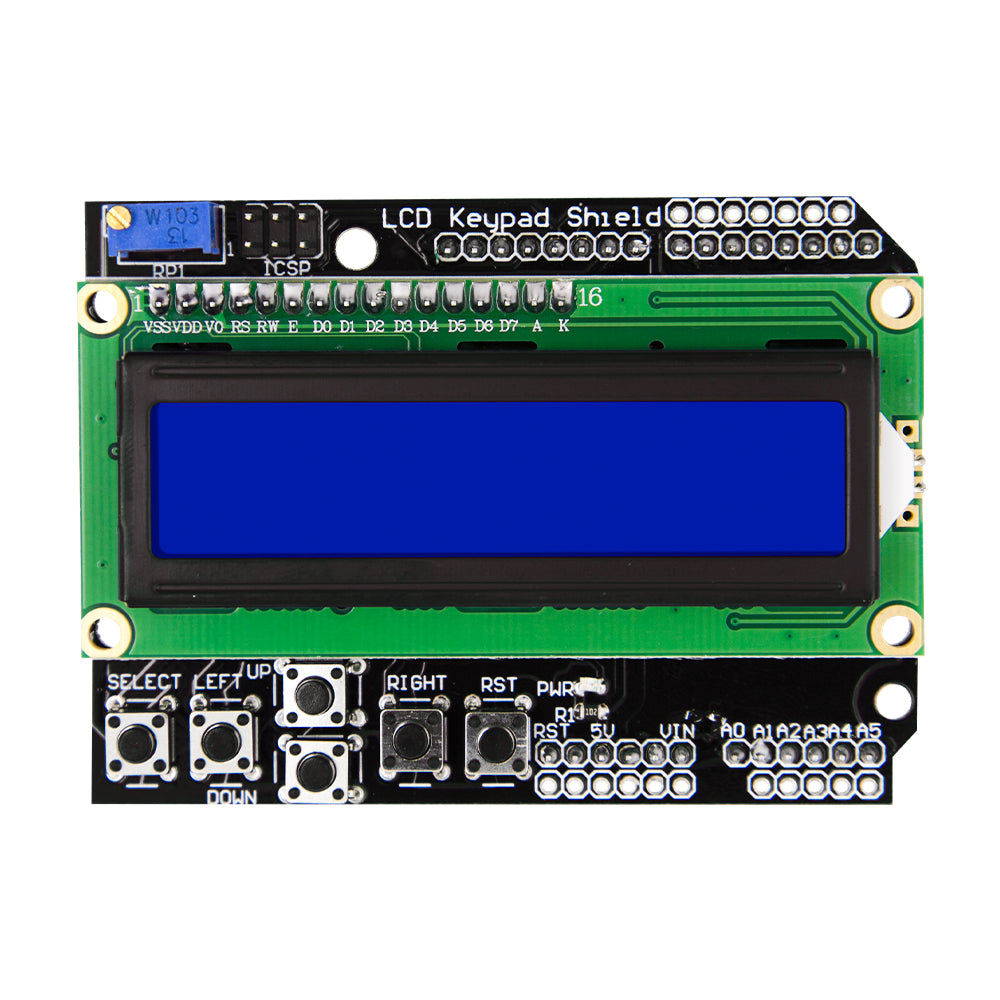

The ShillehTek LCD1602 16x2 Keypad Shield brings a compact 16x2 character display and onboard controls to Arduino and Raspberry Pi projects. With wide compatibility for Arduino UNO, Mega, and Raspberry Pi, it installs as a plug-and-play shield and includes pre-soldered headers for quick, reliable connections. The LCD uses a bright blue backlight for easy readability in low-light environments, and the integrated five-button keypad provides straightforward user input for menus, navigation, and interactive sketches. Designed for makers, students, and hobbyists, this shield is well suited to robotics, IoT, STEM, and general electronics prototyping, helping you move from idea to working demo without complex wiring or extra modules.

Questions & answers

Frequently asked questions

Yes. It is described as compatible with Arduino UNO, Arduino Mega, and Raspberry Pi projects, giving you a 16x2 character LCD and onboard keypad for those platforms. Use platform-appropriate code and connections when moving between Arduino and Raspberry Pi.
No. This ShillehTek shield includes pre-soldered headers, so it is ready for quick connection without header soldering. That helps reduce loose-wire errors when adding a display and buttons to a prototype.
The board routes the LCD control lines and five-button keypad signals through its shield headers, instead of requiring separate display and button wiring. Use the pin mapping expected by your Arduino sketch or Raspberry Pi example code.
Yes. The 16x2 display can show short status messages, menu labels, sensor readings, or prompts, while the five-button keypad supports navigation and selection. It is useful for robotics, IoT demos, STEM labs, and interactive sketches.
Check that the shield is fully seated, the headers are aligned, and the correct board-specific example or library settings are being used. Also confirm your program initializes a 16-column by 2-row LCD and reads the keypad mapping correctly.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

16x2 LCD Display Clear 16x2 character LCD presents two lines of 16 characters for menus and data.

Blue Backlight Bright blue backlight enhances readability in low-light environments.

Built-in Keypad Five integrated buttons provide simple user input and menu navigation.

Broad Compatibility Works with Arduino UNO, Mega, and Raspberry Pi for versatile project integration.

Pre-soldered Headers Comes with pre-soldered headers for quick electrical connections without extra soldering.

Plug-and-Play Shield Shield form factor mounts directly onto compatible microcontrollers for fast setup.

Ideal for Makers Designed for robotics, IoT, STEM, and DIY projects to speed up prototyping.

Reference

Documents

Full Product Manual ShillehTek LCD1602 16x2 Keypad Shield for Arduino Raspberry Pi | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.

Datasheet
