1-Channel 12V Relay Module for Arduino & Raspberry Pi

Name: 1-Channel 12V Relay Module for Arduino & Raspberry Pi
Brand: ShillehTek
SKU: 7Q-OTZQ-YHAI
Price: 5.8 USD
Availability: InStock

SKU 7Q-OTZQ-YHAI

$5.80 USD Shipping & tax calculated at checkout

In stock· Order by 3pm ET and it ships today

Single-channel relay board powered by 12V, giving Arduino and Raspberry Pi one GPIO-controlled on/off switch for automation projects.

Bulk eligible

Auto-applied at checkout

Buy 5+	$5.51 each	Save 5%
Buy 10+	$5.22 each	Save 10%

View all bulk eligible products →

Free Ground Shipping U.S. orders $35+
Ships from USA Domestic fulfillment
30-day returns Free defect replacement
7-day support Fast email replies

Frequently bought together

1-Channel 12V Relay Module for Arduino & Raspberry Pi ★★★★★ (4) $5.80 This item

Top and bottom views of Arduino Nano V3.0 Pre-Soldered CH340G ATmega328P board

Arduino Nano V3.0 Pre-Soldered CH340G ATmega328PNo reviews yet $5.99

2 x 18650 battery holder box with 4 wires and DC power plug, no cover, black plastic

2 x 18650 Battery Holder Box with 4 Wires, No CoverNo reviews yet $4.99

HX-2S-JH20 2S 7.4V 18650 lithium battery protection board with 10A current and balancer components

HX-2S-JH20 2S 7.4V 18650 Lithium Battery Protection Board 10A with BalancerNo reviews yet $6.99

Total for 4 items

$23.77

Products related to this item

★★★★★ (6) 1-Channel 5V Relay Board for Arduino & Raspberry Pi $5.79

★★★★★ (4) 1-Channel 24V Relay Module for Arduino & Raspberry Pi $6.25

Top view of ShillehTek 2-channel relay board showing connection terminals

★★★★★ (7) 2-Channel 5V Relay Module for Arduino & Raspberry Pi $6.25

ShillehTek 4-channel relay module with blue relays and red circuit board

★★★★★ (5) 4-Channel 5V Relay Module for Arduino & Raspberry Pi $7.50

ShillehTek 8-channel relay module with blue relays on red PCB

★★★★★ (6) 8-Channel 5V Relay Module for Arduino & Raspberry Pi $9.99

top view USB Control Module 1-Channel 5V Relay Module with blue relay and USB port

No reviews yetUSB Control Module 1-Channel 5V Relay Module (No Driver Needed) $6.99

Overview

Product Overview

The ShillehTek 1-Channel 12V Relay Module lets an Arduino or Raspberry Pi control a single device like an electronically controlled on/off switch, while the relay itself is powered from a 12V supply. It is perfect for simple automation builds where you need one controllable output for a light, fan, pump, solenoid, or other load, using a basic GPIO trigger signal. This is a clean, beginner-friendly way to switch higher-power devices without building a relay driver circuit from scratch.

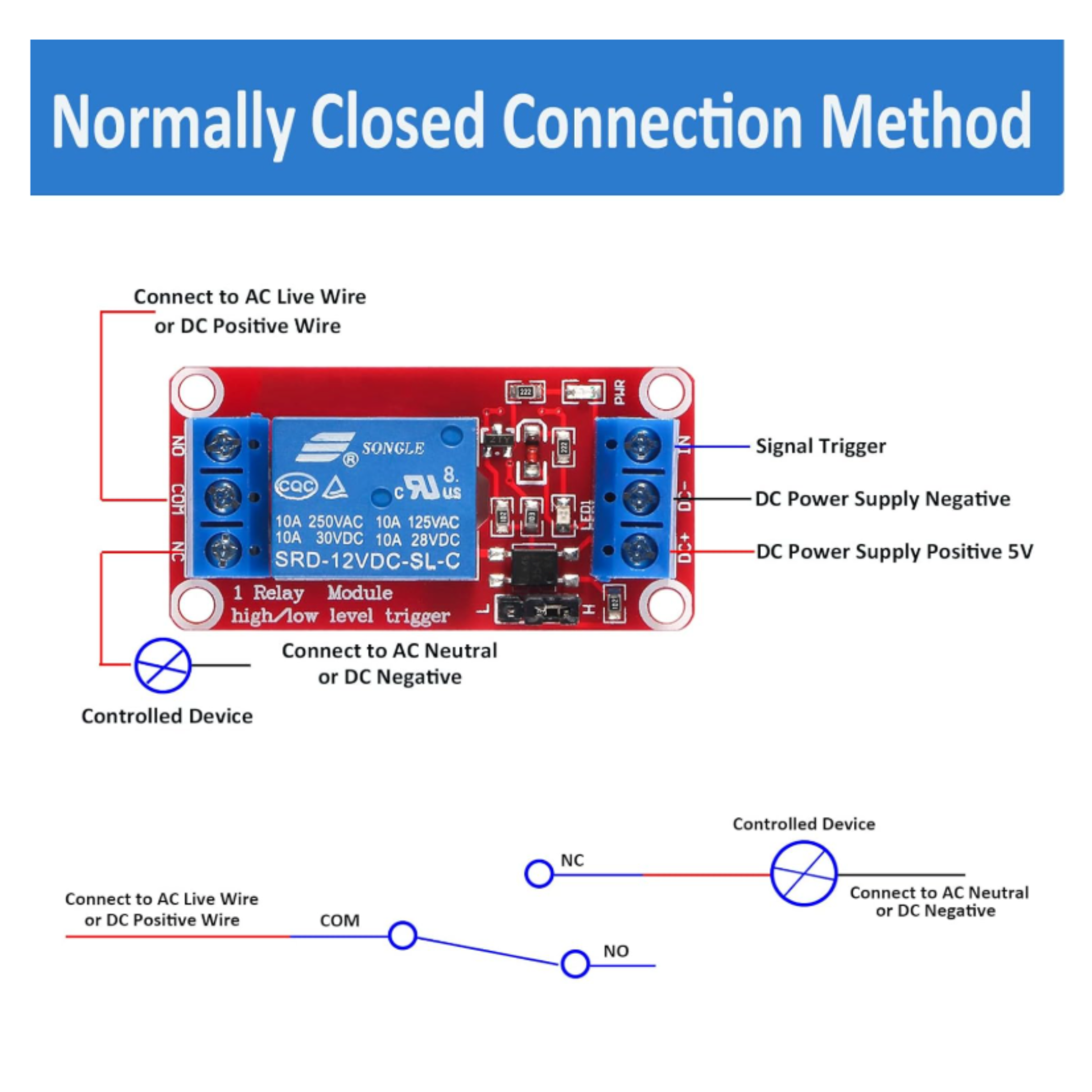

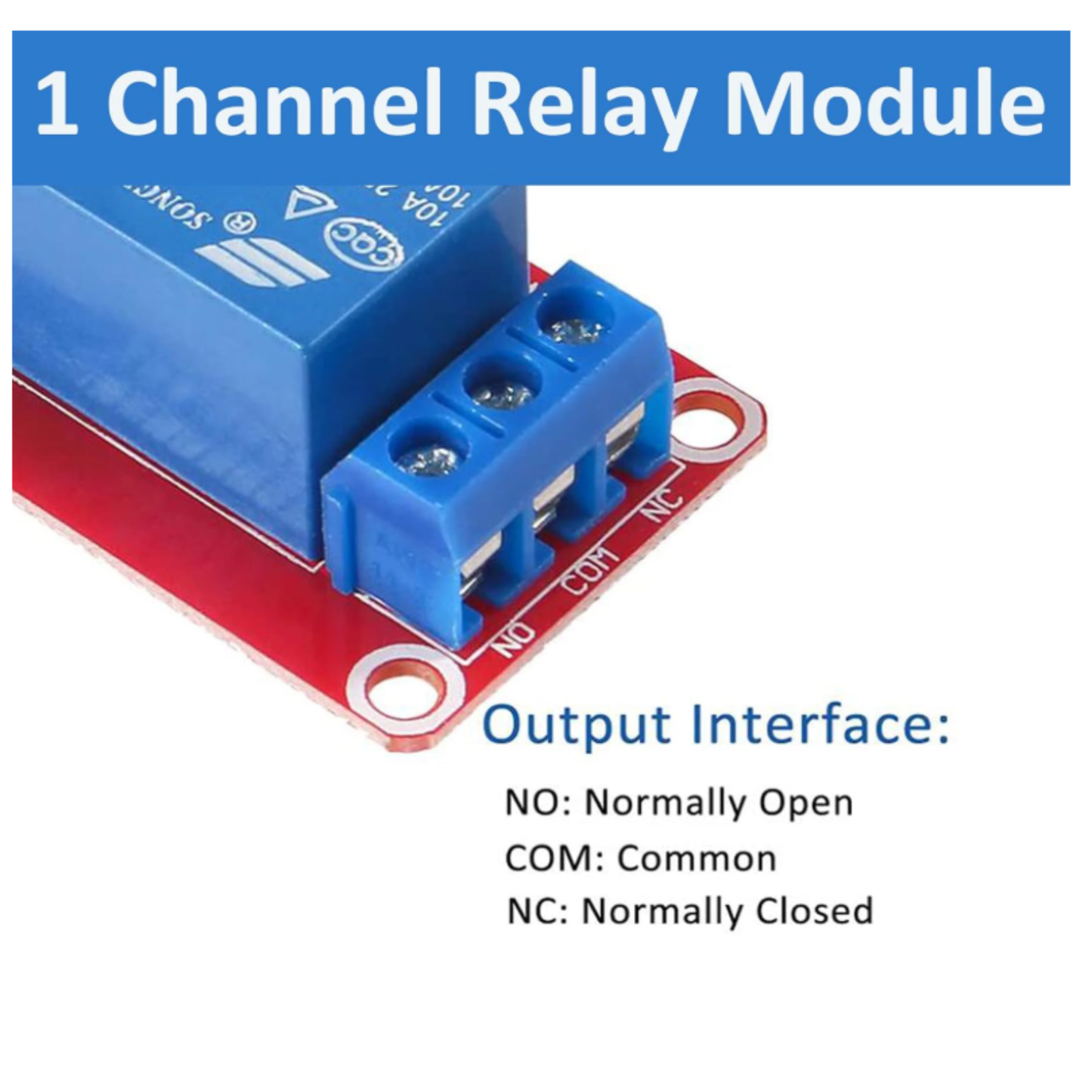

The relay's contacts are rated up to 10 A at 250 VAC or 30 VDC and exposed on NO/NC/COM screw terminals, with an indicator LED showing the switch state at a glance. The input triggers from 3.3 V or 5 V GPIO while the coil runs from your 12 V supply, making it a natural fit for automotive accessories, solar setups, and 12 V control panels that need one clean switched output.

Questions & answers

Frequently asked questions

Does this 12V relay module work with Arduino and Raspberry Pi?

Yes. It is intended for Arduino and Raspberry Pi projects where a GPIO pin sends the control trigger, while the relay module itself is powered from a 12V supply.

Is this relay module ready to wire into a project?

Yes. ShillehTek modules are sold pre-soldered for easier hookup, so you can focus on wiring power, the GPIO trigger, and the switched load instead of building a relay driver circuit from scratch.

What voltage powers this relay module?

The relay module is powered from a 12V supply. The Arduino or Raspberry Pi GPIO provides the control signal; it should not be used as the relay’s main power source.

Can this relay module control a fan or pump?

Yes. It can provide one controllable on/off output for a light, fan, pump, solenoid, or similar device. Always confirm the connected load is appropriate for the relay’s switching capability before use.

Why does the relay not click from my GPIO?

Check that the 12V relay power supply is connected, the GPIO trigger wire is on the correct input, and your code is changing the pin state. A GPIO signal alone will not power the relay coil.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

Single Relay Output Control one load with a simple trigger input from your microcontroller.

12V Relay Power Ideal when your project already has a 12V rail for relay power.

Great for Automation Use for lights, fans, pumps, valves, solenoids, and DIY control projects.

Arduino + Raspberry Pi Compatible Easy GPIO triggering and quick wiring for fast prototypes.

Simple, Clean Module A straightforward drop-in solution when you only need one switched channel.

Reference

Documents

Full Product Manual ShillehTek 1-Channel 12V Relay Module Arduino Raspberry Pi | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.

Datasheet

Learn

Customer Reviews

It works great!

I’m using this for some simple Arduino projects so nothing really taxing on it. It works great.

A Solid Relay That Doesn’t Try to Be Fancy

This relay module works just as well as some of the name-brand options I’ve used. It’s reliable, responsive, and the ability to trigger via either high or low level inputs is a nice touch, especially if you want to build in a simple failsafe or just avoid logic headaches.The status LEDs are a welcome feature too. They make troubleshooting way easier when your circuit decides to play dead. It’s not flashy, but it’s a perfectly good relay for DIY projects, automation setups, or robotics.Pros:Supports both high and low level triggering; great for flexible circuit design.Status LEDs help with quick diagnostics.Works reliably with Arduino, Raspberry Pi, and PLCs.Comparable performance to more well-known brands.Cons:Nothing special in terms of design or features.Doesn’t come with documentation, but it’s straightforward enough.tldr:If you need a basic relay that works and doesn’t cost a fortune, this one’s a solid pick. It’s not going to impress your electronics professor, but it’ll get the job done.

Relay board with high voltage isolation

This little Relay controller board. Allows you to trigger heavier amperage attachments like motors lights with a simple 5 V trigger.. There are many uses for this. You just have to be creative. The board has great separations between high voltage and low voltage and it is isolated using a Optocoupler.
