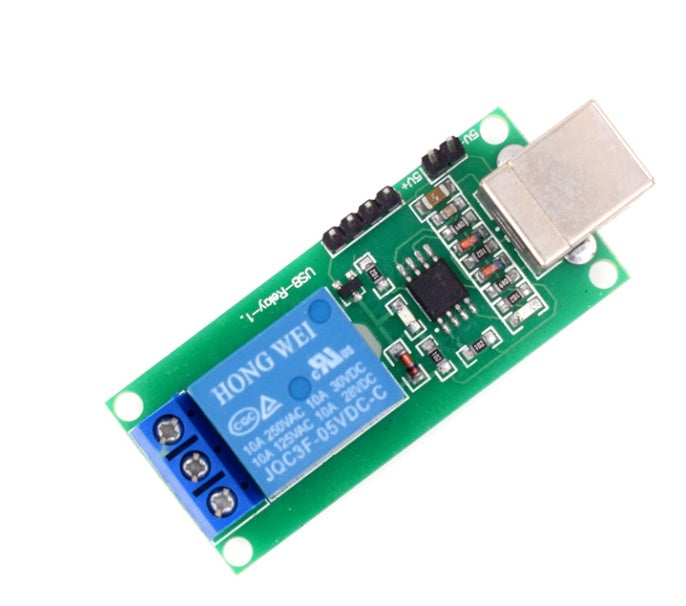

top view USB Control Module 1-Channel 5V Relay Module with blue relay and USB port

USB Control Module 1-Channel 5V Relay Module (No Driver Needed)

SKU ST-HKNSAUWFAVI7

$6.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

1-channel 5V USB relay control module for PC and Raspberry Pi switching, power cycling, and device automation. No-driver USB interface for Windows, Linux, robotics, kiosks, and home automation.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Worldwide via DHL
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
top view USB Control Module 1-Channel 5V Relay Module with blue relay and USB port USB Control Module 1-Channel 5V Relay Module (No Driver Needed)No reviews yet $6.99 This item
ShillehTek blue transparent Micro USB Cable 0.5m close-up connector view Micro USB Cable 0.5m (1.64ft)No reviews yet $3.99
Top view of ShillehTek LM2596 step-down buck converter module with digital voltmeter LM2596 Step-Down Buck Converter Module with Digital Voltmeter ★★★★★ (8) $6.99
INA219 I2C bi-directional current and power monitoring sensor module with green terminal block and pins INA219 I2C Bi-Directional Current & Power Monitoring Sensor Module with Soldering and FoamNo reviews yet $7.99
Total for 4 items
$25.96

Products related to this item

ShillehTek 1-channel relay module with blue relay and screw terminals
★★★★★ (6) 1-Channel 5V Relay Board for Arduino & Raspberry Pi $5.79
Top view of ShillehTek 2-channel relay board showing connection terminals
★★★★★ (7) 2-Channel 5V Relay Module for Arduino & Raspberry Pi $6.25
ShillehTek 4-channel relay module with blue relays and red circuit board
★★★★★ (6) 4-Channel 5V Relay Module for Arduino & Raspberry Pi $7.50
ShillehTek 1-channel relay module with blue relay and screw terminals
★★★★★ (4) 1-Channel 12V Relay Module for Arduino & Raspberry Pi $5.80

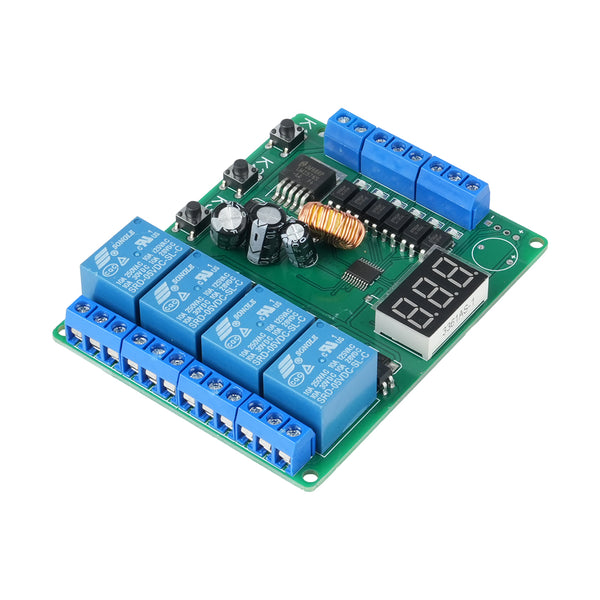

4-channel programmable relay module with blue relays and digital display ShillehTek
★★★★★ (1) 4-Channel Programmable Relay Module 6-24V DC Trigger Delay Timer & Motor Reversing Controller $15.99
433MHz 12V 1-Channel Relay Module and black wireless remote key fob
★★★★★ (1) 433MHz 12V 1-Channel Relay Module with Wireless Remote $9.99

Overview

Product Overview

A single relay you control from a computer over USB. The CH340 bridge presents a virtual COM port (driver-free on Linux and Raspberry Pi), and a short command at 9600 baud 8N1 switches the SPDT relay — 10 A at 250 V AC or 30 V DC on NO, COM and NC screw terminals. It draws about 70 mA from the USB port, so no external supply is needed. Operate time is about 10 ms, release about 5 ms, with roughly 10 million mechanical cycles.

Script it from Python, Node or a shell script to power-cycle a router, reset a device under test, run a kiosk light or switch a lamp from a Raspberry Pi, Linux box or Windows PC. Rated −25 °C to +75 °C.

Questions & answers

Frequently asked questions

Yes. It is described for Raspberry Pi, Linux boxes, and Windows PCs, using USB for scriptable relay control without extra drivers. It is intended for PC and single-board-computer switching tasks.
Yes. ShillehTek supplies this relay module pre-soldered, and the no-driver-needed USB design reduces setup steps. You still need suitable control software and safe wiring for the circuit or device being switched.
It uses USB as the control interface and provides one 5V relay channel to turn a connected circuit on or off. The provided information does not specify load ratings, so verify suitability before switching higher-power devices.
It fits projects that need computer-controlled on/off switching, such as home automation, test benches, kiosks, robotics, power cycling, and alarm control. It is useful when software needs to trigger a physical circuit.
Check that the USB connection is stable, the operating system recognizes the module, and your utility or custom app is sending the correct command. Also confirm the load is wired to the relay contacts properly.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

USB-powered, CH340 virtual COM port Shows up as a serial port; driver-free on Linux and Raspberry Pi.

Serial-controlled, 9600 baud 8N1 Send the on/off bytes from Python, Node, a shell script or any app.

SPDT relay, 10 A 250 V AC or 30 V DC on NO / COM / NC screw terminals.

~70 mA from USB No external supply needed.

~10 ms operate, ~5 ms release About 10 million mechanical cycles; about 100,000 at full load.

Hosts Raspberry Pi, Linux and Windows PCs.

−25 °C to +75 °C For test benches, kiosks, power-cycling and home automation.

Reference

Documents

Full Product Manual USB Control Module 1-Channel 5V Relay Module (No Driver Needed) | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.

ShillehTek Module Datasheet (PDF, preliminary)
