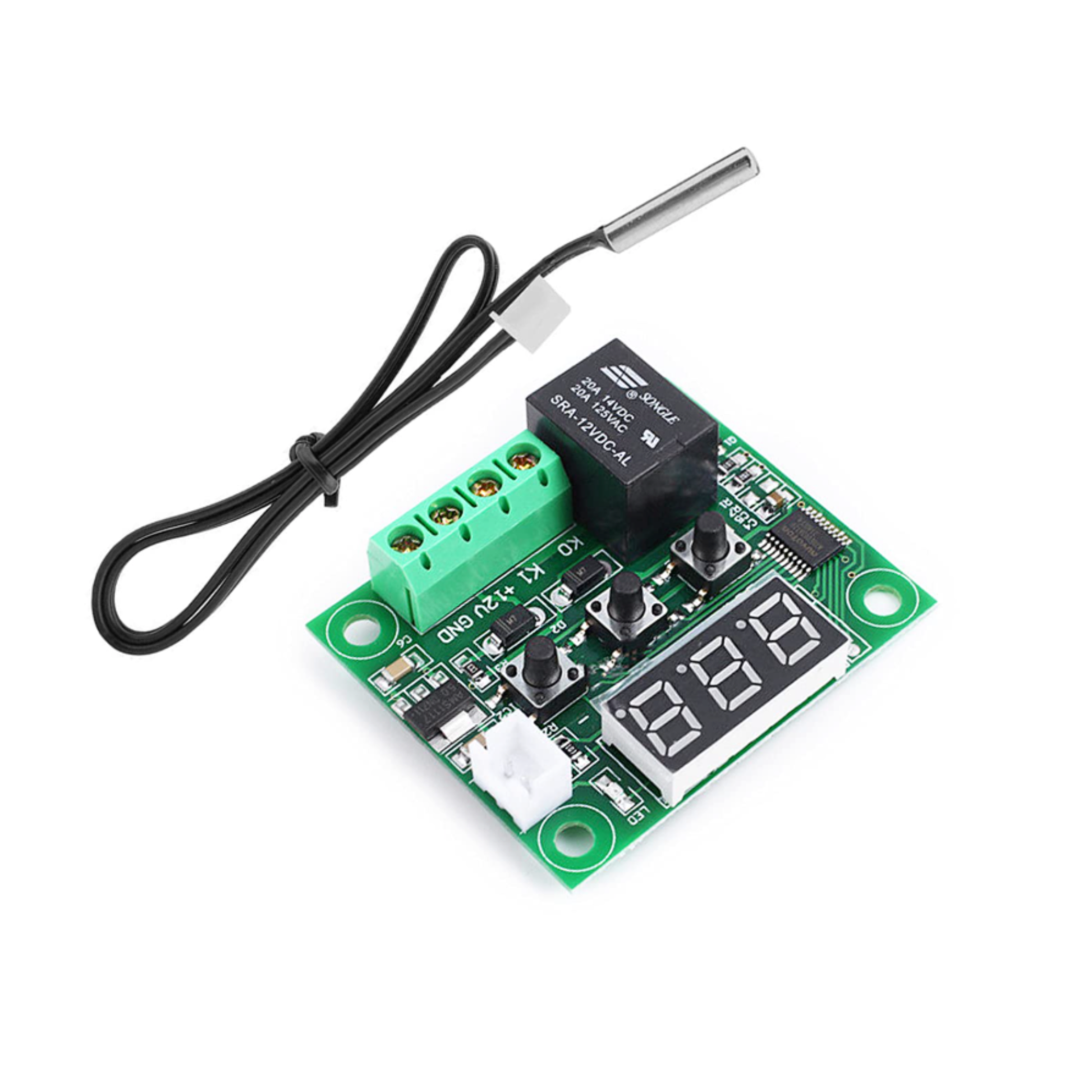

ShillehTek W1209 12V digital temperature controller module with sensor probe attached

W1209 12V Digital Temperature Controller Thermostat Module

SKU AA178

$6.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

W1209 12V digital thermostat module for precise heating and cooling control, featuring a waterproof 50cm NTC probe and a high-current 10A relay for direct control of heaters and fans.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Worldwide via DHL
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ShillehTek W1209 12V digital temperature controller module with sensor probe attached W1209 12V Digital Temperature Controller Thermostat Module ★★★★★ (1) $6.99 This item
4 slot 18650 battery holder box with red and black wires and no cover for electronics projects 4 x 18650 Battery Holder Box with Wire (No Cover)No reviews yet $4.99
4S 30A lithium battery protection board with multiple components and connection terminals on green PCB 4S 30A 18650 Lithium Battery Protection Board 14.8V/16V with CableNo reviews yet $6.99
XL4015 adjustable DC-DC step-down module with digital voltmeter display and blue terminal blocks XL4015 Adjustable DC-DC Step-Down Module 5A 75W with Digital Voltmeter DisplayNo reviews yet $7.99
Total for 4 items
$26.96

Products related to this item

ShillehTek DS18B20 waterproof digital temperature sensor probe with coiled black cable
No reviews yetDS18B20 Waterproof Digital Temperature Sensor Probe 1M for Arduino & Raspberry Pi $5.99
MAX6675 thermocouple module with K-type sensor terminals and pin headers for temperature measurement
No reviews yetMAX6675 Pre-Soldered Module with K-Type Thermocouple Sensor (Measures up to 1024 Degrees) $7.49
Close up of ShillehTek MLX90614 IR temperature sensor module with metal housing
★★★★★ (9) MLX90614 Pre-Soldered IR Temperature Sensor Module for Arduino & Raspberry Pi $16.49
ShillehTek 1-channel relay module with blue relay and screw terminals
★★★★★ (4) 1-Channel 12V Relay Module for Arduino & Raspberry Pi $5.80
ShillehTek 2-channel relay module with blue relay switches on red board
★★★★★ (5) 2-Channel 12V Relay Module for Arduino & Raspberry Pi $5.50
4-channel programmable relay module with blue relays and digital display ShillehTek
★★★★★ (1) 4-Channel Programmable Relay Module 6-24V DC Trigger Delay Timer & Motor Reversing Controller $15.99

Overview

Product Overview

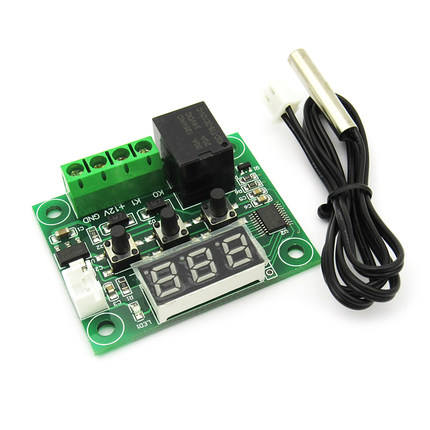

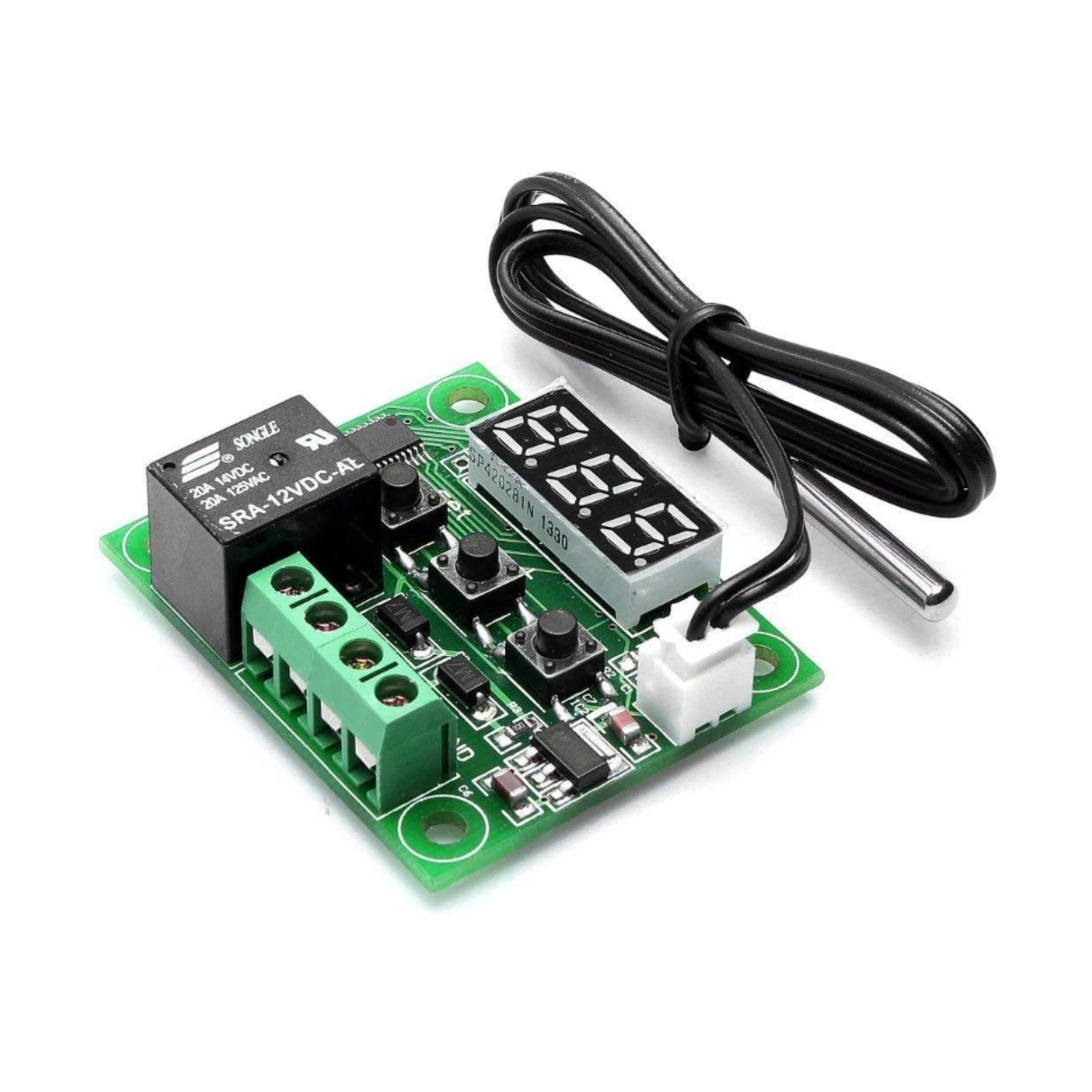

The W1209 is a 12 V thermostat module. A 10 kΩ NTC probe (B = 3950) on a 0.5 m waterproof cable reads −50 °C to +110 °C, a 3-digit LED shows it to 0.1 °C, and an SRD-12VDC-SL-C 10 A relay switches your heater or cooler. Pick heating (C) or cooling (H) mode, set the trigger temperature and a hysteresis from 0.1 to 15 °C so equipment does not short-cycle; settings are stored in EEPROM. It draws about 25 mA idle and 65 mA with the relay on.

Classic uses: egg incubators holding 37.5 °C, fermentation and sous-vide tanks, terrariums, and over-temperature cut-offs for electronics. The board is about 48 × 40 × 14 mm and ships as a single or a 2-pack.

Questions & answers

Frequently asked questions

The W1209 is a standalone 12V thermostat relay module, so an Arduino, Raspberry Pi, or ESP32 is not required. In microcontroller projects, it can independently switch a heater or fan while the controller handles other tasks.

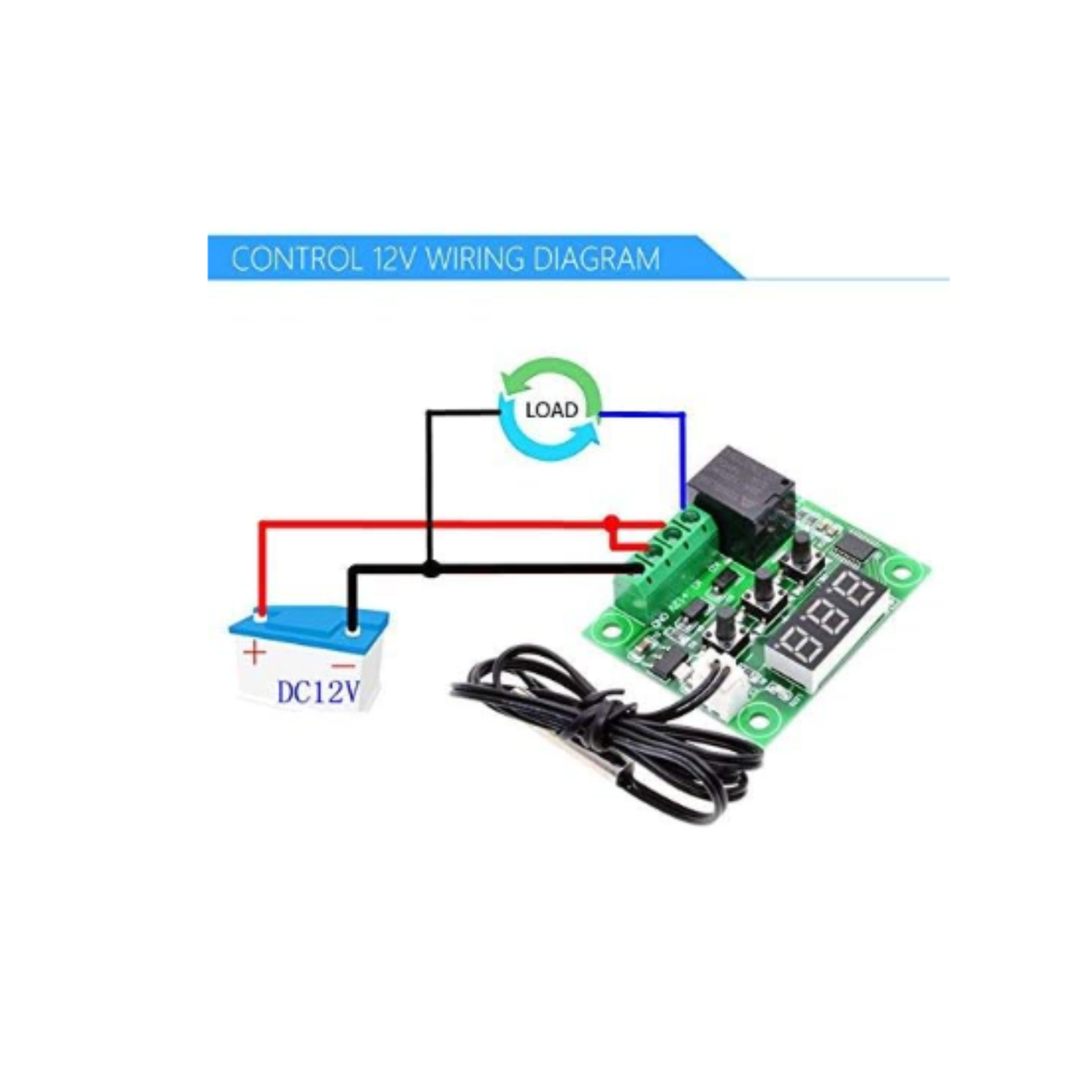

It ships with a 50 cm waterproof NTC temperature probe, onboard relay, LED display, and button controls. Provide 12V power, connect the probe and load wiring, then set the trigger point, mode, and hysteresis on the module.

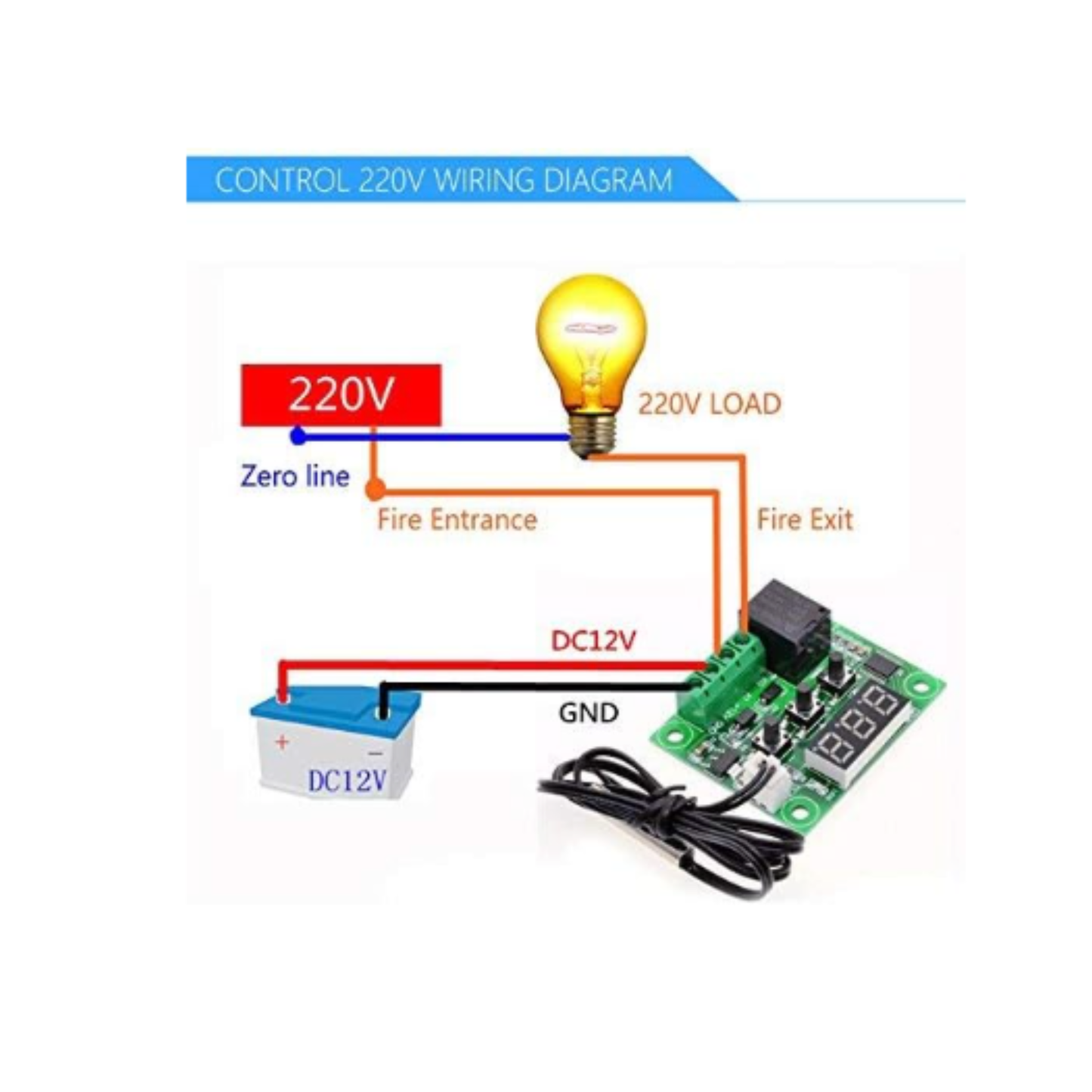

The module is powered from 12V and switches loads through its onboard relay. The relay is rated up to 10 A at 120 VAC or 14 VDC, so wiring and connected loads must stay within those limits.
Yes. The W1209 supports heating mode and adjustable hysteresis, making it suitable for incubator control, including stable 37.5°C setups when paired with an appropriate heater, enclosure, and safe wiring practices.
Relay chatter usually happens when the measured temperature hovers near the trigger point. Increase the hysteresis setting and place the probe where it measures the actual controlled area, away from direct heater or fan blasts.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

12 V DC supply About 25 mA idle and 65 mA with the relay energized.

−50 °C to +110 °C 0.1 °C display resolution between 0 and 100 °C; ±1 °C typical accuracy.

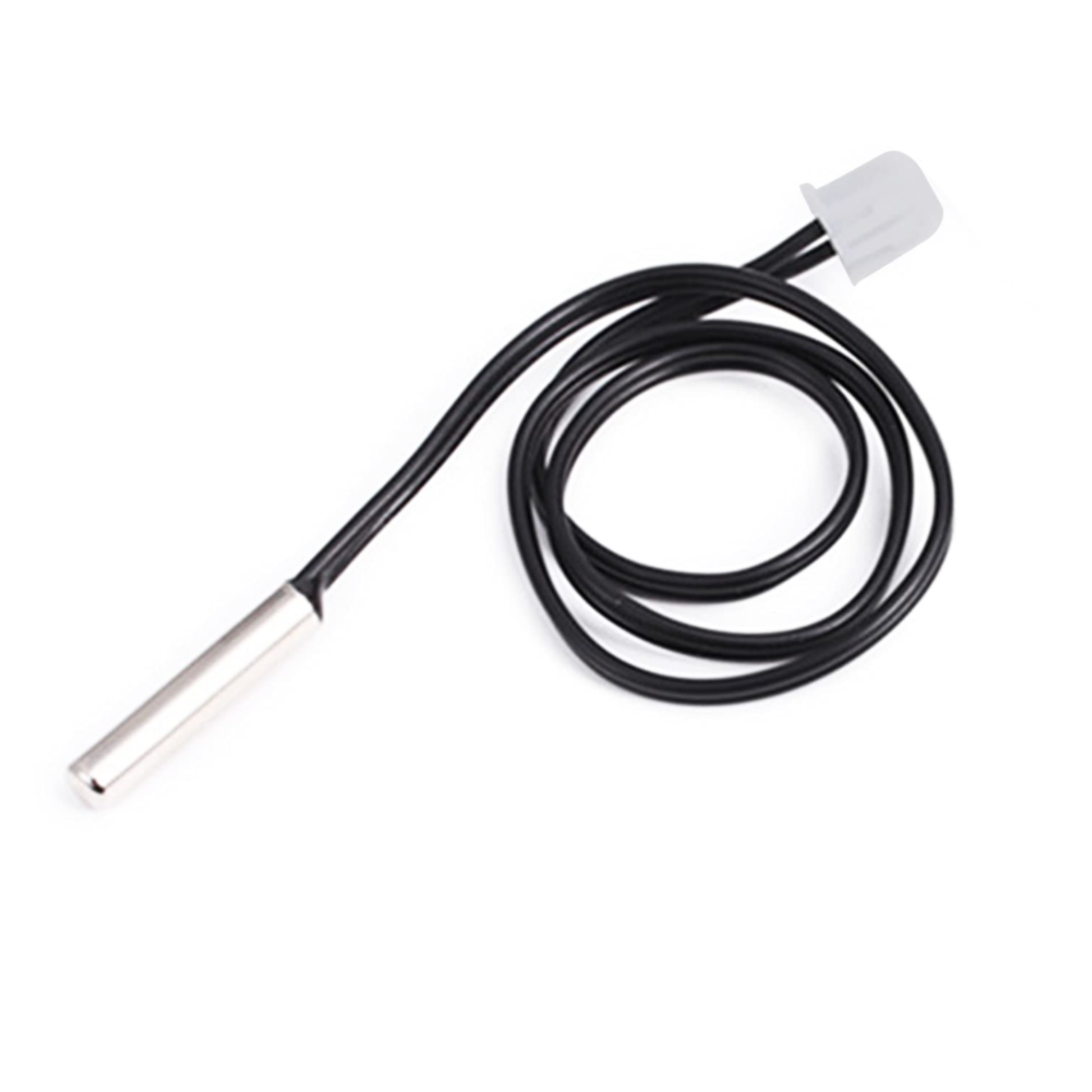

NTC 10 kΩ probe (B = 3950) On a 0.5 m waterproof cable for tanks, incubators and liquids.

SRD-12VDC-SL-C relay SPDT, 10 A rated — switches a heater, fan, pump or cooler.

Heating or cooling mode Set the trigger temperature and a 0.1–15 °C hysteresis so equipment does not short-cycle.

Settings saved in EEPROM Mode, set point and hysteresis survive power loss.

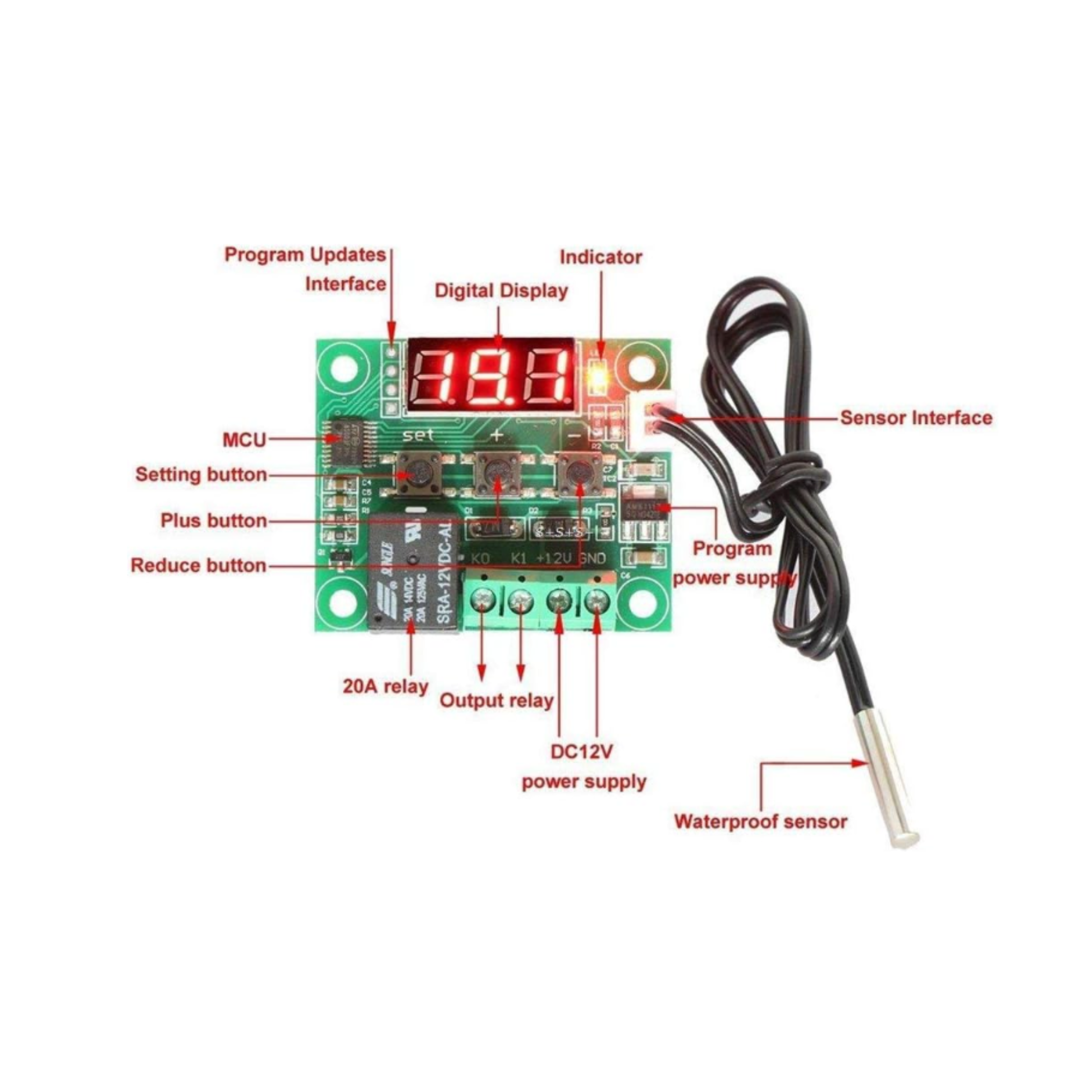

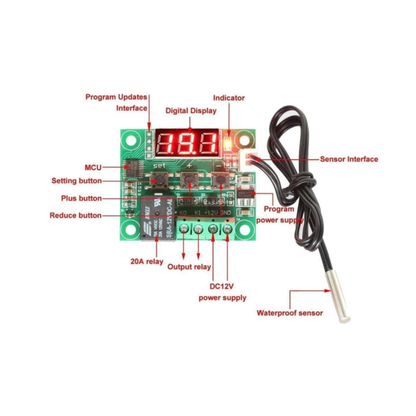

3-digit LED display, ~48 × 40 × 14 mm Single or 2-pack.

Reference

Documents

Full Product Manual ShillehTek W1209 12V Digital Temperature Controller Thermostat Switch Module | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.

Datasheet - W1209 12V Digital Temperature Controller Thermostat
