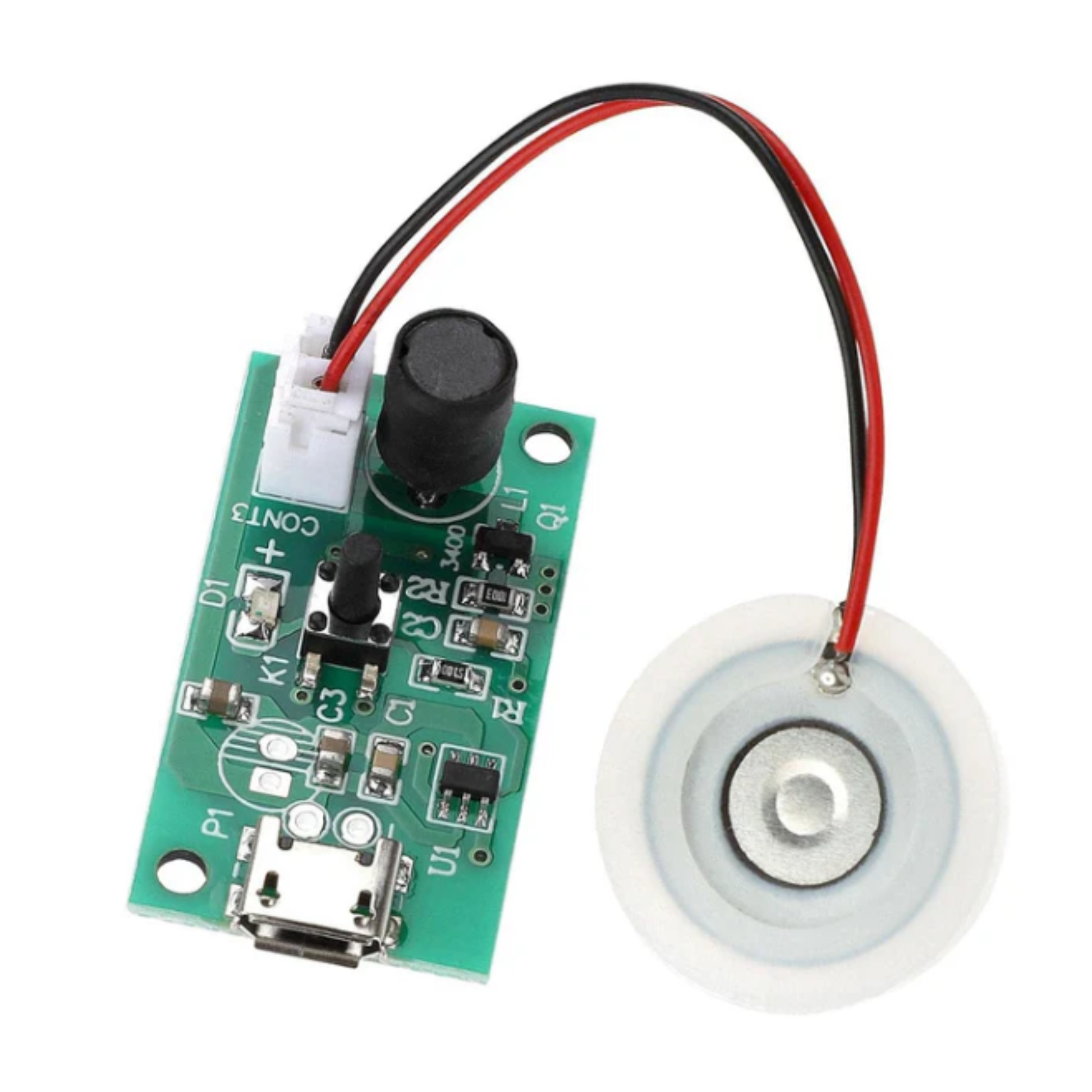

ShillehTek DC 5V ultrasonic mist maker with circuit board and round mist plate

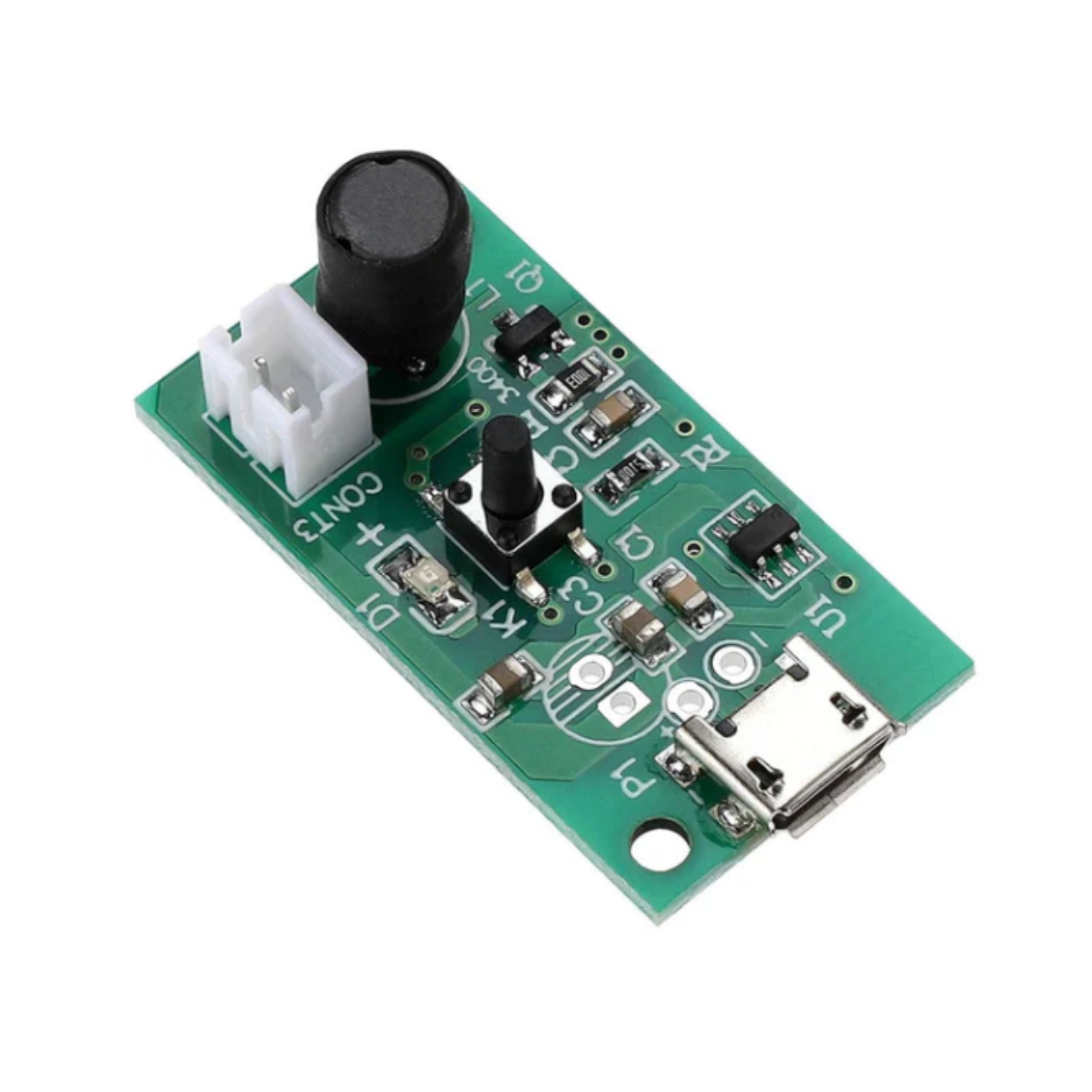

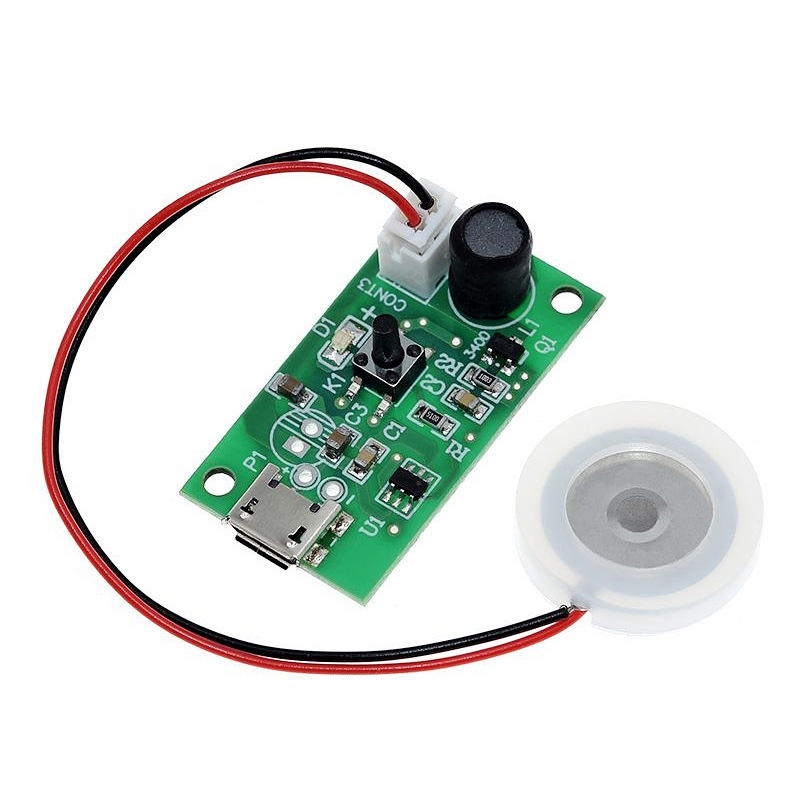

DC 5V USB Ultrasonic Mist Maker Humidifier Module 108KHz

$6.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

108KHz USB ultrasonic mist maker produces ~5µm micron-level atomization to raise relative humidity quickly while leaving surfaces dry, ideal for compact DIY humidification and lab projects.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ShillehTek DC 5V ultrasonic mist maker with circuit board and round mist plate DC 5V USB Ultrasonic Mist Maker Humidifier Module 108KHzNo reviews yet $6.99 This item
Black 18650 battery holder box with red and black wires, no cover, for single battery 18650 Battery Holder Box with Wire (No Cover)No reviews yet $5.99
TP4056 1A lithium polymer battery charging board with micro USB port and current protection TP4056 1A 3.7-4.2V LiPo Battery Charging Board with Micro USB & Current ProtectionNo reviews yet $2.50
ShillehTek MT3608 DC-DC step up boost converter blue circuit board MT3608 DC-DC Step-Up Boost Converter 2A Adjustable Power Module for ArduinoNo reviews yet $3.99
Total for 4 items
$19.47

Products related to this item

Close-up of ShillehTek Pre-Soldered BME280 sensor with purple PCB and metal pins
★★★★★ (54) BME280 Pre-Soldered Temperature, Pressure & Humidity Sensor for Arduino & Raspberry Pi $9.98
Close-up of ShillehTek pre-soldered BMP180 pressure and temperature sensor module
★★★★★ (40) BMP180 Pre-Soldered Pressure & Temperature Sensor for Arduino & Raspberry Pi $6.25
close-up of ShillehTek pre-soldered BMP280 pressure temperature sensor PCB
★★★★★ (43) BMP280 Pre-Soldered Pressure & Temperature Sensor for Arduino & Raspberry Pi $7.00
Close-up of ShillehTek BH1750 digital light sensor pre-soldered module pins
★★★★★ (27) BH1750 Pre-Soldered Digital Light Sensor for Arduino & Raspberry Pi $6.98
Single ShillehTek 1x40 male pin header with 2.54mm pitch for Arduino Pi
★★★★★ (36) 10-Pack 1x40 Male Pin Header 2.54mm for Arduino & Raspberry Pi $5.25
ShillehTek 120pcs 20cm female to female Dupont wires for Arduino Raspberry Pi
★★★★★ (9) 120pcs 20cm Dupont Jumper Wires for Arduino & Raspberry Pi $6.25
ShillehTek 400-point small solderless breadboard in packaging with grid background
★★★★★ (12) 400-Point Small Solderless Breadboard for Arduino, Raspberry Pi & ESP32 $4.99
Front view of solderless breadboard packaging with StellarSource branding
★★★★★ (13) 830 Point Solderless Breadboard for Arduino, Raspberry Pi & ESP32 $6.99

Overview

Product Overview

This DC 5V USB ultrasonic mist maker runs at 108KHz to fracture water into a fine cold fog, providing a practical humidity source for DIY egg incubators, mushroom fruiting chambers, sensor-maintenance setups, or quiet desktop humidifiers. The atomizing sheet creates an ultra-fine spray with an aperture of approximately 5 microns for rapid evaporation and humidity control without soaking surfaces. A low-impedance driver is tuned to the 108KHz resonant frequency for high conversion efficiency while drawing minimal power from the 5V supply, and the unit operates virtually without noise. The aperture uses a specialized glass glaze and stainless steel coating for improved resistance to acid and alkali oxidation from oils or hard water, and the piezoelectric disc is a plug-and-play replacement for easy maintenance, reflecting the module’s micron-level atomization capability.

Questions & answers

Frequently asked questions

It can be used in Arduino, Raspberry Pi, or ESP32 projects as a 5V misting actuator. It is not a sensor or data module, so a controller should switch its 5V power through suitable external drive circuitry rather than a GPIO pin.
The module is designed for DC 5V USB-powered operation, so basic use is simple: provide 5V power and ensure the atomizing sheet is properly contacting water. The piezoelectric disc is described as plug-and-play replaceable for maintenance.
This is a 5V ultrasonic atomizer module tuned to a 108KHz resonant frequency. It does not use I2C, SPI, or serial communication; it creates cold fog by driving the piezo atomizing sheet directly from its onboard driver.
It is suitable for small humidity projects such as DIY egg incubators, mushroom fruiting chambers, sensor-maintenance setups, and quiet desktop humidifiers. The approximately 5-micron aperture helps produce fine cold fog that evaporates quickly without intentionally heating the water.
Reduced mist output is commonly checked by verifying the 5V supply, water contact with the atomizing sheet, and cleanliness of the aperture. The sheet has glass glaze and stainless steel coating for improved resistance, but mineral buildup may still require cleaning or disc replacement.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

108 kHz Drive Optimized 108KHz resonant driver for efficient ultrasonic atomization.

5V USB Power Runs from a DC 5V USB supply for easy integration with common power sources.

Micron-Level Mist Produces ultra-fine ~5 micron droplets that evaporate quickly to raise RH without wetting surfaces.

Low Power Consumption Low-impedance circuit maximizes fog output while minimizing current draw.

Silent Operation Ultrasonic design operates virtually noiseless for quiet rooms and labs.

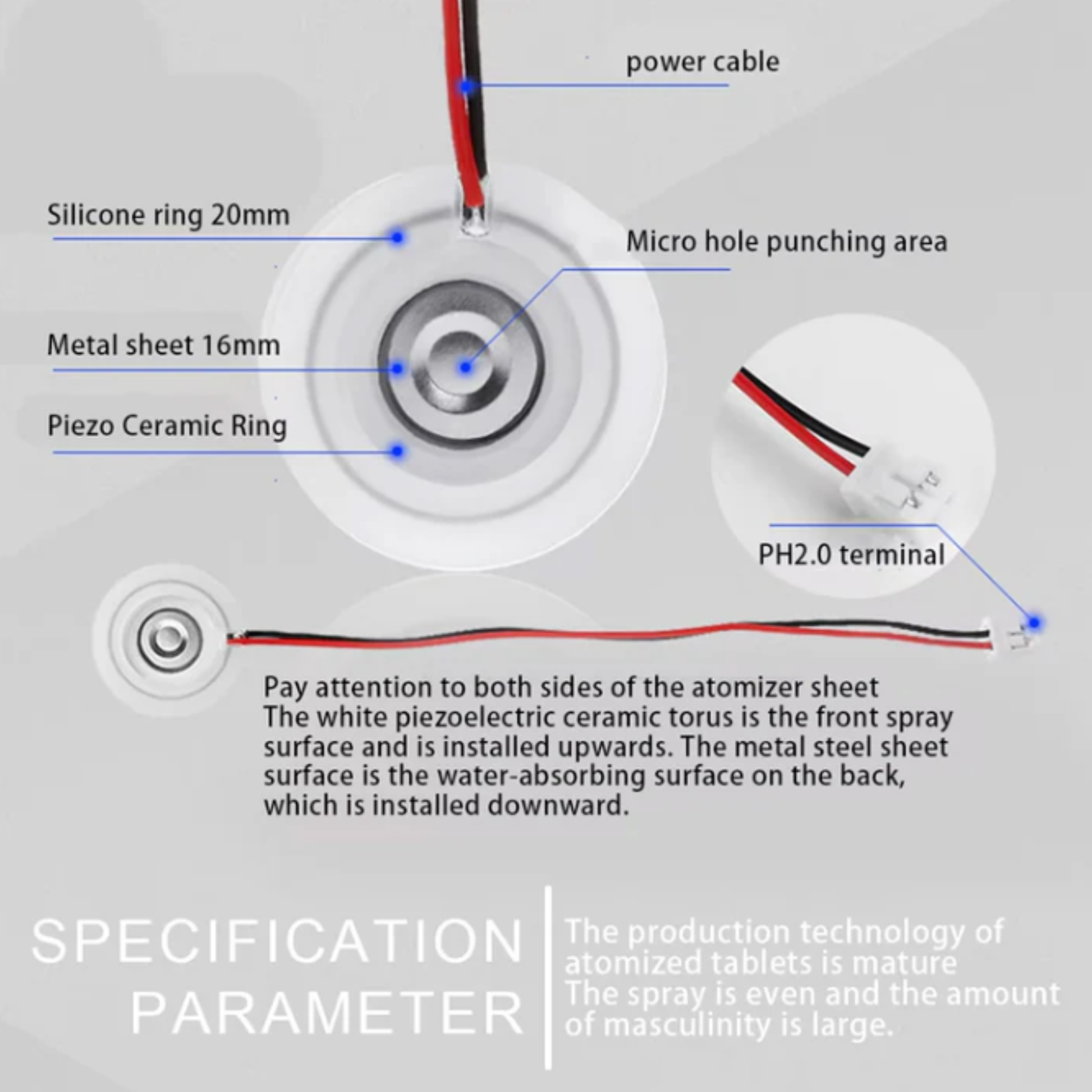

Corrosion-Resistant Head Glass-glazed, stainless-coated aperture resists acid and alkali corrosion from oils or hard water.

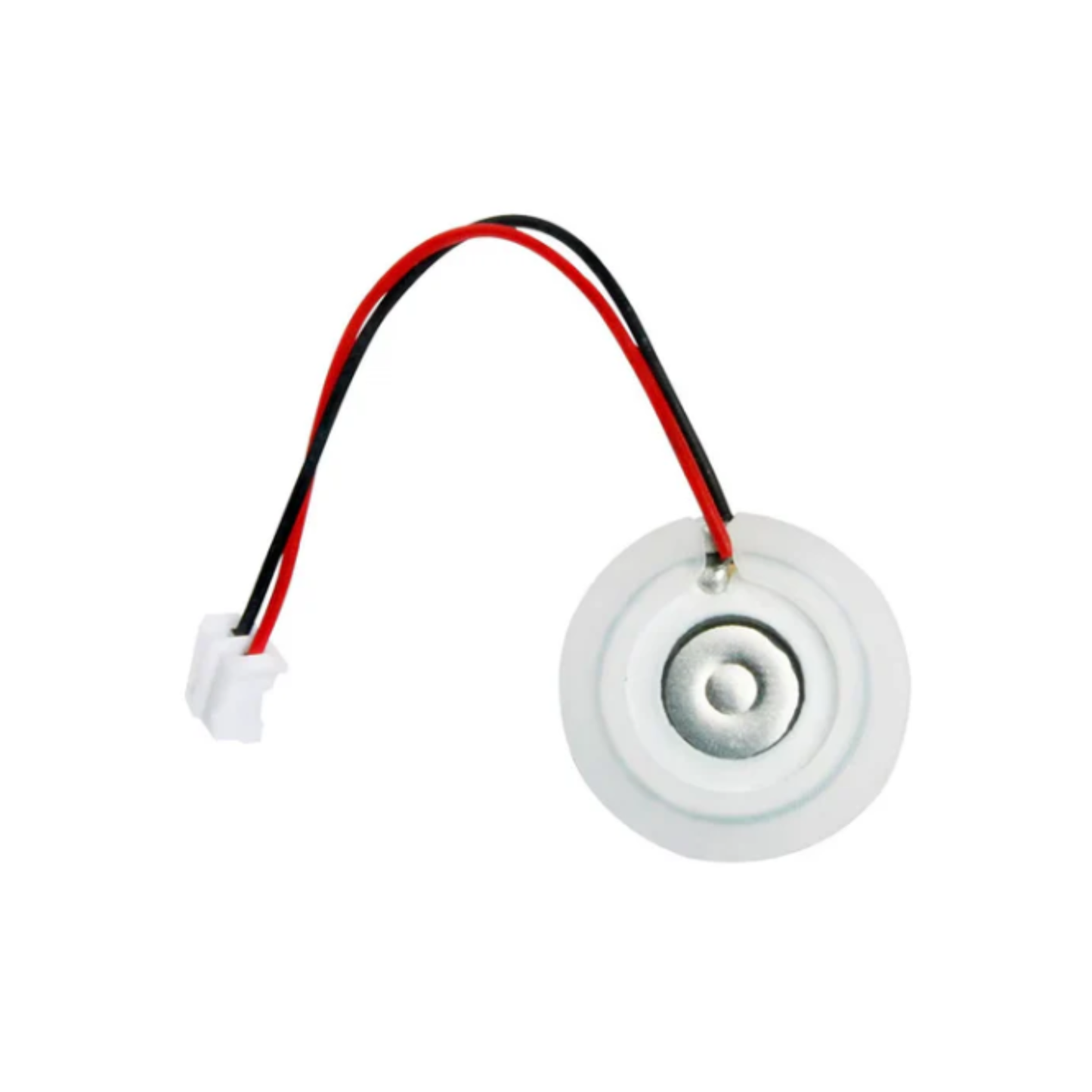

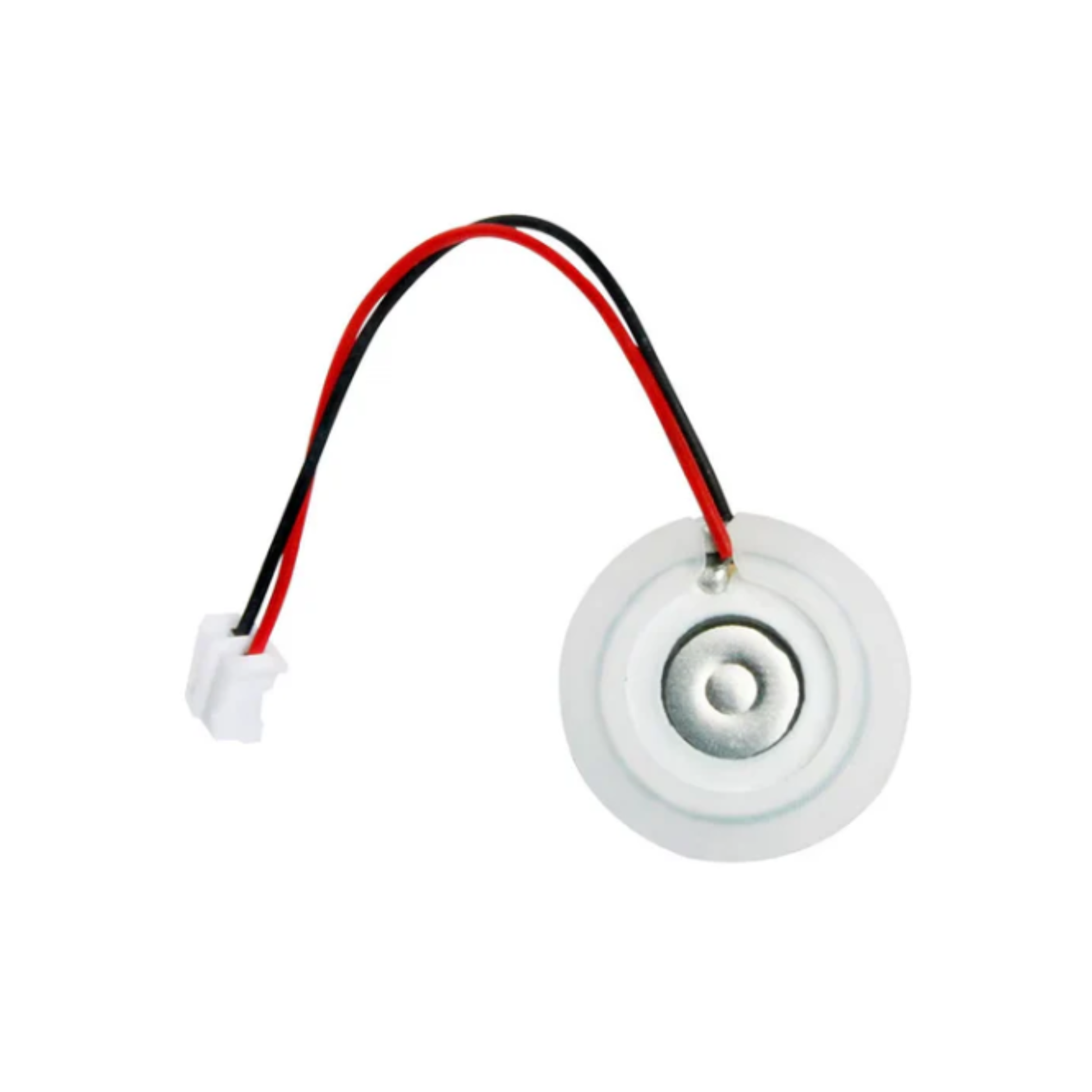

Modular Replaceable Disc Plug-and-play piezo disc allows simple replacement of the atomizing head without changing the PCB.

Reference

Documents

Full Product Manual ShillehTek DC 5V Ultrasonic Mist Maker Humidifier Module 108KHz USB | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.
