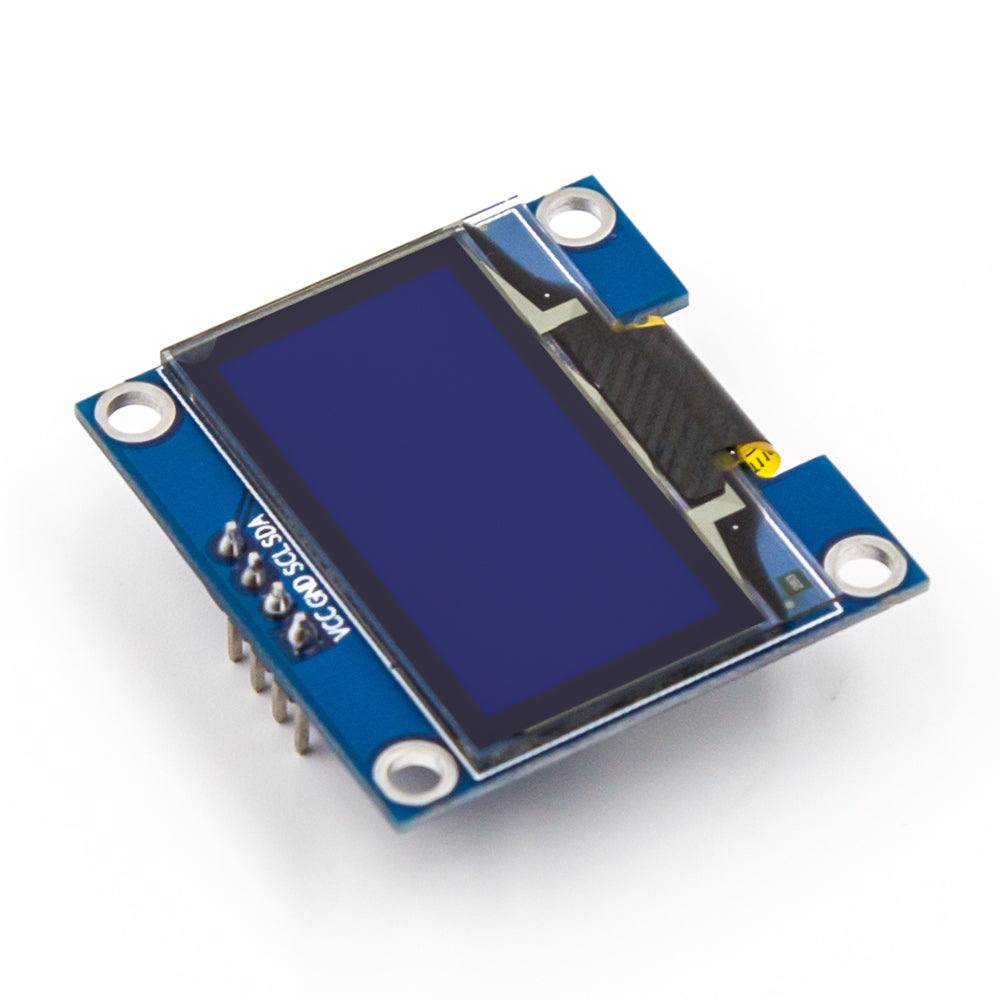

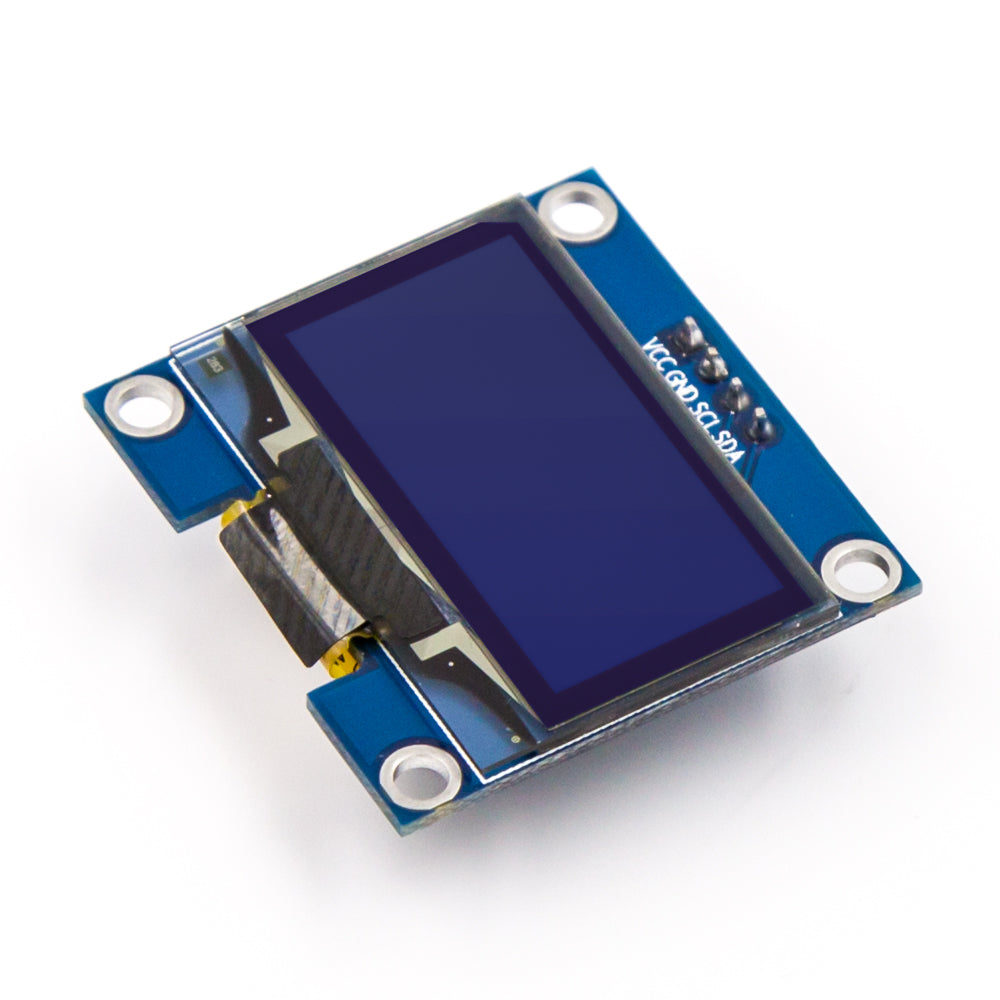

angled view of 1.3 inch I2C white OLED display module with 4-pin SH1106

1.3" I2C White OLED Display Module 4-Pin SH1106

SKU AA420

$8.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

1.3-inch SH1106 I2C OLED display module with 128x64 white screen for sensor readouts, menus, and status UI on Arduino, ESP32, and Raspberry Pi robotics, home automation, and prototyping.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
angled view of 1.3 inch I2C white OLED display module with 4-pin SH1106 1.3" I2C White OLED Display Module 4-Pin SH1106No reviews yet $8.99 This item
Top view of ESP32-DevKitC-VE board showing metal shield and pin labels ESP32-DevKitC-VE Pre-Soldered Dev Board with 8MB Flash + 8MB PSRAMNo reviews yet $24.99
Close-up top angled view of Raspberry Pi Pico 2W with pre-soldered headers Raspberry Pi Pico 2W with Pre-Soldered HeadersNo reviews yet $14.99
XIAO RP2040 microcontroller with USB-C cable included by seeed studio XIAO RP2040 Pre-Soldered Microcontroller for Arduino & MicroPythonNo reviews yet $14.98
Total for 4 items
$63.95

Products related to this item

1.3 inch blue OLED display module with 4-pin connector ShillehTek
No reviews yet1.3" I2C Blue OLED Display Module 4-Pin SH1106 $8.99
angled close-up of blue I2C OLED display module SSD1306 0.96 inch for Arduino ESP32
No reviews yetSSD1306 0.96" Blue I2C OLED Display Module 4-Pin for Arduino, Raspberry Pi & ESP32 $6.89
ShillehTek SSD1306 0.96 inch I2C White OLED Display Module angled view
No reviews yetSSD1306 0.96" I2C White OLED Display Module 4-Pin for Arduino, Raspberry Pi & ESP32 $6.89
ShillehTek 1.8 inch TFT LCD display angled view with pins and red PCB
No reviews yet1.8" TFT LCD Display 128x160 Pre-Soldered Both Sides for Arduino & ESP32 $14.99
ShillehTek 2.8 inch SPI TFT LCD touch screen module with stylus pen
No reviews yetILI9341 2.8" SPI TFT LCD Touch Screen Module 240x320 for Arduino, ESP32 & STM32 $10.99
ShillehTek MAX7219 8x8 dot matrix LED display module angled view
★★★★★ (1) MAX7219 8x8 Dot Matrix LED Display Module for Arduino, Raspberry Pi & ESP8266 $5.99

Overview

Product Overview

1.3-inch I2C OLED display module with a SH1106 driver gives your project a bright 128x64 white screen for menus, sensor readouts, status indicators, and compact user interfaces. Using a simple 4-pin I2C connection, this OLED is easier to wire than parallel displays and is well suited to Arduino, ESP32, Raspberry Pi, and other microcontroller or SBC prototyping platforms. The larger 1.3in panel offers better readability than common 0.96in OLEDs, making it a strong fit for robotics, home automation dashboards, handheld instruments, and data display projects where a crisp monochrome OLED screen saves space and power.

Questions & answers

Frequently asked questions

Yes. This 1.3-inch SH1106 OLED is suited to Arduino, ESP32, Raspberry Pi, and other boards that support I2C. Use a library or driver that specifically supports the SH1106 controller, not only SSD1306 displays.
The module is intended for quick prototyping with a simple 4-pin I2C connection. ShillehTek provides pre-soldered headers, so it can be connected to a breadboard or jumper wires without soldering first.
This display uses a 4-pin I2C interface: power, ground, SDA, and SCL. It has a 128x64 white monochrome OLED panel driven by an SH1106 controller; confirm your board’s voltage and logic compatibility before wiring.
It is a good fit for compact menus, sensor readouts, status indicators, and small user interfaces. Common projects include robotics, home automation dashboards, handheld instruments, and data displays where a readable monochrome screen is needed.
A blank or garbled screen is often caused by using the wrong display driver, incorrect I2C wiring, or a mismatched I2C address. Select SH1106 in software, verify SDA/SCL and power connections, and scan the I2C bus if needed.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

SH1106 Driver Uses the SH1106 controller for 128x64 monochrome OLED graphics over I2C.

1.3 Inch Panel The 1.3-inch white OLED screen offers better readability than common 0.96-inch modules.

4-Pin I2C Connects through a simple 4-pin I2C interface for easier wiring in embedded projects.

128x64 Resolution Displays text, menus, sensor readouts, icons, and status information on a 128x64 pixel screen.

Board Compatibility Compatible with Arduino, ESP32, Raspberry Pi, and other I2C microcontroller or SBC platforms.

Compact UI Use Well suited for robotics, home automation dashboards, handheld instruments, and data display projects.

Reference

Documents

Full Product Manual 1.3" I2C White OLED Display Module 4-Pin SH1106 | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.

Datasheet

Watch

Related Videos

Verified buyers

Customer Reviews
