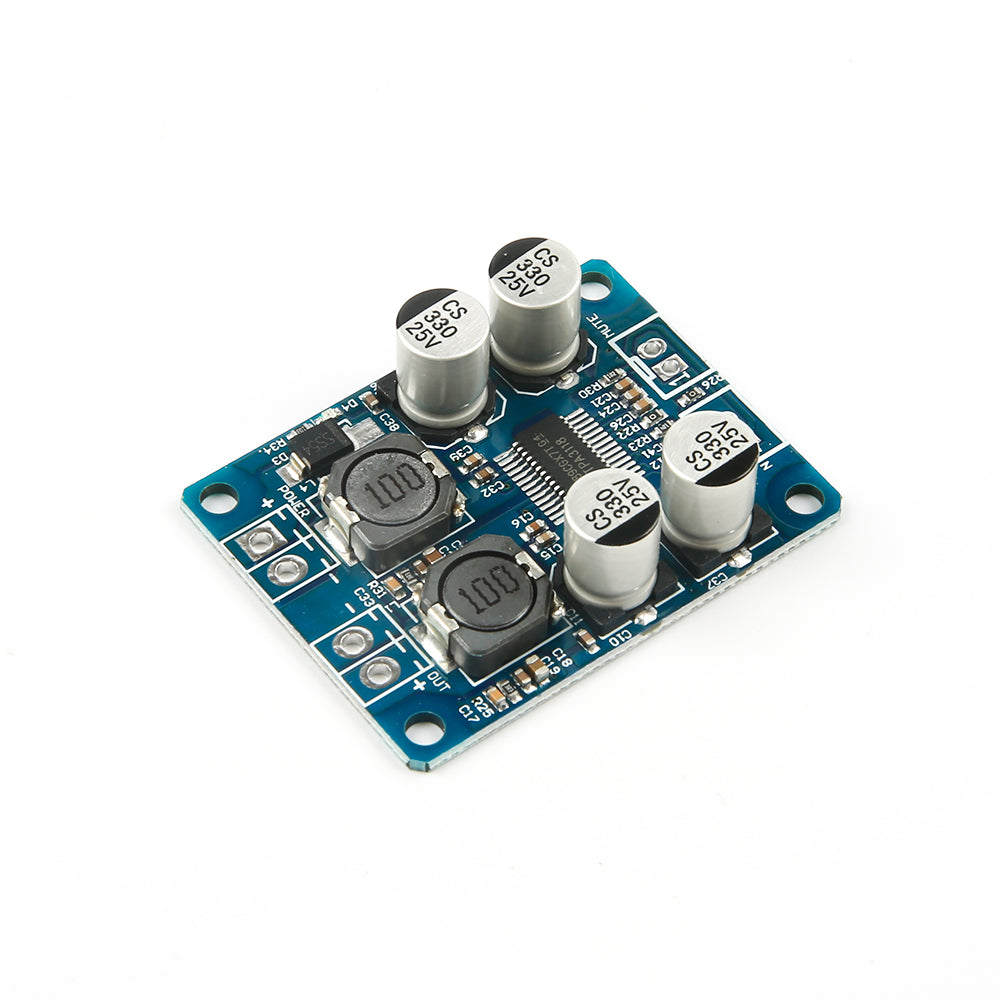

TPA3118 PBTL single channel digital amplifier board with capacitors and inductors for 60W output

TPA3118 PBTL Single Digital Amplifier Board 1x60W

SKU ST-HLHQRTMBQEIH

$6.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

TPA3118 Class D mono audio amplifier board delivers up to 1x60W in PBTL mode for a single speaker, subwoofer, soundbar, arcade cabinet, Raspberry Pi media player, and DIY audio prototyping.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Worldwide via DHL
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
TPA3118 PBTL single channel digital amplifier board with capacitors and inductors for 60W output TPA3118 PBTL Single Digital Amplifier Board 1x60W ★★★★★ (1) $6.99 This item
Close-up of ShillehTek 3.5mm Stereo Audio Jack Breakout Board Pro Module pins Pre-Soldered 3.5mm Stereo Audio Jack Breakout Board for Arduino & Raspberry Pi ★★★★★ (27) $6.99
XL4015 adjustable DC-DC step-down module with digital voltmeter display and blue terminal blocks XL4015 Adjustable DC-DC Step-Down Module 5A 75W with Digital Voltmeter DisplayNo reviews yet $7.99
Bundle of colorful ShillehTek 50cm alligator clips test leads double-ended jumper wires 50cm Double-Ended Alligator Clip Test Leads (10pcs) for Arduino & Raspberry PiNo reviews yet $3.99
Total for 4 items
$25.96

Products related to this item

MKS TMC2209 stepper motor driver module with separate blue aluminum heatsink for cooling
★★★★★ (1) MKS TMC2209 Motor Driver with Heatsink $8.99
XL4015 adjustable DC-DC step-down module with digital voltmeter display and blue terminal blocks
No reviews yetXL4015 Adjustable DC-DC Step-Down Module 5A 75W with Digital Voltmeter Display $7.99
HX1838 infrared remote control with numeric and directional buttons on black casing
No reviews yetHX1838 Infrared IR Remote Control Module Kit with Battery $4.99
433MHz 12V 1-Channel Relay Module and black wireless remote key fob
★★★★★ (1) 433MHz 12V 1-Channel Relay Module with Wireless Remote $9.99

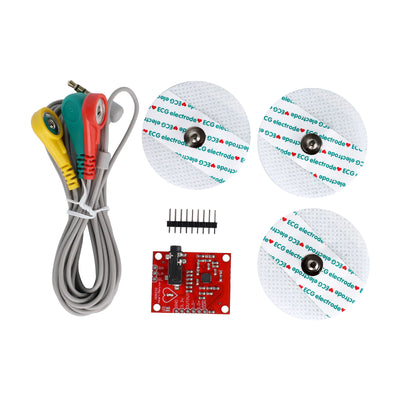

ShillehTek AD8232 ECG Module kit with colored electrode cables and adhesive pads
★★★★★ (3) AD8232 ECG Module - Heart Rate & ECG Monitoring Sensor Kit $11.99
ST-LINK V2 blue programmer/debugger with rainbow connector cables for STM8 & STM32
★★★★★ (2) ST-LINK V2 Programmer/Debugger for STM8 & STM32 $5.99

Overview

Product Overview

A mono Class-D amplifier built on the Texas Instruments TPA3118D2 in PBTL (bridged) mode: 60 W RMS into 4 Ω or 30 W into 8 Ω at 24 V (10% THD), from any 4.5–24 V DC supply, with 2–8 Ω speakers. The line-level input (about 700 mV RMS sensitivity, ~10 kΩ impedance) covers 20 Hz–20 kHz within 3 dB, with over 100 dB SNR and 0.1% THD+N at 1 W. Idle draw is about 30 mA.

An onboard mute switch and over-current, over-temperature, DC and short-circuit protection make it forgiving on the bench. Use one board per subwoofer or two for stereo in powered speakers, soundbars, arcade cabinets and Raspberry Pi media players. Single or 2-pack.

Questions & answers

Frequently asked questions

Yes. It can be used as the power amplifier stage in a Raspberry Pi media player or embedded audio project. The Raspberry Pi needs a suitable audio output or DAC feeding the amplifier, plus a separate speaker and amplifier power wiring.
ShillehTek supplies this module pre-soldered, so basic assembly work is reduced. You still need to connect an appropriate power source, audio input, and speaker, and mount it safely in your project enclosure if needed.
This is a mono Class D amplifier in PBTL configuration, intended to drive one speaker with up to 1x60W output under suitable conditions. It is not a stereo amplifier; stereo projects require two mono channels or a stereo amplifier board.
It is suited for DIY powered speakers, subwoofer builds, soundbars, arcade cabinets, and embedded audio systems. The single-channel design is especially practical when a project needs one higher-power speaker output rather than separate left and right channels.
The TPA3118 board is an amplifier, not a complete audio player or speaker system. If there is no sound, check the audio source, input wiring, amplifier power, speaker connection, and speaker suitability before replacing the module.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

TI TPA3118D2, Class-D PBTL mono One high-power bridged channel on a compact board.

60 W into 4 Ω at 24 V 30 W into 8 Ω (10% THD); drives 2–8 Ω speakers.

4.5–24 V DC supply From a 12 V brick to a 24 V supply; about 30 mA idle.

Line-level input About 700 mV RMS sensitivity, ~10 kΩ input impedance, 20 Hz–20 kHz (−3 dB).

Over 100 dB SNR, 0.1% THD+N at 1 W Quiet enough for powered speakers and subwoofer builds.

Onboard mute switch Plus over-current, over-temperature, DC and short-circuit protection.

Single or 2-pack Two boards for stereo, or one per subwoofer.
