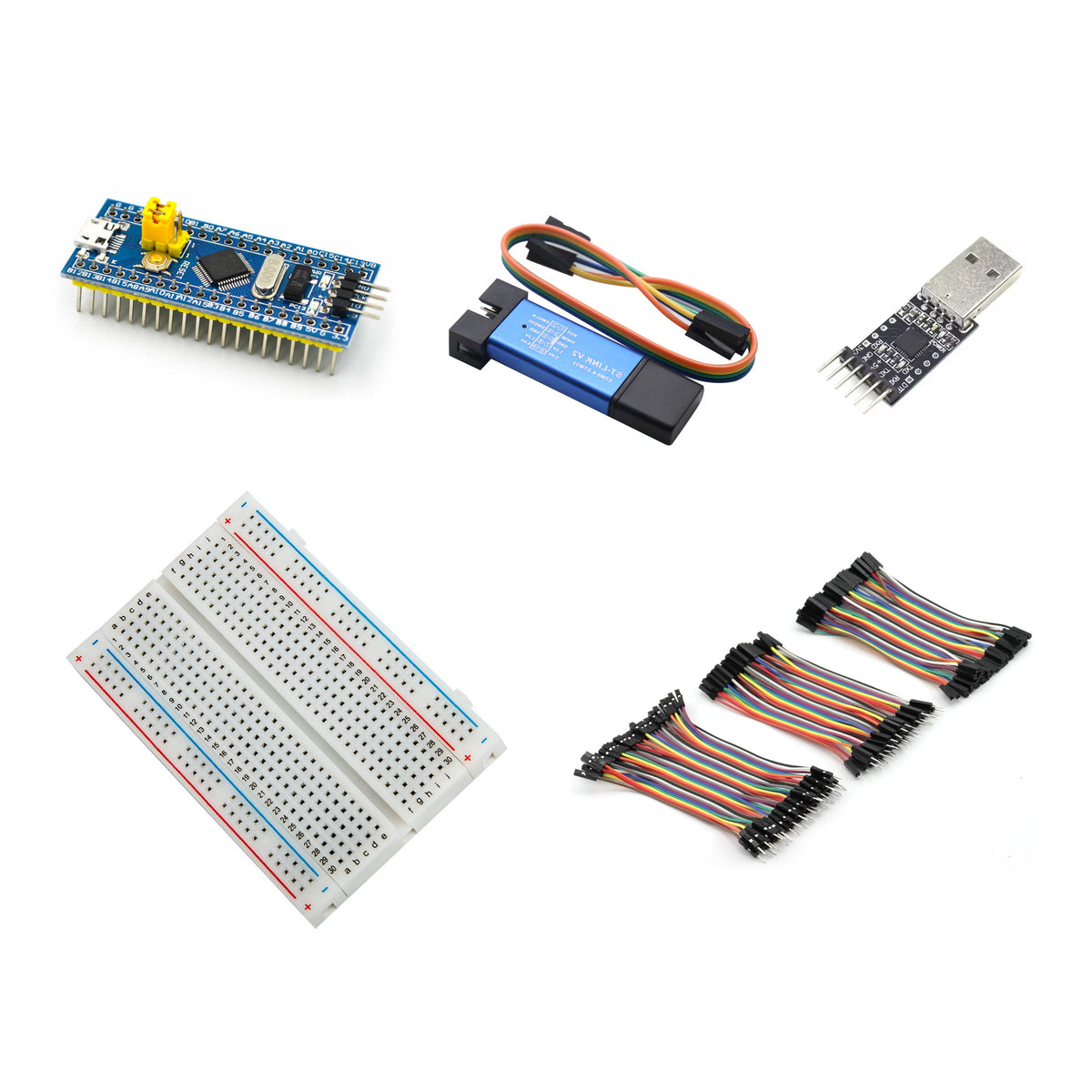

STM32 kit with soldered Blue Pill board, ST-LINK V2 programmer and leads, CP2102 adapter, breadboard and jumper wires.

STM32F103C8T6 Blue Pill Programming & Serial Debug Kit

SKU ST-KIT-06

$26.99 USD $32.71 Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

STM32F103C8T6 Blue Pill kit with ST-LINK V2 for SWD programming/debugging and CP2102 for UART logging, plus breadboard and jumpers. Use 3.3V signals and one board power source; software and firmware required.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Worldwide via DHL
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
STM32 kit with soldered Blue Pill board, ST-LINK V2 programmer and leads, CP2102 adapter, breadboard and jumper wires. STM32F103C8T6 Blue Pill Programming & Serial Debug KitNo reviews yet $26.99 This item
ShillehTek SSD1306 0.96 inch I2C White OLED Display Module angled view Pre-Soldered SSD1306 0.96" I2C White OLED Display Module 4-Pin for Arduino, Raspberry Pi & ESP32 ★★★★★ (1) $6.89
Three 5x7cm copper prototype PCB boards stacked for Arduino and Pi DIY electronics 5x7cm Copper Prototype PCB Board 3-Pack for Arduino & Pi DIY Electronics ★★★★★ (1) $6.25
Set of ShillehTek 20pcs 1x40 female header pins 2.54mm for Arduino Pi 20pcs 1x40 Female Header Pins 2.54mm for Arduino, Raspberry Pi & ESP32 ★★★★★ (36) $7.50
Total for 4 items
$47.63

Products related to this item

Super Starter Kit for Arduino Uno R3 with components including LCD, remote, sensors, joystick, and USB cable
No reviews yetSuper Starter Kit for Arduino Uno R3 with Tutorial $34.99
Bench electronics kit with an 830-point breadboard, 120 jumper wires, resistor and capacitor assortments, and three perfboards.
No reviews yetBreadboard-to-PCB Bench Essentials Kit $27.99

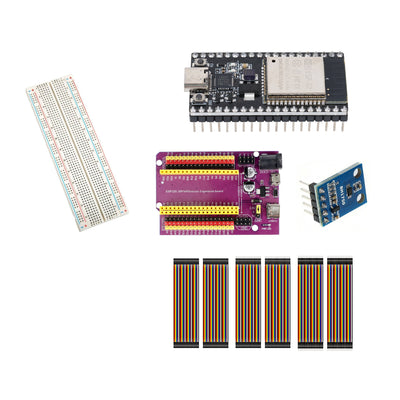

ESP32 sensor kit with a USB-C ESP32 board, GPIO breakout, BH1750 light sensor, 830-point breadboard and jumper wires.
No reviews yetESP32 & BH1750 Light Sensor Prototyping Kit $26.99

Overview

Product Overview

Learn firmware upload and serial troubleshooting with the STM32F103C8T6 Blue Pill Programming & Serial Debug Kit. The pre-soldered Blue Pill is paired with an ST-LINK V2 for SWD programming and debugging, plus a separate CP2102 USB-to-TTL UART adapter for serial messages and console communication. A 400-point solderless breadboard and 10cm jumper set support your connections. Use 3.3V signal levels, a common ground and one board power source, keeping the adapters' power outputs separate. A computer, development software and your own firmware are required to configure the project.

Bundle value: Purchased separately, the included component variants total $32.71. This kit is $26.99, saving $5.72.

  • 1 × pre-soldered STM32F103C8T6 Blue Pill board
  • 1 × ST-LINK V2 programmer/debugger
  • 1 × 6-pin CP2102 USB-to-TTL UART adapter
  • 1 × 400-point solderless breadboard
  • 1 × 120-piece, 10cm jumper wire set: male–male, male–female and female–female

A computer, development software and your own firmware are required. Use 3.3V signal levels, a common ground and one board power source; do not connect the adapters’ power outputs together. Any additional USB cables, host adapters or external power source are not included.

Read the kit setup guide for assembly planning, required extras and component references.

Questions & answers

Frequently asked questions

They serve different purposes. ST-LINK V2 connects over SWD for firmware programming and on-chip debugging. The CP2102 USB-to-TTL UART adapter provides a separate serial connection for terminal messages, logging and console communication.
The kit includes a pre-soldered STM32F103C8T6 Blue Pill development board. It also includes a 400-point breadboard and 120 10cm jumper wires for prototyping its connections.
Use 3.3V signal levels, connect a common ground and choose one board power source. Do not connect the adapters' power outputs together.
The Blue Pill headers come pre-soldered, but you must wire the connections, set up development software and load your own firmware. The kit provides the hardware for programming, debugging and serial experiments.
You need a computer, compatible development software and your project firmware. Any additional USB cables, host adapters or external power source required by your setup are not included.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

STM32F103C8T6 BoardIncludes 1 × pre-soldered STM32F103C8T6 Blue Pill board for STM32 development and firmware testing.

SWD ProgrammingAn ST-LINK V2 programmer/debugger provides SWD flashing and debugging for STM32 microcontroller projects.

UART Serial LoggingA 6-pin CP2102 USB-to-TTL UART adapter handles serial logging, terminal output, and console communication.

3.3V Signal LevelThis kit uses 3.3V signal levels with a common ground and one board power source.

Breadboard PrototypingA 400-point solderless breadboard is included for rapid embedded prototyping and circuit troubleshooting.

Jumper Wire SetThe kit includes 1 × 120-piece, 10cm jumper wire set with male–male, male–female and female–female leads.

Separate InterfacesIt provides separate programming and serial interfaces for firmware upload, SWD debugging, and UART message monitoring.

Setup RequirementsA computer, development software and your own firmware are required. Do not connect the two adapters’ power outputs together.

Reference

Documents

Full Product Manual STM32F103C8T6 Blue Pill Programming & Serial Debug Kit — Setup Guide In-depth setup guide with wiring, code examples, and troubleshooting.

Component datasheets and hardware references. These documents describe the included parts; the kit setup guide covers assembly and staged testing.

120pcs 10cm Jumper Wire Set M-F, M-M, F-F for Arduino & Raspberry Pi — datasheet (preliminary reference)

400-Point Small Solderless Breadboard for Arduino, Raspberry Pi & ESP32 — datasheet

CP2102 USB to TTL UART Serial Converter Module 6-Pin for Arduino, ESP32 & ESP8266 — datasheet

ST-LINK V2 Programmer/Debugger for STM8 & STM32 — datasheet

STM32F103C8T6 Blue Pill Pre-Soldered ARM Development Board Kit Pro USB V — datasheet
