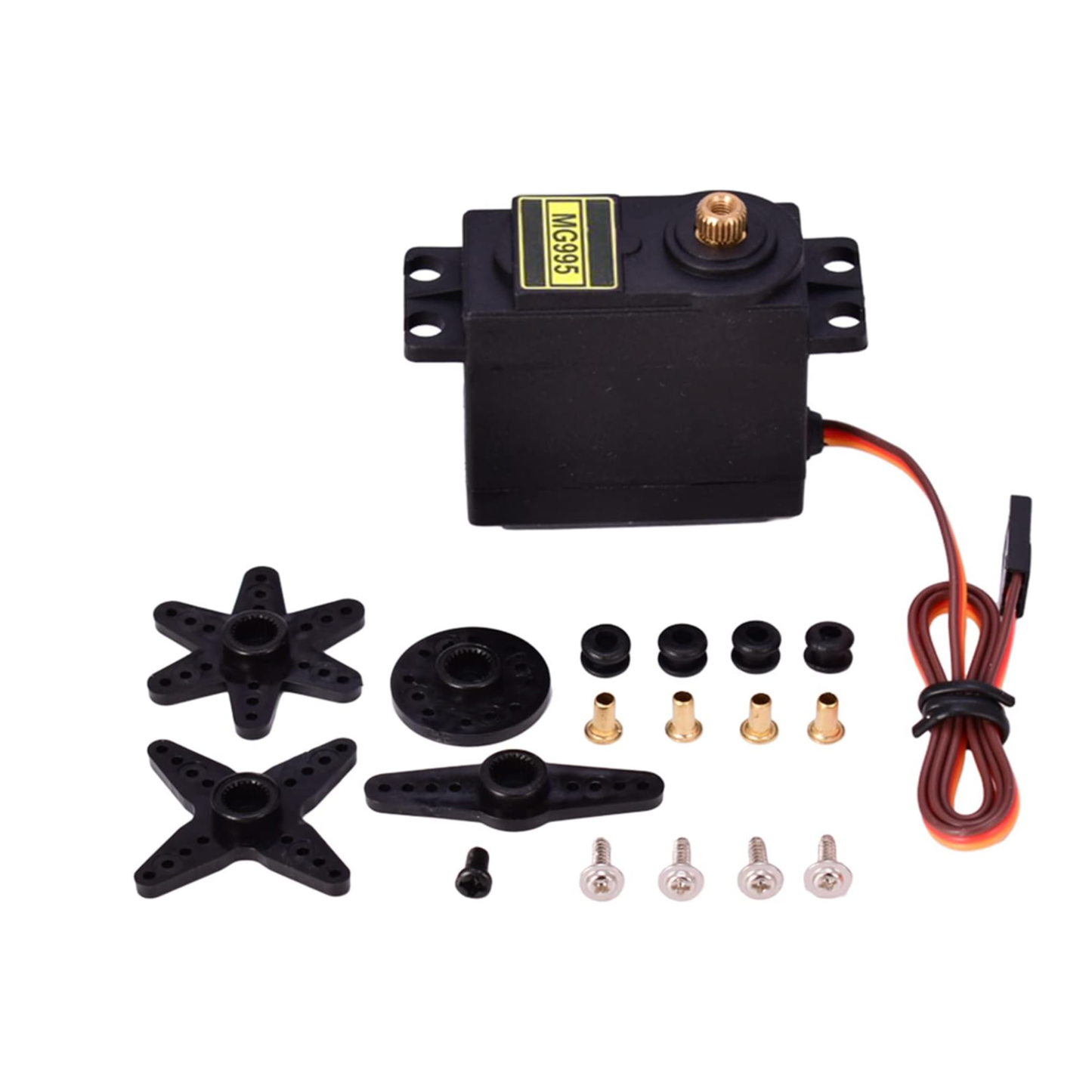

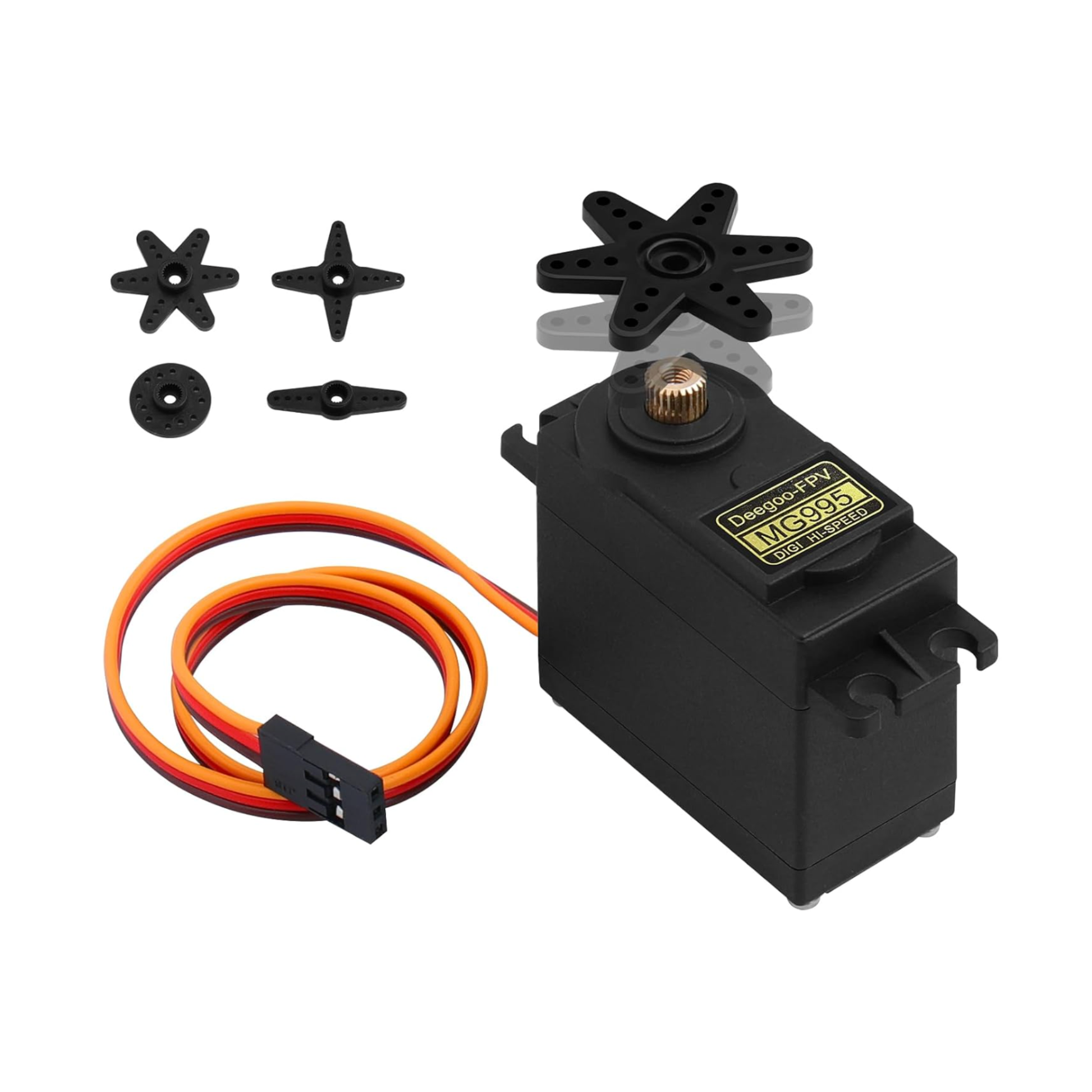

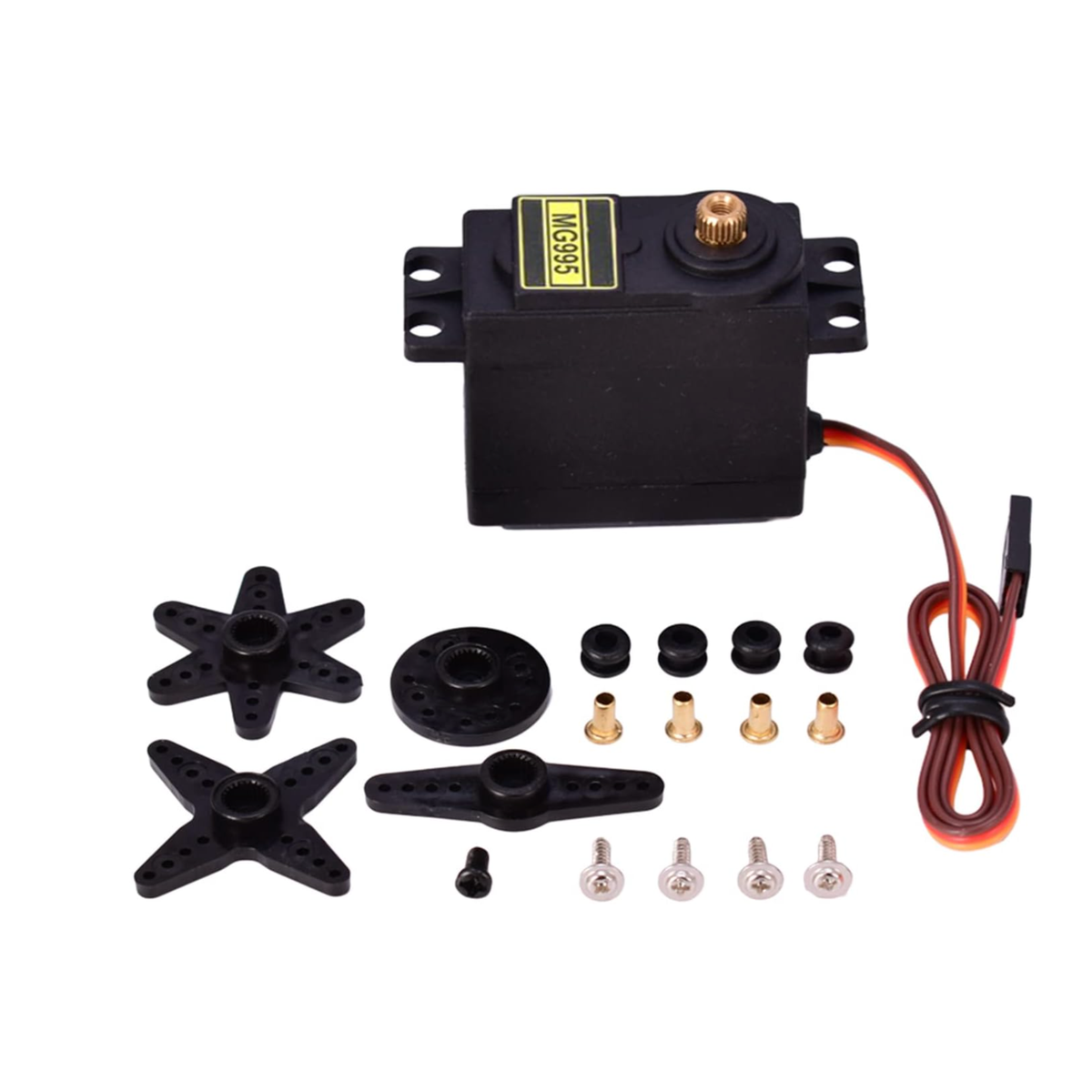

ShillehTek MG995 Metal Gear Servo Motor with connecting cable and attachment accessories

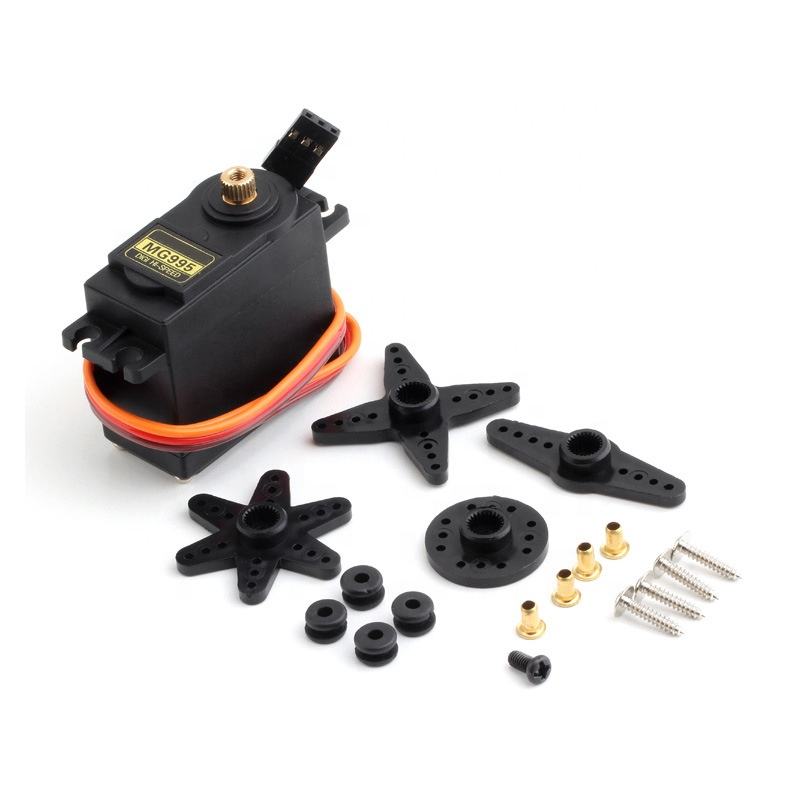

MG995 Metal Gear Servo Motor 12kg High Torque 180 Degree

$7.50 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

MG995 metal gear servo delivers 12kg torque for heavy RC trucks, offering standard-size drop-in compatibility for robust DIY and robotics builds

  • Free UPS Ground U.S. orders $35+
  • Ships from USA Domestic fulfillment
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
ShillehTek MG995 Metal Gear Servo Motor with connecting cable and attachment accessories MG995 Metal Gear Servo Motor 12kg High Torque 180 DegreeNo reviews yet $7.50 This item
ShillehTek PCA9685 16 Channel 12-Bit PWM Servo Motor Driver with capacitor and terminal block PCA9685 Pre-Soldered 16-Channel 12-Bit PWM Servo Motor Driver I2C for Arduino & Raspberry PiNo reviews yet $6.99
XL4015 adjustable DC-DC step-down module with digital voltmeter display and blue terminal blocks XL4015 Adjustable DC-DC Step-Down Module 5A 75W with Digital Voltmeter DisplayNo reviews yet $7.99
Top and bottom views of Arduino Nano V3.0 Pre-Soldered CH340G ATmega328P board Arduino Nano V3.0 Pre-Soldered CH340G ATmega328PNo reviews yet $5.99
Total for 4 items
$28.47

Products related to this item

ShillehTek SG92R Micro Servo Motor with orange cable and black mounting parts
No reviews yetSG92R 9g Micro Servo Motor with Carbon Fiber Gears 2.5kg for RC Plane & Arduino $6.49
ShillehTek MG90S metal gear micro servo motor with accessories and screws
No reviews yetMG90S Metal Gear 9g Micro Servo Motor 180° for RC Plane $6.99

Overview

Product Overview

The MG995 Metal Gear Servo Motor is a rugged, high-torque solution for heavy-duty RC and robotics projects, delivering up to 12kg/cm stall torque and a precise 180° rotation range compatible with standard microcontroller servo libraries; its all-metal gear train and dual ball bearings offer durability and smooth, low-friction operation under shock loads while the standard form factor (40.7 x 19.7 x 42.9mm) makes it a direct drop-in replacement for Futaba or Hitec-style servos, ideal for 1/10 scale trucks, robotic arms, and industrial automation.

Questions & answers

Frequently asked questions

Yes. It is compatible with standard microcontroller servo libraries, so it can be controlled from Arduino, Raspberry Pi, ESP32, and similar boards that can generate a standard hobby-servo control signal.
The servo uses a standard-size body measuring 40.7 x 19.7 x 42.9 mm, making it a direct drop-in replacement for Futaba or Hitec-style servos in many RC and robotics builds.
It is controlled like a standard hobby servo using a microcontroller servo signal and supports a 180° rotation range. Use a suitable external servo power source for high-torque loads rather than relying only on a board’s logic pin.
Its up to 12 kg/cm stall torque, metal gear train, and dual ball bearings suit heavy-duty RC and robotics projects such as 1/10 scale trucks, robotic arms, and industrial automation mechanisms.
Jitter under load is commonly caused by inadequate servo power, voltage drop, loose wiring, or mechanical binding. Use a suitable external servo supply, share ground with the controller, and confirm the linkage moves freely.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

High Stall Torque Delivers up to 12kg·cm of stall torque at 6V for heavy-load applications.

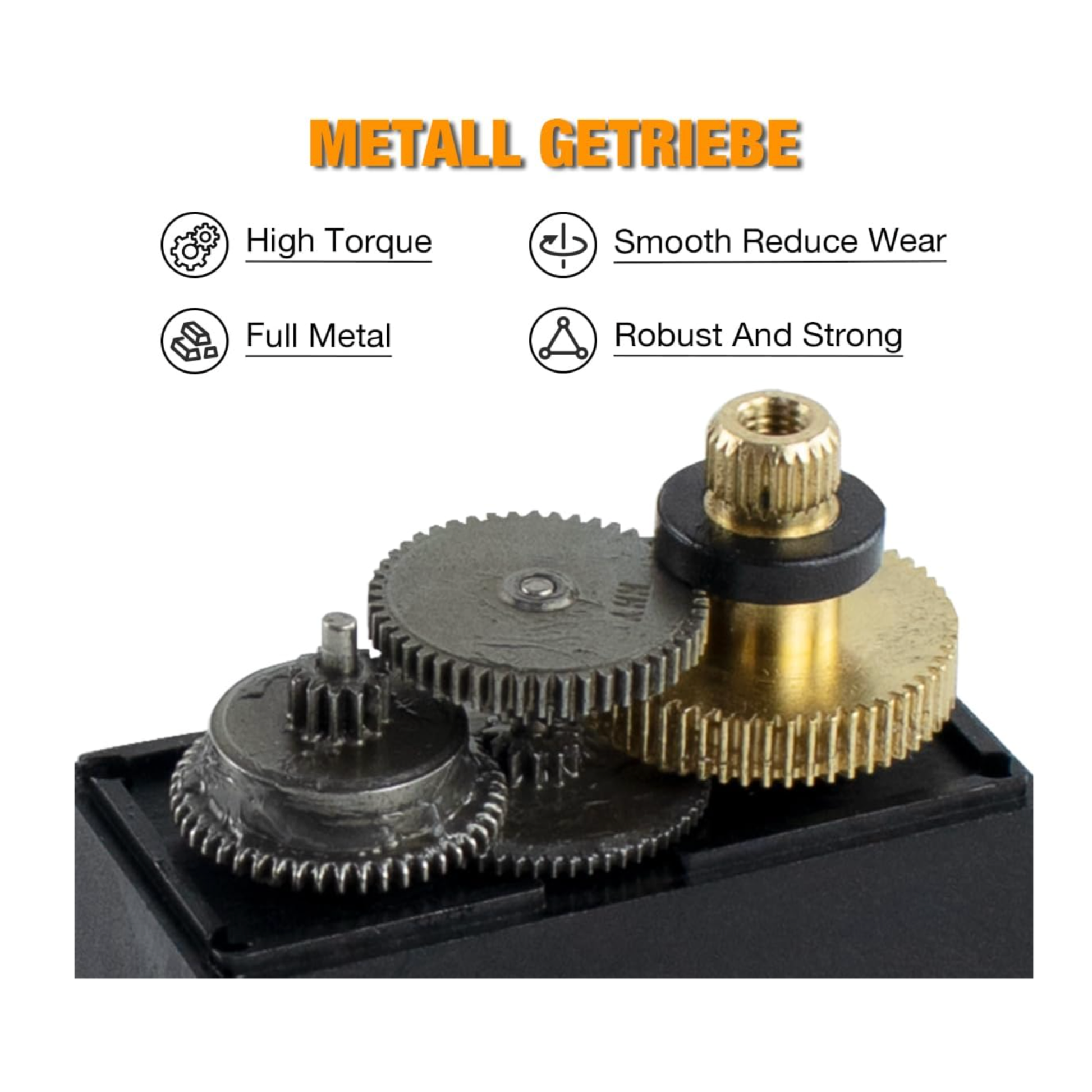

All-Metal Gears Durable brass and aluminum gear train resists stripping under high shock loads.

Dual Ball Bearings Double ball bearing output shaft reduces friction and improves longevity.

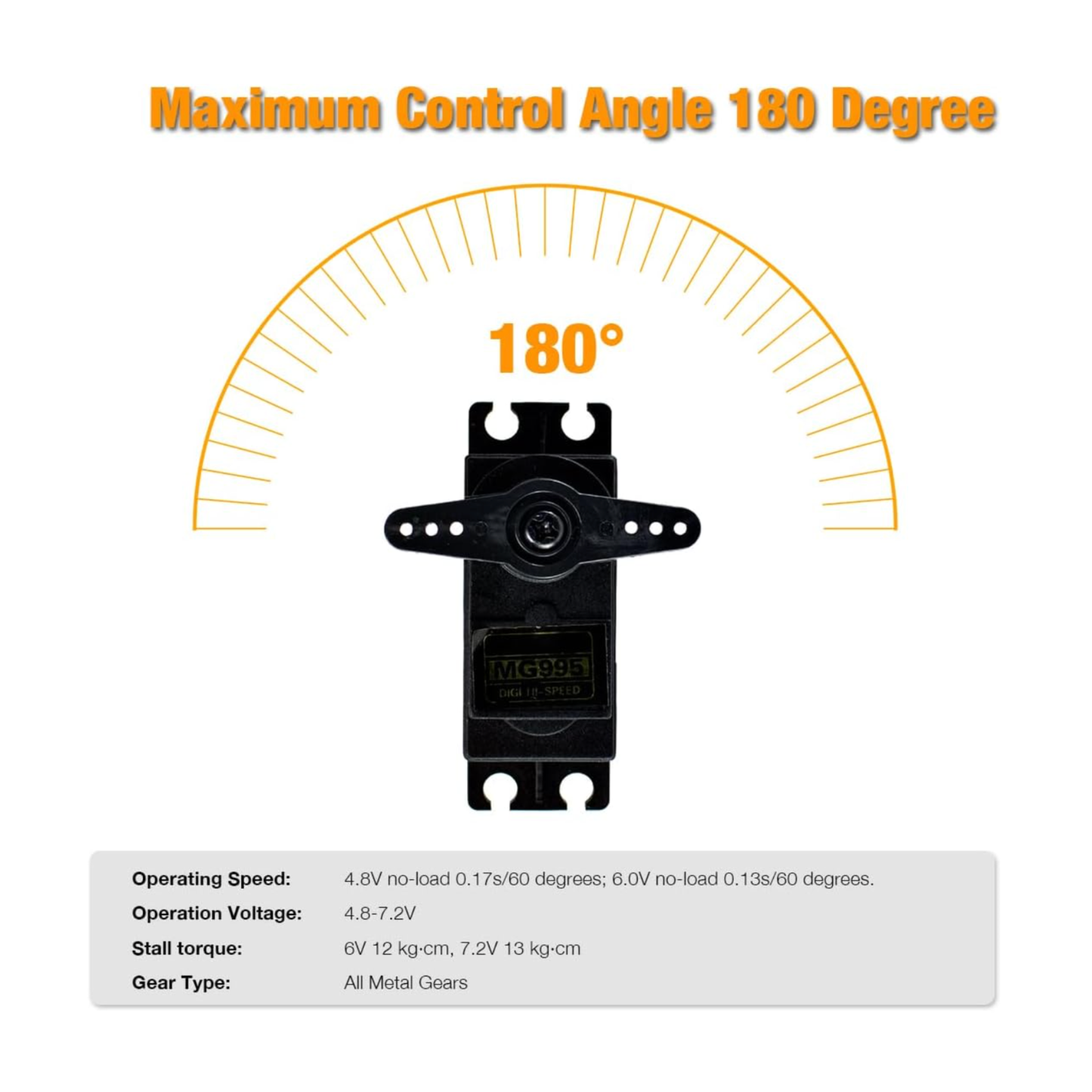

180° Rotation Provides precise 0–180 degree sweep compatible with standard servo libraries.

Standard Form Factor Fits universal standard servo mounting dimensions for direct drop-in replacement.

Shock-Proof Housing Reinforced casing protects internal components during off-road and high-impact use.

Versatile Applications Suitable for 1/10 RC trucks, heavy robotic arms, and industrial automation projects.

Reference

Documents

Full Product Manual ShillehTek MG995 Metal Gear Servo Motor 12kg High Torque 180 Degree DIY | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.
