Video Tutorial (Optional)

Watch first if you want to follow the full build end to end.

Project Overview

In this project, you use a Raspberry Pi Pico W with a BME280 sensor to send real-time temperature, humidity, and pressure telemetry to Azure IoT Hub, ingest it into Azure Data Explorer (ADX), and query it with Kusto.

Azure IoT Hub is a fully managed service that lets you ingest, process, and route device telemetry at scale. This tutorial walks through a complete, working setup using HTTP to push sensor readings into Azure.

• Time: 60 to 120 minutes (depending on Azure setup)
• Skill level: Intermediate
• What you will build: A live sensor-to-cloud pipeline from Pico W to Azure IoT Hub and Azure Data Explorer

Parts List

From ShillehTek

• ShillehTek BME280 sensor (temperature, humidity, pressure) - provides the environmental telemetry
• Jumper wires - connects the Pico W to the BME280 over I2C
• Breadboard (optional) - makes wiring easier without soldering

External

• Raspberry Pi Pico W - WiFi-enabled microcontroller running MicroPython
• Azure account (free tier works) - used to create IoT Hub and Azure Data Explorer resources
• Azure CLI - used to generate a SAS token from your terminal
• BME280 MicroPython library - https://github.com/SebastianRoll/mpy_bme280_esp8266/blob/master/bme280.py
• Azure Portal - https://portal.azure.com

Note: This wiring uses I2C0 on the Pico W (SDA = GP0, SCL = GP1) and powers the BME280 from 3.3V.

Step-by-Step Guide

Step 1 - Create an Azure IoT Hub

Goal: Create the IoT Hub that will receive telemetry from your Pico W.

What to do: In the Azure Portal, search for IoT Hub and click Create. Use these example settings:

• Resource Group: raspberry-pi-group
• Region: East US
• Name: mypicowhub
• Networking: Public access

Expected result: The IoT Hub deploys successfully (this can take a few minutes).

Step 2 - Register your device in IoT Hub

Goal: Create a device identity for the Pico W so it can authenticate to IoT Hub.

What to do: In your IoT Hub, go to Devices and click + Add Device. Use:

• Device ID: picow1
• Auth Type: Symmetric Key (enable auto-generate keys)

Expected result: Your device picow1 is created and visible in the IoT Hub device list.

Step 3 - Generate a SAS token with Azure CLI

Goal: Generate the Authorization header value you will paste into the Pico W HTTP request.

What to do: In a terminal (with Azure CLI installed), sign in first, then run:

az iot hub generate-sas-token --hub-name mypicowhub --device-id picow1 --duration 3600

Expected result: You get a SharedAccessSignature token that you can paste into the Pico code as the Authorization header.

Step 4 - Create an Azure Data Explorer cluster and database

Goal: Set up ADX to ingest and query the telemetry coming from IoT Hub.

What to do: In the Azure Portal, search for Azure Data Explorer Clusters and click + Create. Example values:

• Cluster Name: picocluster
• Workload: Dev/test

After the cluster is created, add a database to the cluster.

Expected result: You have an ADX cluster and a database ready to receive data.

Step 5 - Create the ADX table and JSON mapping

Goal: Define where telemetry will land in ADX and how JSON fields map into columns.

What to do: Open your cluster, go to the Query editor, and run:

.create table iotdata (
  deviceId: string,
  temperature: real,
  humidity: real,
  pressure: real,
  timestamp: datetime
)

Then create the JSON ingestion mapping:

.create table iotdata ingestion json mapping 'iotmap' '[{"column":"deviceId","path":"$.deviceId"},{"column":"temperature","path":"$.temperature"},{"column":"humidity","path":"$.humidity"},{"column":"timestamp","path":"$.timestamp"}]'

Expected result: ADX has an iotdata table and an iotmap mapping ready for JSON ingestion.

Step 6 - Create the IoT Hub to ADX data connection

Goal: Automatically route IoT Hub messages into your ADX table.

What to do: In your ADX database (example shown as picosensors), go to Data connections and select Add connection, then choose IoT Hub. Use:

• IoT Hub: mypicowhub
• Table: iotdata
• Format: JSON
• Mapping: iotmap

Expected result: Your ADX database is connected to IoT Hub and ready to ingest incoming device messages.

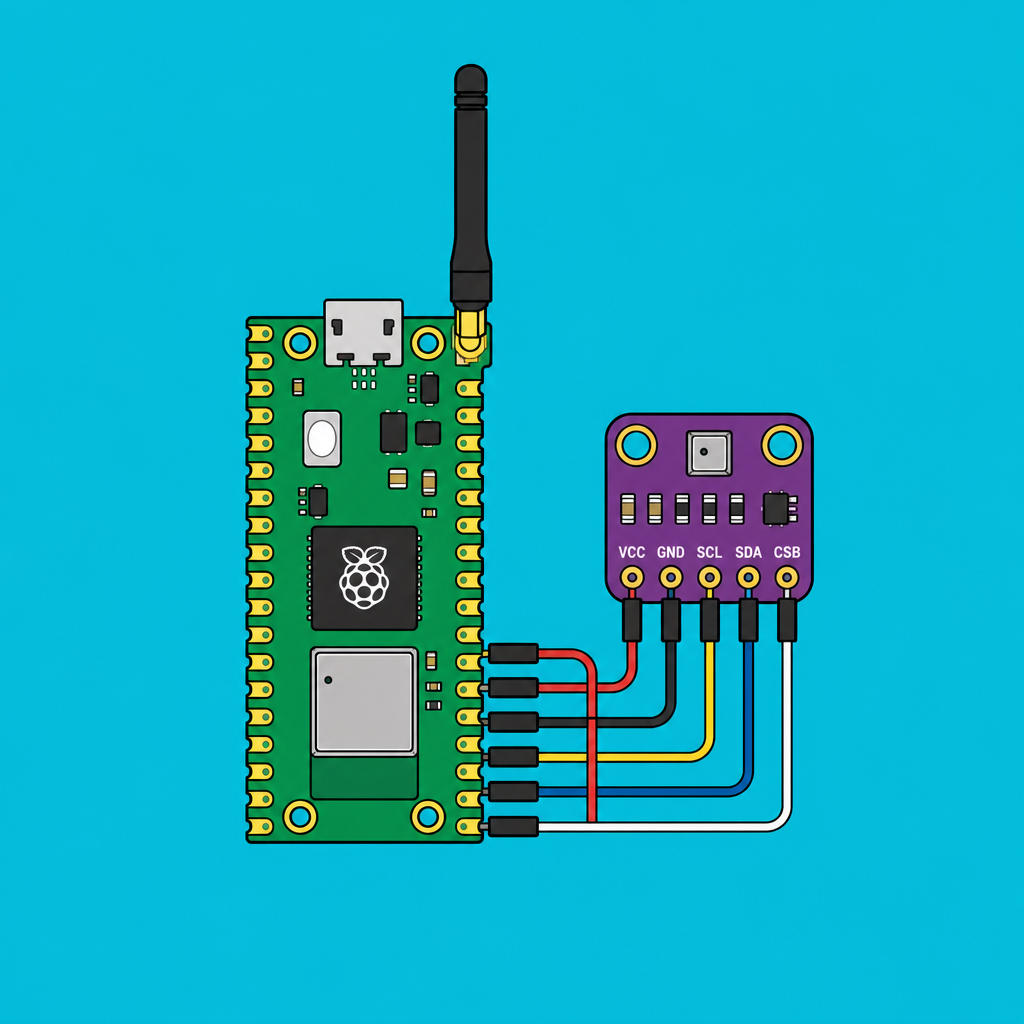

Step 7 - Wire the Raspberry Pi Pico W to the BME280

Goal: Connect the BME280 sensor to the Pico W over I2C so MicroPython can read temperature, humidity, and pressure.

What to do: Wire the BME280 like this:

• BME280 VCC to Pico 3.3V
• BME280 GND to Pico GND
• BME280 SDA to Pico GP0
• BME280 SCL to Pico GP1

Expected result: The Pico W powers the sensor at 3.3V and the I2C lines are connected to GP0/GP1.

Step 8 - Upload the MicroPython code to send telemetry to Azure

Goal: Connect the Pico W to WiFi, read the BME280, and send JSON telemetry to Azure IoT Hub over HTTP.

What to do: Download the BME280 MicroPython library file and place it on the Pico as bme280.py:

• BME280 library: https://github.com/SebastianRoll/mpy_bme280_esp8266/blob/master/bme280.py

Then upload the following code to your Raspberry Pi Pico W (update WiFi credentials and paste your SAS token into HEADERS):

import network
import time
import urequests
import json
from machine import Pin, I2C
import bme280

WIFI_SSID = 'SMA'
WIFI_PASS = 'mmmyellow'

IOTHUB_NAME = 'mypicowhub'
DEVICE_ID = 'picow1'
HEADERS = {
    'Authorization': 'SharedAccessSignature sr=mypicowhub.azure-devices.net%2Fdevices%2Fpicow1&sig=YOUR_SIG_HERE',
    'Content-Type': 'application/json'
}
URL = f'https://{IOTHUB_NAME}.azure-devices.net/devices/{DEVICE_ID}/messages/events?api-version=2020-09-30'

def connect_wifi():
    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)
    wlan.connect(WIFI_SSID, WIFI_PASS)
    while not wlan.isconnected():
        print("Connecting...")
        time.sleep(1)
    print("WiFi connected:", wlan.ifconfig())

def get_iso_timestamp():
    t = time.localtime()
    return "{}-{:02d}-{:02d}T{:02d}:{:02d}:{:02d}Z".format(t[0], t[1], t[2], t[3], t[4], t[5])

i2c = I2C(0, sda=Pin(0), scl=Pin(1), freq=400000)
bme = bme280.BME280(i2c=i2c)

def send_to_azure():
    temp, pressure, humidity = bme.read_compensated_data()
    temp = round(temp / 100, 2)
    pressure = round(pressure / 25600, 2)
    humidity = round(humidity / 1024, 2)

    payload = {
        'deviceId': DEVICE_ID,
        'temperature': temp,
        'humidity': humidity,
        'pressure': pressure,
        'timestamp': get_iso_timestamp()
    }

    print("Sending:", payload)
    try:
        res = urequests.post(URL, headers=HEADERS, json=payload)
        print("Response:", res.status_code)
        res.close()
    except Exception as e:
        print("Error:", e)

connect_wifi()
while True:
    send_to_azure()
    time.sleep(1)

Expected result: The Pico W connects to WiFi and prints HTTP status codes while posting JSON telemetry to IoT Hub once per second.

Step 9 - Query and visualize the data in Azure Data Explorer

Goal: Confirm ingestion is working and view recent telemetry.

What to do: In Azure Data Explorer, run this query:

iotdata
| where timestamp > ago(10m)
| order by timestamp desc

To visualize temperature over time, run:

iotdata
| summarize avg(temperature) by bin(timestamp, 1m)
| render timechart

Expected result: You see recent rows in iotdata, and the time chart renders as new messages arrive.

Conclusion

You built a real-time cloud telemetry pipeline using a Raspberry Pi Pico W and a BME280 sensor, sending live readings into Azure IoT Hub and querying them in Azure Data Explorer. This is a solid foundation for learning, prototyping, or scaling into a commercial monitoring project.
