Project Overview

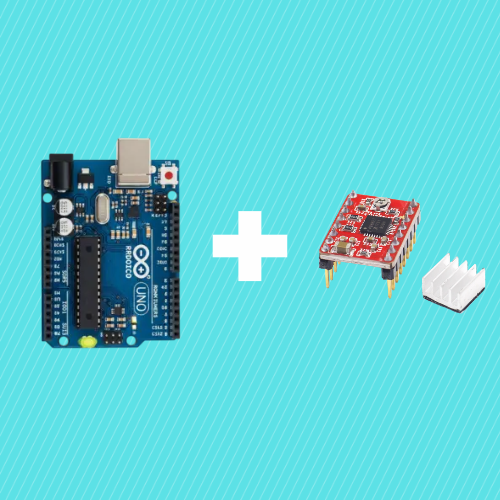

Arduino Uno + A4988 stepper driver: In this project, you will wire the ShillehTek Original A4988 Stepper Motor Driver with Heatsink to an Arduino Uno and control a stepper motor using two simple signals: STEP (pulses) and DIR (direction) to spin forward and reverse with adjustable speed.

• Time: 15 to 25 minutes
• Skill level: Beginner
• What you will build: A stepper motor demo that spins forward, reverses, and lets you control speed by changing pulse timing

Important: Do not power the stepper motor from the Arduino 5V pin. The motor needs its own supply (commonly 12V) connected to the A4988 VMOT and GND.

Parts List

From ShillehTek

• ShillehTek Original A4988 Stepper Motor Driver with Heatsink - the stepper driver module used to control the motor with STEP/DIR signals
• ShillehTek jumper wires - for connecting Arduino pins to the A4988 and motor power
• ShillehTek breadboard (optional) - helps with temporary wiring and prototyping

External

• Stepper motor (e.g. NEMA 17) - the motor you will spin forward and reverse
• Arduino Uno (or compatible) - generates STEP/DIR signals
• 12V power supply for the stepper motor - powers VMOT on the A4988
• Small screwdriver (for current limit adjustment) - used to set the driver current limit

Note: Never unplug the stepper motor while the A4988 is powered. Use a separate motor supply on VMOT/GND (often 12V), and start with a low current limit before increasing.

Step-by-Step Guide

Step 1 - Review the A4988 pins you will use

Goal: Understand the minimum pins needed for a basic Arduino STEP/DIR demo.

What to do: For this build, you mainly need STEP, DIR, VDD, GND, VMOT, and the stepper motor’s 4 coil wires.

• STEP: Each pulse moves the motor one step (or microstep).
• DIR: Sets rotation direction.
• EN (Enable): Optional pin to enable or disable the driver.
• MS1/MS2/MS3: Optional pins to set microstepping for smoother motion.
• VMOT / GND: Motor power input (like 12V).
• 2A/2B/1A/1B: Outputs that connect to the stepper motor coil wires.

Expected result: You know which connections are required before wiring.

Step 2 - Wire the Arduino to the A4988 and connect motor power

Goal: Make the logic and power connections between the Arduino, A4988, and the external motor supply.

What to do: Use the wiring table below for an Arduino Uno. Connect the stepper motor’s four wires to 1A, 1B, 2A, 2B as two coil pairs.

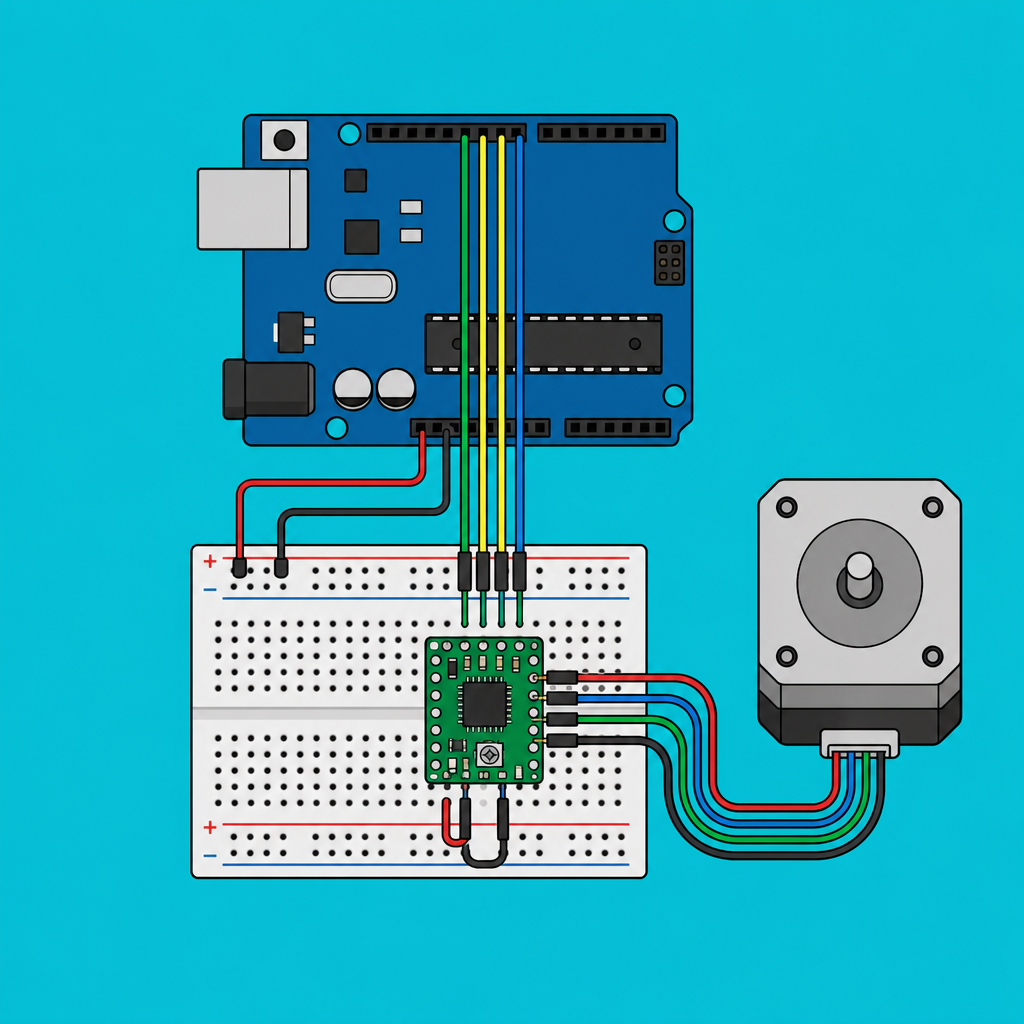

Wiring table (Arduino Uno + A4988):

• Arduino 5V → A4988 VDD (logic power)
• Arduino GND → A4988 GND (logic ground)
• Arduino D3 → A4988 STEP
• Arduino D4 → A4988 DIR
• Optional: Tie A4988 RESET to SLEEP (keeps the driver awake)
• 12V + → A4988 VMOT
• 12V - → A4988 GND (VMOT side)
• Stepper motor wires → 1A, 1B, 2A, 2B (two coil pairs)

Tip: If the motor only buzzes or vibrates, your coil wires are likely mixed. Find the two coil pairs using a multimeter (wires in the same coil show continuity).

Expected result: The driver has Arduino logic power, external motor power on VMOT, and the motor is connected to the output pins.

Step 3 - Follow critical safety checks before powering on

Goal: Avoid common mistakes that can damage the A4988 or motor.

What to do:

• Do not unplug the stepper motor while powered. It can instantly damage the driver.
• Use a real motor power supply connected to VMOT and GND.
• Start with a low current limit and increase slowly if the motor skips.
• The heatsink helps, but airflow matters for long runs.

Expected result: Your setup is safe to power and test.

Step 4 - Upload the Arduino sketch and run the forward/reverse demo

Goal: Send STEP pulses to spin the motor, pause, then reverse direction.

What to do: Copy the code below into the Arduino IDE and upload it to your Arduino Uno (STEP on D3, DIR on D4).

Code:

// ShillehTek A4988 Stepper Driver Demo
// Arduino Uno: STEP=D3, DIR=D4

const int PIN_STEP = 3;
const int PIN_DIR = 4;

// Lower delay = faster speed. Start slow, then decrease.
int stepDelayMicros = 800;

void stepMotor(int steps) {
  for (int i = 0; i < steps; i++) {
    digitalWrite(PIN_STEP, HIGH);
    delayMicroseconds(2);
    digitalWrite(PIN_STEP, LOW);
    delayMicroseconds(stepDelayMicros);
  }
}

void setup() {
  pinMode(PIN_STEP, OUTPUT);
  pinMode(PIN_DIR, OUTPUT);

  digitalWrite(PIN_DIR, HIGH);
}

void loop() {
  // Forward
  digitalWrite(PIN_DIR, HIGH);
  stepMotor(2000);
  delay(500);

  // Reverse
  digitalWrite(PIN_DIR, LOW);
  stepMotor(2000);
  delay(500);
}

Speed tip: Try changing stepDelayMicros to 1200 (slower) or 400 (faster). If you go too fast, the motor may stall or skip.

Expected result: The stepper motor spins forward, pauses, then reverses, repeating continuously.

Conclusion

You wired an Arduino Uno to an A4988 stepper motor driver and used STEP and DIR signals to spin a stepper motor forward and reverse, with speed controlled by pulse timing.
