Project Overview

Measure Altitude with BME280 and Raspberry Pi Pico: In this project, you use a Raspberry Pi Pico with a BME280 sensor in CircuitPython to read temperature, humidity, and pressure, and estimate altitude from air pressure.

The Adafruit BME280 CircuitPython library includes built-in altitude estimation. After setting your local sea-level pressure, the printed altitude should be close to your actual altitude and will change as you move the sensor up or down.

Time: 15 to 30 minutes
Skill level: Beginner
What you will build: A Pico + BME280 I2C sensor setup that prints environmental data and estimated altitude over USB serial

Parts List

From ShillehTek

Breadboard and jumper wires (optional) - helps with quick solderless wiring between the Pico and BME280

External

Raspberry Pi Pico - runs CircuitPython and reads the sensor over I2C
BME280 sensor module (Amazon link) - measures temperature, humidity, and pressure for altitude estimation
Micro USB cable - powers the Pico and provides serial output to your computer
Computer with Thonny IDE - used to install CircuitPython and run the code

Note: BME280 I2C addresses can vary by module. If 0x76 does not work, try 0x77 in the code.

Step-by-Step Guide

Step 1 - Install CircuitPython on your Pico

Goal: Get CircuitPython installed so you can use the Adafruit BME280 library.

What to do: Hold the BOOTSEL button on your Pico while plugging it into your computer. In Thonny, go to Tools > Interpreter, select CircuitPython, then click Install or Update CircuitPython. Choose the correct volume and the version you want to install.

Expected result: CircuitPython is installed and the Pico shows up as a CircuitPython device in Thonny.

Step 2 - Download and copy the BME280 libraries

Goal: Add the required library folders so your Pico can import the BME280 driver.

What to do: Open the library guide here: https://learn.adafruit.com/circuitpython-libraries-on-micropython-using-the-raspberry-pi-pico/bme280-library-example.

Click Download Project Bundle and unzip it. Copy these folders into the /lib folder on your Pico:

adafruit_bme280
adafruit_bus_device

Expected result: The two library folders are present in /lib on the Pico.

Step 3 - Wire the BME280 to the Pico (I2C)

Goal: Connect the BME280 so the Pico can read it over I2C.

What to do: Wire the BME280 to match the diagram and the I2C pins used in the code:

BME280 VCC to Pico 3V3
BME280 GND to Pico GND
BME280 SCL to Pico GP1
BME280 SDA to Pico GP0

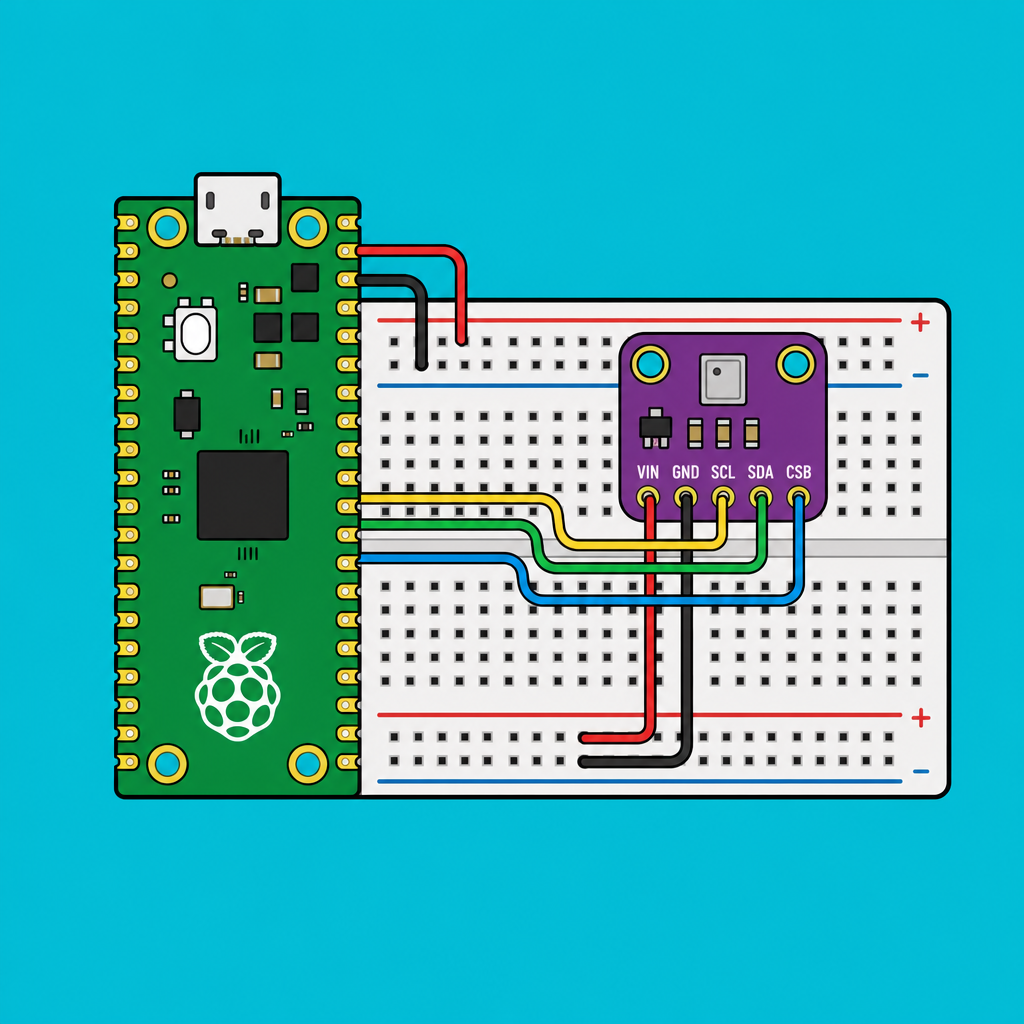

Raspberry Pi Pico wired to a BME280 sensor module using I2C (GP1 SCL and GP0 SDA) for altitude measurement in CircuitPython — Wiring diagram for connecting a BME280 to a Raspberry Pi Pico over I2C.

Expected result: The BME280 is powered from 3V3 and connected to GP1 (SCL) and GP0 (SDA).

Step 4 - Run the CircuitPython code to print altitude

Goal: Print temperature, humidity, pressure, and estimated altitude over serial.

What to do: Copy the code below into your CircuitPython script and run it.

Code:

import time
import board
import busio
from adafruit_bme280 import basic as adafruit_bme280

# Create sensor object, using the board's default I2C bus.
i2c = busio.I2C(board.GP1, board.GP0)  # SCL, SDA
# address can change based on bme device
# if 0x76 does not work try 0x77 :)
bme280 = adafruit_bme280.Adafruit_BME280_I2C(i2c, address=0x76)
# change this to match the location's pressure (hPa) at sea level
bme280.sea_level_pressure = 1009.9

while True:
    print("\nTemperature: %0.1f C" % bme280.temperature)
    print("Humidity: %0.1f %%" % bme280.relative_humidity)
    print("Pressure: %0.1f hPa" % bme280.pressure)
    print("Altitude = %0.2f meters" % bme280.altitude)
    time.sleep(1)

Adjust sea_level_pressure for your location. You can search the sea-level pressure in your area and substitute that value.

Expected result: The serial output shows temperature, humidity, pressure, and an altitude estimate that changes as you move the sensor up and down.

Conclusion

You now have a working altitude estimator using a Raspberry Pi Pico and a BME280 in CircuitPython, with readings printed for temperature, humidity, pressure, and altitude. After calibrating sea_level_pressure, the altitude estimate should be close to your real altitude and respond quickly to small height changes.
