Project Overview

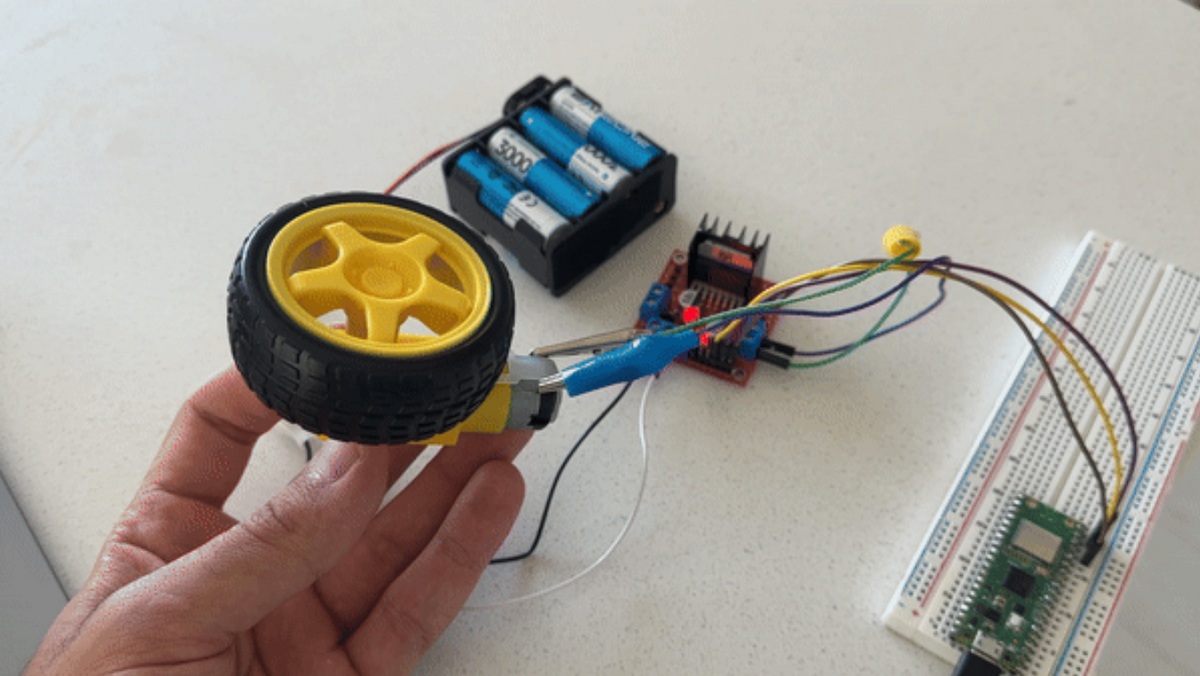

In this project, you will use a Raspberry Pi Pico W with an L298N motor driver to run a DC motor forward and backward with PWM speed control in MicroPython.

The L298N is a dual H-bridge motor driver that lets a low-power microcontroller control higher-voltage, higher-current motors safely. It can control direction and speed for up to two DC motors.

• Time: 20 to 40 minutes
• Skill level: Beginner
• What you will build: A Pico W + L298N setup that alternates a DC motor forward and backward with adjustable PWM speed

Parts List

From ShillehTek

• L298N motor driver - dual H-bridge driver for direction and PWM speed control
• Jumper wires - connect Pico W GPIO to L298N inputs
• Breadboard (optional) - easier prototyping for Pico W connections
• ShillehTek Jumper Wires - alternate listing for jumper wires

External

• Raspberry Pi Pico W - microcontroller running the MicroPython motor control script
• DC motor - the motor being driven by the L298N
• Power source (e.g., 12V battery pack) - powers the motor through the L298N
• Alligator jumper wires - optional for quick temporary motor and power connections

Note: Power the motor through the L298N using your motor supply (example: 12V). Power the Pico W from a separate supply, as described in the wiring step.

Step-by-Step Guide

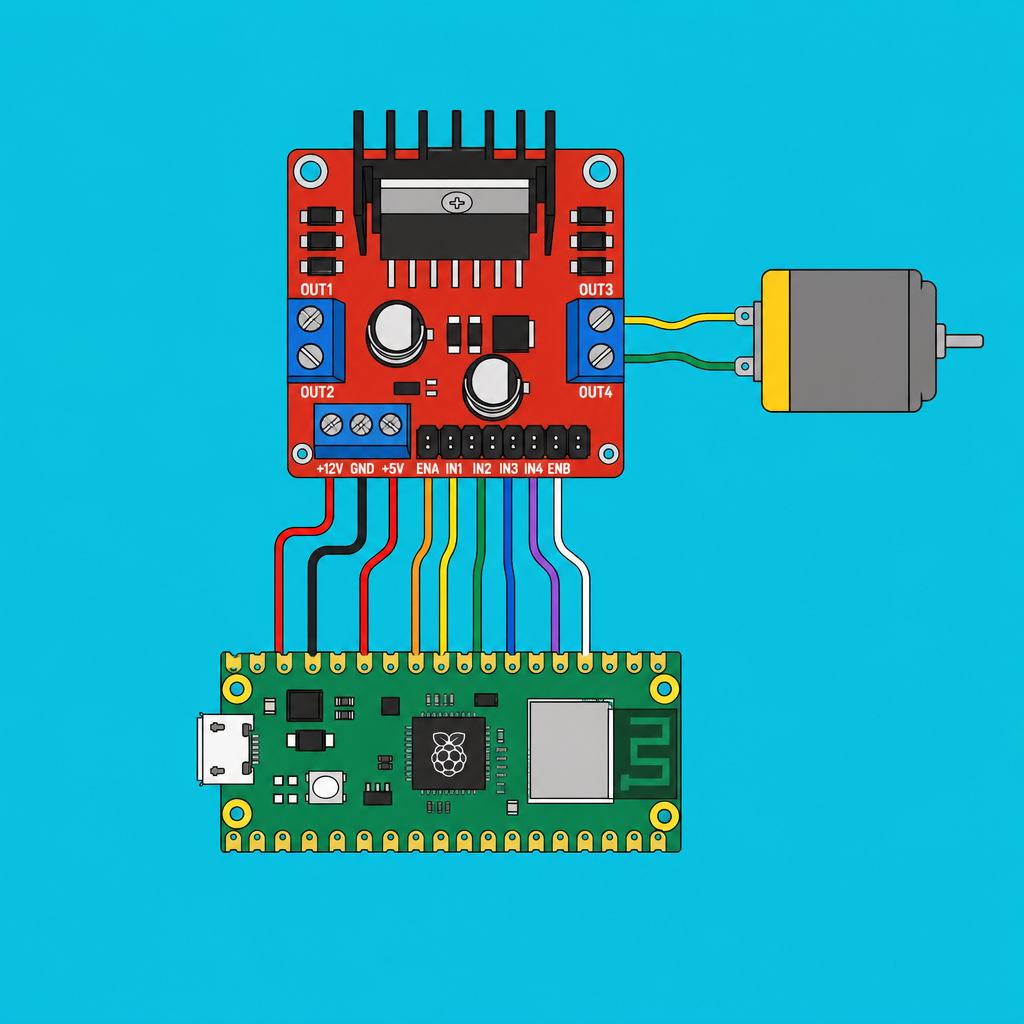

Step 1 - Wire the Pico W to the L298N and motor

Goal: Connect power, direction pins, and a PWM enable pin so the Pico W can control motor direction and speed through the L298N.

What to do: Make the following connections.

Power connections:

• Connect your 12V power supply to the 12V IN and GND pins of the L298N driver.
• Connect the Pico W to a separate power supply externally.

Motor control connections (Pico W to L298N):

• IN3 on the L298N to GPIO 14 on the Pico W (direction control).
• IN4 on the L298N to GPIO 15 on the Pico W (direction control).
• ENB on the L298N to GPIO 13 on the Pico W (PWM speed control).

Motor connection:

• Connect the DC motor leads to OUT3 and OUT4 on the L298N motor driver.

Expected result: The Pico W has three control wires to the L298N (IN3, IN4, ENB), and the motor is connected to OUT3/OUT4 with motor power connected to 12V IN/GND.

Step 2 - Write the MicroPython motor control code

Goal: Create simple forward, backward, and stop functions, and drive the motor using PWM for speed control.

What to do: Copy the following MicroPython script into your editor.

Code:

from machine import Pin, PWM
from time import sleep

# Motor pins
in3 = Pin(14, Pin.OUT)  # IN3 connected to GPIO 14
in4 = Pin(15, Pin.OUT)  # IN4 connected to GPIO 15
enb = PWM(Pin(13))      # ENB connected to GPIO 13 for PWM control
enb.freq(1000)          # Set PWM frequency to 1 kHz

# Motor functions
def motor_forward(speed):
    in3.high()          # Set IN3 high
    in4.low()           # Set IN4 low
    enb.duty_u16(speed) # Set motor speed (0-65535 for duty cycle)

def motor_backward(speed):
    in3.low()           # Set IN3 low
    in4.high()          # Set IN4 high
    enb.duty_u16(speed) # Set motor speed (0-65535 for duty cycle)

def motor_stop():
    in3.low()           # Stop motor
    in4.low()           # Stop motor
    enb.duty_u16(0)     # Disable motor (set PWM duty cycle to 0)

# Main loop to test motor
try:
    while True:
        print("Moving forward")
        motor_forward(32768)  # Set speed to 50% (PWM value)
        sleep(2)

        print("Stopping")
        motor_stop()
        sleep(2)

        print("Moving backward")
        motor_backward(32768)  # Set speed to 50% (PWM value)
        sleep(2)

        print("Stopping")
        motor_stop()
        sleep(2)
except KeyboardInterrupt:
    motor_stop()
    print("Program stopped")

Expected result: You have functions to run the motor forward/backward using IN3/IN4, and a PWM-based speed control on ENB using duty_u16() (0 to 65535).

Step 3 - Upload and run the script on the Pico W

Goal: Execute the script on your Pico W and confirm the motor direction and speed control work.

What to do: Upload the script to the Raspberry Pi Pico W using a MicroPython editor such as Thonny, then run it.

The motor should alternate between moving forward and backward with a 2-second pause between actions. You can adjust the speed by changing the duty_u16 value passed into motor_forward() and motor_backward().

Expected result: The motor moves forward, stops, moves backward, stops, and repeats while status messages print to the console.

Conclusion

You now have a DC motor running from a Raspberry Pi Pico W through an L298N motor driver, with direction control on IN3/IN4 and PWM speed control on ENB using MicroPython. This is a solid base for robotics and automation projects that need reliable motor control.
