Project Overview

ESP32 + reed switch + relay garage door control: An ESP32 reads a magnetic reed switch to detect whether your garage door is open or closed, then pulses a 1-channel relay to trigger the wall-button circuit so you can open, close, and check status over Wi-Fi.

Add a Telegram bot (as shown below) and you can control the door from anywhere with simple commands.

• Time: ~2 hours
• Skill level: Intermediate
• What you will build: An ESP32 reporting door state and triggering the opener on demand over Wi-Fi.

Parts List

From ShillehTek

• ESP32-WROOM Dev Board - runs the Wi-Fi control logic and reads the door sensor.
• 1-Channel 5V Relay Module - momentarily shorts the opener’s manual button leads.
• 120 PCS Dupont Jumper Wires - quick connections for prototyping and testing.

External

• Magnetic reed switch (door-sensor style) - detects open/closed state.
• 5V USB power supply - powers the ESP32 and relay module.
• 2 wires to splice into your garage opener’s manual button leads (low-voltage) - connects to relay COM and NO.

Safety: Splice ONLY into the low-voltage button leads (the wires running from the opener to the wall-mounted button). Never wire mains AC through this relay. If unsure, stop and consult an electrician.

Step-by-Step Guide

Step 1 - Mount the Reed Switch

Goal: Install the sensor so the ESP32 can detect when the door is open or closed.

What to do: Mount the reed switch on the door frame and the magnet on the moving door so they align when the door is closed.

Expected result: When the door moves away from the frame, the reed switch changes state.

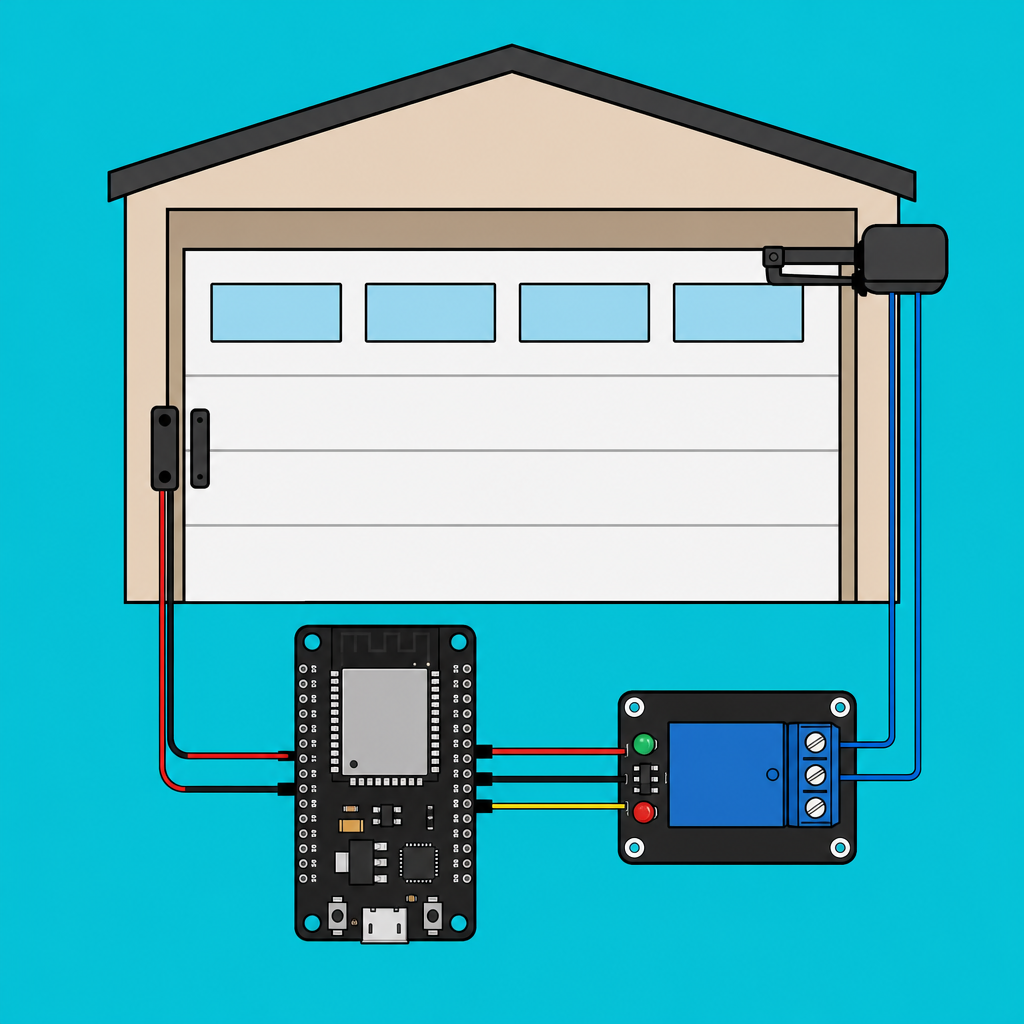

Step 2 - Wire the ESP32, Reed Switch, and Relay

Goal: Connect the door sensor to a GPIO input and the relay module to a GPIO output.

What to do: Make the following connections.

• Reed switch one leg to GPIO 13, other leg to GND (use INPUT_PULLUP)
• Relay VCC to 5V, GND to GND, IN to GPIO 27
• Relay COM and NO to the two manual-button leads on the opener

Expected result: The ESP32 can read door state on GPIO 13, and GPIO 27 can activate the relay to simulate a button press.

Step 3 - Upload the Sketch (Telegram Trigger)

Goal: Connect the ESP32 to Wi-Fi, report door state changes, and trigger the relay from Telegram commands.

What to do: Upload the code below, then set your Wi-Fi credentials and Telegram bot values (SSID, PASS, TOKEN, CHAT).

Code:

#include <WiFi.h>
#include <WiFiClientSecure.h>
#include <UniversalTelegramBot.h>

const char* SSID="WIFI", *PASS="PWD", *TOKEN="BOT", *CHAT="CHAT";
const int REED=13, RELAY=27;
WiFiClientSecure client;
UniversalTelegramBot bot(TOKEN, client);
bool lastDoor = HIGH;

void setup() {
  pinMode(REED, INPUT_PULLUP); pinMode(RELAY, OUTPUT);
  WiFi.begin(SSID, PASS);
  while (WiFi.status() != WL_CONNECTED) delay(500);
  client.setCACert(TELEGRAM_CERTIFICATE_ROOT);
}

void trigger() { digitalWrite(RELAY, HIGH); delay(500); digitalWrite(RELAY, LOW); }

void loop() {
  bool door = digitalRead(REED);
  if (door != lastDoor) {
    bot.sendMessage(CHAT, door == HIGH ? "🚪 Garage opened" : "🚪 Garage closed");
    lastDoor = door;
  }
  int n = bot.getUpdates(bot.last_message_received + 1);
  for (int i = 0; i < n; i++) {
    if (bot.messages[i].text == "/open" || bot.messages[i].text == "/close") trigger();
  }
  delay(1000);
}

Expected result: You receive a message when the door opens or closes, and the relay triggers when you send /open or /close.

Step 4 - Control It from Telegram

Goal: Verify remote control and status monitoring.

What to do: Send /open or /close to your bot and watch the door respond. Confirm you also get state change messages as the reed switch opens and closes.

Expected result: Commands trigger the opener and door status updates reflect open/closed state.

Step 5 - Where to Take It Next

Goal: Identify safe, logical feature expansions for this same hardware pattern.

What to do: Consider these extensions.

• Add HC-SR04 to measure car presence (or use the reed-switch trick on a second door)
• Auto-close after N minutes of being open
• Stream to Home Assistant via MQTT
• Snapshot with ESP32-CAM on every door event

Expected result: You have a clear roadmap for expanding the project without changing the core wiring approach.

Conclusion

This build uses an ESP32, a magnetic reed switch, and a 1-channel relay module to monitor your garage door state and trigger the opener remotely over Wi-Fi. You get open/close alerts and simple remote control without needing a garage-specific app or subscription.
