Arduino NEO-6M GPS: Read Lat/Long in Serial | ShillehTek

May 14, 2026 12 views

Arduino NEO-6M GPS: Read Lat/Long in Serial | ShillehTek
Project

Build an Arduino Nano + NEO-6M GPS reader that streams live latitude, longitude, satellites, and UTC time to Serial for easy mapping with ShillehTek.

Beginner3 parts

Project Overview

Arduino Nano + NEO-6M GPS Module: In this build, you will wire a NEO-6M (GT-U7) GPS module to an Arduino Nano and print live latitude, longitude, satellite count, and UTC time to the Serial Monitor.

The NEO-6M outputs standard NMEA sentences over UART, typically locks onto satellites in 1 to 5 minutes from a cold start, and can provide about 2.5 m positional accuracy with a good sky view.

  • Time: About 25 minutes (most of which is waiting for first satellite lock)
  • Skill level: Beginner
  • What you will build: An Arduino streaming live latitude, longitude, and time over Serial.
GT-U7 NEO-6M GPS module with ceramic patch antenna on a workbench
The NEO-6M (GT-U7 carrier) with ceramic patch antenna, EEPROM, and battery-backed RTC.

Parts List

From ShillehTek

External

  • A clear view of the sky (GPS modules often will not lock indoors)

Note: First fix takes about 30 seconds to 5 minutes from a cold start. The on-board coin cell helps keep almanac data so subsequent fixes can take only seconds.

Step-by-Step Guide

Step 1 - Identify the Pins

Goal: Confirm the NEO-6M breakout pins you will connect to the Arduino.

What to do: Locate the four main pins on the GPS breakout: VCC, RX, TX, and GND.

NEO-6M (GT-U7) GPS module top view showing the 4-pin header area
Four-pin breakout: VCC, RX, TX, GND.
NEO-6M GPS module pinout labels highlighting RX and TX UART pins
Remember to cross UART lines: the module TX feeds the Arduino RX, and the module RX connects to the Arduino TX.

Expected result: You know which pins are power (VCC/GND) and which pins are UART (RX/TX).

Step 2 - Wire UART

Goal: Connect the NEO-6M GPS module to the Arduino Nano using SoftwareSerial.

What to do: Wire power and the UART lines exactly as listed below. This tutorial uses Arduino D4 as SoftwareSerial RX and Arduino D3 as SoftwareSerial TX.

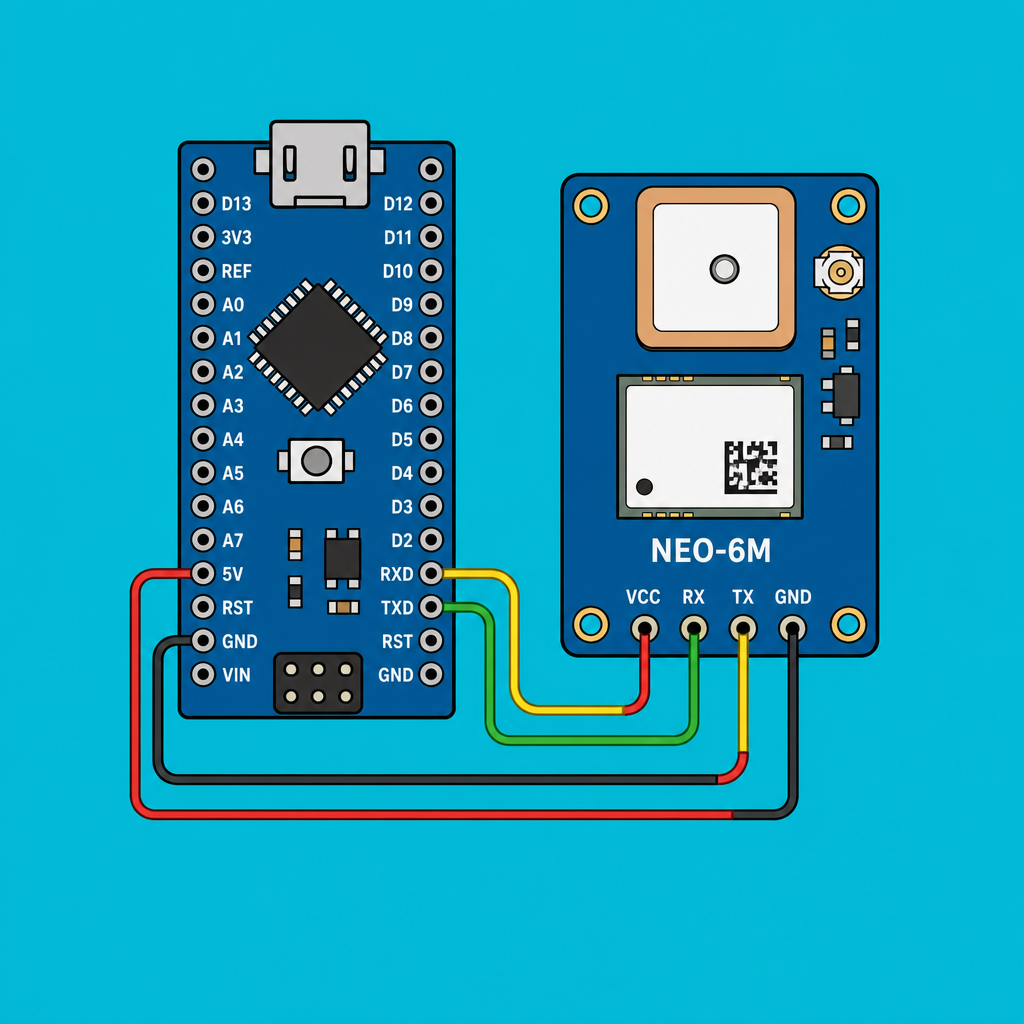

Arduino Nano wired to a NEO-6M (GT-U7) GPS module using jumper wires for UART
VCC to 5V, GND to GND, GPS TX to D4, GPS RX to D3.
  • VCC to 5V
  • GND to GND
  • GPS TX to Arduino D4 (Arduino RX over SoftwareSerial)
  • GPS RX to Arduino D3 (Arduino TX over SoftwareSerial)

Expected result: The GPS module is powered and connected to the Nano so it can stream serial data.

Step 3 - Install the Library

Goal: Add a GPS parsing library so you can easily read latitude, longitude, satellites, and time.

What to do: In the Arduino IDE Library Manager, install TinyGPS++ by Mikal Hart.

Expected result: TinyGPS++ is available for your sketch to include and compile.

Step 4 - Upload the Sketch

Goal: Decode the NEO-6M NMEA stream and print parsed values to Serial.

What to do: Copy the code below into the Arduino IDE, select your Arduino Nano board/port, then upload.

Code:

#include <TinyGPS++.h>
#include <SoftwareSerial.h>

static const int RX = 4, TX = 3;
SoftwareSerial gps_serial(RX, TX);
TinyGPSPlus gps;

void setup() {
  Serial.begin(9600);
  gps_serial.begin(9600);
}

void loop() {
  while (gps_serial.available()) gps.encode(gps_serial.read());

  if (gps.location.isUpdated()) {
    Serial.print("Lat="); Serial.print(gps.location.lat(), 6);
    Serial.print(" Lng="); Serial.print(gps.location.lng(), 6);
    Serial.print(" Sats="); Serial.print(gps.satellites.value());
    Serial.print(" UTC=");
    Serial.print(gps.time.hour()); Serial.print(':');
    Serial.print(gps.time.minute()); Serial.print(':');
    Serial.println(gps.time.second());
  }
}

Expected result: The sketch compiles and uploads, and the Serial Monitor begins printing GPS data once a fix is available.

Step 5 - Wait for Satellite Lock

Goal: Get a valid GPS fix so the module can output usable coordinates.

What to do: Move the GPS antenna to a location with a clear view of the sky and keep the board powered. Cold starts can take several minutes.

Arduino Serial Monitor showing NEO-6M GPS latitude and longitude output
Once the LED on the module starts blinking, you typically have a fix.
NEO-6M GPS NMEA sentences streaming over UART displayed on a serial terminal
You can paste coordinates into Google Maps as "lat, lng".

Expected result: You see live Lat/Lng values, satellite count, and UTC time updating in the Serial Monitor.

Step 6 - Where to Take It Next

Goal: Identify practical next steps you can build on after reading GPS coordinates.

What to do: Consider one of these extensions once your coordinates are printing reliably:

  • Log latitude, longitude, and altitude to a microSD with a timestamp for a data logger
  • Push position to a server over LoRa for an off-grid tracker
  • Pair with an MPU6050 for dead reckoning between fixes
  • Use only the time output as a precise wall clock for cron-style triggers

Expected result: You have a clear path for upgrading this GPS readout into a tracker, logger, or time source.

Conclusion

You built an Arduino Nano + NEO-6M GPS setup that reads satellite data over UART and prints live latitude, longitude, satellite count, and UTC time to the Serial Monitor.
