Raspberry Pi Pico W MQTT: Send messages anywhere

Video Tutorial (Optional)

Watch first if you want to follow along with the full MQTT setup and Pico W code in real time.

Project Overview

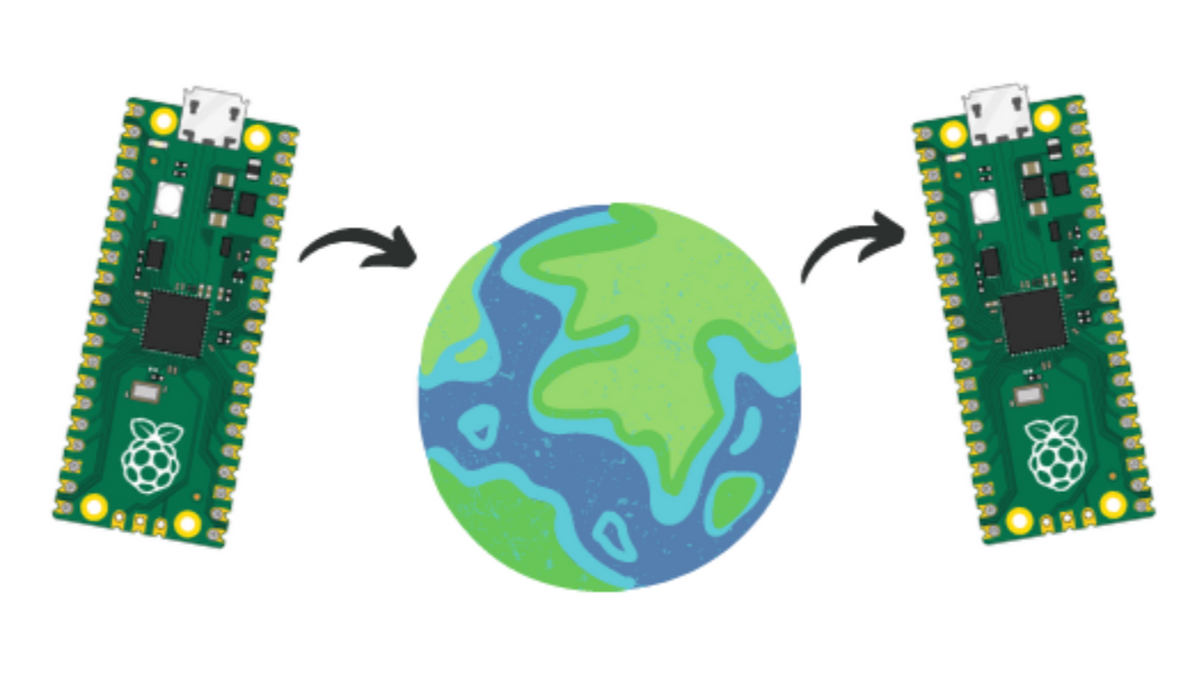

In this project, you use a Raspberry Pi Pico W with MQTT (HiveMQ broker) in MicroPython to send messages between multiple Pico W devices from anywhere over the internet. By the end, you will be able to publish and subscribe to MQTT topics to build a true distributed IoT system.

Everything used here is free to work with, and the approach scales from simple message passing to larger device fleets.

Time: 30 to 60 minutes
Skill level: Intermediate
What you will build: Two Pico W devices that publish and subscribe to the same MQTT topic via HiveMQ Cloud

Parts List

From ShillehTek

Raspberry Pi Pico 2W - the WiFi microcontroller board used in this build

External

2x USB cables (for power and programming)
Computer with Thonny installed
WiFi network credentials (SSID and password)
HiveMQ Cloud account and cluster: https://www.hivemq.com/mqtt-cloud-broker/ and console at https://console.hivemq.cloud/
MicroPython MQTT libraries:
- simple.py: https://github.com/micropython/micropython-lib/blob/master/micropython/umqtt.simple/umqtt/simple.py
- robust.py: https://github.com/micropython/micropython-lib/tree/master/micropython/umqtt.robust/umqtt

Note: The code examples use TLS (ssl=True) and expect you to provide your HiveMQ cluster hostname, username, and password via a constants module.

Step-by-Step Guide

Step 1 - Allow multiple Thonny instances

Goal: Control more than one Pico W from the same computer by running multiple Thonny windows.

What to do: In Thonny, go to Tools > Options > General and untick Allow only single Thonny instance.

Restart Thonny to activate the change.

You do not need this if each Pico W is connected to a different computer. This is only needed when you want multiple Pico W devices connected to the same computer at the same time.

Thonny IDE options showing the setting to allow multiple Thonny instances for connecting to multiple Raspberry Pi Pico W boards — Enable multiple Thonny instances if you are programming more than one Pico W from the same machine.

Once enabled, open another Thonny instance.

To open another instance on macOS, run this in Terminal:

/Applications/Thonny.app/Contents/MacOS/thonny

Expected result: You can open two Thonny windows and select a different connected Pico W in each window.

Step 2 - Set up the MQTT broker (HiveMQ Cloud)

Goal: Create a cloud MQTT broker that your Pico W devices can publish to and subscribe from over the internet.

What to do: MQTT (Message Queuing Telemetry Transport) is a lightweight publish-subscribe protocol commonly used for IoT messaging. A broker routes messages from publishers to subscribers using topics.

To get started with HiveMQ Cloud:

Go to https://www.hivemq.com/mqtt-cloud-broker/ and click Try out for free.
Navigate to https://console.hivemq.cloud/
Create a cluster, then create a username and password in the access management tab.
Save the username, password, and cluster URL. You will need these in MicroPython.

Expected result: You have a HiveMQ Cloud cluster hostname plus credentials you can use from both Pico W devices.

Step 3 - Add the MicroPython MQTT libraries to each Pico W

Goal: Install the required MQTT client code so each Pico W can connect to HiveMQ and publish or subscribe.

What to do: On all Pico W devices, add the following MicroPython library files to the filesystem:

simple.py: https://github.com/micropython/micropython-lib/blob/master/micropython/umqtt.simple/umqtt/simple.py
robust.py: https://github.com/micropython/micropython-lib/tree/master/micropython/umqtt.robust/umqtt

These libraries allow you to publish and subscribe to topics from the broker over the internet.

Expected result: Both Pico W devices have the MQTT library code available to import in your scripts.

Step 4 - Run the publisher code on Pico W #1

Goal: Connect Pico W #1 to WiFi, connect to HiveMQ, and publish a message to a topic repeatedly.

What to do: On one Pico W, run this code.

Notes from the original tutorial:

This publishes to a topic named Topic and sends the same message every second. Change these values for your application.
You must substitute your values in constants.
The client id does not have to be mahmood.

Code:

#Native libs
import network
import time
import random

#Third Party
from umqtt.robust import MQTTClient

# Internal libs
import constants


def connectMQTT():
    '''Connects to Broker'''
    # Client ID can be anything
    client = MQTTClient(
        client_id=b"mahmood",
        server=constants.SERVER_HOSTNAME,
        port=0,
        user=constants.USER,
        password=constants.PASSWORD,
        keepalive=7200,
        ssl=True,
        ssl_params={'server_hostname': constants.SERVER_HOSTNAME}
    )
    client.connect()
    return client


def connect_to_internet(ssid, password):
    # Pass in string arguments for ssid and password

    # Just making our internet connection
    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)
    wlan.connect(ssid, password)

    # Wait for connect or fail
    max_wait = 10
    while max_wait > 0:
      if wlan.status() < 0 or wlan.status() >= 3:
        break
      max_wait -= 1
      print('waiting for connection...')
      time.sleep(1)
    # Handle connection error
    if wlan.status() != 3:
       print(wlan.status())
       raise RuntimeError('network connection failed')
    else:
      print('connected')
      print(wlan.status())
      status = wlan.ifconfig()

def make_connections():
    # Connect to internet and set MPU to start taking readings
    connect_to_internet(constants.INTERNET_NAME, constants.INTERNET_PASSWORD)
    return connectMQTT()


def publish(topic, value, client):
    '''Sends data to the broker'''
    print(topic)
    print(value)
    client.publish(topic, value)
    print("Publish Done")



client = make_connections()

while True:

    publish('Topic', 'test _message', client)

    time.sleep(1)

Expected result: The Thonny console shows that the Pico W connects to WiFi, connects to the broker, and publishes a message every second.

Step 5 - Run the subscriber code on Pico W #2

Goal: Connect Pico W #2 to WiFi, subscribe to the same topic, and print incoming messages.

What to do: On the other Pico W, run this code.

Notes from the original tutorial:

This reads from the topic and uses a callback so the library can display the messages.
Make the client id different than the first device, or you will get an error.

Code:

#Native libs
import network
import time

#Third Party
from umqtt.simple import MQTTClient

# Internal libs
import constants


def connectMQTT():
    '''Connects to Broker'''
    # Client ID can be anything
    client = MQTTClient(
        client_id=b"other client",
        server=constants.SERVER_HOSTNAME,
        port=0,
        user=constants.USER,
        password=constants.PASSWORD,
        keepalive=7200,
        ssl=True,
        ssl_params={'server_hostname': constants.SERVER_HOSTNAME}
    )
    client.connect()
    return client


def connect_to_internet(ssid, password):
    # Pass in string arguments for ssid and password

    # Just making our internet connection
    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)
    wlan.connect(ssid, password)

    # Wait for connect or fail
    max_wait = 10
    while max_wait > 0:
      if wlan.status() < 0 or wlan.status() >= 3:
        break
      max_wait -= 1
      print('waiting for connection...')
      time.sleep(1)
    # Handle connection error
    if wlan.status() != 3:
       print(wlan.status())
       raise RuntimeError('network connection failed')
    else:
      print('connected')
      print(wlan.status())
      status = wlan.ifconfig()

def make_connections():
    # Connect to internet and set MPU to start taking readings
    connect_to_internet(constants.INTERNET_NAME, constants.INTERNET_PASSWORD)
    return connectMQTT()


def my_callback(topic, response):
    # Perform desired actions based on the subscribed topic and response
    print("Received message on topic:", topic)
    print("Response:", response)


def subscribe(topic, client):
    '''Recieves data from the broker'''
    client.subscribe(topic)
    print("Subscribe Done")

client = make_connections()
client.set_callback(my_callback)
subscribe('Topic', client)

while True:
   time.sleep(5)
   client.check_msg()

Expected result: After everything is set up correctly, you start seeing messages printed in the subscriber console at each interval.

Conclusion

You set up multiple Raspberry Pi Pico W boards to send messages anywhere over the internet using MQTT with a HiveMQ Cloud broker in MicroPython. With one device publishing and another subscribing to the same topic, you have the foundation for a distributed IoT system.
