Project Overview

Arduino Nano + VL53L0X laser ToF sensor: Build an Arduino Nano that reads millimetre-precise distance from a VL53L0X time-of-flight module and streams the result over Serial for reliable ranging from about 30 mm to 2 m.

The VL53L0X uses a 940 nm laser to measure time-of-flight, so unlike the HC-SR04 it is less affected by soft surfaces and provides 1 mm resolution. It is a strong choice for robot bumpers, level meters, and gesture-style projects.

• Time: ~10 minutes
• Skill level: Beginner
• What you will build: An Arduino streaming millimetre-precise distance over Serial.

Parts List

From ShillehTek

• VL53L0X Pre-Soldered Laser ToF Sensor - the distance sensor module used for I2C ranging
• Arduino Nano V3.0 Pre-Soldered - reads the sensor and prints distance over Serial
• 120 PCS Dupont Jumper Wires - for quick breadboard or header-to-header wiring

External

• USB cable + Arduino IDE

Note: VL53L0X is 2.8 V logic but the breakout has level shifting on SDA/SCL, so it is safe with 3.3 V or 5 V boards.

Step-by-Step Guide

Step 1 - Wire It Up

Goal: Connect the VL53L0X to the Arduino Nano over I2C.

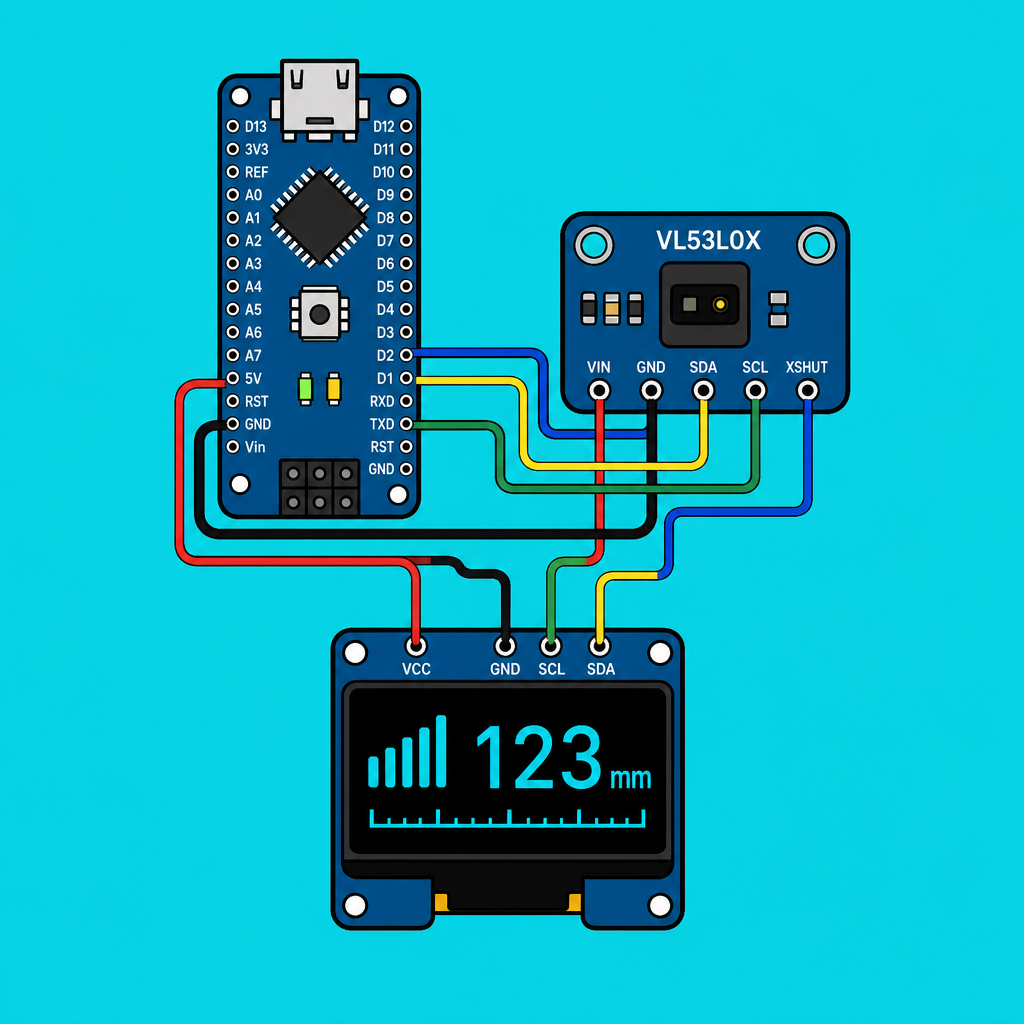

What to do: Wire the sensor to the Arduino Nano using the I2C pins. On the Nano, SDA is A4 and SCL is A5.

Expected result: The VL53L0X is powered and connected on the I2C bus.

Step 2 - Install the Library

Goal: Add the driver needed to talk to the VL53L0X.

What to do: In the Arduino IDE, open Library Manager and install Adafruit VL53L0X.

Expected result: The example code will compile with the Adafruit_VL53L0X header available.

Step 3 - Upload the Sketch

Goal: Read distance in millimetres and print it to Serial.

What to do: Paste the sketch below into the Arduino IDE, select the correct board and port, then upload.

Code:

#include <Wire.h>
#include <Adafruit_VL53L0X.h>

Adafruit_VL53L0X tof;

void setup() {
  Serial.begin(115200);
  if (!tof.begin()) { Serial.println("VL53L0X not found"); while (1); }
}

void loop() {
  VL53L0X_RangingMeasurementData_t m;
  tof.rangingTest(&m, false);
  if (m.RangeStatus != 4) {
    Serial.print("Distance: "); Serial.print(m.RangeMilliMeter); Serial.println(" mm");
  } else {
    Serial.println("Out of range");
  }
  delay(100);
}

Expected result: The sketch uploads successfully and the board starts printing distance readings.

Step 4 - Watch It Track

Goal: Confirm the sensor is updating and the readings make sense.

What to do: Open the Serial Monitor at 115200 baud and move your hand toward and away from the sensor.

Expected result: Readings update at about 10 Hz with 1 mm resolution, typically out to about 1.2 m indoors.

Step 5 - Where to Take It Next

Goal: Apply the same I2C distance readings in your own project.

What to do: Use the Serial distance output as a starting point and adapt it for your application.

• Replace the HC-SR04 in any project, since the VL53L0X is more accurate, faster, and smaller
• Build a contactless gesture menu (hover a hand over to scroll)
• Liquid-level monitoring (it can work through a clear plastic tank wall)
• Robotic obstacle avoidance for tight indoor spaces

Expected result: You have a clear path to reuse the same sensor wiring and code structure in other builds.

Conclusion

You built an Arduino Nano project that reads millimetre distance from a VL53L0X laser time-of-flight sensor over I2C and streams the measurement over Serial. If the HC-SR04 is no longer precise enough for your build, the VL53L0X is a practical upgrade with the same I2C-style workflow.
