Project Overview

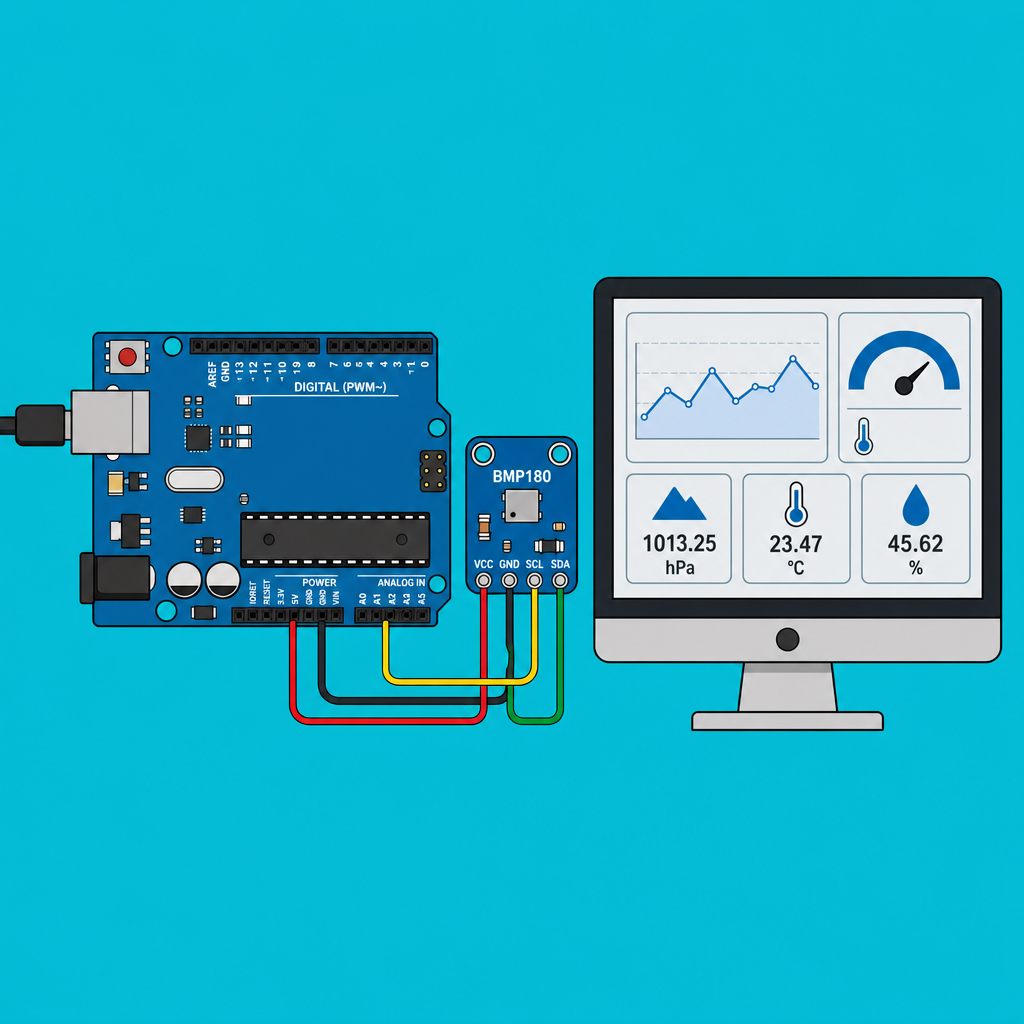

Build a Real-Time BMP180 Dashboard: Use an Arduino with a BMP180 pressure and temperature sensor to send live readings to Node-RED so you can view a real-time temperature and pressure dashboard in your browser.

• Time: 20 to 45 minutes
• Skill level: Beginner to Intermediate
• What you will build: A live web dashboard showing BMP180 temperature and pressure updates from an Arduino using USB serial and Node-RED

Parts List

From ShillehTek

• ShillehTek Pre-Soldered BMP180 sensor - breakout used to read temperature and pressure
• Jumper wires - for wiring the sensor to the Arduino

External

• Arduino Uno, Nano, or similar - runs the BMP180 reading sketch
• Mac or PC with USB port - runs Node-RED and connects to the Arduino
• Node.js (LTS) - required to install and run Node-RED

Note: The BMP180 breakout runs at 3.3V logic. Use the Arduino 3.3V pin for VCC or ensure proper level shifting on 5V boards. I2C pins vary by Arduino variant (A4/A5 on classic Uno).

Step-by-Step Guide

Step 1 - Install Node-RED

Goal: Install and start Node-RED locally so you can build the dashboard.

What to do: Install Node.js (LTS) from nodejs.org, then install Node-RED globally and start it.

Code:

npm install -g --unsafe-perm node-red

Code:

node-red

Expected result: Node-RED runs and the editor is available at http://localhost:1880.

Step 2 - Install Dashboard and Serial Nodes

Goal: Add the UI and serial support to Node-RED.

What to do: In the Node-RED editor, open the menu -> Manage palette -> Install, then install the following packages:

• node-red-dashboard
• node-red-node-serialport

Expected result: You will have ui_gauge, ui_chart, and serial nodes available in the palette to build the dashboard and read the Arduino.

Step 3 - Connect BMP180 to Arduino

Goal: Wire the BMP180 breakout to the Arduino over I2C so the sketch can read sensor data.

What to do: Wire the BMP180 as follows:

• VCC -> 3.3V
• GND -> GND
• SDA -> A4
• SCL -> A5

Expected result: The BMP180 is powered and connected to the Arduino I2C bus and ready for the sketch to initialize.

Step 4 - Upload Arduino Code

Goal: Run a sketch that reads temperature and pressure from the BMP180 and prints JSON to serial.

What to do: In the Arduino IDE install these libraries: Adafruit BMP085 Unified and Adafruit Unified Sensor. Then upload the sketch below.

Code:

#include <Wire.h>
#include <Adafruit_BMP085.h>

Adafruit_BMP085 bmp;

void setup() {
  Serial.begin(9600);
  if (!bmp.begin()) {
    Serial.println("Sensor not found!");
    while (1);
  }
}

void loop() {
  float temp = bmp.readTemperature();
  float pressure = bmp.readPressure() / 100.0;

  Serial.print("{\"temp\":");
  Serial.print(temp);
  Serial.print(",\"pressure\":");
  Serial.print(pressure);
  Serial.println("}");

  delay(2000);
}

Expected result: The Arduino prints JSON lines like {"temp":24.3,"pressure":1013.2} over serial at 9600 baud.

Step 5 - Build the Node-RED Flow

Goal: Read the serial JSON from the Arduino, parse it, and display temperature and pressure on the dashboard.

What to do: Create a flow with a serial in node, a json node, a ui_gauge for temperature, and a ui_chart for pressure. Add a function node to extract pressure for the chart.

Function node code:

return { payload: msg.payload.pressure };

Wiring in Node-RED:

[serial in] → [json] → [ui_gauge]
                        → [function] → [ui_chart]

Configuration notes: Set the serial in node to 9600 and select the correct COM/tty device for your Arduino. For the gauge use value {{msg.payload.temp}}.

Expected result: Parsed messages update the dashboard gauge and chart with live sensor values.

Step 6 - Deploy and View the Dashboard

Goal: Make the dashboard live and confirm data is flowing.

What to do: Click Deploy in Node-RED, then open http://localhost:1880/ui in your browser.

Expected result: You should see a live temperature gauge and a real-time pressure chart updating with readings from the BMP180.

Step 7 - Export and Share Your Flow

Goal: Save the flow so you can restore or share it later.

What to do: Select all nodes in the editor, right-click → Export → Clipboard, then save the JSON.

Expected result: You can re-import the flow or share it with others for quick replication.

Conclusion

You built a real-time temperature and pressure dashboard using an Arduino and a BMP180 sensor with Node-RED visualizations. The Arduino publishes JSON over serial and Node-RED parses and displays the data in gauges and charts.
