Raspberry Pi Pico W USB Serial: C++ Hello World

Video Tutorial (Optional)

Watch first if you want to see the full macOS setup, build, and UF2 flashing process for a Raspberry Pi Pico W C++ project.

Project Overview

Raspberry Pi Pico W USB Serial C++: In this tutorial, you set up the Pico SDK on macOS, build a C++ “Hello, World!” program for the Raspberry Pi Pico W, and read the output over USB serial.

The Raspberry Pi Pico W is based on the RP2040 microcontroller with dual-core ARM Cortex-M0+ processors, flexible I/O, and built-in Wi-Fi. This guide walks through installing tools, initializing the Pico SDK, compiling, flashing a UF2, and verifying serial output using terminal tools.

Time: 30 to 60 minutes (depending on downloads and installs)
Skill level: Beginner
What you will build: A Pico W C++ project that prints “Hello, World!” to a USB serial console

Parts List

From ShillehTek

ShillehTek store - optional tools, components, and accessories for Pico projects

External

Raspberry Pi Pico W
Mac running macOS

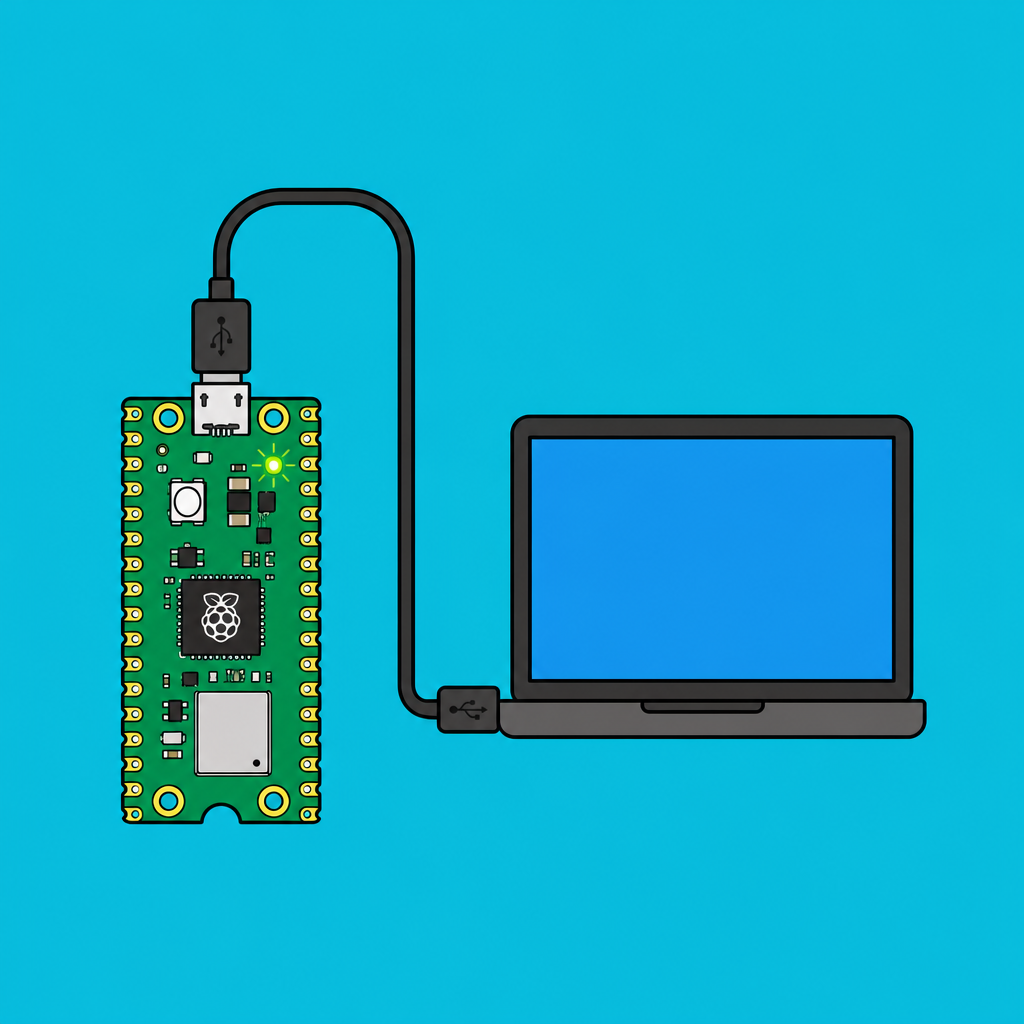

USB cable (data-capable) to connect the Pico W to your Mac
Homebrew (package manager)
Pico SDK (from GitHub)
Terminal tools: screen (built-in on many systems) or minicom (installable)

Note: This guide uses USB serial (stdio over USB). The Pico W must be connected via USB, and you will connect to a device like /dev/tty.usbmodemXXXX at 115200 baud.

Step-by-Step Guide

Step 1 - Set up the macOS build environment

Goal: Install the required tools and set up the Pico SDK so you can build Pico W projects in C++.

What to do: Install Homebrew (if you do not already have it), then install CMake and the ARM GCC toolchain.

Code:

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"

brew install cmake gcc-arm-none-eabi

What to do: Clone the Pico SDK and initialize its submodules.

Code:

mkdir -p ~/pico
cd ~/pico
git clone -b master https://github.com/raspberrypi/pico-sdk.git
cd pico-sdk
git submodule update --init

What to do: Set the PICO_SDK_PATH environment variable in your shell configuration file (example shown for Zsh).

Code:

echo 'export PICO_SDK_PATH=~/pico/pico-sdk' >> ~/.zshrc
source ~/.zshrc

Expected result: You can run cmake, and your system has a working ARM toolchain and a local Pico SDK at ~/pico/pico-sdk.

Step 2 - Create a C++ Pico project (CMake + main.cpp)

Goal: Create a minimal Pico W C++ project that can print to USB serial.

What to do: Create a project directory.

Code:

mkdir -p ~/pico/my_project
cd ~/pico/my_project

What to do: Create a CMakeLists.txt file in the project directory.

Code:

cmake_minimum_required(VERSION 3.13)

# Include the Pico SDK initialization script
include($ENV{PICO_SDK_PATH}/pico_sdk_init.cmake)

project(my_project)

# Initialize the Pico SDK
pico_sdk_init()

# Add your executable and source files
add_executable(my_project
    main.cpp
)

# Enable USB stdio and disable UART stdio
pico_enable_stdio_usb(my_project 1)
pico_enable_stdio_uart(my_project 0)

# Link the Pico SDK to your project
target_link_libraries(my_project pico_stdlib)

# Create map/bin/hex/uf2 files
pico_add_extra_outputs(my_project)

What to do: Create a main.cpp file that prints “Hello, World!” every second.

Code:

#include "pico/stdlib.h"
#include <cstdio> // Include the C standard IO functions

int main() {
    stdio_init_all(); // Initialize standard IO

    while (true) {
        printf("Hello, World!\n");
        sleep_ms(1000);
    }
}

Expected result: Your project folder contains CMakeLists.txt and main.cpp, ready to configure and build.

Step 3 - Build and flash the UF2 to the Pico W

Goal: Compile the project and copy the generated .uf2 file to the Pico W.

What to do: Create and enter a build directory, then clean it if needed.

Code:

mkdir -p build
cd build
rm -rf *

What to do: Run CMake to generate build files, then build.

Code:

cmake ..

make

What to do: Flash the firmware to the Pico W.

Unplug the Pico W from your Mac.
Hold down the BOOTSEL button.
While holding BOOTSEL, plug the Pico W back into your Mac. It should appear as a mass storage device named RPI-RP2.
Copy the generated .uf2 file to the Pico.

Code:

cp my_project.uf2 /Volumes/RPI-RP2/

Expected result: After copying the UF2, the Pico W reboots and starts running the program, printing output over USB serial.

Step 4 - Verify USB serial output (screen or minicom)

Goal: Connect to the Pico W serial device and confirm you can see “Hello, World!” output.

What to do: If you hit the $TERM too long - sorry. error in screen, set TERM to vt100.

Code:

export TERM=vt100

What to do: List serial devices and identify the Pico W device (example: /dev/tty.usbmodemXXXX).

Code:

ls /dev/tty.*

What to do: Connect using screen at 115200 baud.

Code:

screen /dev/tty.usbmodemXXXX 115200

What to do: If you prefer minicom, install it with Homebrew and connect.

Code:

brew install minicom

minicom -b 115200 -o -D /dev/tty.usbmodemXXXX

Expected result: You see “Hello, World!” printed in the terminal every second.

Conclusion

You set up the Pico SDK toolchain on macOS, created a Raspberry Pi Pico W C++ project, built it with CMake, flashed it as a UF2, and verified “Hello, World!” output over USB serial using screen or minicom.
