Servo kit with USB-C Nano, PCA9685 driver, joystick, two MG90S servos with accessories, breadboard and jumper wires.

Nano PCA9685 Joystick Kit with 2 MG90S Servos

Name: Nano PCA9685 Joystick Kit with 2 MG90S Servos
Brand: ShillehTek
SKU: ST-KIT-07
Price: 37.99 USD
Availability: InStock

SKU ST-KIT-07

$37.99 USD $45.69 Shipping & tax calculated at checkout

In stock· Order by 3pm ET and it ships today

Nano and PCA9685 joystick-control kit with two MG90S servos, a KY-023 joystick, breadboard and jumpers. Wiring, firmware and a regulated external servo supply are required; mechanical brackets are not included.

Free Ground Shipping U.S. orders $35+
Ships from USA Worldwide via DHL
30-day returns Free defect replacement
7-day support Fast email replies

Frequently bought together

Nano PCA9685 Joystick Kit with 2 MG90S ServosNo reviews yet $37.99 This item

Three 5x7cm copper prototype PCB boards stacked for Arduino and Pi DIY electronics

5x7cm Copper Prototype PCB Board 3-Pack for Arduino & Pi DIY Electronics ★★★★★ (1) $6.25

Set of ShillehTek 20pcs 1x40 female header pins 2.54mm for Arduino Pi

20pcs 1x40 Female Header Pins 2.54mm for Arduino, Raspberry Pi & ESP32 ★★★★★ (36) $7.50

Total for 3 items

$51.74

Products related to this item

3DOF DIY robot arm kit with metal parts, 3 MG995 servos, and mounting hardware for assembly

No reviews yet3DOF DIY Robot Arm Kit with 3x MG995 Servos $44.99

Super Starter Kit for Arduino Uno R3 with components including LCD, remote, sensors, joystick, and USB cable

No reviews yetSuper Starter Kit for Arduino Uno R3 with Tutorial $34.99

ESP32-CAM 4WD smart robot car kit with WiFi app control and yellow wheels on product packaging

No reviews yetESP32-CAM 4WD Smart Robot Car Kit with WiFi App Control (Battery Not Included) $49.99

Overview

Product Overview

Develop joystick-controlled motion with a Nano ATmega328P, PCA9685 servo driver and two MG90S metal-gear micro servos. Your firmware reads the KY-023 joystick's X/Y inputs and commands the servos for small robotic mechanisms, interactive projects or a pan-tilt build using your own brackets. The pre-soldered Nano has CH340C and USB-C, and the pre-soldered PCA9685 connects over I2C. A 400-point breadboard and 10cm jumpers are included for prototyping. A regulated external servo power supply is required and not included; share ground with the controller and never power servos from GPIO.

Bundle value: Purchased separately, the included component variants total $45.69. This kit is $37.99, saving $7.70.

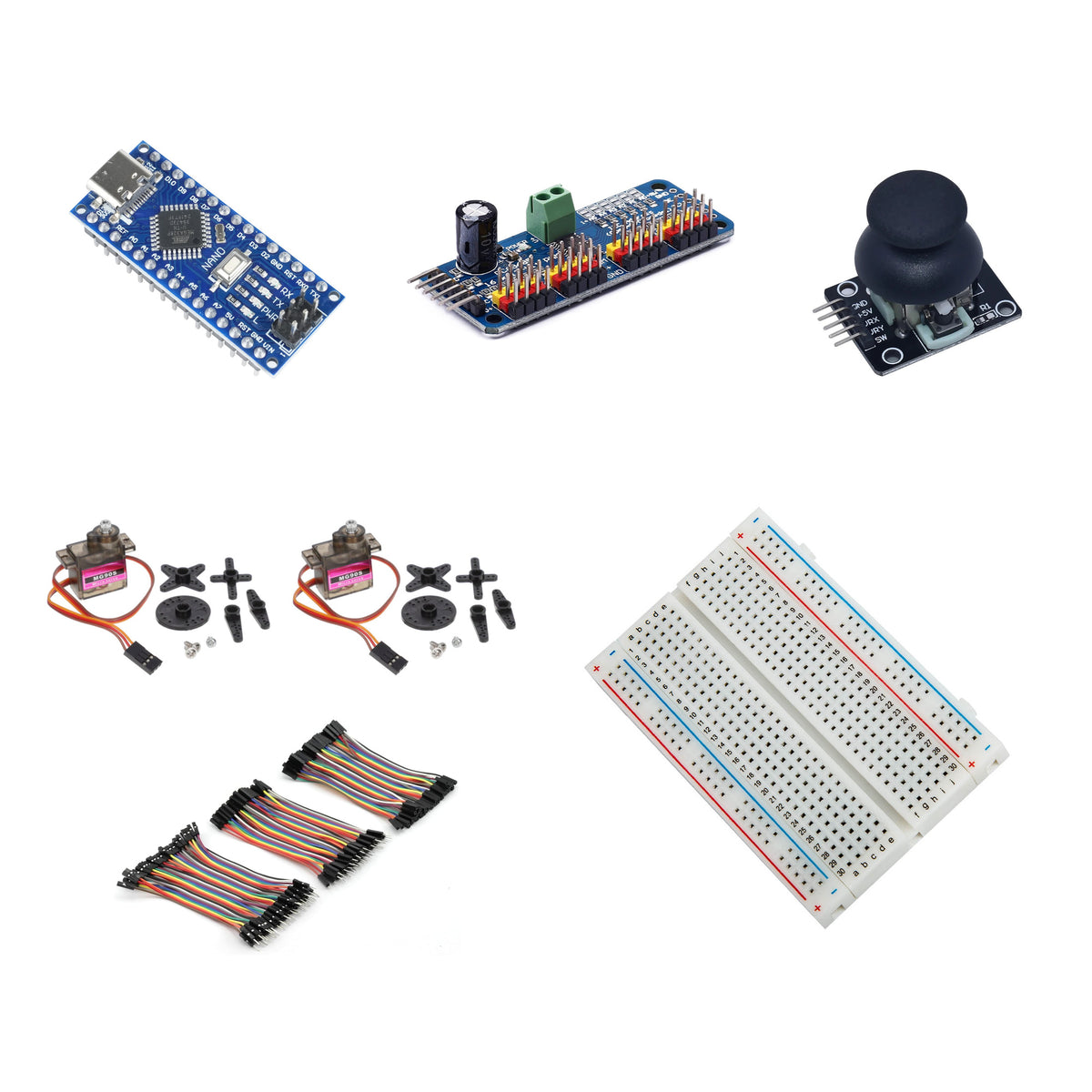

1 × pre-soldered ATmega328P Nano board with CH340C and USB-C
1 × pre-soldered PCA9685 16-channel PWM servo driver
2 × MG90S metal-gear 9g micro servos
1 × KY-023 dual-axis analog joystick module
1 × 400-point solderless breadboard
1 × 120-piece, 10cm jumper wire set

A regulated external servo power supply is required and not included; share ground with the controller. Assembly and your own firmware are required. USB-C data cable, computer, mechanical brackets and enclosure are not included. Do not power the servos from a controller GPIO pin.

Read the kit setup guide for assembly planning, required extras and component references.

Questions & answers

Frequently asked questions

How many servos are included?

The kit includes two MG90S metal-gear 9g micro servos, one KY-023 dual-axis joystick, a pre-soldered USB-C Nano ATmega328P board and a pre-soldered PCA9685 servo driver. A breadboard and jumper wires are also supplied.

Does the 16-channel driver mean 16 servos are included?

No. The PCA9685 has 16 PWM channels, but the bundle contains two servos. Additional channels can be used for your own expansion, with suitable extra servos and power planning.

What power supply do the servos need?

Use a regulated external supply suitable for your servo setup, and share ground with the controller. The servo power supply is not included. Do not power the servos from a controller GPIO pin.

Are pan-tilt brackets or a finished mechanism included?

No mechanical brackets, enclosure or assembled mechanism are included. This is an electronics kit for building your own joystick-controlled motion project.

Is the joystick-to-servo program already installed?

No combined project firmware is supplied. You wire the joystick and driver and write or configure firmware to map joystick input to servo movement. A computer and USB-C data cable are also required.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

Nano ControllerATmega328P Nano with CH340C and USB-C supports Arduino IDE development and common UART, I2C, and SPI modules.

PWM Servo DriverPCA9685 adds 16-channel 12-bit PWM with 4096-step resolution over I2C and keeps logic power separate from external servo power.

Two MG90S ServosTwo MG90S metal-gear 9g micro servos are included for small motion-control projects and your own mechanical assembly.

Joystick InputThe KY-023 dual-axis analog joystick supplies X/Y inputs for your Nano firmware to process.

Assembly and FirmwareYou supply the wiring, firmware and any mechanical brackets. A USB-C data cable, computer and enclosure are not included.

Use CasesDesigned for joystick-controlled pan-tilt builds, small robotic mechanisms, interactive art, and prototyping.

Included HardwareIncludes 1 × pre-soldered ATmega328P Nano board with CH340C and USB-C, 1 × PCA9685 16-channel PWM servo driver, 2 × MG90S servos, 1 × KY-023 joystick module, 1 × 400-point solderless breadboard, and 1 × 120-piece 10cm jumper wire set.

Power RequirementA regulated external servo power supply is required and not included, and servo ground must be shared with the controller.
