Project Overview

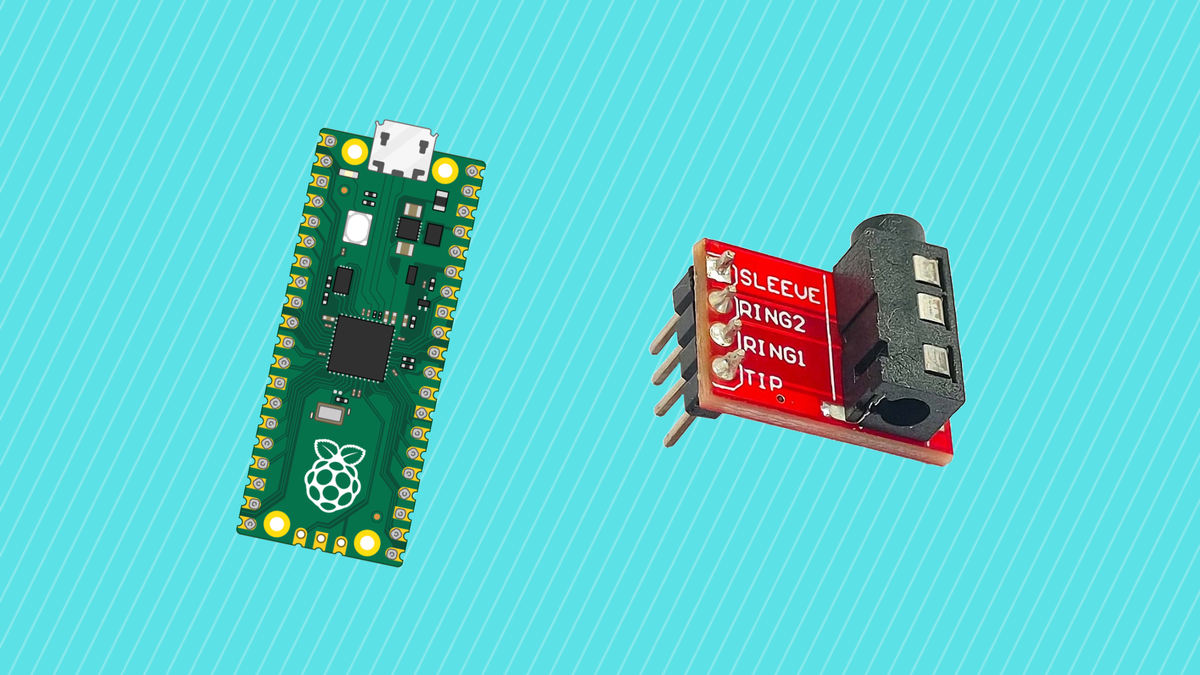

Pico W + 3.5mm TRRS audio jack breakout: In this project you will play a WAV file from a Raspberry Pi Pico W using MicroPython PWM audio and output it to a powered speaker or amplifier input (AUX).

You will convert an audio file on your Mac into a Pico-friendly WAV format, copy it onto the Pico W, then play it through a 3.5mm jack. The script also disables PWM after playback to avoid idle hiss at the end.

• Time: 15 to 30 minutes
• Skill level: Beginner
• What you will build: A Pico W WAV player that shuts off PWM after playback so the ending is quiet (no idle hiss)

Parts List

From ShillehTek

• ShillehTek Pre-Soldered 3.5mm Stereo Audio Jack Breakout Board - clean, reliable 3.5mm audio connection for AUX input devices
• ShillehTek 400-Point Breadboard - quick prototyping without soldering
• ShillehTek 120pcs 10cm Multicolored Jumper Wires - easy wiring between the Pico W and breakout

External

• Raspberry Pi Pico W (MicroPython flashed) - runs the PWM audio playback script
• MacBook - used to convert audio and copy files to the Pico
• Powered speaker, amp, or any AUX input device - required for audible output
• 3.5mm cable - connects the breakout to your speaker or amp
• Recommended: 220 ohm resistor - protects the GPIO and can help reduce pops

Note: This build uses a TRRS (4-conductor) 3.5mm breakout. Ground mapping matters. For the wiring below, use Ring2 as GND (CTIA-style mapping).

Step-by-Step Guide

Step 1 - Wire the Pico W to the 3.5mm TRRS breakout

Goal: Connect one PWM audio output pin and ground from the Pico W to the correct TRRS contacts.

What to do: Your breakout is labeled Sleeve, Ring2, Ring1, Tip. For most TRRS CTIA cables the mapping is:

• Tip = Left audio
• Ring1 = Right audio
• Ring2 = Ground
• Sleeve = Mic

For this build, we only need audio out on one channel:

• Pico GP15 to (optional but recommended 220 ohm resistor) to Tip
• Pico GND to Ring2
• Leave Ring1 and Sleeve disconnected

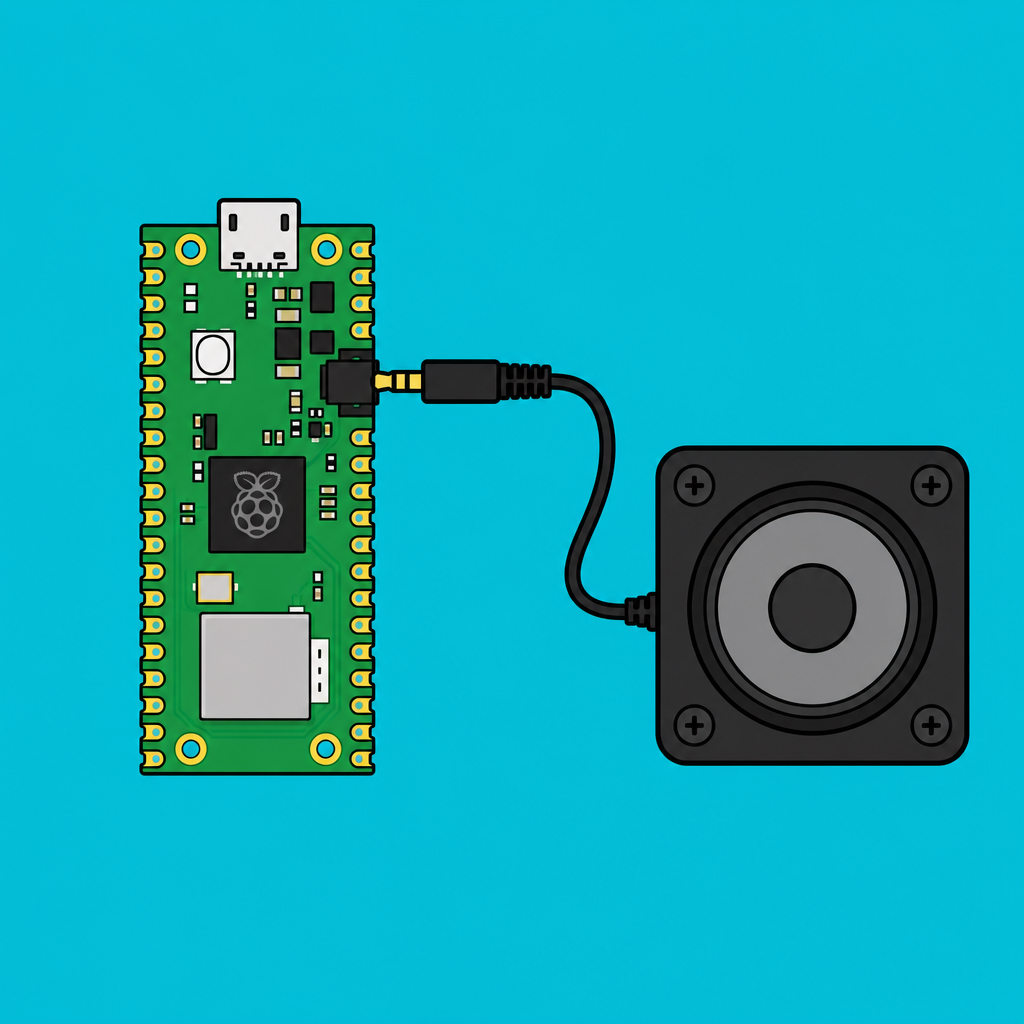

Expected result: Your Pico W is wired to feed a powered speaker or amplifier input using Tip (audio) and Ring2 (ground).

Step 2 - Convert audio on your Mac (ffmpeg)

Goal: Create a WAV file that is easy for the Pico W to stream: PCM, mono, 8-bit unsigned, 8000 Hz.

What to do: Install ffmpeg, then convert your input audio into a Pico-friendly WAV.

Code:

brew install ffmpeg

cd ~/Downloads

# Example input name from this build:
ffmpeg -y -i smb_stage_clear.wav -ac 1 -ar 8000 -acodec pcm_u8 kart.wav

Expected result: You should now have kart.wav in your Downloads folder.

Step 3 - Copy the WAV to the Pico W (mpremote)

Goal: Transfer the WAV file onto the Pico W filesystem so MicroPython can open and stream it.

What to do: Install mpremote, identify your Pico serial port, then copy the file.

Code:

python3 -m pip install --user mpremote

# Find the Pico serial port (usually /dev/cu.usbmodemXXXX)
ls /dev/cu.usb* /dev/tty.usb*

PORT=/dev/cu.usbmodemXXXX

# Copy the WAV to the Pico filesystem
mpremote connect $PORT fs cp ~/Downloads/kart.wav :kart.wav

Expected result: The file kart.wav is stored on the Pico W.

Step 4 - Play the WAV in MicroPython and disable PWM after playback

Goal: Stream the WAV out over PWM and fully shut down PWM at the end to reduce idle hiss.

What to do: Save the following as a MicroPython script (for example, play_wav.py) and run it on the Pico W.

Code:

from machine import Pin, PWM
import time

AUDIO_PIN = 15
SR = 8000

pwm = PWM(Pin(AUDIO_PIN))
pwm.freq(62500)

def play_wav_u8_mono(path="kart.wav", sr=SR, vol=0.20):
    with open(path, "rb") as f:
        hdr = f.read(44)
        if hdr[0:4] != b"RIFF" or hdr[8:12] != b"WAVE":
            raise ValueError("Not WAV")
        fmt = int.from_bytes(hdr[20:22], "little")
        ch = int.from_bytes(hdr[22:24], "little")
        rate = int.from_bytes(hdr[24:28], "little")
        bits = int.from_bytes(hdr[34:36], "little")
        if fmt != 1 or ch != 1 or bits != 8 or rate != sr:
            raise ValueError("Need PCM mono 8-bit 8000Hz")

        us = int(1_000_000 / sr)
        while True:
            chunk = f.read(512)
            if not chunk:
                break
            for b in chunk:
                x = (b - 128) / 128.0
                duty = int((0.5 + 0.5 * vol * x) * 65535)
                pwm.duty_u16(duty)
                time.sleep_us(us)

    pwm.duty_u16(0)

try:
    # Lower this if your speaker is loud
    play_wav_u8_mono("kart.wav", vol=0.18)
finally:
    # Kill PWM so there's no idle hiss/static
    try:
        pwm.duty_u16(0)
    except:
        pass
    pwm.deinit()

    # Force the pin low after PWM releases it (prevents floating noise)
    Pin(AUDIO_PIN, Pin.OUT).value(0)

Expected result: Your WAV plays through the AUX input device, and PWM is shut off afterward to help keep the output quiet when playback ends.

Step 5 - Push and run the script from your Mac (optional)

Goal: Copy the Python script to the Pico W and execute it from your Mac.

What to do: Use mpremote to copy and run the script over USB.

Code:

PORT=/dev/cu.usbmodemXXXX

mpremote connect $PORT fs cp ~/Downloads/play_wav.py :play_wav.py
mpremote connect $PORT run play_wav.py

Expected result: The Pico W runs play_wav.py and plays the audio without needing to manually start it on the device.

Conclusion

You built a Raspberry Pi Pico W audio-out project using a 3.5mm TRRS audio jack breakout, converted a WAV into a Pico-friendly format, and played it with MicroPython PWM. The script also deinitializes PWM and forces the pin low after playback to help prevent idle hiss.
