ESP32 HC-SR04: Telegram door alerts

Project Overview

ESP32 + HC-SR04: Build a door presence alert using an ESP32 and an HC-SR04 ultrasonic sensor that sends a Telegram notification when someone stands near your door.

Time: 30 to 60 minutes
Skill level: Beginner to Intermediate
What you will build: A local door presence detector that sends Telegram messages with cooldown to avoid spam

Parts List

From ShillehTek

Breadboard - quick solderless wiring for prototyping
Jumper wires - connect the sensor and ESP32

External

ESP32 Dev Board (WROOM-based) - the microcontroller that runs the logic and sends Telegram messages
HC-SR04 Ultrasonic Distance Sensor - detects presence at the door
USB Battery Pack (5V, 2A+ recommended) - portable power for door installs
Mounting tape - to mount the sensor at the door
100µF capacitors - optional but recommended for stable Wi-Fi and TLS

Note: This project uses the ESP32 3.3V rail for the HC-SR04 and requires stable power for reliable Wi-Fi and HTTPS. Keep capacitors close to the ESP32 if using battery power.

Step-by-Step Guide

Step 1 - Wire the HC-SR04 to the ESP32

Goal: Power the sensor and connect trigger and echo to the ESP32 so distance measurements work reliably.

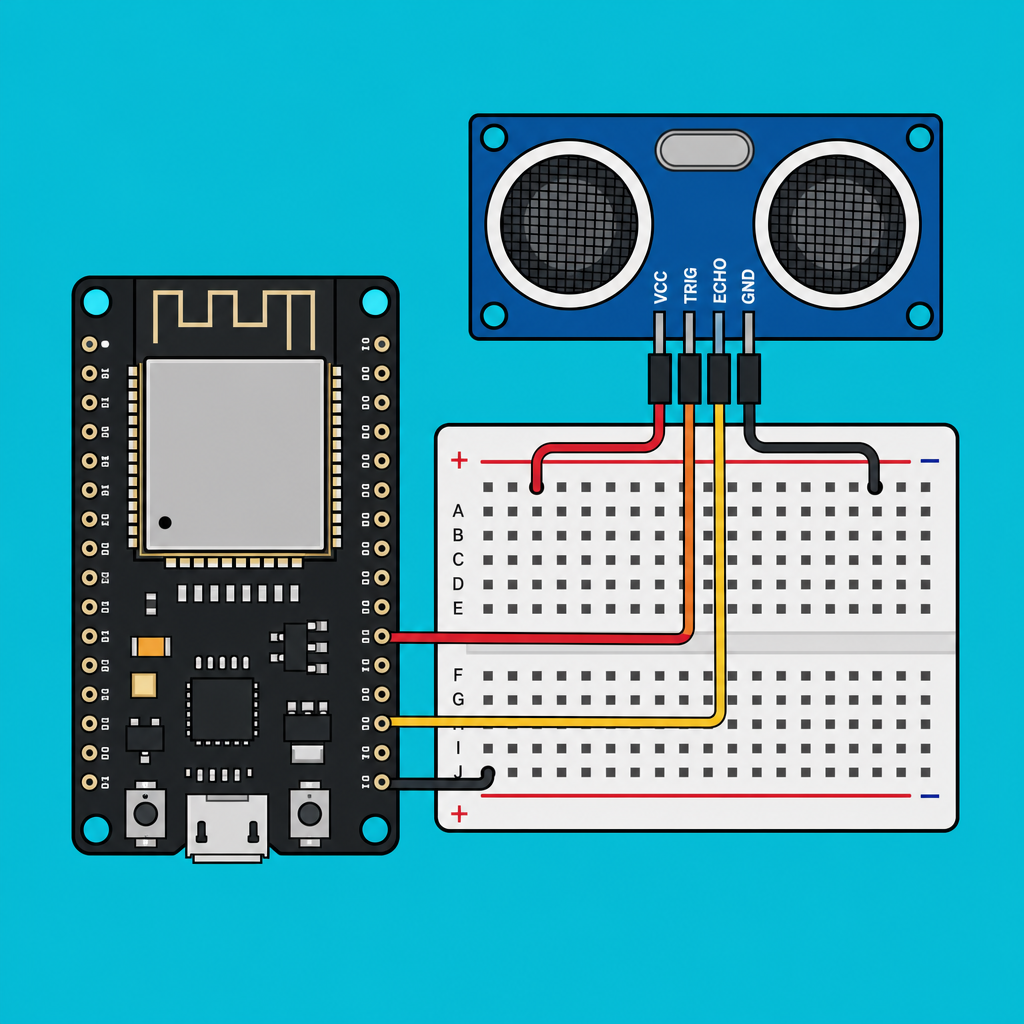

What to do: Wire the HC-SR04 to the ESP32 as shown below. Power the sensor from the ESP32 3.3V rail.

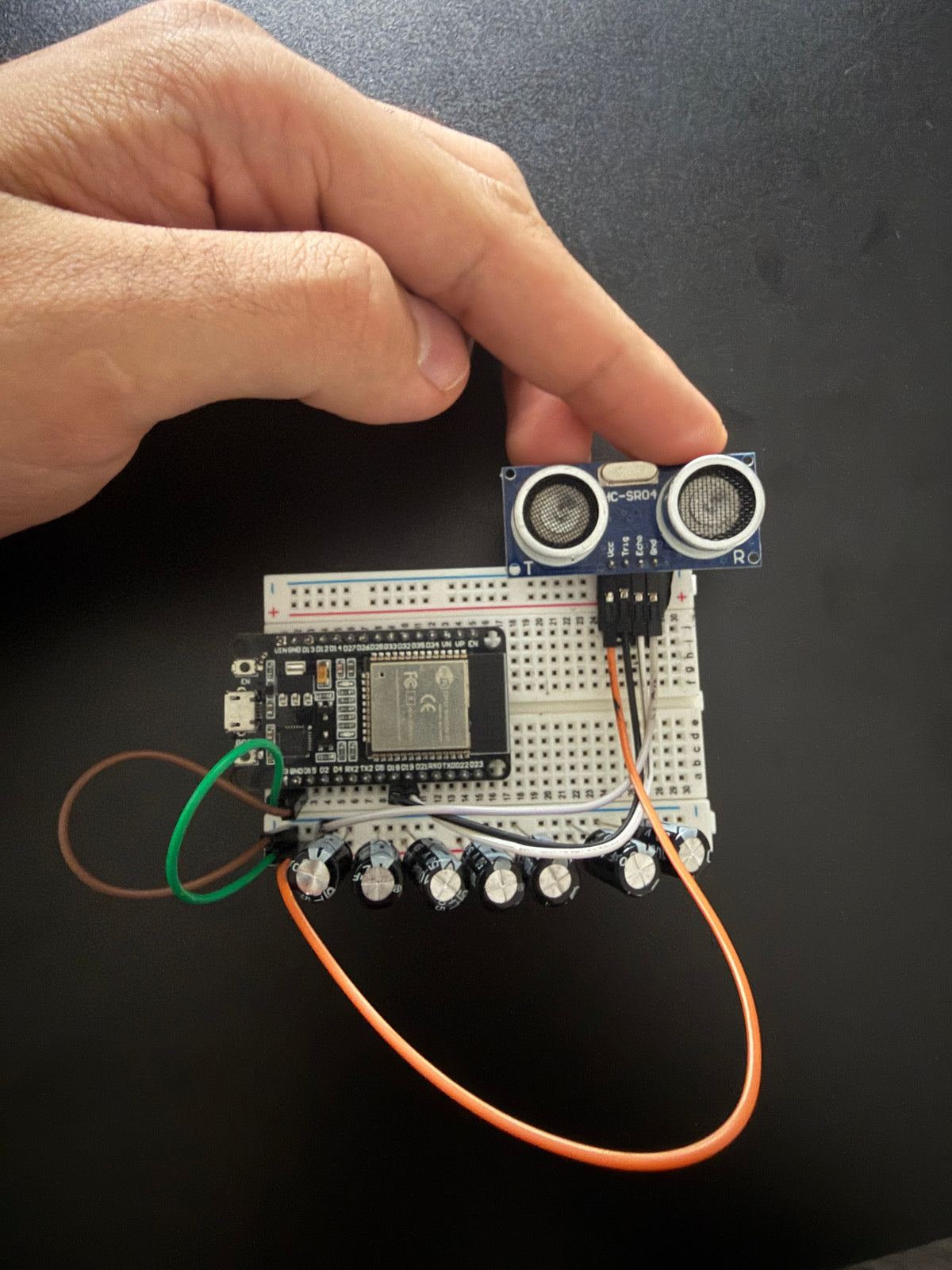

ESP32 WROOM connected to HC-SR04 ultrasonic distance sensor on a breadboard for a Telegram door alert project — ESP32 wired to HC-SR04 on a breadboard for a door alert build.

HC-SR04 to ESP32:

VCC → ESP32 3V3
GND → ESP32 GND
TRIG → ESP32 GPIO18
ECHO → ESP32 GPIO19

Stability tip: Place multiple 100µF capacitors in parallel from 3V3 to GND close to the ESP32 to avoid resets when sending HTTPS to Telegram.

Expected result: The ESP32 and HC-SR04 are powered and the trigger/echo lines are connected to GPIO18/19 so you can read distances from firmware.

Step 2 - Create a Telegram Bot and get your Chat ID

Goal: Let the ESP32 send messages to your phone or group via a Telegram bot.

What to do:

In Telegram, search for @BotFather and send /newbot.
Follow prompts to name the bot and get the bot token.
Message the new bot to start it, then visit this URL in a browser (replace <TOKEN>):

https://api.telegram.org/bot<TOKEN>/getUpdates

Look in the response for "chat":{"id": ... }. That number is your TELEGRAM_CHAT_ID. For group chats add the bot to the group and post a message to capture the group chat ID.

Expected result: You have a bot token and a chat ID to paste into the ESP32 firmware.

Step 3 - Understand the detection logic

Goal: Know the parameters that determine when an alert is sent.

What to do: Tune these three values in firmware:

THRESH_CM - distance threshold in centimeters (example 80 to 100 cm)
HOLD_MS - how long the object must remain within threshold (example 3000 ms)
COOLDOWN_MS - delay before sending another alert (example 30000 ms)

Expected result: False triggers are reduced and you get a single alert when someone stays near the door for the hold time.

Step 4 - Flash the ESP32 firmware (ESP32 + Telegram code)

Goal: Upload code to the ESP32 that measures distance, applies hold and cooldown logic, and sends Telegram messages.

What to do: Replace the empty strings with your Wi-Fi SSID, Wi-Fi password, Telegram bot token, and chat ID before flashing.

#include <WiFi.h>
#include <WiFiClientSecure.h>

// --- Put your secrets here (keep these private) ---
// Replace the empty strings with your own Wi-Fi + Telegram credentials.
const char* WIFI_SSID = "";
const char* WIFI_PASSWORD = "";
const char* TELEGRAM_BOT_TOKEN = "";
const char* TELEGRAM_CHAT_ID = "";

// --- Pins ---
const int ECHO_PIN = 19;
const int TRIG_PIN = 18;

// --- Behavior ---
const int THRESH_CM = 100;                 // 1 meter
const unsigned long HOLD_MS = 3000;        // 3 seconds
const unsigned long COOLDOWN_MS = 30000;   // 30 seconds

unsigned long closeStartMs = 0;
unsigned long lastAlertMs = 0;

String urlEncode(const String& s) {
  String out;
  const char *hex = "0123456789ABCDEF";
  for (size_t i = 0; i < s.length(); i++) {
    char c = s[i];
    if (isalnum((unsigned char)c) || c == '-' || c == '_' || c == '.' || c == '~') out += c;
    else if (c == ' ') out += "%20";
    else {
      out += '%';
      out += hex[(c >> 4) & 0xF];
      out += hex[c & 0xF];
    }
  }
  return out;
}

bool sendTelegram(const String& msg) {
  WiFiClientSecure client;
  client.setInsecure(); // demo: skip cert validation

  String url = "/bot" + String(TELEGRAM_BOT_TOKEN)
             + "/sendMessage?chat_id=" + String(TELEGRAM_CHAT_ID)
             + "&text=" + urlEncode(msg);

  if (!client.connect("api.telegram.org", 443)) {
    Serial.println("Telegram connect failed");
    return false;
  }

  client.print(String("GET ") + url + " HTTP/1.1\r\n"
             + "Host: api.telegram.org\r\n"
             + "Connection: close\r\n\r\n");

  while (client.connected() || client.available()) {
    String line = client.readStringUntil('\n');
    if (line.indexOf("\"ok\":true") >= 0) return true;
  }
  return false;
}

float readDistanceCm() {
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);

  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  unsigned long duration = pulseIn(ECHO_PIN, HIGH, 30000);
  if (duration == 0) return -1;

  return (duration * 0.0343f) / 2.0f;
}

float readDistanceCmFiltered() {
  float a = readDistanceCm();
  delay(30);
  float b = readDistanceCm();
  delay(30);
  float c = readDistanceCm();

  if (a > b) { float t=a; a=b; b=t; }
  if (b > c) { float t=b; b=c; c=t; }
  if (a > b) { float t=a; a=b; b=t; }
  return b;
}

void setup() {
  Serial.begin(115200);

  pinMode(TRIG_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);

  WiFi.mode(WIFI_STA);
  WiFi.setSleep(false);
  btStop();
  WiFi.setTxPower(WIFI_POWER_11dBm);

  WiFi.begin(WIFI_SSID, WIFI_PASSWORD);
  Serial.print("WiFi connecting");
  while (WiFi.status() != WL_CONNECTED) {
    delay(250);
    Serial.print(".");
  }
  Serial.println("\nWiFi connected");

  sendTelegram("✅ Your device is online");
}

void loop() {
  unsigned long now = millis();
  float cm = readDistanceCmFiltered();

  if (cm > 0) {
    bool isClose = (cm <= THRESH_CM);

    if (isClose) {
      if (closeStartMs == 0) closeStartMs = now;

      bool heldLongEnough = (now - closeStartMs) >= HOLD_MS;
      bool cooldownOver = (now - lastAlertMs) >= COOLDOWN_MS;

      if (heldLongEnough && cooldownOver) {
        String msg = "🚪 Someone is near the door: " + String(cm, 1) + " cm";
        bool ok = sendTelegram(msg);
        Serial.println(ok ? "Alert sent" : "Alert failed");

        lastAlertMs = now;
        closeStartMs = 0;
      }
    } else {
      closeStartMs = 0;
    }
  } else {
    closeStartMs = 0;
  }

  delay(120);
}

Expected result: The ESP32 measures distance, detects sustained presence, and sends a Telegram message when the hold and cooldown conditions are met.

Step 5 - Mount the sensor at the door

Goal: Install the sensor where it reliably detects someone standing at the door.

What to do: Mount the HC-SR04 at waist or chest height aimed at where a person naturally stands. Start with these tuning values:

THRESH_CM = 80–100 cm
HOLD_MS = 3000 ms
COOLDOWN_MS = 30000 ms

Expected result: The sensor reliably detects a person at the door and the ESP32 sends only one notification per visit, reducing spam.

Conclusion

You built an ESP32 + HC-SR04 door presence alert that sends Telegram notifications when someone stands near your door. The project uses local logic with hold and cooldown rules to avoid false alarms and spam.
