Project Overview

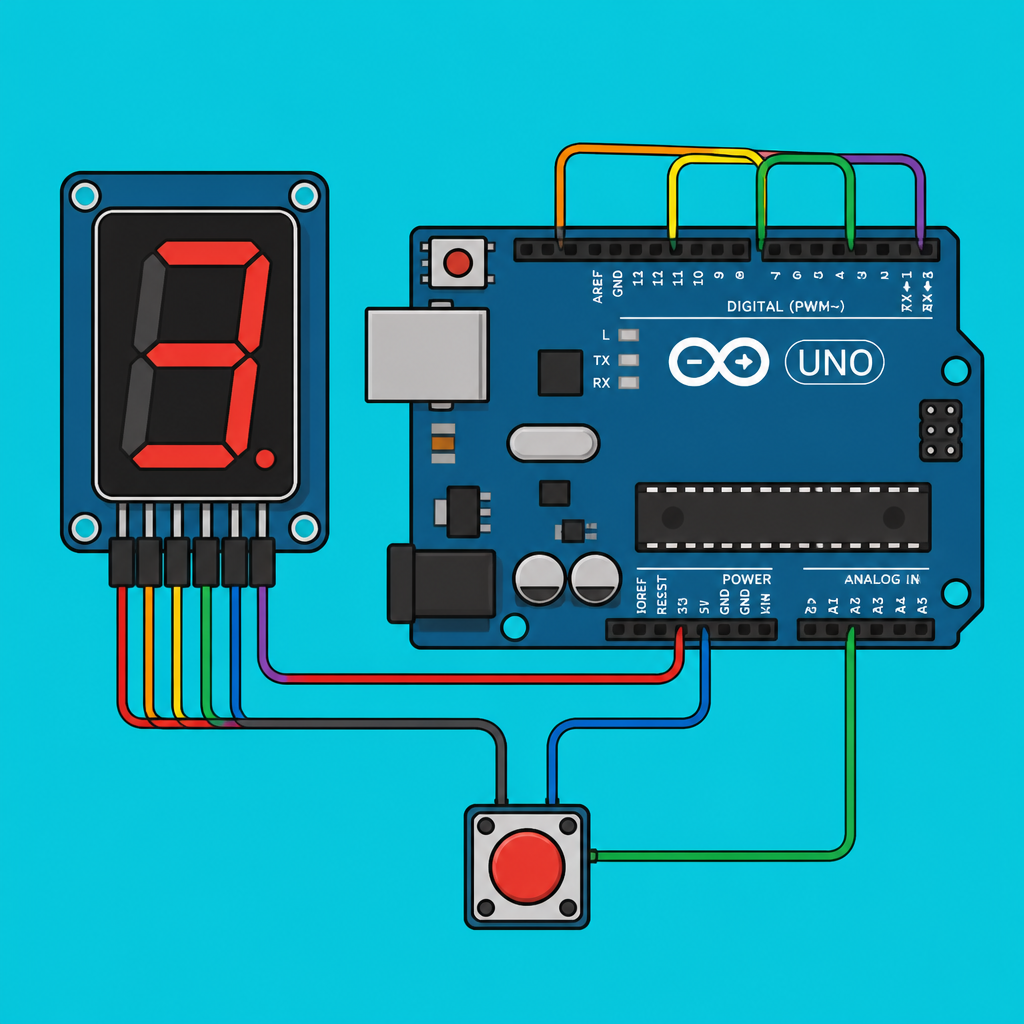

Arduino Uno digital dice with a 7-segment display: Build a press-to-roll electronic die that flickers through numbers and lands on 1 to 6 using random() and a single button. This project teaches you how to drive a 1-digit 7-segment display segment-by-segment and how to seed randomness correctly so your rolls are not predictable after reset.
- Time: ~45 minutes
- Skill level: Beginner
- What you will build: A press-to-roll die that flickers through numbers and lands on 1 to 6 on a 7-segment display you drive segment by segment.
Parts List
From ShillehTek
- Arduino Uno R3 Super Starter Kit - includes the 1-digit 7-segment display and resistors
- Tactile Button Kit - the roll button
- Resistor Kit - 220a9 per segment
- 400-Point Breadboard
- Dupont Jumper Wires
External
- None
Note: A 7-segment digit is just seven LEDs named a to g. Common-cathode: segments light when driven HIGH. Learn one digit here and multi-digit displays are the same idea multiplexed.
Step-by-Step Guide
Step 1 - Wire the Display and Button
Goal: Seven segments, one button.
What to do: Wire segments a to g to Arduino pins D2 to D8 through 220a9 resistors (one resistor per segment). Connect both common-cathode pins on the display to ground. Wire the roll button from D10 to ground and use INPUT_PULLUP. Check your display's datasheet leg map; the middle pins are usually the commons.
Expected result: Every segment is testable with a quick digitalWrite.
Step 2 - Digits as Bit Patterns
Goal: Encode 1 to 6 as segment maps.
What to do: Each number is a pattern of which segments light. Store them in an array of bytes (bit 0 = segment a, bit 6 = segment g) and use one function to display any digit:
Code:
const int segPins[7] = {2, 3, 4, 5, 6, 7, 8}; // a b c d e f g
const int BTN = 10;
// gfedcba
const byte digits[7] = { 0b0000000, // (unused 0)
0b0000110, // 1
0b1011011, // 2
0b1001111, // 3
0b1100110, // 4
0b1101101, // 5
0b1111101 }; // 6
void show(int n) {
for (int s = 0; s < 7; s++)
digitalWrite(segPins[s], bitRead(digits[n], s));
}
void setup() {
for (int s = 0; s < 7; s++) pinMode(segPins[s], OUTPUT);
pinMode(BTN, INPUT_PULLUP);
randomSeed(analogRead(A0)); // floating pin noise = real randomness
show(1);
}
void loop() {
if (digitalRead(BTN) == LOW) {
for (int i = 0; i < 12; i++) { // roll animation
show(random(1, 7));
delay(60 + i * 15); // slowing flicker, casino style
}
show(random(1, 7)); // the actual roll
delay(300);
}
}
Expected result: Press the button; numbers flicker, slow down, and land on your roll.
Step 3 - Seed It Right
Goal: Fair dice, every power-up.
What to do: Without randomSeed(analogRead(A0)), the Arduino rolls the identical sequence after every reset. Reading a floating analog pin harvests electrical noise as a seed.
Expected result: Different rolls after every reset.
Step 4 - House Rules
Goal: Extend the game.
What to do: Two dice? Show two rolls in sequence, or add a second display. D20 for tabletop night? Switch to random(1, 21) with a 2-digit display. Add a buzzer chirp per flicker for the full slot-machine feel; the KY-006 from the melody tutorial drops right in.
Expected result: A gadget that actually gets used on game night.
Conclusion
This Arduino Uno digital dice build combines three fundamentals: driving a 7-segment display with bit patterns, animating with timed loops, and seeding real randomness so the roll is not predictable after reset. Once you can control one digit reliably, scaling to more digits is the same idea with multiplexing.
