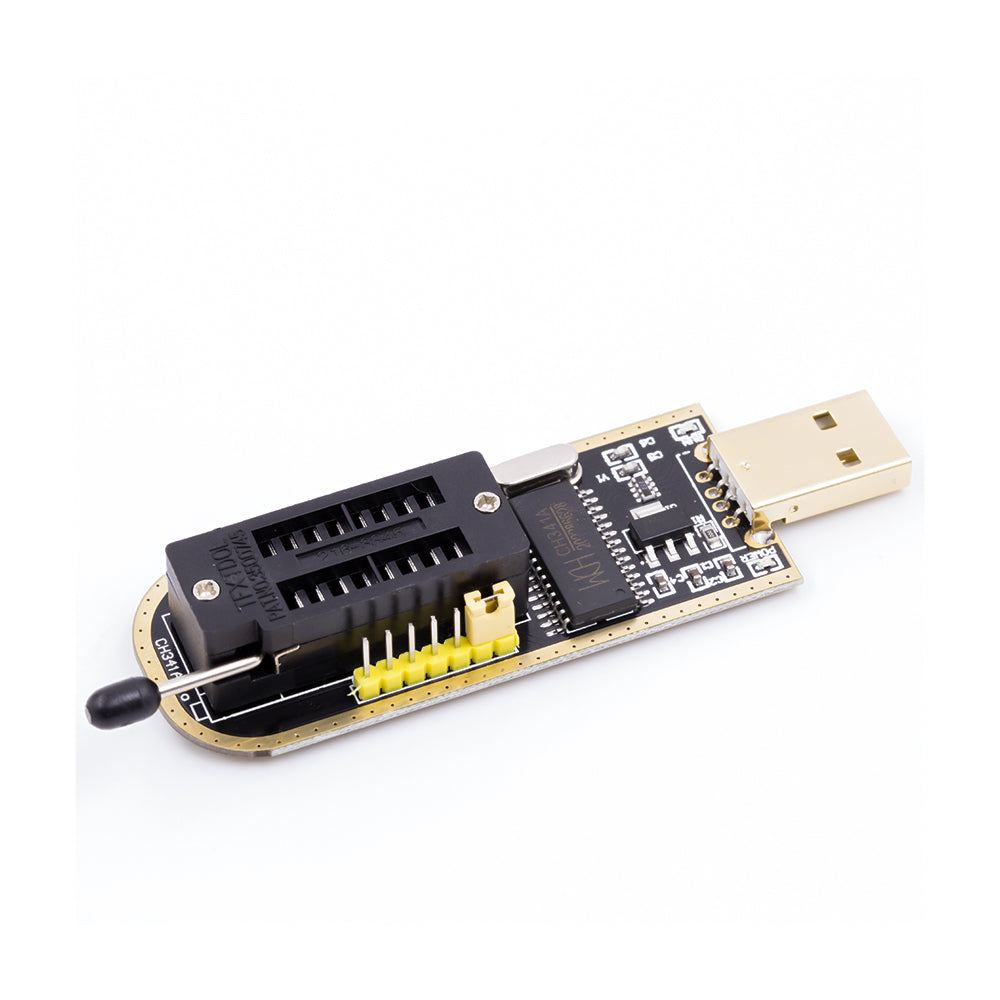

CH341A USB EEPROM and BIOS flash programmer with ZIF socket and gold USB connector for 24/25 series chips

CH341A USB EEPROM & BIOS Flash Programmer (24/25 Series)

SKU ST-4YSA7FDPUEWJ

$9.99 USD Shipping & tax calculated at checkout
In stock· Order by 3pm ET and it ships today

CH341A USB EEPROM & BIOS flash programmer for 24/25 series SPI and I2C memory chips; read, write, erase, and back up firmware for BIOS updates, board repair, routers, GPUs, and prototyping.

  • Free Ground Shipping U.S. orders $35+
  • Ships from USA Worldwide via DHL
  • 30-day returns Free defect replacement
  • 7-day support Fast email replies
Frequently bought together
CH341A USB EEPROM and BIOS flash programmer with ZIF socket and gold USB connector for 24/25 series chips CH341A USB EEPROM & BIOS Flash Programmer (24/25 Series)No reviews yet $9.99 This item
Close-up of TB6612FNG motor driver chip and soldered pins on red PCB for Arduino and ESP32 TB6612FNG Pre-Soldered Dual DC & Stepper Motor Driver Module for Arduino, Raspberry Pi & ESP32No reviews yet $5.99
Close-up of MCP23017 I2C 16-bit I/O port expander showing pins and chip on black PCB MCP23017 Pre-Soldered I2C 16-Bit I/O Port Expander for Arduino, Raspberry Pi & ESP32 ★★★★★ (1) $5.99
MP3-TF-16P mini MP3 player module with TF card slot and pin headers for Arduino and Raspberry Pi MP3-TF-16P Mini MP3 Player Module with TF Card Slot for Arduino & Raspberry PiNo reviews yet $6.99
Total for 4 items
$28.96

Products related to this item

MQ-7 carbon monoxide gas sensor module with blue PCB and metal mesh sensor for Arduino and ESP32
No reviews yetMQ-7 Carbon Monoxide (CO) Gas Sensor Module for Arduino, Raspberry Pi & ESP32 $6.99
Close-up of MCP23017 I2C 16-bit I/O port expander showing pins and chip on black PCB
★★★★★ (1) MCP23017 Pre-Soldered I2C 16-Bit I/O Port Expander for Arduino, Raspberry Pi & ESP32 $5.99
1-channel 5V solid state relay module with blue screw terminals for Arduino Raspberry Pi ESP32
★★★★★ (1) 1-Channel 5V Solid State Relay Module (Low-Level Trigger) for Arduino, Raspberry Pi & ESP32 $5.99
Close-up of TB6612FNG motor driver chip and soldered pins on red PCB for Arduino and ESP32
No reviews yetTB6612FNG Pre-Soldered Dual DC & Stepper Motor Driver Module for Arduino, Raspberry Pi & ESP32 $5.99
ZJ-S201 water flow sensor with G1/2 inch threaded connectors and cable for Arduino Raspberry Pi ESP32
No reviews yetZJ-S201 Water Flow Sensor G1/2" (1-30L/min) for Arduino, Raspberry Pi & ESP32 $8.99
ZMPT101B AC single-phase voltage sensor module with blue transformer and green terminal block for Arduino and ESP32
No reviews yetZMPT101B AC Single-Phase Voltage Sensor Module for Arduino, Raspberry Pi & ESP32 $6.99

Overview

Product Overview

The CH341A is the standard low-cost programmer for serial memory: a WCH CH341A USB 2.0 bridge that speaks SPI, I2C and UART. It reads, writes, erases and verifies 25-series SPI flash (W25Q, MX25, GD25, EN25, S25FL and compatibles up to 128 Mbit / 16 MB) and 24-series I2C EEPROMs (24C01–24C512). Chips drop into the 16-pin ZIF socket, marked for 25XX and 24XX parts, or you clip onto a soldered SOIC-8 through the SPI header for in-circuit work.

On Windows use AsProgrammer or NeoProgrammer; on Linux and Raspberry Pi, flashrom or IMSProg. An AMS1117 3.3 V regulator, a 3.3 V / 5 V power header, power and activity LEDs and a 12 MHz crystal are onboard. For BIOS recovery, router and set-top-box firmware backups, and reprogramming EEPROMs on embedded boards.

Questions & answers

Frequently asked questions

Yes, the CH341A USB EEPROM & BIOS Flash Programmer can be used with a Raspberry Pi, allowing for interfacing with 24/25 series memory chips via SPI and I2C for various electronics projects.
The CH341A programmer is pre-soldered and ready to use. Simply connect it to a USB port on your computer and use compatible software to begin reading, writing, or erasing supported memory chips.
The CH341A programmer utilizes USB for connectivity and supports SPI and I2C protocols, making it versatile for various EEPROM and flash memory programming tasks. This allows for simple interfacing with a wide range of memory devices.
Yes, the CH341A USB EEPROM & BIOS Flash Programmer is ideal for BIOS updates, especially for motherboards and graphics cards, enabling users to recover firmware, update, or restore corrupted BIOS versions efficiently.
Verify your USB connection and install the necessary drivers for the CH341A chip from reliable sources. Ensure that your software can communicate correctly with the device. If issues persist, check your system specifications or seek technical support.

Have other questions?

Chat with our US-based team — we usually reply fast.

What's included

Features & Specs

WCH CH341A bridge USB 2.0 to SPI, I2C and UART in one programmer.

25-series SPI flash W25Q, MX25, GD25, EN25, S25FL and compatibles, up to 128 Mbit (16 MB).

24-series I2C EEPROM 24C01 through 24C512 and compatibles.

16-pin ZIF socket Marked 25XX and 24XX zones, plus an SPI header for an SOIC-8 test clip for in-circuit reads.

Read, write, erase, verify Back up and restore BIOS, router and set-top-box firmware.

Software AsProgrammer and NeoProgrammer on Windows; flashrom and IMSProg on Linux and Raspberry Pi.

Onboard 3.3 V regulator AMS1117 with a 3.3 V / 5 V power header, power and activity LEDs, 12 MHz crystal.

Reference

Documents

Full Product Manual CH341A USB EEPROM & BIOS Flash Programmer (24/25 Series) | ShillehTek Product Manual In-depth setup guide with wiring, code examples, and troubleshooting.

ShillehTek Programmer Datasheet (PDF, preliminary)
